Small Gabion items

Sort By:
View:
  • L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L45cm-D45cm-H45cm-Welded-Gabion-made-in-britain

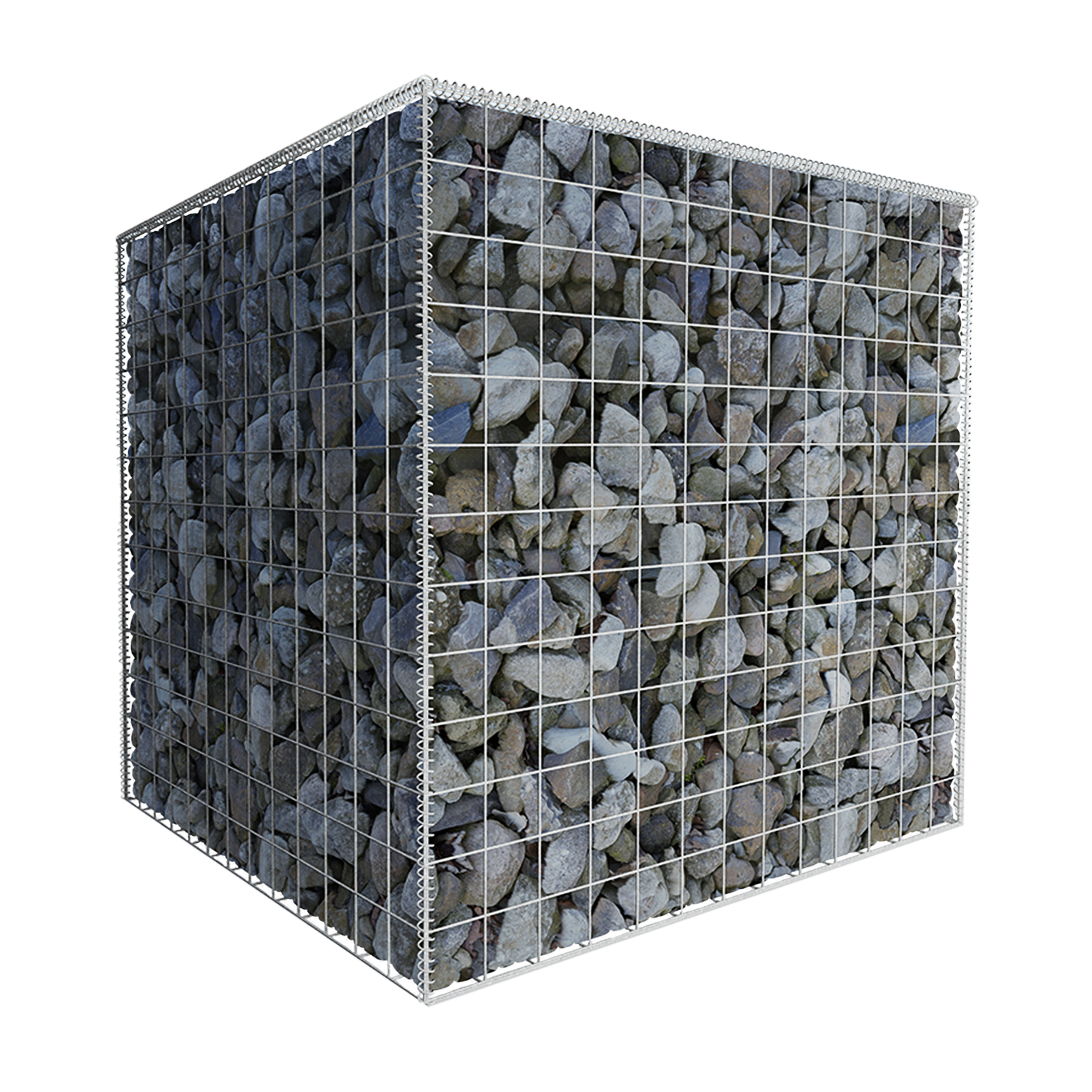

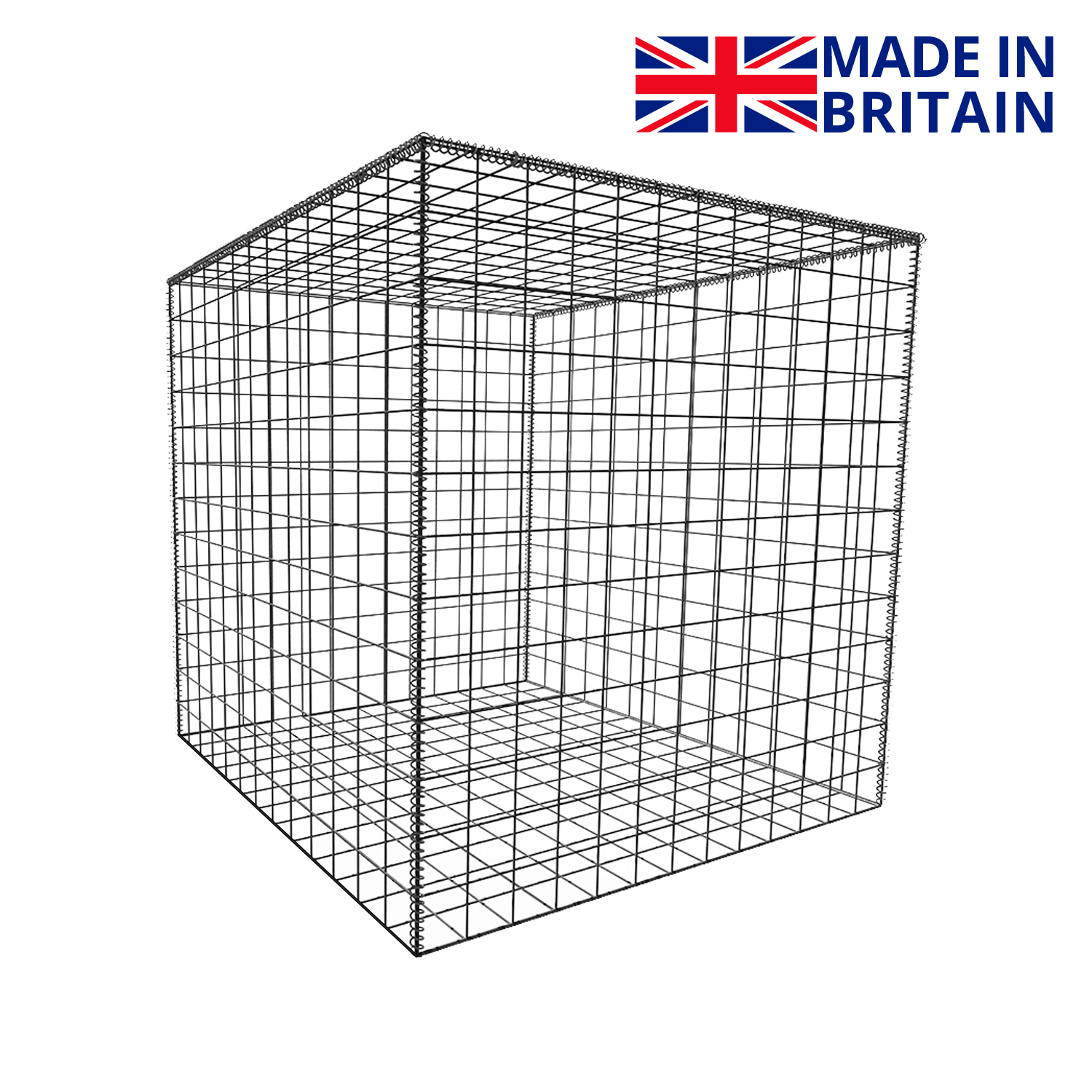

    L45cm x D45cm x H45cm Welded Gabion (3mm dia.)
    £15.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : 0.09m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel CT35 clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 2.1kg
  • L150cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H97.5cm-Welded-Gabion-made-in-britain

    L150cm x D97.5cm x H97.5cm Welded Gabion (3mm dia.)
    £55.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 2570kg
    Bags of Granite Required : x3 (0kg leftover)
    Bags of Limestone Required : x4 (630kg leftover)
    Stone Volume Required : 1.43m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel CT35 clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 12.22kg
  • L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L45cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    L45cm x D45cm x H45cm Welded Gabion (4mm dia.)
    £24.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : 0.09m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 3.44kg
  • L150cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D45cm-H45cm-Welded-Gabion-made-in-britain

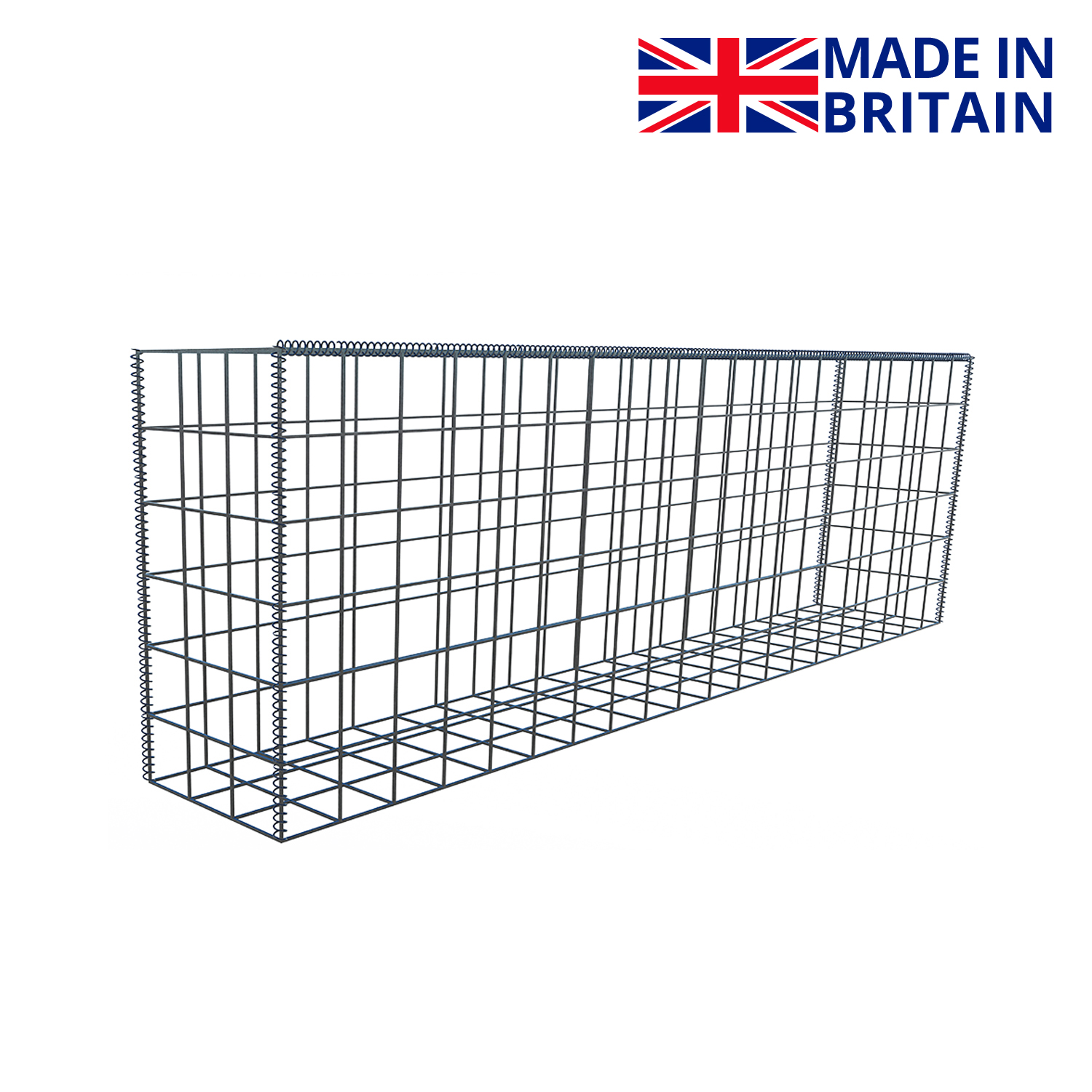

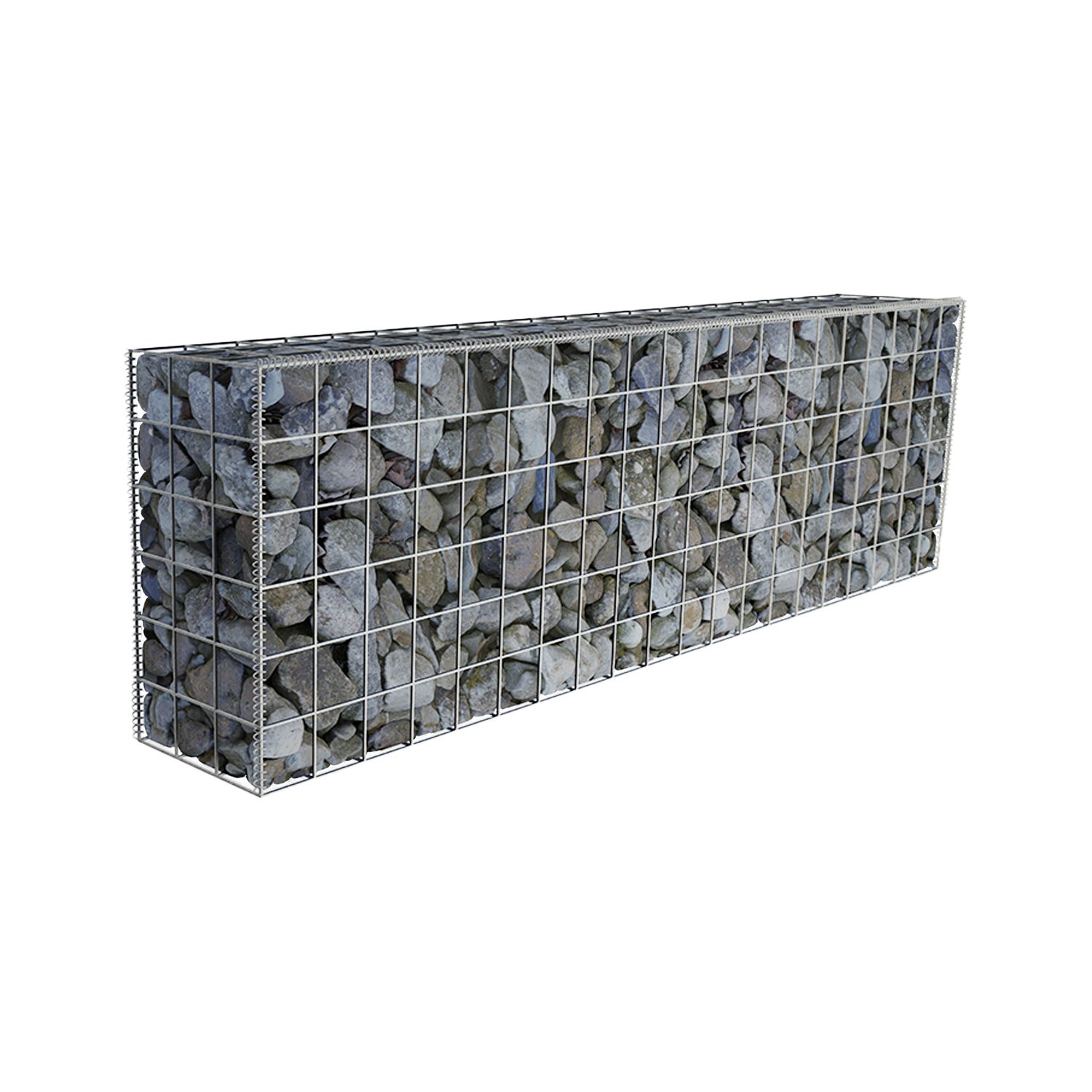

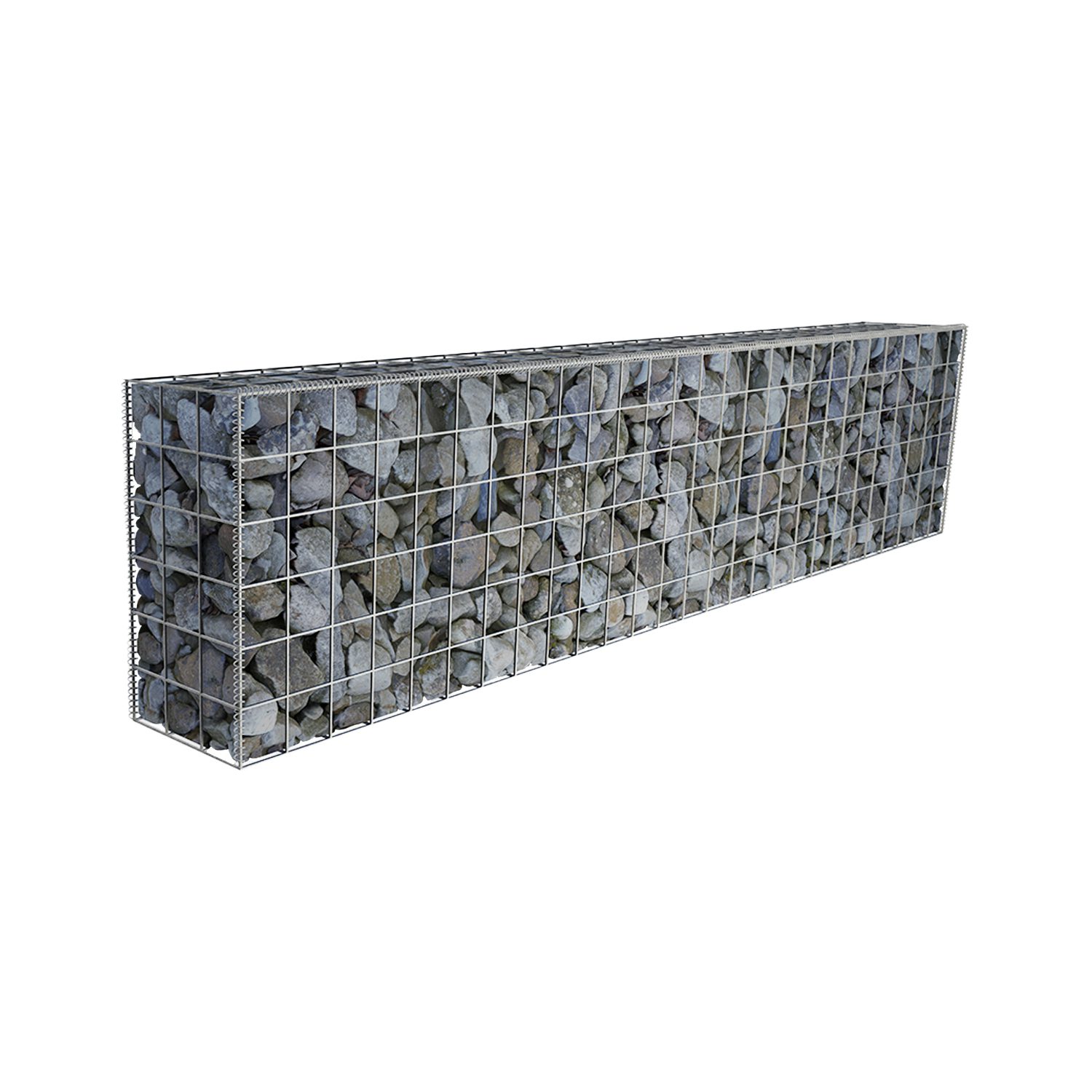

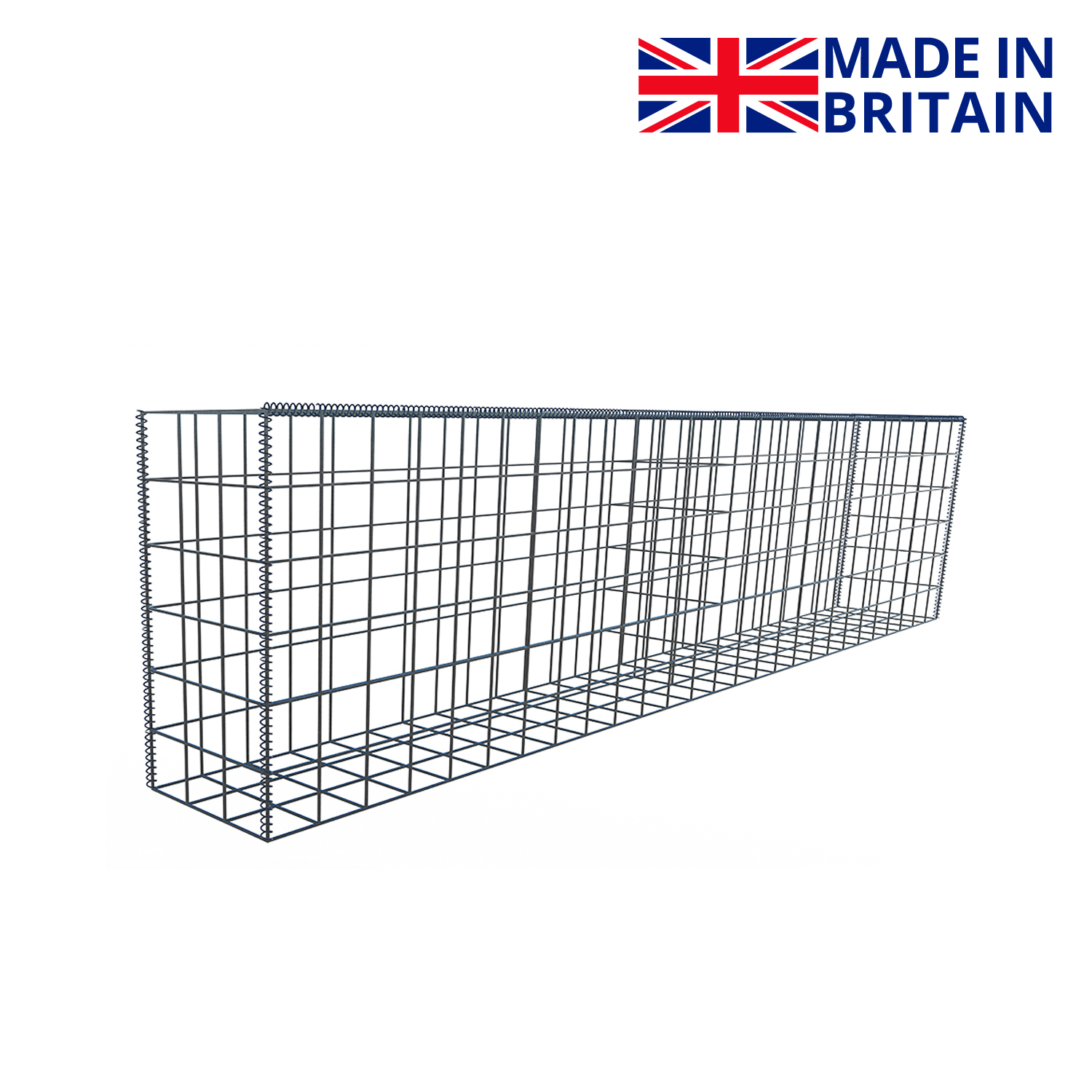

    L150cm x D45cm x H45cm Welded Gabion (4mm dia.)
    £53.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Stone Volume Required : 0.3m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 9.85kg
  • 97.5cm-97.5cm-45cm-Welded-Gabion-diagonal-with-rocks 97.5cm-97.5cm-45cm-Welded-Gabion-made-in-britain

    L97.5cm x D97.5cm x H45cm Welded Gabion (3mm dia.)
    £31.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : 0.42m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel CT35 clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 5.94kg
  • 97.5cm-45cm-45cm-Welded-Gabion-diagonal-with-rocks 97.5cm-45cm-45cm-Welded-Gabion-made-in-britain

    PVC L97.5cm x D45cm x H45cm Welded Gabion (3.2mm dia.)
    £25.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : 0.2m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 2.86kg
  • L202.5cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    L202.5cm x D97.5cm x H45cm Welded Gabion (3mm dia.)
    £56.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1600kg
    Bags of Granite Required : x2 (100kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : 0.89m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel CT35 clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 12.81kg
  • 97.5cm-45cm-45cm-Welded-Gabion-diagonal-with-rocks 97.5cm-45cm-45cm-Welded-Gabion-made-in-britain

    L97.5cm x D45cm x H45cm Welded Gabion (5mm dia.)
    £54.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : 0.2m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 9kg
  • L150cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H97.5cm-Welded-Gabion-made-in-britain

    L150cm x D97.5cm x H97.5cm Welded Gabion (4mm dia.)
    £92.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 2570kg
    Bags of Granite Required : x3 (0kg leftover)
    Bags of Limestone Required : x4 (630kg leftover)
    Stone Volume Required : 1.43m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 21.74kg
  • L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L45cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    L45cm x D45cm x H45cm Welded Gabion (5mm dia.)
    £36.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : 0.09m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 5kg
  • 97.5cm-97.5cm-45cm-Welded-Gabion-diagonal-with-rocks 97.5cm-97.5cm-45cm-Welded-Gabion-made-in-britain

    L97.5cm x D97.5cm x H45cm Welded Gabion (4mm dia.)
    £51.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : 0.42m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 10.54kg
  • L150cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    L150cm x D97.5cm x H45cm Welded Gabion (3mm dia.)
    £43.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1190kg
    Bags of Granite Required : x2 (510kg leftover)
    Bags of Limestone Required : x2 (410kg leftover)
    Stone Volume Required : 0.66m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel CT35 clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 7.52kg
  • 97.5cm-97.5cm-97.5cm-Welded-Gabion-diagonal-with-rocks 97.5cm-97.5cm-97.5cm-Welded-Gabion-made-in-britain

    PVC L97.5cm x D97.5cm x H97.5cm Welded Gabion (3.2mm dia.)
    £55.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : 0.92m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 7.55kg
  • L202.5cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    L202.5cm x D97.5cm x H45cm Welded Gabion (4mm dia.)
    £91.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1600kg
    Bags of Granite Required : x2 (100kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : 0.89m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 20.04kg
  • L202.5cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    L202.5cm x D45cm x H45cm Welded Gabion (5mm dia.)
    £100.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 740kg
    Bags of Granite Required : x1 (110kg leftover)
    Bags of Limestone Required : x1 (60kg leftover)
    Stone Volume Required : 0.41m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 18kg
  • L150cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    L150cm x D45cm x H45cm Welded Gabion (5mm dia.)
    £77.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Stone Volume Required : 0.3m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 13kg
  • 97.5cm-97.5cm-97.5cm-Welded-Gabion-diagonal-with-rocks 97.5cm-97.5cm-97.5cm-Welded-Gabion-made-in-britain

    L97.5cm x D97.5cm x H97.5cm Welded Gabion (5mm dia.)
    £102.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : 0.92m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 24kg
  • L202.5cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    PVC L202.5cm x D45cm x H45cm Welded Gabion (3.2mm dia.)
    £47.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 740kg
    Bags of Granite Required : x1 (110kg leftover)
    Bags of Limestone Required : x1 (60kg leftover)
    Stone Volume Required : 0.41m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 5.63kg
  • L150cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    PVC L150cm x D45cm x H45cm Welded Gabion (3.2mm dia.)
    £35.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Stone Volume Required : 0.3m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 4.11kg
  • L150cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    L150cm x D97.5cm x H45cm Welded Gabion (4mm dia.)
    £72.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1190kg
    Bags of Granite Required : x2 (510kg leftover)
    Bags of Limestone Required : x2 (410kg leftover)
    Stone Volume Required : 0.66m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : No
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 14.57kg
  • L202.5cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks

    L202.5cm x D97.5cm x H97.5cm Welded Gabion (3mm dia / 4mm Face)
    £90.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 3470kg
    Bags of Granite Required : x4 (0kg leftover)
    Bags of Limestone Required : x5 (530kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L202.5cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D97.5cm-H97.5cm-Welded-Gabion-made-in-britain

    PVC L202.5cm x D97.5cm x H97.5cm Welded Gabion (3.2mm dia.)
    £97.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 3470kg
    Bags of Granite Required : x4 (0kg leftover)
    Bags of Limestone Required : x5 (530kg leftover)
    Stone Volume Required : 1.93m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 14.23kg
  • L150cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    L150cm x D97.5cm x H45cm Welded Gabion (5mm dia.)
    £105.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1190kg
    Bags of Granite Required : x2 (510kg leftover)
    Bags of Limestone Required : x2 (410kg leftover)
    Stone Volume Required : 0.66m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 22kg
  • 97.5cm-97.5cm-97.5cm-Welded-Gabion-diagonal-with-rocks

    L97.5cm x D97.5cm x H97.5cm Welded Gabion (3mm dia / 4mm Face)
    £53.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L202.5cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks

    L202.5cm x D45cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £46.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 740kg
    Bags of Granite Required : x1 (110kg leftover)
    Bags of Limestone Required : x1 (60kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • 97.5cm-45cm-45cm-Welded-Gabion-diagonal-with-rocks

    L97.5cm x D45cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £29.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks L45cm-D45cm-H45cm-Welded-Gabion-made-in-britain

    PVC L45cm x D45cm x H45cm Welded Gabion (3.2mm dia.)
    £16.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : 0.09m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 2kg
  • 97.5cm-97.5cm-45cm-Welded-Gabion-diagonal-with-rocks 97.5cm-97.5cm-45cm-Welded-Gabion-made-in-britain

    PVC L97.5cm x D97.5cm x H45cm Welded Gabion (3.2mm dia.)
    £38.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : 0.42m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 4.84kg
  • L150cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H97.5cm-Welded-Gabion-made-in-britain

    PVC L150cm x D97.5cm x H97.5cm Welded Gabion (3.2mm dia.)
    £72.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 2570kg
    Bags of Granite Required : x3 (0kg leftover)
    Bags of Limestone Required : x4 (630kg leftover)
    Stone Volume Required : 1.43m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 10.26kg
  • L150cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L150cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    PVC L150cm x D97.5cm x H45cm Welded Gabion (3.2mm dia.)
    £52.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1190kg
    Bags of Granite Required : x2 (510kg leftover)
    Bags of Limestone Required : x2 (410kg leftover)
    Stone Volume Required : 0.66m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 6.82kg
  • L150cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks

    L150cm x D97.5cm x H97.5cm Welded Gabion (3mm dia / 4mm Face)
    £68.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 2570kg
    Bags of Granite Required : x3 (0kg leftover)
    Bags of Limestone Required : x4 (630kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L202.5cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks L202.5cm-D97.5cm-H45cm-Welded-Gabion-made-in-britain

    PVC L202.5cm x D97.5cm x H45cm Welded Gabion (3.2mm dia.)
    £70.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : PVC coated
    Wire Diameter (Gauge) : 3.2mm (10g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Not required
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-120 years
    Can Withstand Salt Water : Yes
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1600kg
    Bags of Granite Required : x2 (100kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : 0.89m3
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    PVC Coating Standard : Yes - conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : No
    Public Leisure Areas : No
    Cladding (Up to 4m) : No
    Cladding (Over 4m) : No
    Erosion Control : Yes
    River Beds : No
    Sea Defence : Yes
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Stainless steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
    Weight : 9.38kg
  • 202.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L202.5cm x D22.5cm x H45cm Gabion Cladding Kit (5mm dia.)
    £107.47 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 380kg
    Bags of Granite Required : x1 (470kg leftover)
    Bags of Limestone Required : x1 (420kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 18.68kg
  • L202.5cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks

    L202.5cm x D97.5cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £61.99 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : Yes x1
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1600kg
    Bags of Granite Required : x2 (100kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L150cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks

    L150cm x D45cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £38.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D97.5cm x H97.5cm Gabion Wall Kit (4mm dia.)
    £78.33 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • 97.5cm-97.5cm-45cm-Welded-Gabion-diagonal-with-rocks

    L97.5cm x D97.5cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £37.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L97.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D45cm x H45cm Gabion Wall Kit (4mm dia.)
    £42.47 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L150cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks

    L150cm x D97.5cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £49.99 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1190kg
    Bags of Granite Required : x2 (510kg leftover)
    Bags of Limestone Required : x2 (410kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • 45cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L45cm x D30cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £44.09 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 7.49kg
  • 202.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-britain

    L202.5cm x D22.5cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £101.71 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 560kg
    Bags of Granite Required : x1 (290kg leftover)
    Bags of Limestone Required : x1 (240kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 21.06kg
  • L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D97.5cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £114.33 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L97.5cm-x-D45cm-x-H97.5cm-Welded-Gabion L97.5cm-x-D45cm-x-H97.5cm-Welded-Gabion

    L97.5cm x D45cm x H97.5cm Welded Gabion (5mm dia.)
    £76.99 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • 97.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-uk

    L97.5cm x D22.5cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £60.09 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 270kg
    Bags of Granite Required : x1 (580kg leftover)
    Bags of Limestone Required : x1 (530kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 11.39kg
  • L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks

    L45cm x D45cm x H45cm Welded Gabion (3mm dia / 4mm Face)
    £22.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 3mm (10g) - 4mm Face
    Face Panel Wire Diameter : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Not recommended
    Can Be Sat On : Not recommended
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Not recommended
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • 150cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L150cm x D22.5cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £82.71 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 410kg
    Bags of Granite Required : x1 (440kg leftover)
    Bags of Limestone Required : x1 (390kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 15.59kg
  • 45cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L45cm x D22.5cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £44.09 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 130kg
    Bags of Granite Required : x1 (720kg leftover)
    Bags of Limestone Required : x1 (670kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 7.49kg
  • 97.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding

    L97.5cm x D22.5cm x H45cm Gabion Cladding Kit (4mm dia.)
    £40.85 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 180kg
    Bags of Granite Required : x1 (670kg leftover)
    Bags of Limestone Required : x1 (620kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 7.15kg
  • L45cm-x-D45cm-x-H97.5cm-Welded-Gabion-(4mm-dia.)-&-(5mm-dia.) L45cm-x-D45cm-x-H97.5cm-Welded-Gabion

    L45cm x D45cm x H97.5cm Welded Gabion (4mm dia.)
    £35.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • 202.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L202.5cm x D30cm x H45cm Gabion Cladding Kit (4mm dia.)
    £73.47 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 490kg
    Bags of Granite Required : x1 (360kg leftover)
    Bags of Limestone Required : x1 (310kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 12.71kg
  • 150cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L150cm x D30cm x H45cm Gabion Cladding Kit (4mm dia.)
    £60.47 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 10.53kg
  • 150cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L150cm x D22.5cm x H45cm Gabion Cladding Kit (4mm dia.)
    £60.47 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 270kg
    Bags of Granite Required : x1 (580kg leftover)
    Bags of Limestone Required : x1 (530kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 10.53kg
  • L195cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L195cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L195cm x D45cm x H45cm Gabion Wall Kit (4mm dia.)
    £83.32 inc. VAT
    Add to cart
    Length : L195cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • 45cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-square

    L45cm x D30cm x H45cm Gabion Cladding Kit (4mm dia.)
    £29.85 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 110kg
    Bags of Granite Required : x1 (740kg leftover)
    Bags of Limestone Required : x1 (690kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 3.95kg
  • 150cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L150cm x D30cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £82.71 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 15.59kg
  • 45cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-square

    L45cm x D22.5cm x H45cm Gabion Cladding Kit (4mm dia.)
    £29.85 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 90kg
    Bags of Granite Required : x1 (760kg leftover)
    Bags of Limestone Required : x1 (710kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 3.95kg
  • L97.5cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D97.5cm x H45cm Gabion Wall Kit (4mm dia.)
    £60.09 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 11.39kg
  • L390cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L390cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L390cm x D45cm x H45cm Gabion Wall Kit (4mm dia.)
    £163.40 inc. VAT
    Add to cart
    Length : L390cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L292.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L292.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L292.5cm x D45cm x H45cm Gabion Wall Kit (5mm dia.)
    £179.55 inc. VAT
    Add to cart
    Length : L292.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L195cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L195cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L195cm x D45cm x H45cm Gabion Wall Kit (5mm dia.)
    £121.32 inc. VAT
    Add to cart
    Length : L195cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L97.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D45cm x H45cm Gabion Wall Kit (5mm dia.)
    £61.47 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • 150cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L150cm x D30cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £115.71 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 540kg
    Bags of Granite Required : x1 (310kg leftover)
    Bags of Limestone Required : x1 (260kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 23.02kg
  • 97.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding

    L97.5cm x D30cm x H45cm Gabion Cladding Kit (4mm dia.)
    £40.85 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 230kg
    Bags of Granite Required : x1 (620kg leftover)
    Bags of Limestone Required : x1 (570kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 7.15kg
  • 97.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding

    L97.5cm x D22.5cm x H45cm Gabion Cladding Kit (5mm dia.)
    £59.85 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 180kg
    Bags of Granite Required : x1 (670kg leftover)
    Bags of Limestone Required : x1 (620kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 9.51kg
  • L45cm-x-D45cm-x-H97.5cm-Welded-Gabion-(4mm-dia.)-&-(5mm-dia.) L45cm-x-D45cm-x-H97.5cm-Welded-Gabion

    L45cm x D45cm x H97.5cm Welded Gabion (5mm dia.)
    £54.99 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C4
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Rigid & hard to bend
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : No
    Can Fill with Rounded Rock? : Yes
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : x2
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Not recommended
    Freestanding Wall : Not recommended
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Suggested Accessories : Helicals for connecting corners and corner ties to help prevent bulging
  • L97.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £86.71 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L195cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L195cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L195cm x D97.5cm x H45cm Gabion Wall Kit (4mm dia.)
    £116.94 inc. VAT
    Add to cart
    Length : L195cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L97.5cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D97.5cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D97.5cm x H45cm Gabion Wall Kit (5mm dia.)
    £85.09 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 97.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 770kg
    Bags of Granite Required : x1 (80kg leftover)
    Bags of Limestone Required : x1 (30kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 15.85kg
  • L292.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-with-rocks L292.5cm-D45cm-H45cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L292.5cm x D45cm x H45cm Gabion Wall Kit (4mm dia.)
    £122.55 inc. VAT
    Add to cart
    Length : L292.5cm
    Depth : 45cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • 202.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-britain

    L202.5cm x D30cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £101.71 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 740kg
    Bags of Granite Required : x1 (110kg leftover)
    Bags of Limestone Required : x1 (60kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 21.06kg
  • 97.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-uk

    L97.5cm x D30cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £85.09 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 15.85kg
  • 97.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-uk

    L97.5cm x D30cm x H67.5cm Gabion Cladding Kit (4mm dia.)
    £60.09 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 11.39kg
  • 45cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L45cm x D30cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £63.09 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 30cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 160kg
    Bags of Granite Required : x1 (690kg leftover)
    Bags of Limestone Required : x1 (640kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 9.85kg
  • 150cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L150cm x D22.5cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £115.71 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 410kg
    Bags of Granite Required : x1 (440kg leftover)
    Bags of Limestone Required : x1 (390kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 23.02kg
  • 97.5cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-uk

    L97.5cm x D22.5cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £85.09 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 270kg
    Bags of Granite Required : x1 (580kg leftover)
    Bags of Limestone Required : x1 (530kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 15.85kg
  • 45cm-long-67.5cm-high-gabion-cladding-filled-with-rocks gabion-cladding-made-in-uk

    L45cm x D22.5cm x H67.5cm Gabion Cladding Kit (5mm dia.)
    £63.09 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 22.5cm
    Height : 67.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 130kg
    Bags of Granite Required : x1 (720kg leftover)
    Bags of Limestone Required : x1 (670kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 9.85kg
  • 202.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L202.5cm x D30cm x H45cm Gabion Cladding Kit (5mm dia.)
    £107.47 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 490kg
    Bags of Granite Required : x1 (360kg leftover)
    Bags of Limestone Required : x1 (310kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 18.68kg
  • 150cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L150cm x D30cm x H45cm Gabion Cladding Kit (5mm dia.)
    £84.47 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 360kg
    Bags of Granite Required : x1 (490kg leftover)
    Bags of Limestone Required : x1 (440kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 13.68kg
  • 97.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding

    L97.5cm x D30cm x H45cm Gabion Cladding Kit (5mm dia.)
    £59.85 inc. VAT
    Add to basket
    Length : 97.5cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 230kg
    Bags of Granite Required : x1 (620kg leftover)
    Bags of Limestone Required : x1 (570kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 9.51kg
  • 45cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-square

    L45cm x D30cm x H45cm Gabion Cladding Kit (5mm dia.)
    £41.85 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 30cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 110kg
    Bags of Granite Required : x1 (740kg leftover)
    Bags of Limestone Required : x1 (690kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 5.51kg
  • 202.5cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L202.5cm x D22.5cm x H45cm Gabion Cladding Kit (4mm dia.)
    £73.47 inc. VAT
    Add to basket
    Length : 202.5cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 4mm (8g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : Up to 50 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 380kg
    Bags of Granite Required : x1 (470kg leftover)
    Bags of Limestone Required : x1 (420kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Not recommended
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Not recommended
    Erosion Control : Yes
    River Beds : No
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 12.71kg
  • 150cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-britain

    L150cm x D22.5cm x H45cm Gabion Cladding Kit (5mm dia.)
    £84.47 inc. VAT
    Add to basket
    Length : 150cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 270kg
    Bags of Granite Required : x1 (580kg leftover)
    Bags of Limestone Required : x1 (530kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 13.68kg
  • 45cm-long-45cm-high-gabion-cladding-filled-with-rocks gabion-cladding-square

    L45cm x D22.5cm x H45cm Gabion Cladding Kit (5mm dia.)
    £41.85 inc. VAT
    Add to basket
    Length : 45cm
    Depth : 22.5cm
    Height : 45cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 90kg
    Bags of Granite Required : x1 (760kg leftover)
    Bags of Limestone Required : x1 (710kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : Yes
    Retaining Wall (Over 5m) : Yes
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    Weight : 5.51kg
Live Chat
(Mon - Fri / 9:00 AM - 4:00 PM)
See In TV
Payments

Blog | Shop | About | Contact

Privacy Policy | Terms & Conditions

Wire Fence is part of the Super Magic Bean group - VAT Registered: 344 7643 83 - Company Registration No: 11290483
