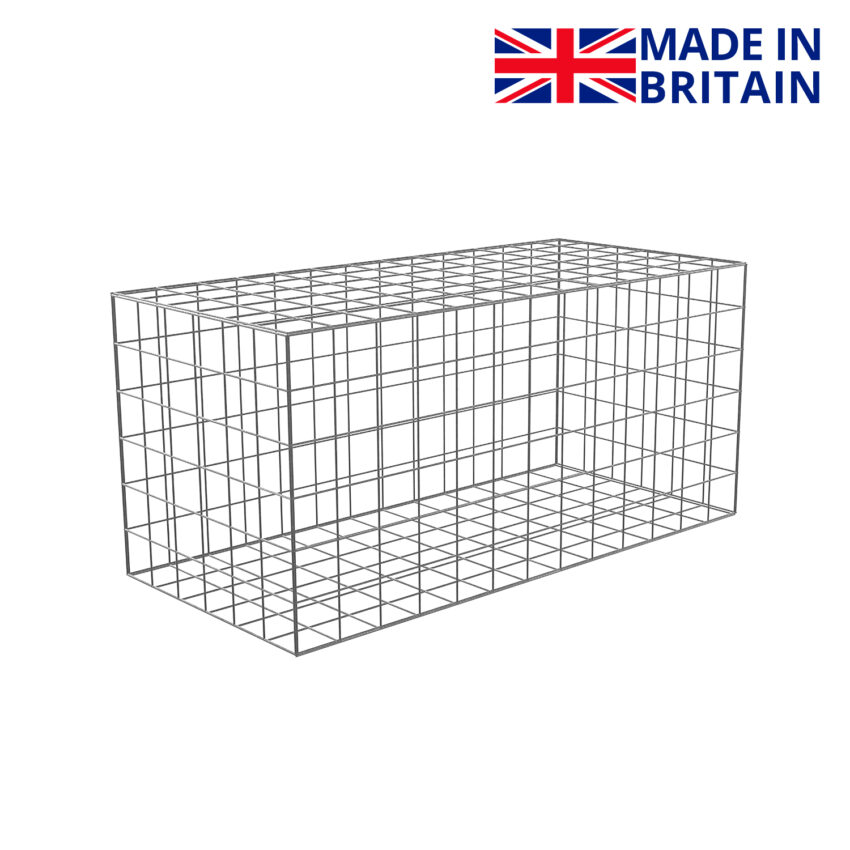

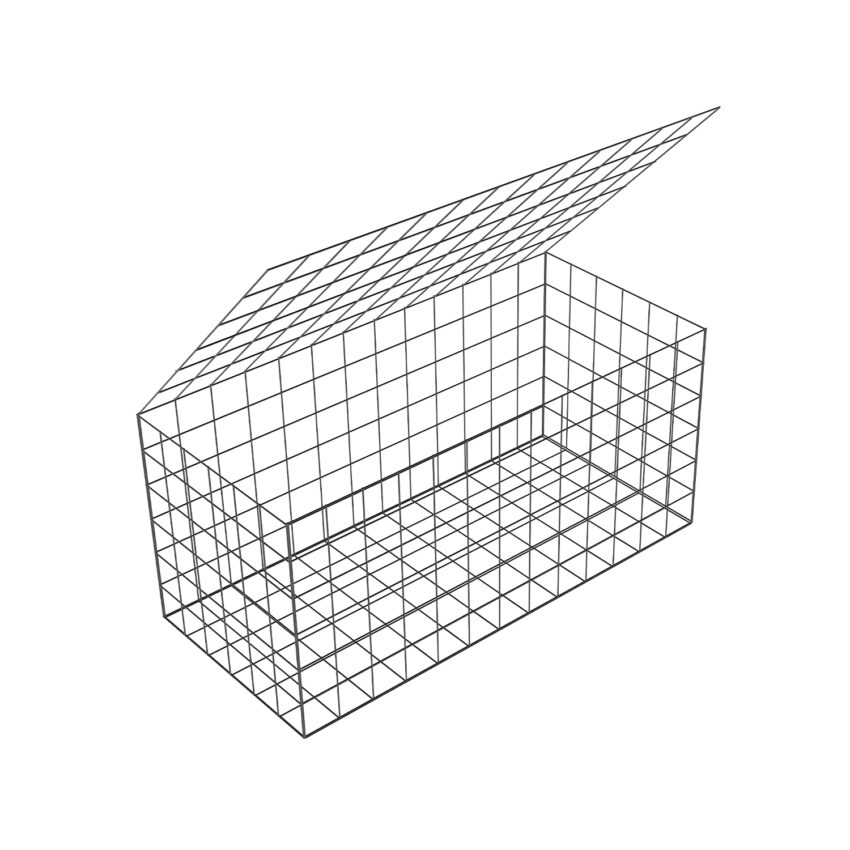

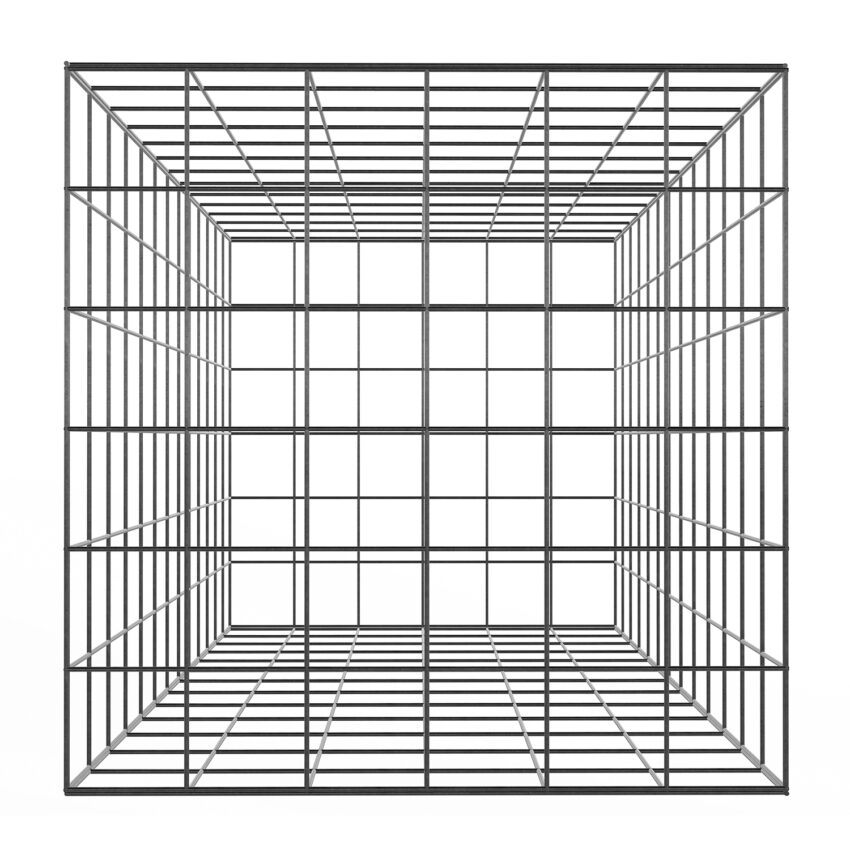

PVC L97.5cm x D45cm x H45cm Welded Gabion (4.3mm dia.)
£51.99 inc. VAT

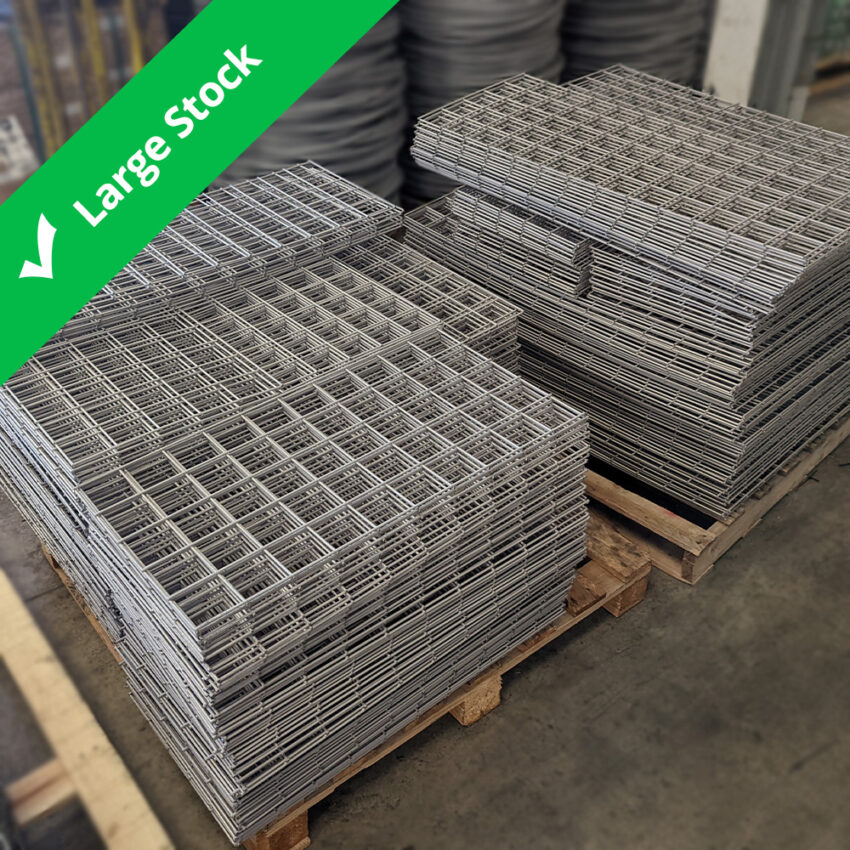

In Stock| Quantity | Price |
|---|---|
| 10 - 29 | £50.43 |
| 30 - 59 | £48.87 |
| 60 - 99 | £47.31 |
| 100 - 299 | £44.19 |
| 300 - 10000 | £42.63 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
Frequently bought together
Select items from the list below to add them to your basket.
âž•
âž•
âž•
âž•
âž•
=
Total price
£261.43 inc. VAT

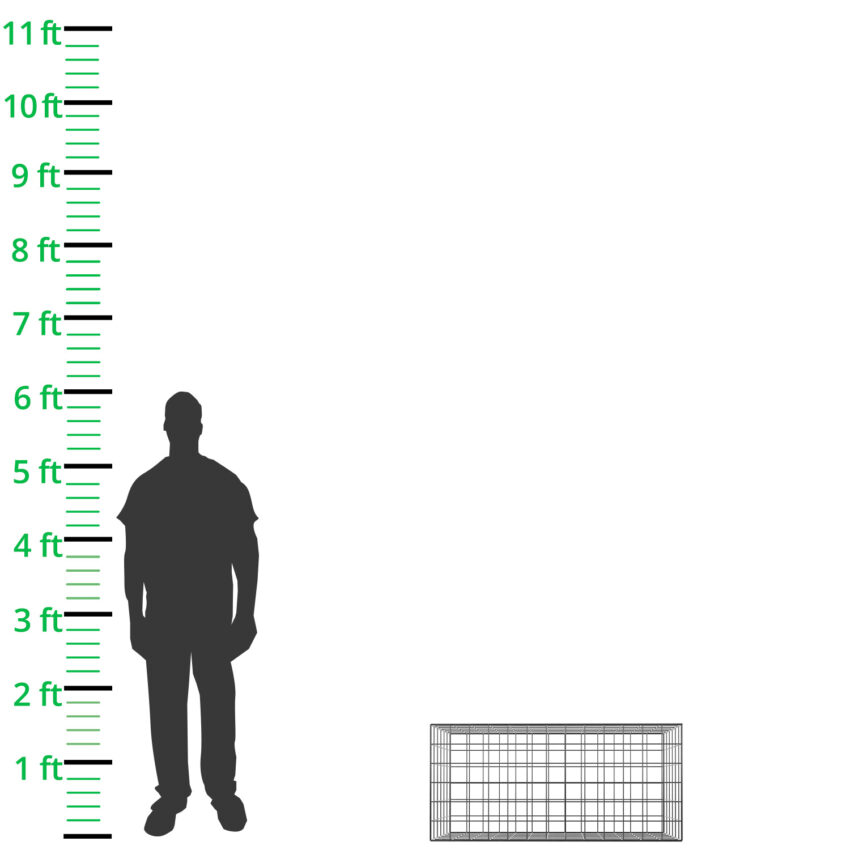

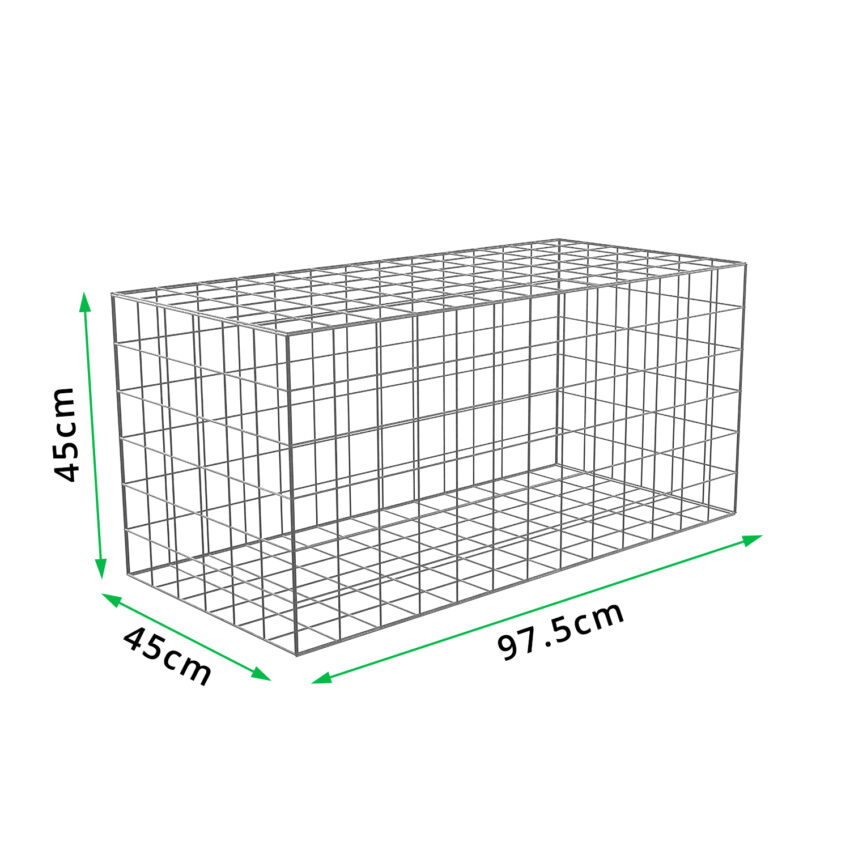

Measurements
| Length | 97.5cm |
|---|---|
| Depth | 45cm |
| Height | 45cm |

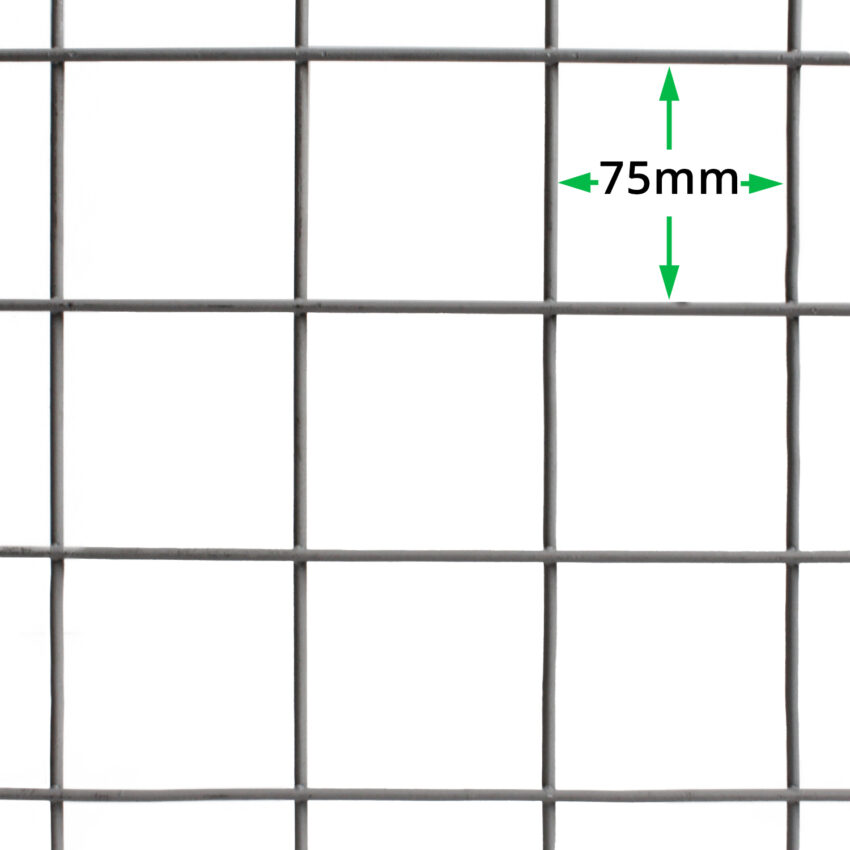

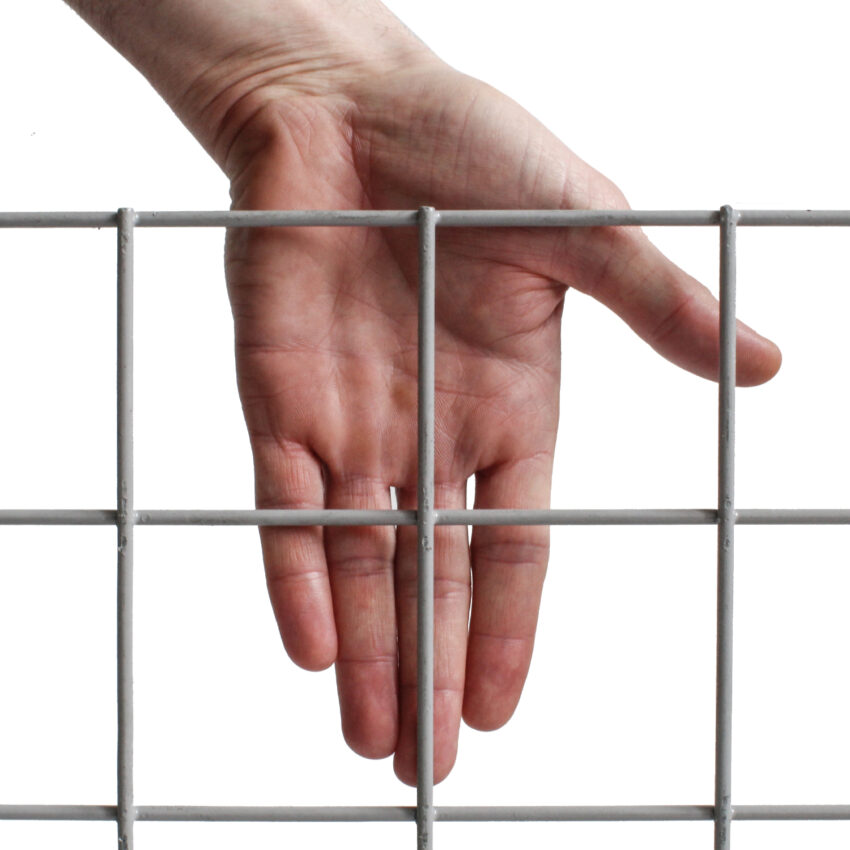

| Hole Size (Aperture) | 75mm x 75mm |

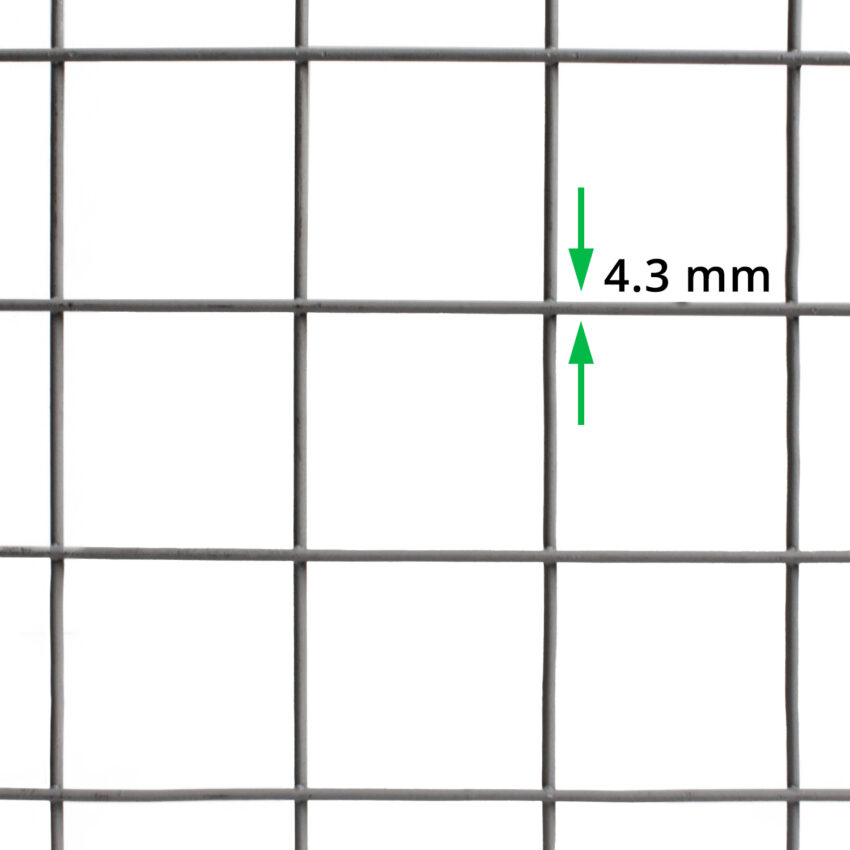

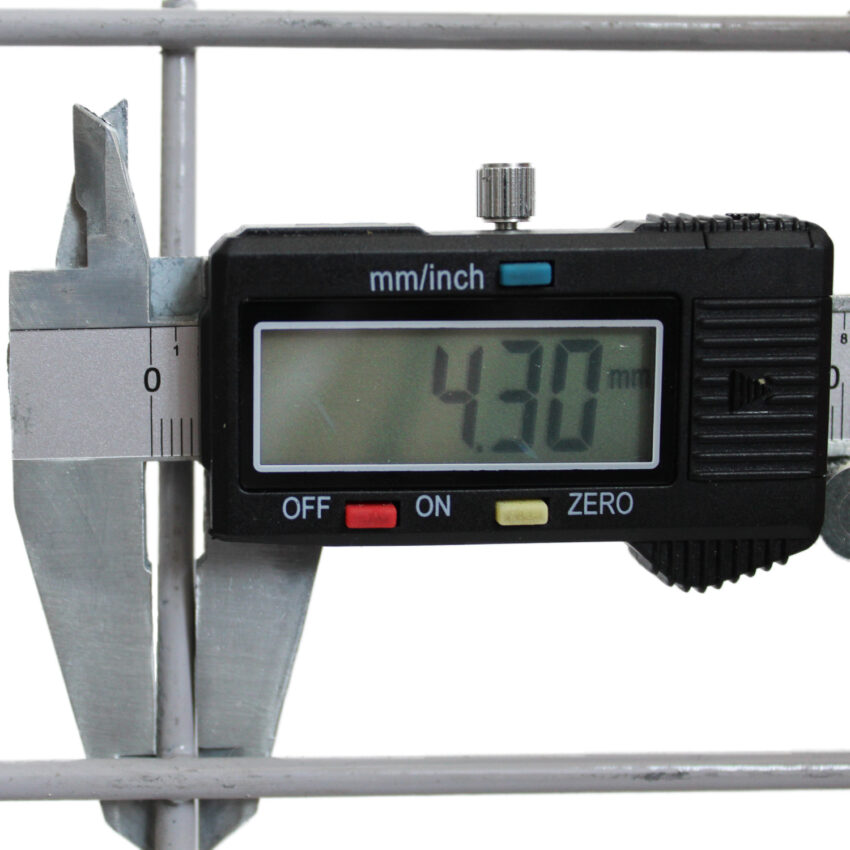

| Wire Diameter (Gauge) | 4.3mm (7g) |
Construction
| Material | Galfan coated steel |
|---|---|
| Coating | PVC coated |
| Wire Diameter (Gauge) | 4.3mm (7g) |
| Hole Size (Aperture) | 75mm x 75mm |
| Hole Shape | Square |
| Mesh Construction | Welded |
| Includes Diaphragm | No |
| Clipped Together Using | Stainless steel C clips |
| Weight | 6.13kg |

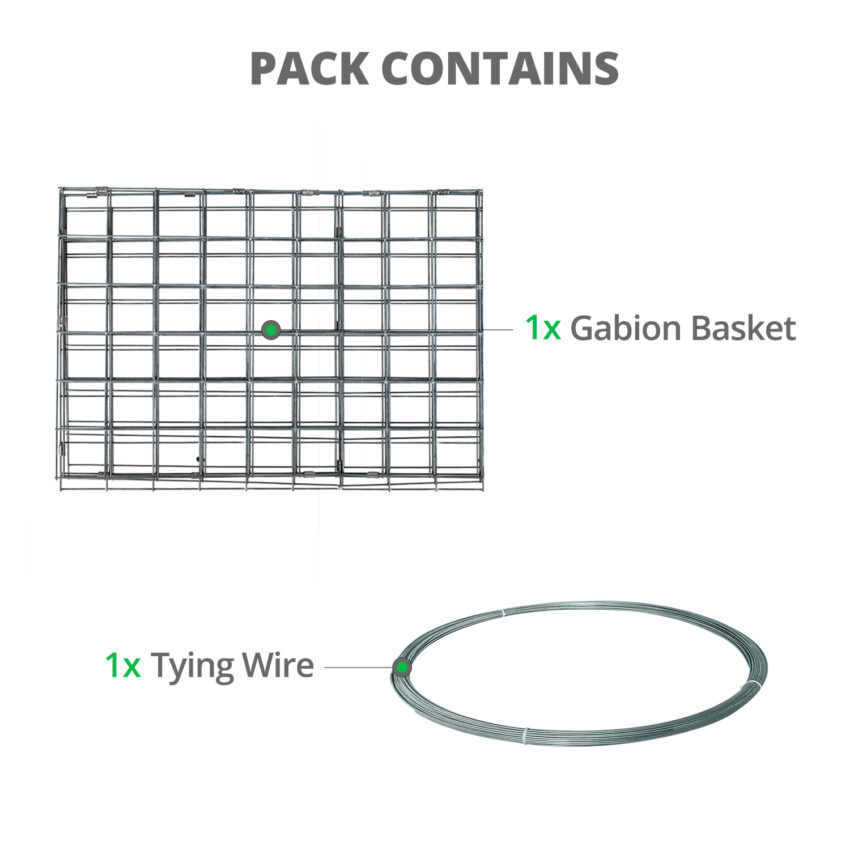

What’s Delivered?
| Item Quantity | x2 |
|---|---|
| Gabion Quantity | x1 |

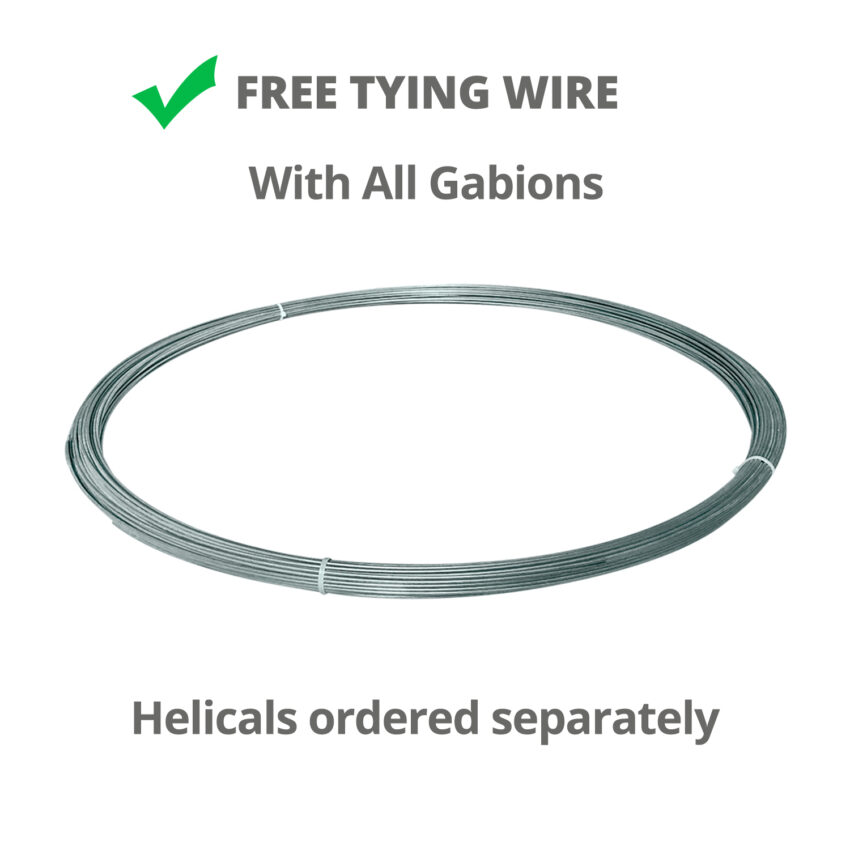

| Tying Wire Quantity | x1 |
| Helical Quantity | Purchased separately |
| Panel Quantity | Purchased separately |
Strength & Environment
| Life Expectancy | 50-120 years |
|---|---|
| Site Categories | C2 to C5 |
| Corrosion Resistance | Yes – conforms to British Standards |
| UV Resistance | Yes – conforms to British Standards |

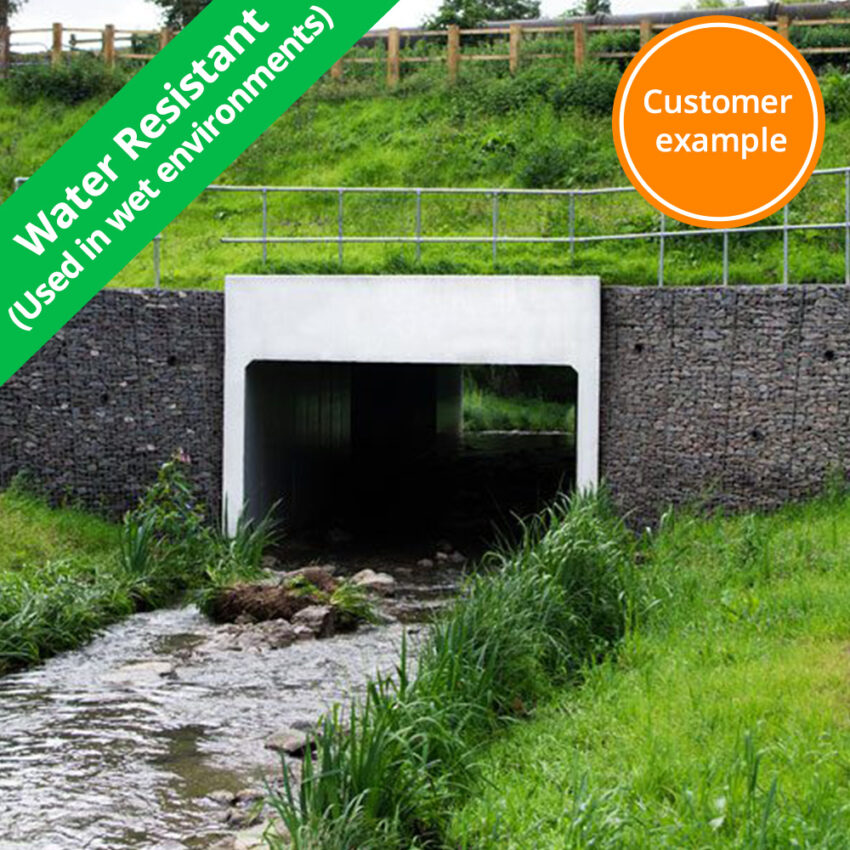

| Can Withstand Salt Water | Yes |
| Weld Strength | 75% of min. wire tensile strength |
| Tensile Strength Range | 540-770 N/mm2 |
| Flexibility Grade | Very rigid & cannot bend by hand |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
Manufacturing Standards
| BBA Certified | Yes – BBA certificate number: 05/4215 |
|---|---|
| Gabion Quality Standard | Yes – conforms to BS EN 10223-8:2413 |
| PVC Coating Standard | Yes – conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011 |
| Wire Tolerances Standard | Yes – conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard | Yes – conforms to BS EN 10218-2:2012 |
| Accurate Zinc Coating | Yes – conforms to BS EN 10244-2:2009 |
| Corrosion Resistance Standard | Yes – conforms to BS EN 10244-2:2009 |
| Abrasion Resistance Standard | Yes – conforms to BS EN 60229:2008 |
| Manufactured in | UK |
Applications

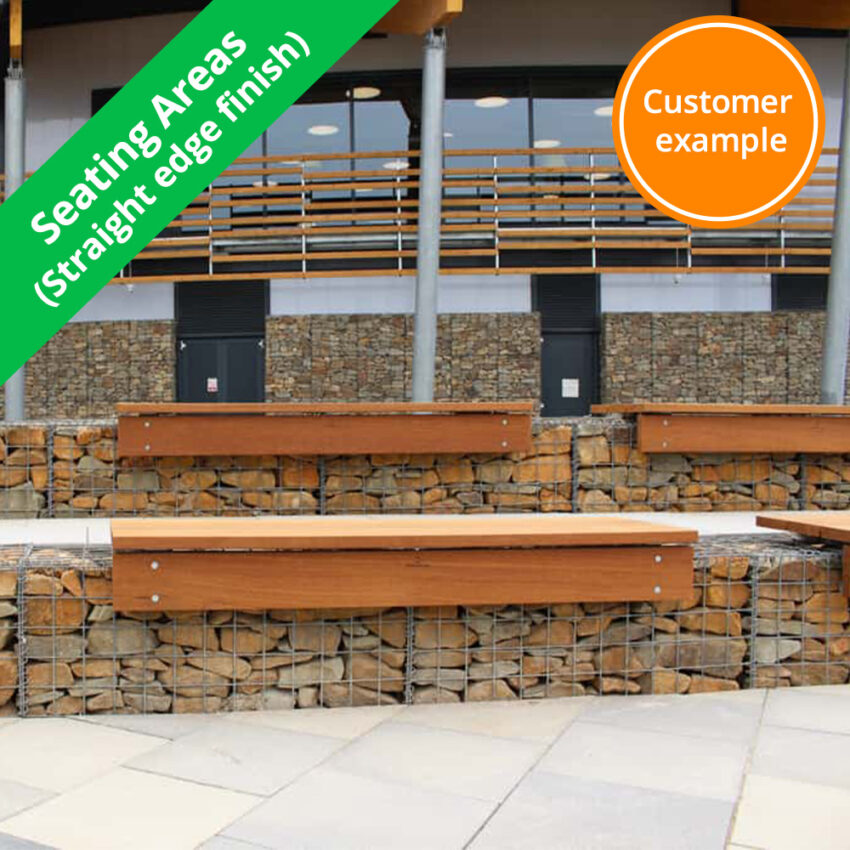

| Can Be Sat On | Not recommended |
|---|---|
| Can Be Walked On | Not recommended |
| Fence | Not recommended |

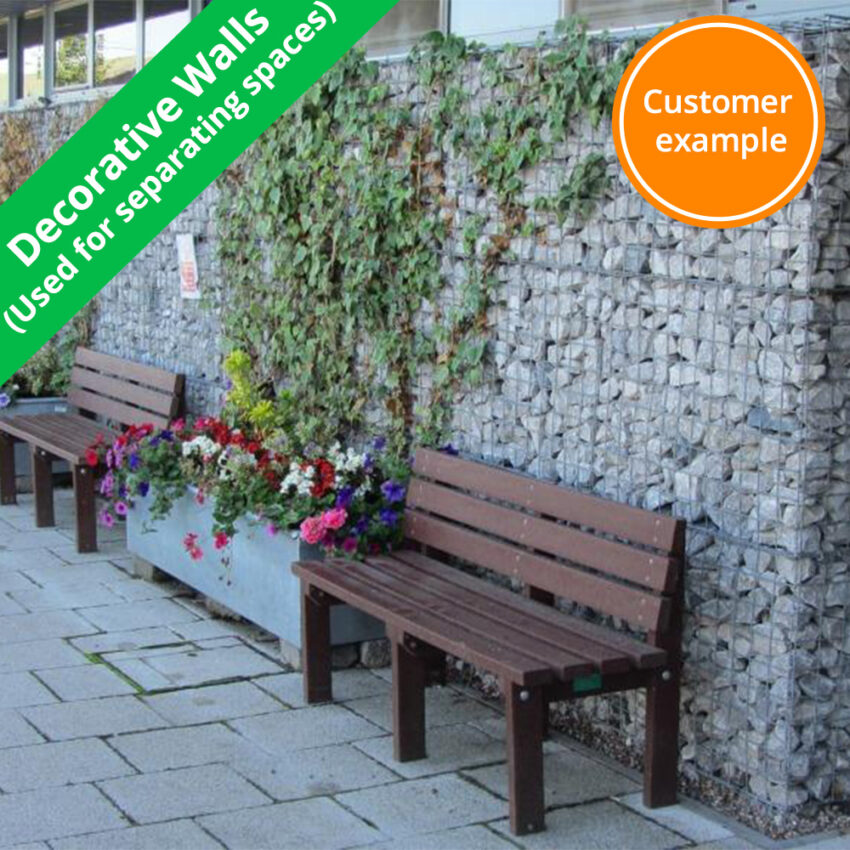

| Freestanding Wall | Not recommended |

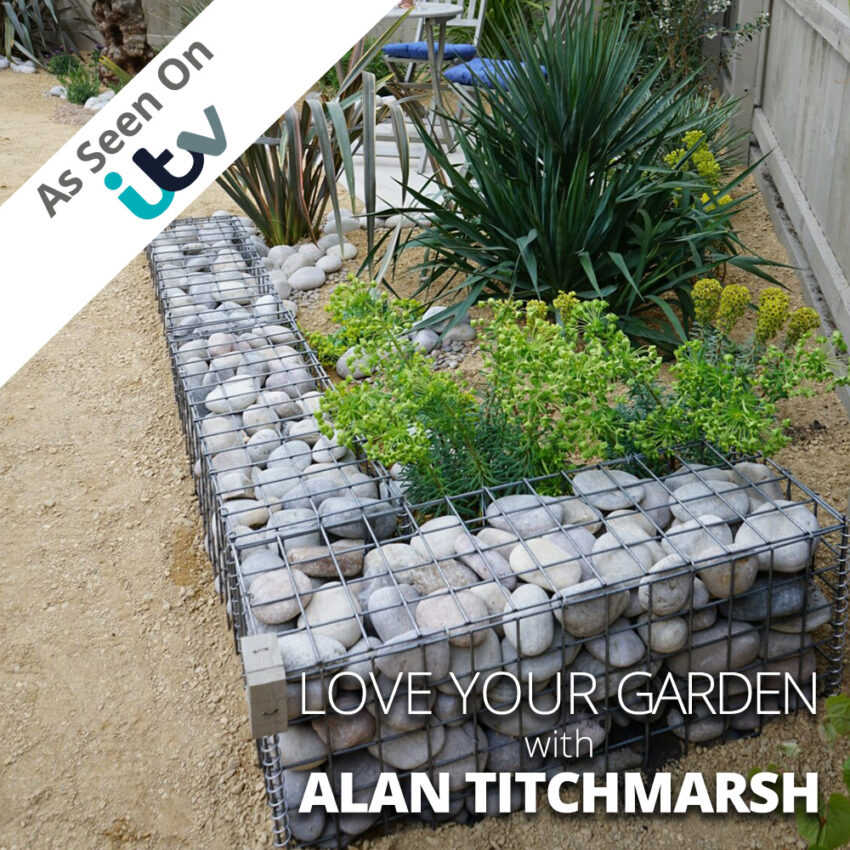

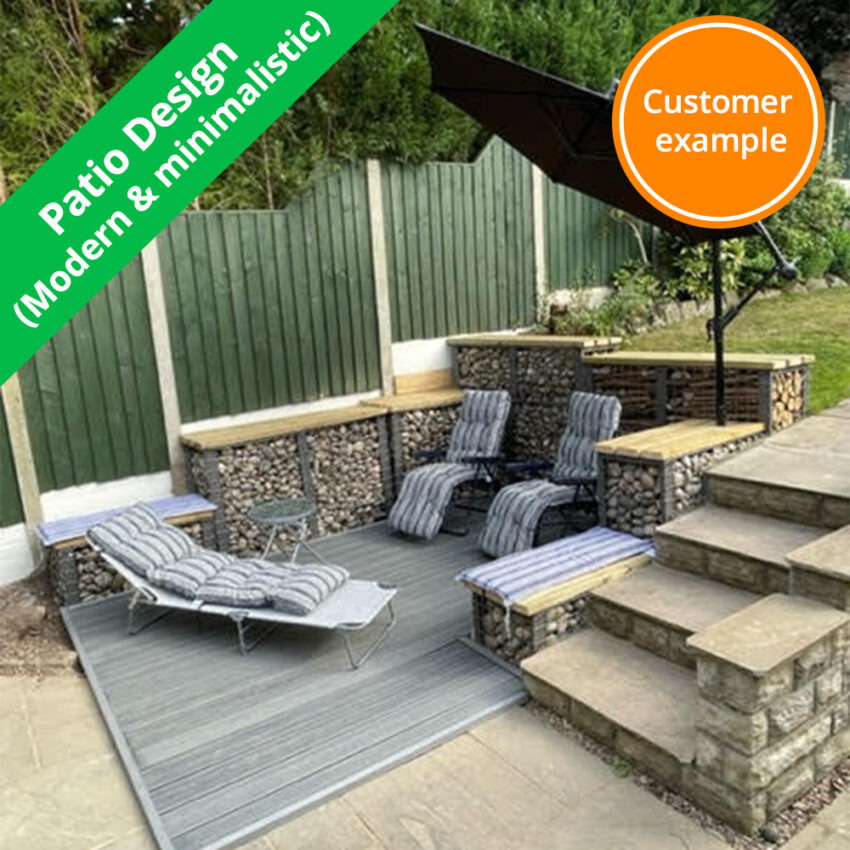

| Planter | Yes |
| Retaining Wall (Up to 5m) | Yes |
| Retaining Wall (Over 5m) | No |
| Public Leisure Areas | No |
| Cladding (Up to 4m) | No |
| Cladding (Over 4m) | No |

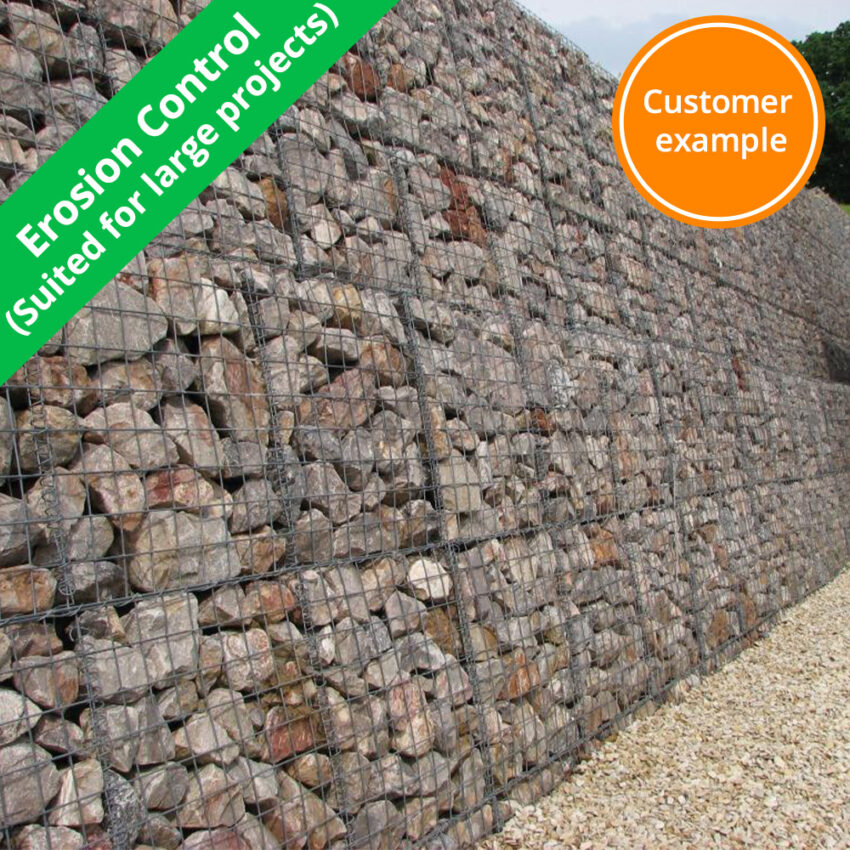

| Erosion Control | Yes |
| River Beds | No |
| Sea Defence | Yes |

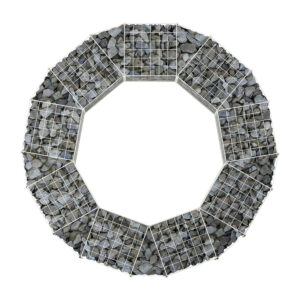

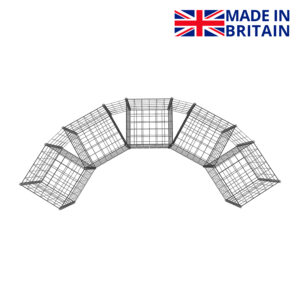

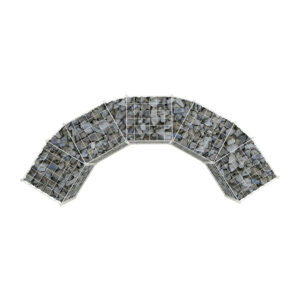

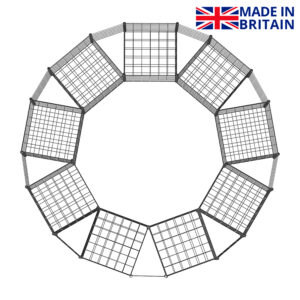

| Curved Gabion Feature | Yes |
| Water Feature | Yes |
Look & Feel
| Colour | Grey |
|---|---|
| Handle with Gloves | Not required |
Filling Guidance
| Stone Weight Required | 360kg |
|---|---|
| Stone Volume Required | 0.2m3 |
| Bags of Granite Required | x1 (490kg leftover) |
| Bags of Limestone Required | x1 (440kg leftover) |
| Rock Size Required | Minimum 80mm x 80mm |
| Can Fill with Rounded Rock? | Yes |
| Requires Angular Rocks? | No |
| Other Filling Materials | Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags |
Installation
| Ease of installation | Very easy with helicals or medium difficulty with tying wire |
|---|---|
| Speed of Installation | Helicals (2-5 mins) or tying wire (10-20 mins) |
| Tools Required to Install | Pliers only |

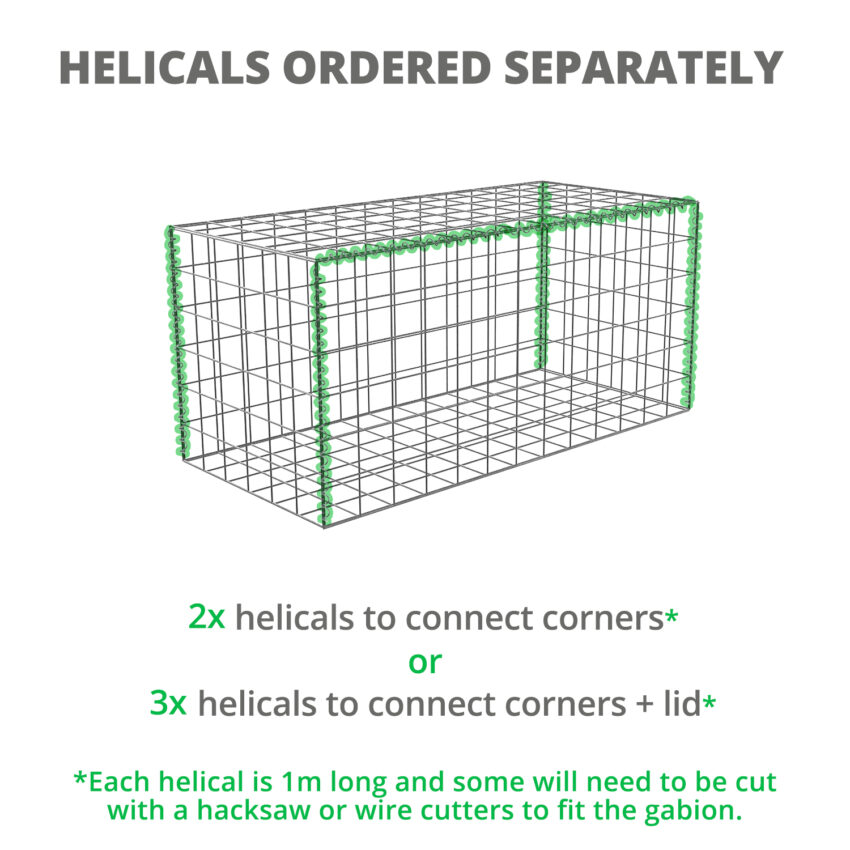

| Suggested Accessories | Helicals for connecting corners and corner ties to help prevent bulging |

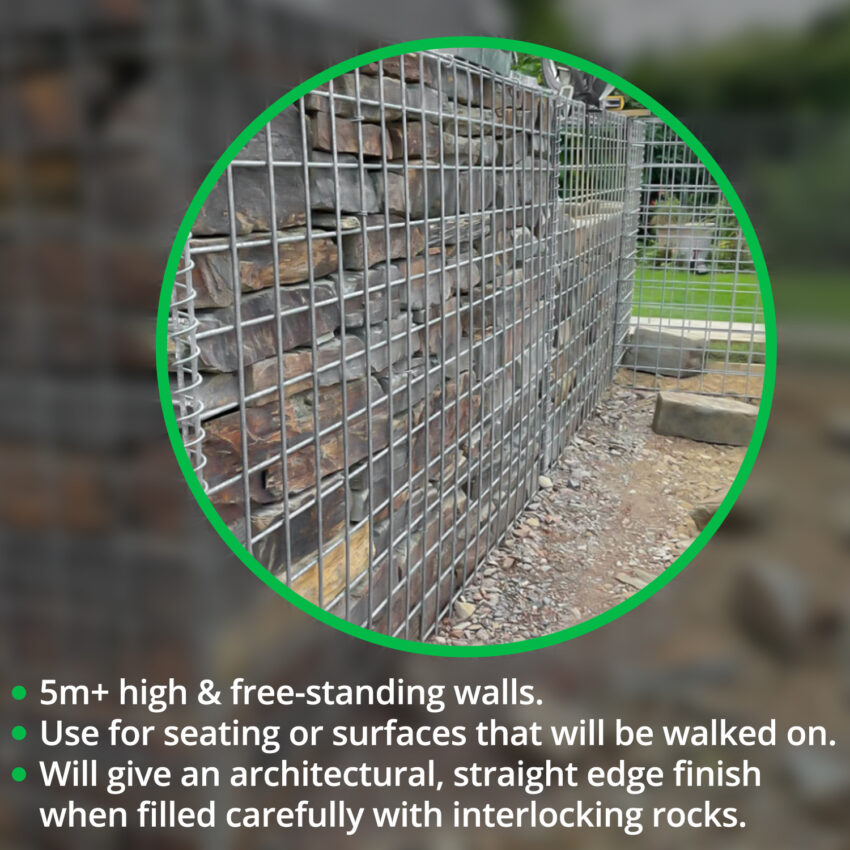

| Prevent Bulging with | Corner ties & middle panel |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| Attach to Gabion | Helical or tying wire |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
Delivery Info

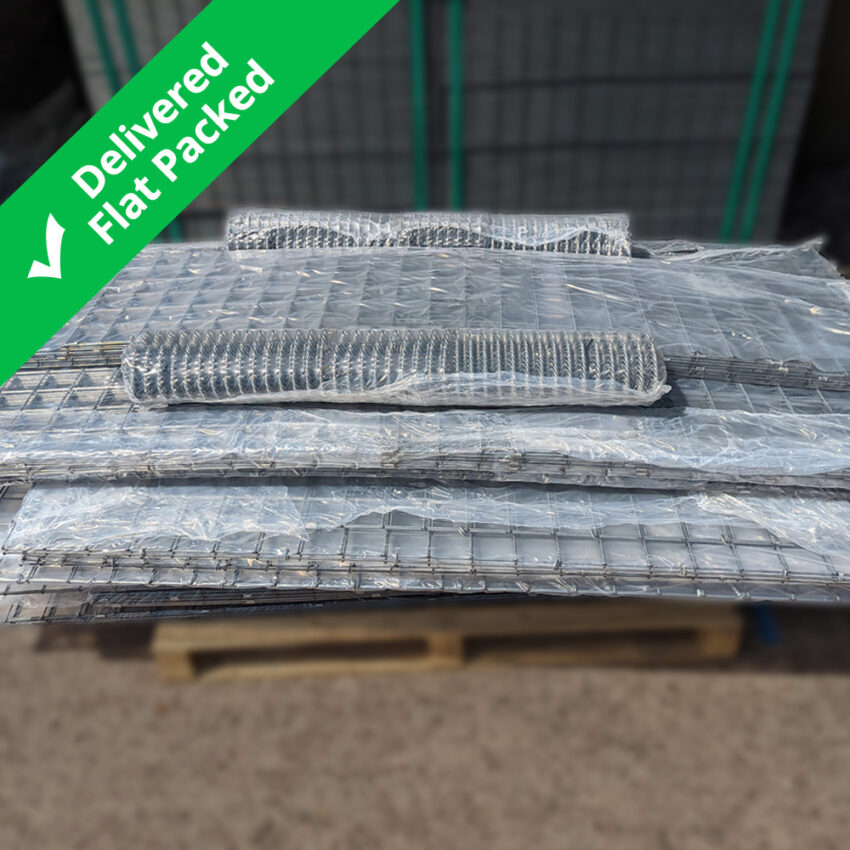

| Delivered As | Flat packed and pre clipped together |
|---|
Downloadable PDFs
