Dog mesh fencing suitable for building garden fencing for dogs, enclosures, pens, and security boundaries. Cost-effective options for large areas available as well as British Kennel Standard dog proof fencing.

Full product details

BRITISH STANDARDS FOR COMMERCIAL DOG FENCING

Customer Projects

Product Information

  • Dog Proof Fence
    Strongest

  • Dog Deterrent Fence
    Best Price

Good for energetic and determined dogs that attempt to get through boundaries by jumping, digging, climbing or chewing.  This is a required option for commercial kennels



Wire Mesh

Chain Link

Wire Panels



View Products

View Products

View Products

Best suited to:


High jumping breeds


– select 1.8m (6ft) – 2.4m (8ft) for the very highest jumpers

Powerful breeds


– select 2.5mm+ options to keep out the most powerful breeds

Good climbers

– choose 25mm x 25mm mesh hole size if your canine is good at climbing and has small paws. 50mm x 50mm is suitable to prevent most paws sliding into mesh holes.

Diggers

Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Financial



Cost

££

£££

££

Cost per sq meter (starting from)

£2.80

£4.60

£3.29

Discounts for multi purchase

– viewable on product pages & automatically calculated for you during checkout

Minimum qty available to purchase

6m

12.5m

1.8m

Jumping: prevents jumping over?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Max height available

2.7m (8.8ft)

2.4m (7.8ft)

1.8m (6ft)

Increase height

Add extra height using tension wire (view instructions)

Climbing: prevents climbing over?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very Large breeds





Smallest hole size available

13mm x 13mm

50mm x 50mm

13mm x 13mm

Strength: prevents pushing over or chewing through wire?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Applications



Suited to indoors





Suited to outdoors

 – see indoor dog fence options

Run or exercise area





Partition off driveways





Portable: good for caravan, camping, etc

Kennels and enclosures



– meets Government standards for boarding and breeding

General



Delivered as

Roll

Roll

Panel

Made in

EU

EU

EU

Conforms to British Manufacturing Standards

BS EN 10218-2:2012 & BS EN 10244-2:2009

  BS EN 1461:2009

Construction



Maximum height availability

2.7m (8.8ft)

2.4m (7.8ft)

1.8m (6ft)

Mesh material

Galvanised steel

Galvanised steel or PVC coated

Galvanised steel or PVC coated

Mesh construction

Welded

Twisted

Welded

Hole size available

13mm x 13mm+

50mm x 50mm

25mm x 25mm+

Wire diameter (gauge)

2mm+

2mm+

2mm+

Smooth edge

– prevents canines from injuring themselves on sharp edges

Length

Can be joined together to create any length required

Colour

Grey

Grey or green

Grey or green

Average product weight

15kg per roll 20kg per roll 2kg per panel

Strength & environment



Corrosion resistant





Abrasion resistance

Very high

Life expectancy under normal conditions

20 Years

25 Years

20 Years

Suited to Environments

C2-C4

C2-C4

C2-C4

Installation & maintenance



Speed of installation

Quick

Long

Quick

Experience required to install

Medium

High

Low

Can be installed with wooden posts?





Can be installed with metal posts?





Can stand alone without posts?





Join together using

U Staples

Radisseurs & tension wire

U Staples

Cut using

Wire / bolt cutters

Unloop chainlink

Wire / bolt cutters

Requires protective glove for handling





Installation instructions

Download

Download

Download

Appearance



General look

Metal mesh

Green or grey diamond mesh Metal mesh

Invisible from a distance





Can be disguised

Yes, can easily be covered by climbing plants up the mesh or using garden screening

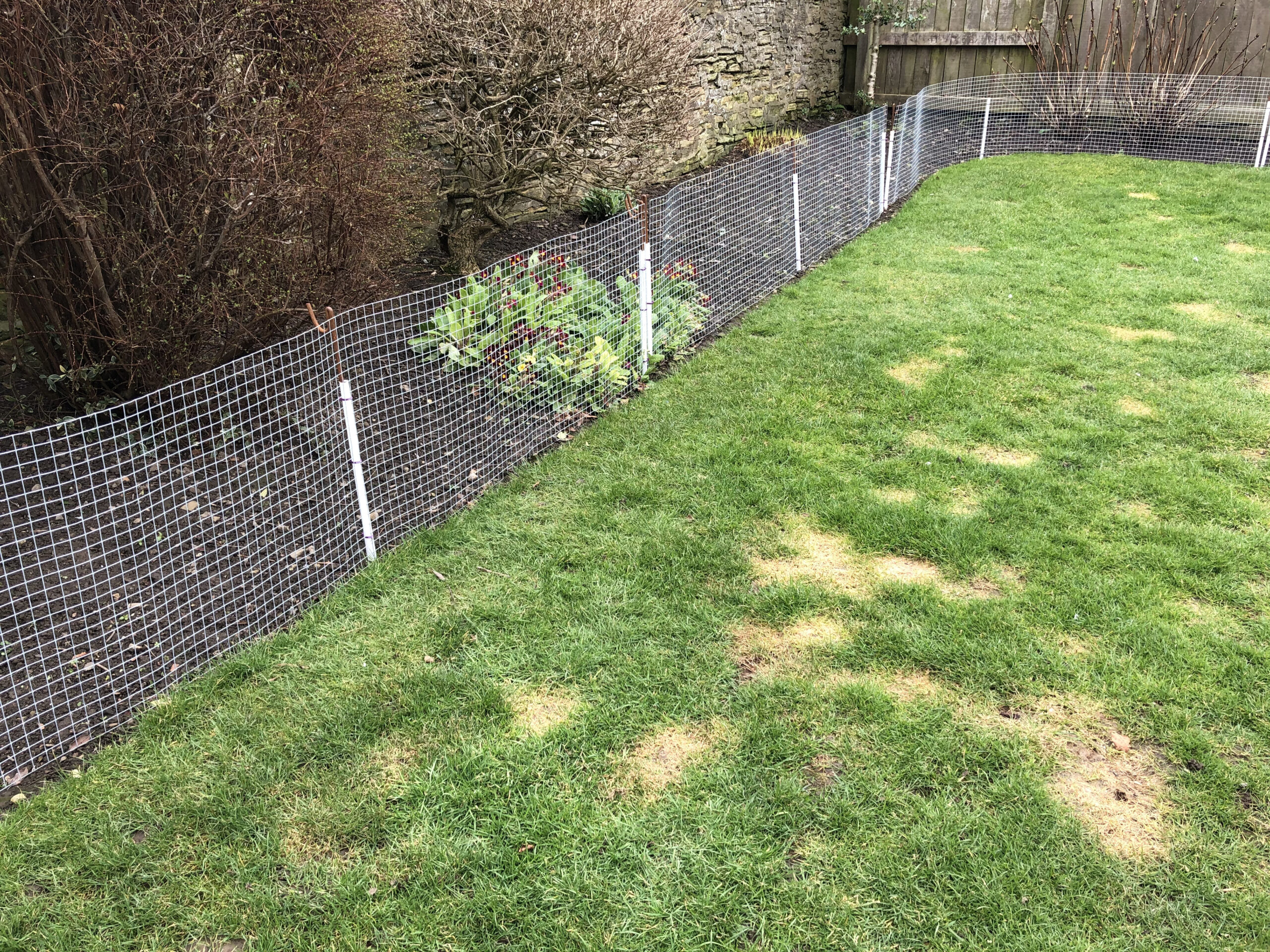

Example installation

View Image

View Image

Also stops?



Rabbits





Foxes





Cats





Deer





Pigs, sheep, etc






View all animal and pet fencing

Good for obedient and well-trained dogs that do not try to dig, chew or jump over boundaries and/or pets that are supervised at all times. Most economical.



Plastic Field Fence

Metal Field Fence

PVC Chicken Wire



View Products

View Products

View Products

Best suited to:



High jumping breeds





Powerful breeds





Good climbers





Diggers

Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Please note

This fencing offers an economical way to deter dogs from entering or escaping.  If your pet is determined to escape artist see dog proof fencing

Financial



Cost

£

£

££

Cost per sq meter (starting from)

£0.90

£1.02

£1.60

Discounts for multi purchase

 – viewable on product pages & automatically calculated for you during checkout

Minimum qty available to purchase

100m

50m

6m

Jumping: prevents dogs jumping over?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Max height availability

2m (6.5ft)

1.8m (6ft)

1m (3.5ft)

Increasing the height

Add extra height using tension wire (download instructions)

Climbing: prevents climbing over?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds





Smallest hole size available

50mm x 50mm

Large holes

13mm x 13mm

Strength: prevents pushing over or chewing through wire?



Very small breeds





Small breeds





Medium breeds





Large breeds





Very large breeds






Dog size does not always translate into chewing or ability. Please consider your canine’s strength before purchasing. If unsure, see commercial-grade kennel mesh

Applications



Suited to indoors

 – see indoor dog fence options

Suited to outdoors





Run or exercise area





Partition off driveways / areas





Portable: good for caravan, camping, etc

Kennels & enclosures





General



Delivered as

Roll

Roll

Roll

Made in

Far East

EU

Far East

Conforms to British Manufacturing Standards



BS EN standards



Construction



Maximum height availability

2m (6.5ft)

1.8m (6ft)

1m (3.5ft)

Mesh material

High tensile plastic

Galvanized steel

PVC coated steel

Mesh construction

Extruded

Twisted

Twisted

Mesh hole size

50mm x 50mm

150cm vertical gaps

13mm x 13mm+

Wire diameter (gauge)

80 gsm

1.9mm+

1mm – 1.6mm

Length

Can be joined together to create any length required

Colour

Black

Grey

Green

Average product weight

16kg per roll

31kg per roll

4kg per roll

Strength & Environment



Corrosion resistant





Abrasion resistance

Low

V high

Medium

Life expectancy under normal conditions

5 years 10 years 5 years

Suited to Environments

C2-C4

C2-C4

C2-C4

Installation & Maintenance



Speed of installation

Quick

Medium

Quick

Experience required to install

Medium

Medium

Easy

Can be installed with wooden posts?





Can be installed with metal posts?





Can stand alone without posts?





Join together using

U staples

U staples

U staples

Cut using

Sharp Scissors

Wire Clippers

Wire Clippers

Ease of repair

Easy

Difficult

Easy

Installation instructions

Download

Download

Download

Appearance



General look

Black square mesh

Metal mesh field fence

Green garden mesh

Invisible from a distance





Can be disguised

Yes, can easily be covered by climbing plants up the mesh or using garden screening

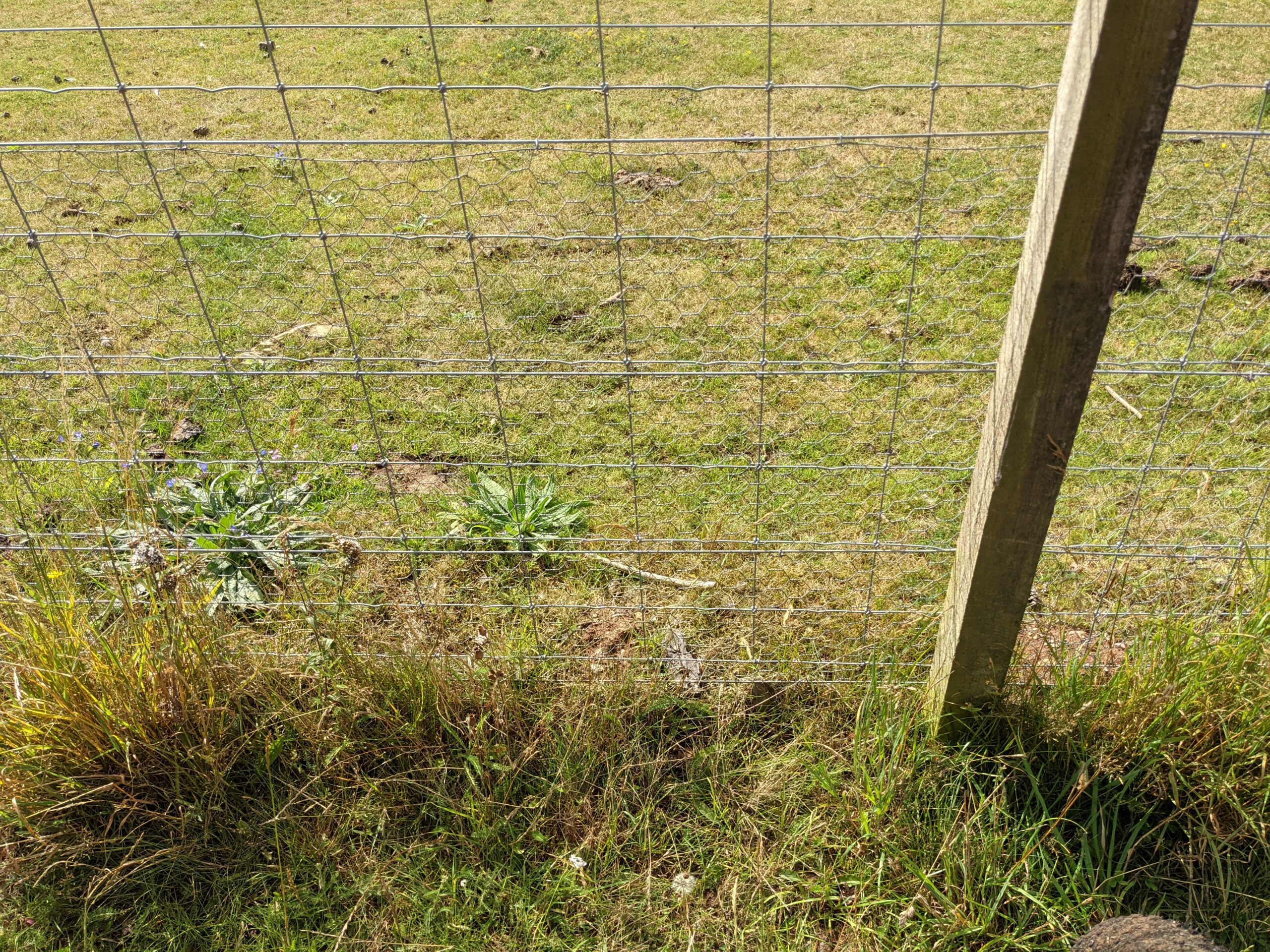

Example Image

Example Image

Also stops?



Rabbits

– see rabbit fencing

Foxes

Cats





Deer





Pigs, sheep, etc






View all animal and pet fencing

Size chart

Size Length/Weight Breed
Very small dog Extra Small
61cm (L) x 16cm (W)
0.4kg – 4.5kg
Yorkshire Terrier, Chihuahua, Pomeranian, etc
Small dog Small
76cm (L) x 54cm (W)
4.9kg-11kg
Dachshund, Pug, Boston Terrier, French BD, etc
Medium dog Medium
91cm (L) x 61cm (W)
11kg – 18kg
Beagle, Scottish Terrier, Welsh Corgis, etc
Large dog Large
107cm (L) x 71cm (W)
18.5kg – 32kg
Boxer, Bassett Hounds, Bull Terrier, Collie, etc
Very large dog Extra Large
122cm (L) x 76cm (W)
23kg – 41kg
Bloodhound, Labrador & Golden Retriever, German Shepherd, etc

Installation Instructions

  • With Panels

  • For Small Dogs

  • For Large Dogs

  • For Field Fencing

To Do Explanation

Step 1 – Mark the Location

T post step 1 - mark area

Create a straight line to outline the fence between the two end posts.

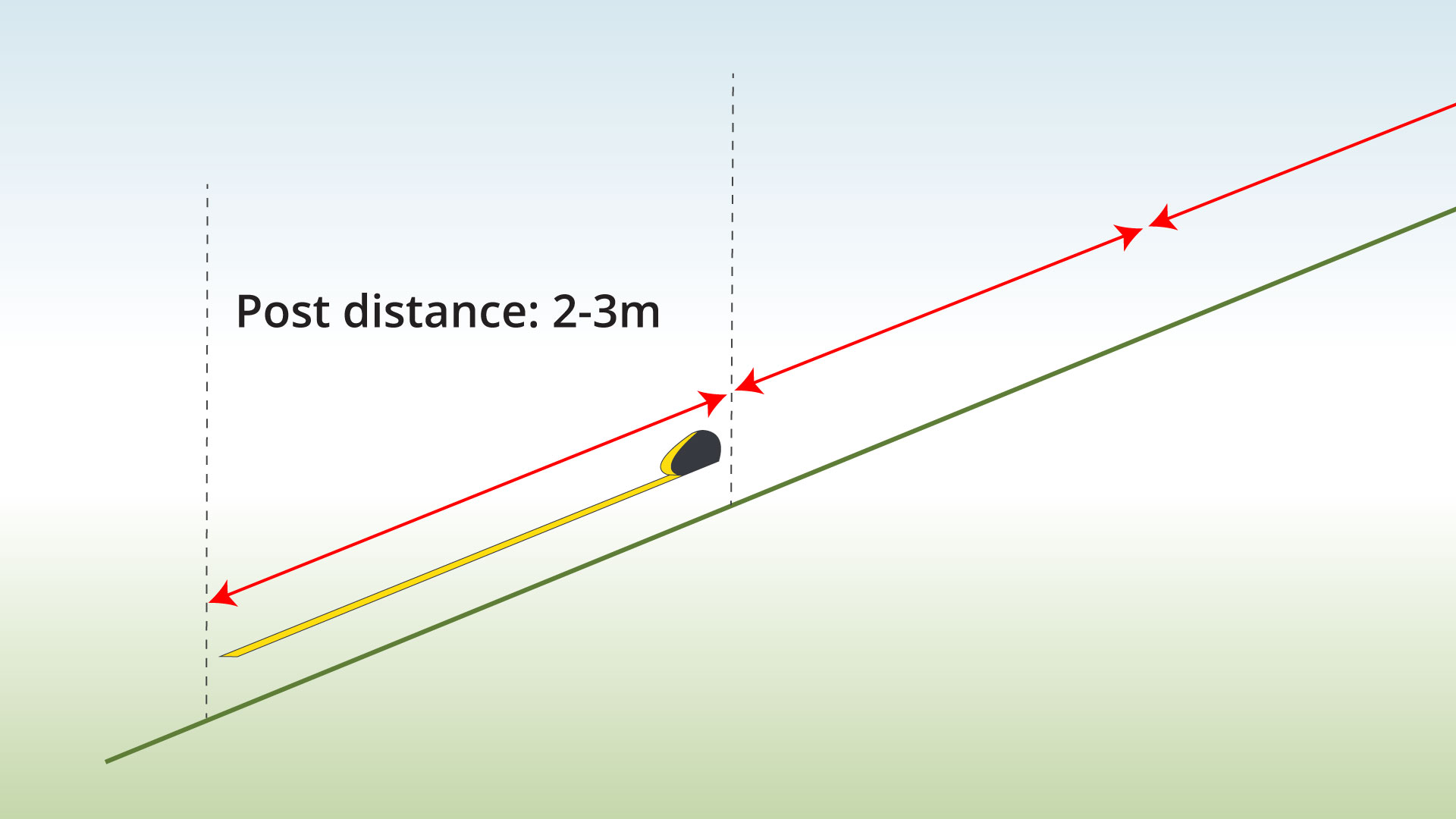

Step 2 – Measure Post Distance

T post step 2 - panel

Use your panels to measure the post distance.

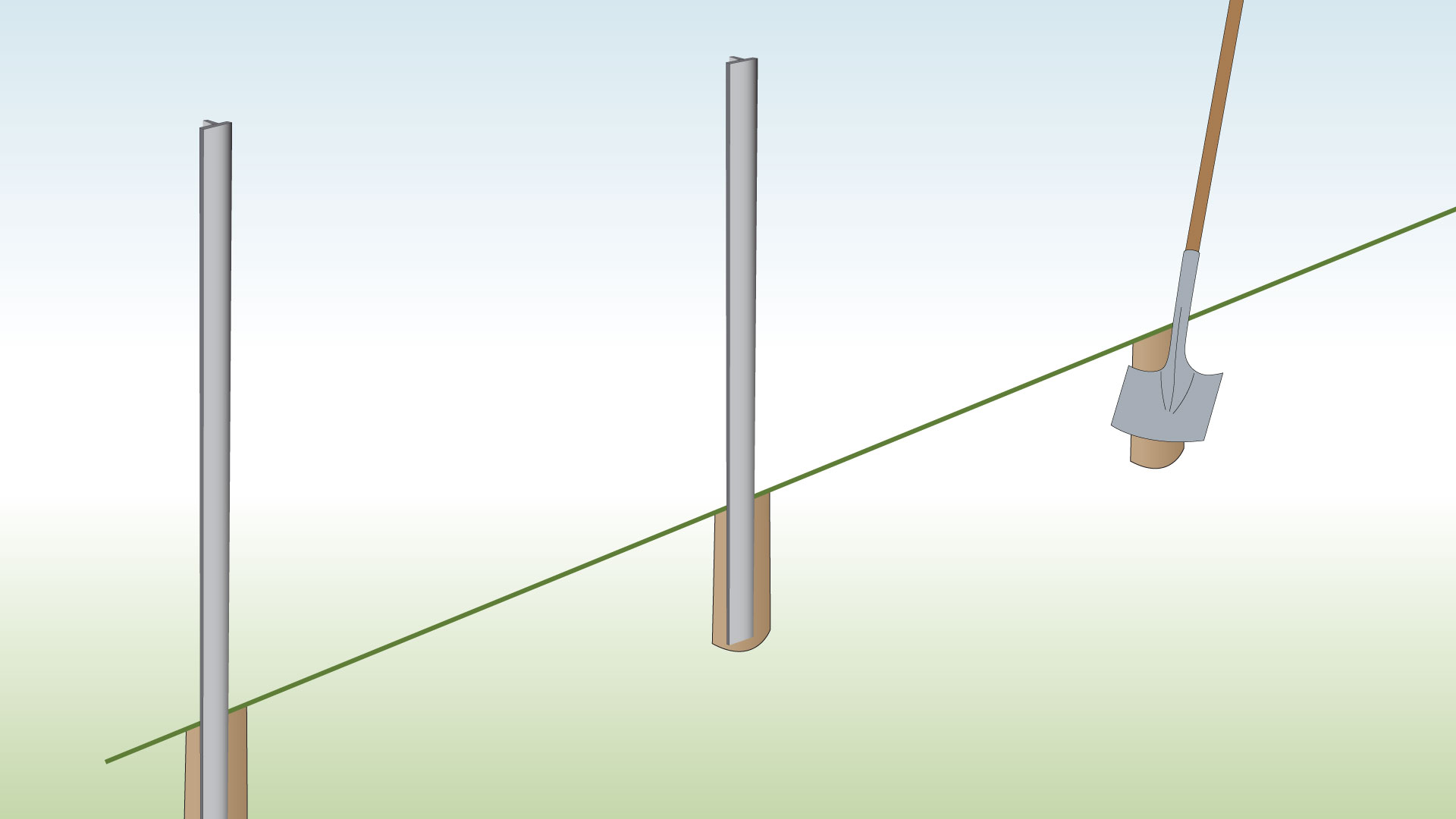

Step 3 – Install End Posts

T post step 3 - end posts

Use a post driver or mallet to sink the end posts 50cm into the ground.





Make sure the end posts are pointing in the same direction.

Step 4 – Check for Same Height

T post step 4 - same height

Attach a string across the end posts, and check the height of their installation using a tape measure.

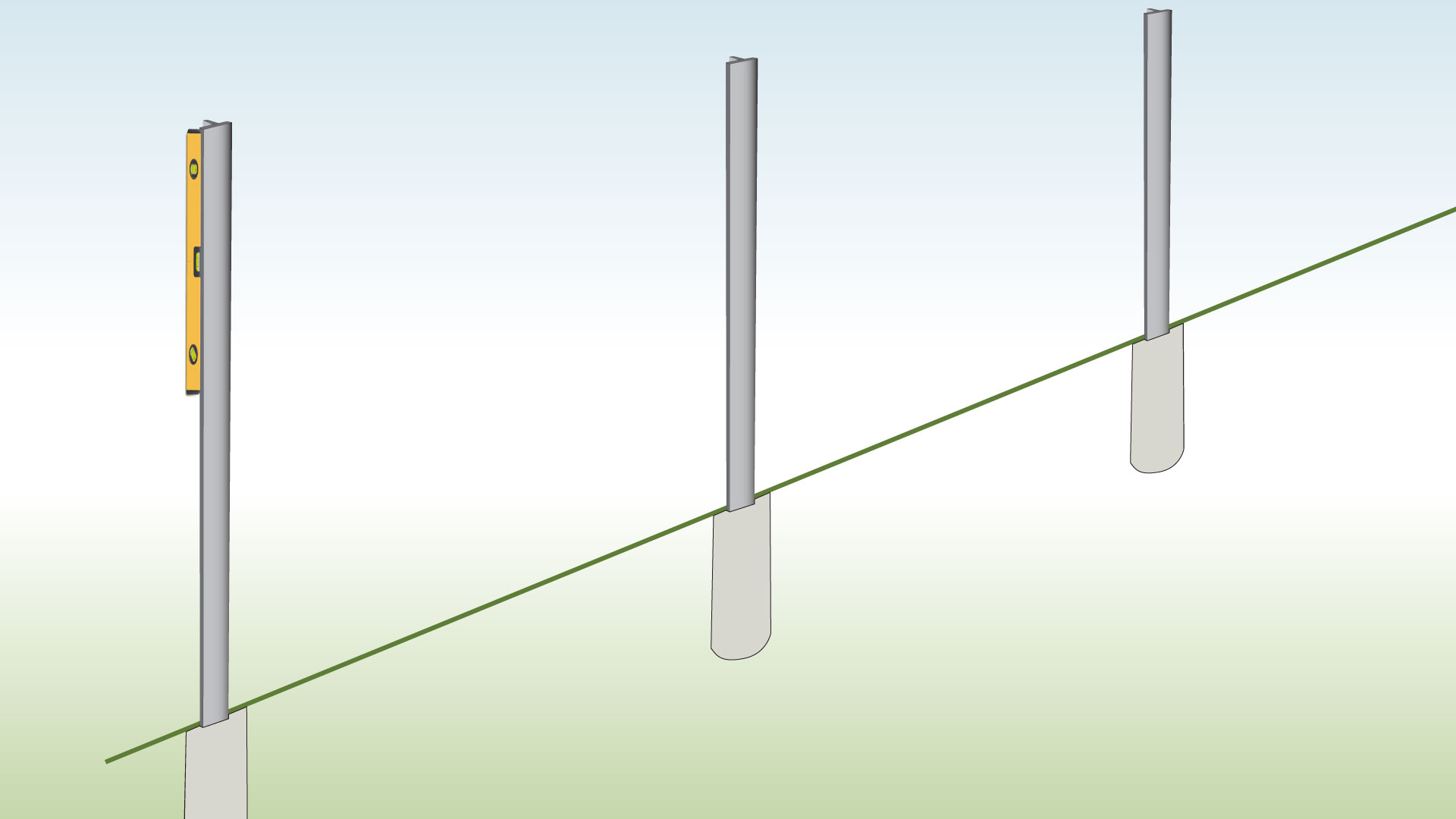

Step 5 – Check for Straightness

T post step 5 - straightness

Ensure that the posts have been installed completely straight by using a spirit level.

Step 6 (Optional) – Set in Concrete

T post step 6 - concrete

For a sturdier and more reliable fence, enhance its stability by setting your posts in concrete.





This involves digging a 50cm hole and pouring cement to create a foundation for the posts.

Step 7 – Install Middle Posts

T post step 7 - middle posts

Follow steps 3 through 5 to install the middle posts.





Ensure that the posts are facing in the same direction and are being installed in a straight and uniform manner.





If you want to make your fence even more robust, consider using concrete to secure the middle posts.

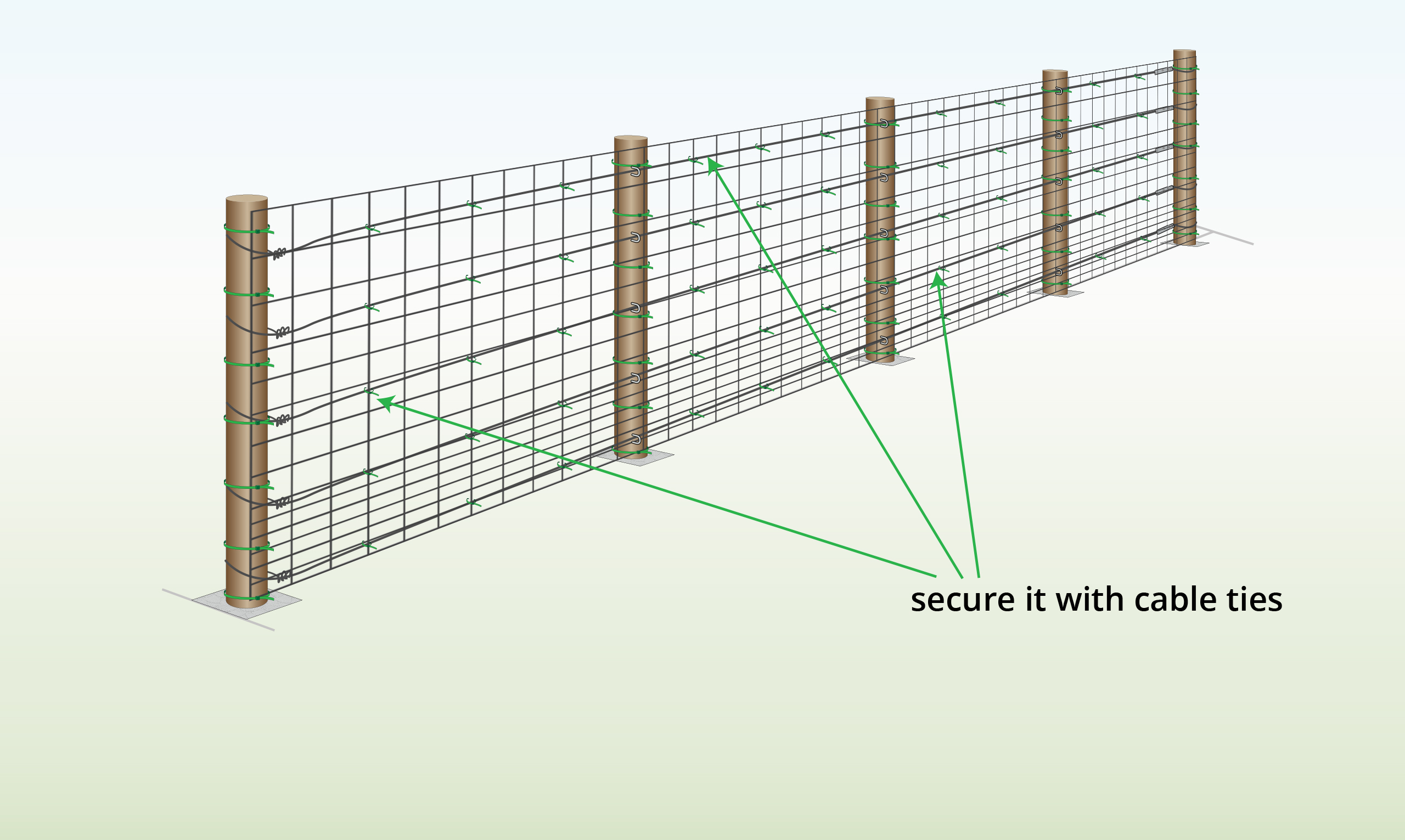

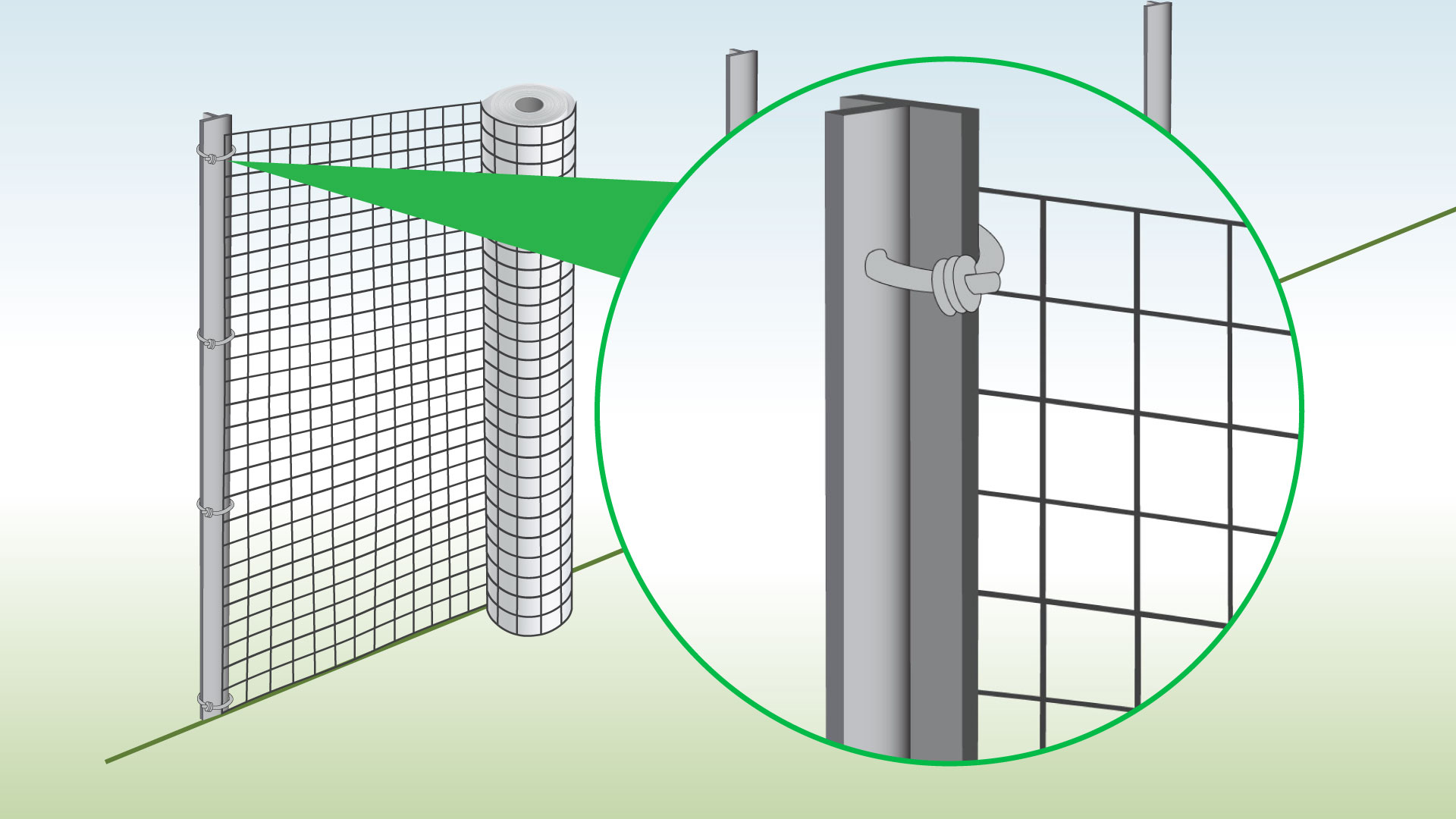

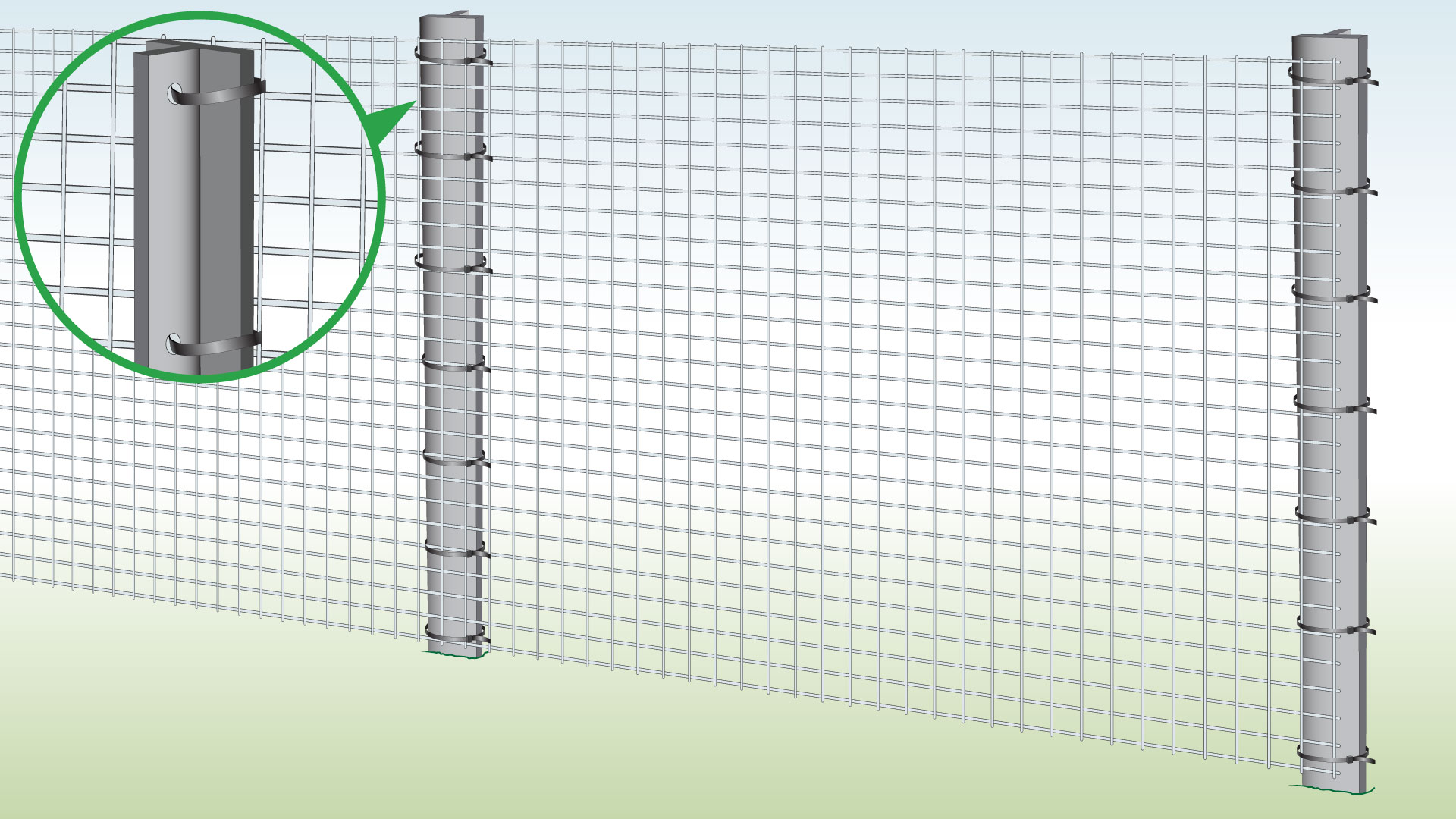

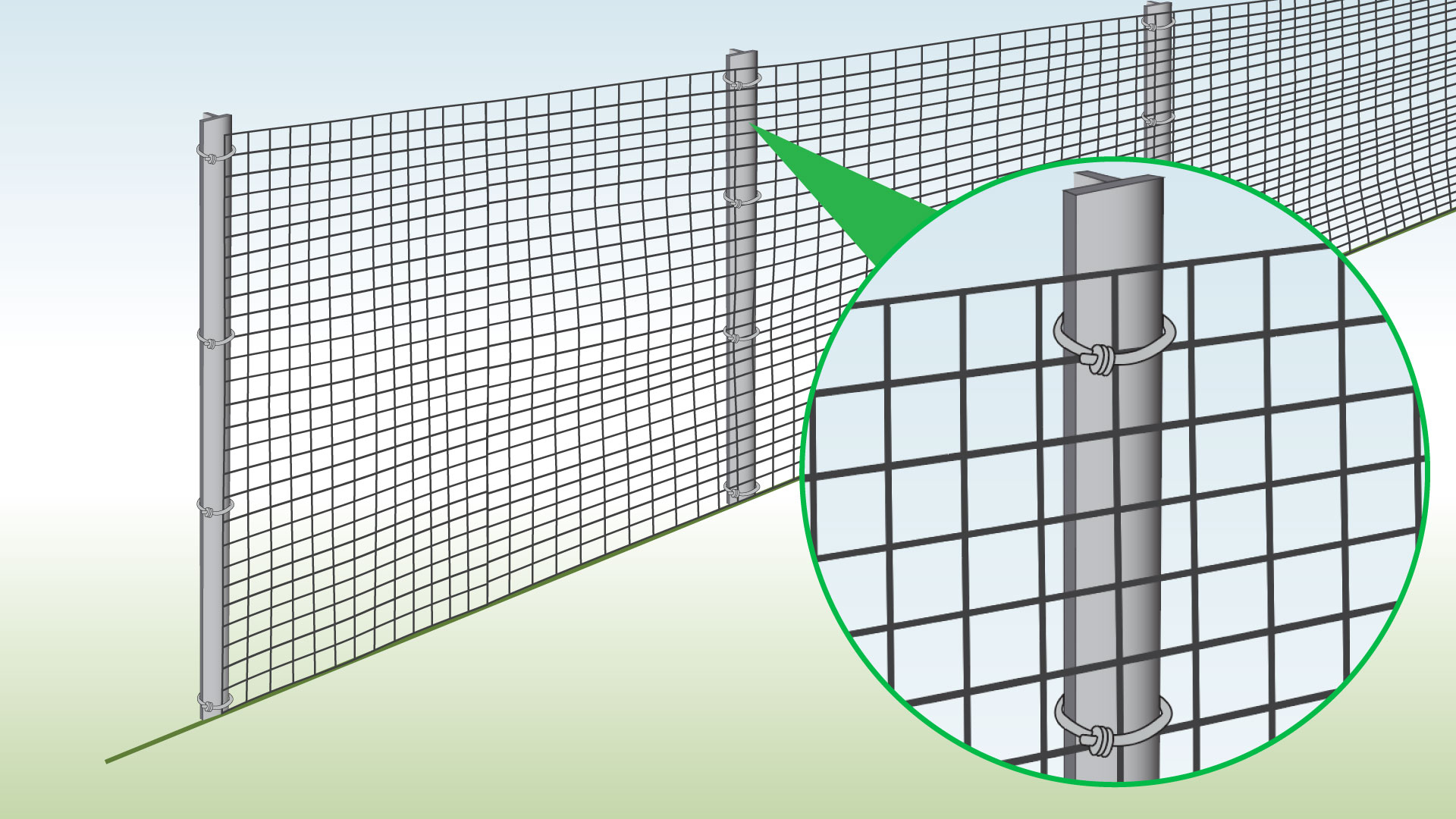

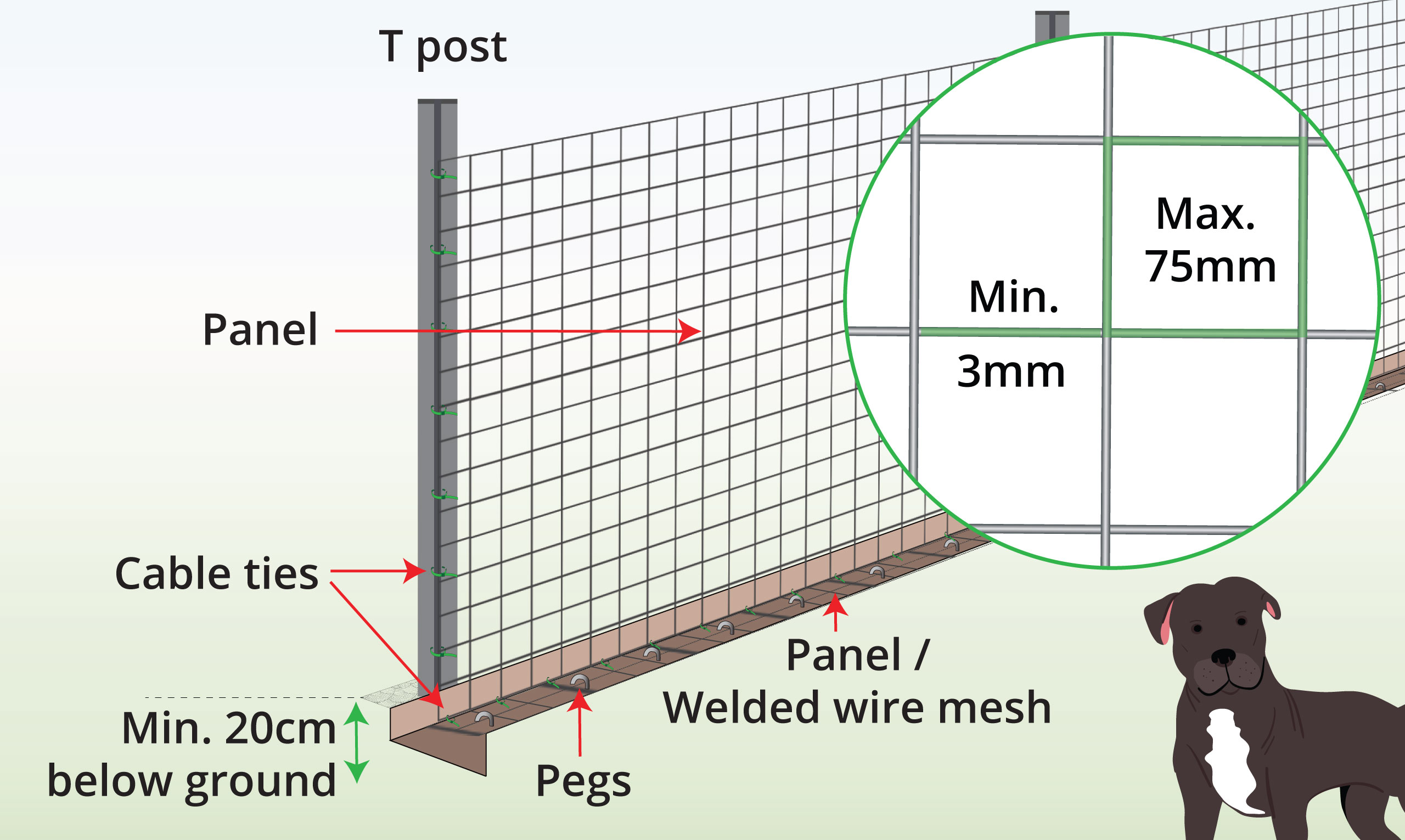

Step 8 – Attach Panel to Posts

dog-fencing-panel-step-8

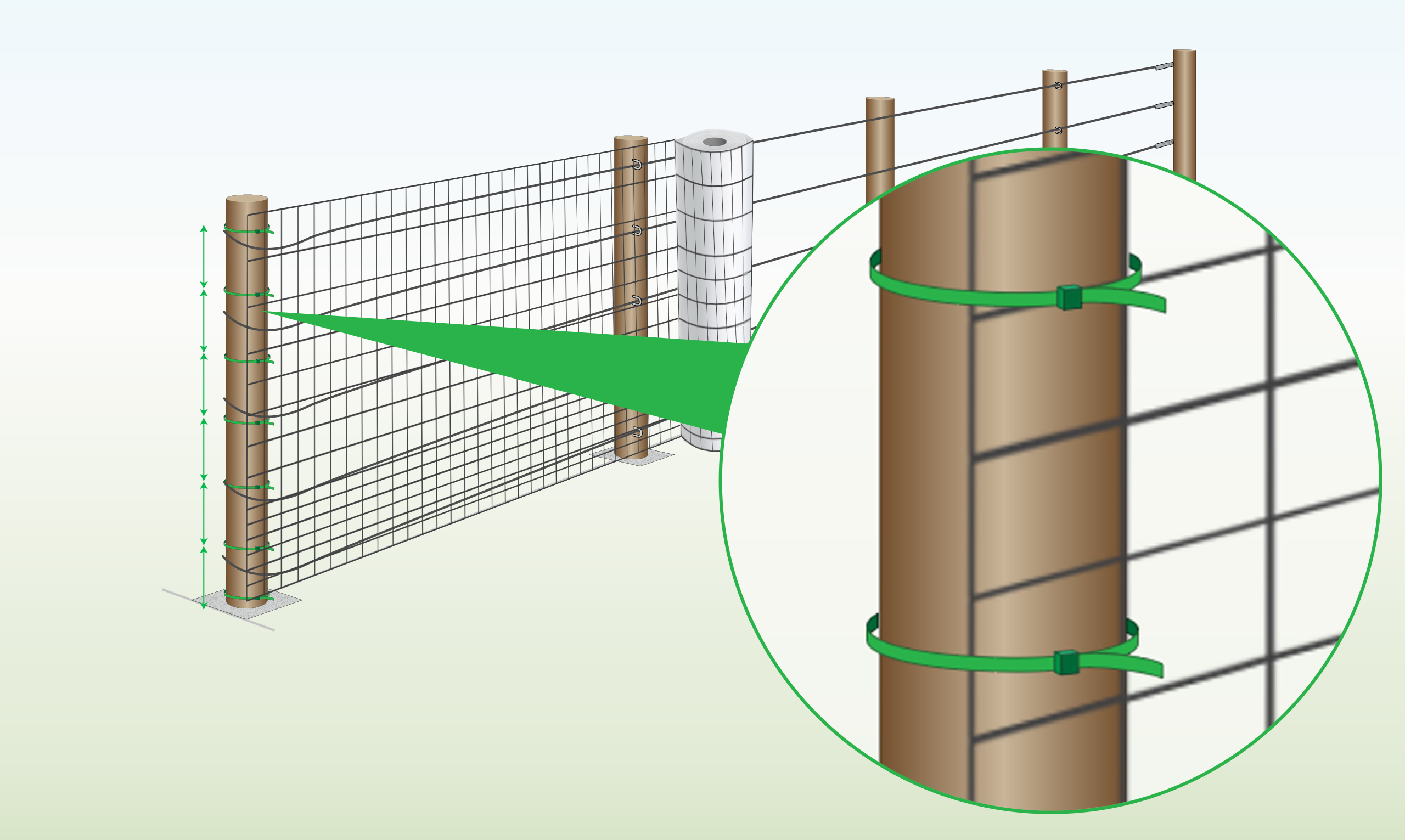

Start at the end post and secure the mesh to it by using cable ties. These ties can be threaded through the pre-drilled holes in the post.





You can add extra cable ties to encircle the entire post.

Alternative Option

dog-fencing-panel-alternative

Expand the gap between the posts by overlapping the panels and join them by fastening them together using cable ties.

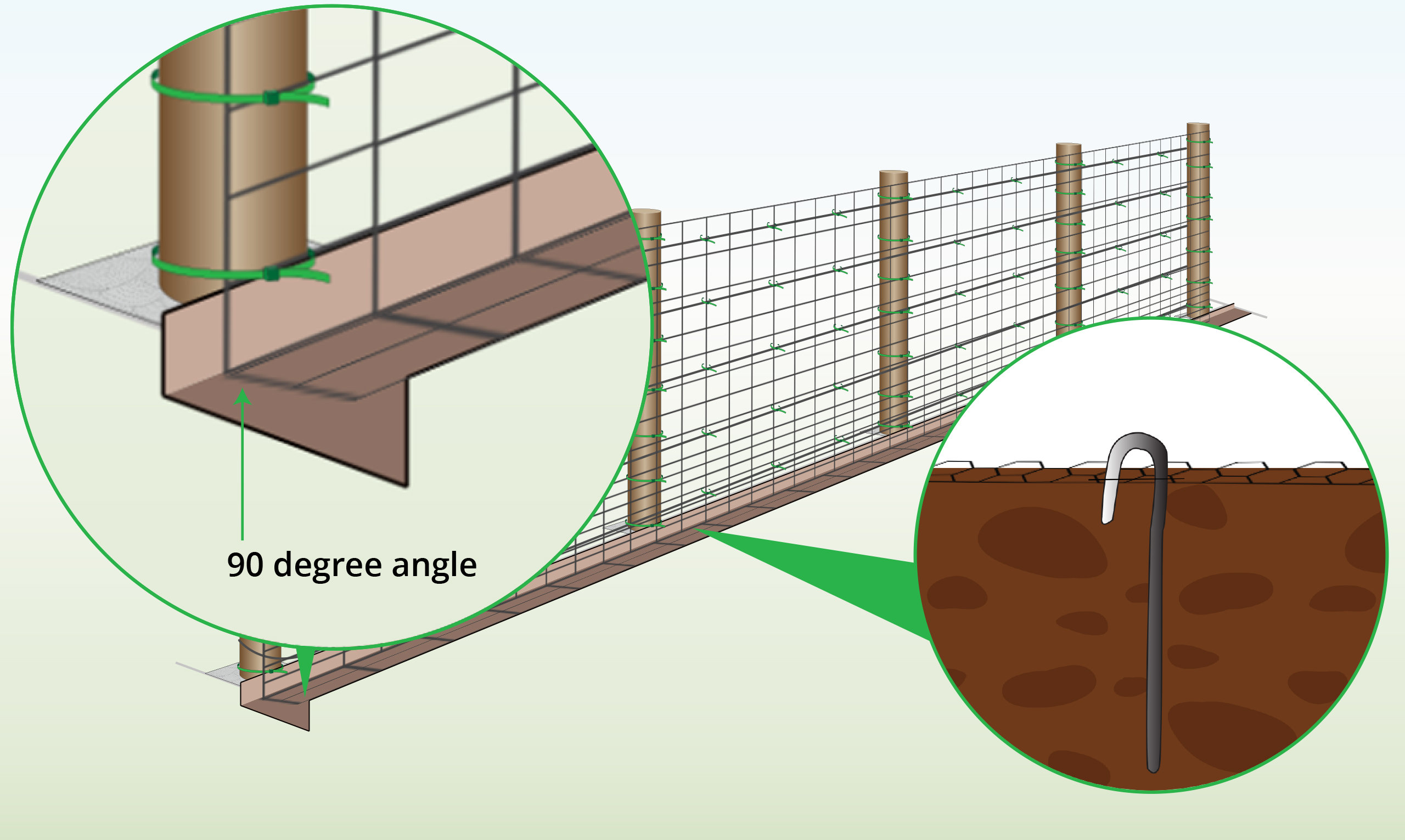

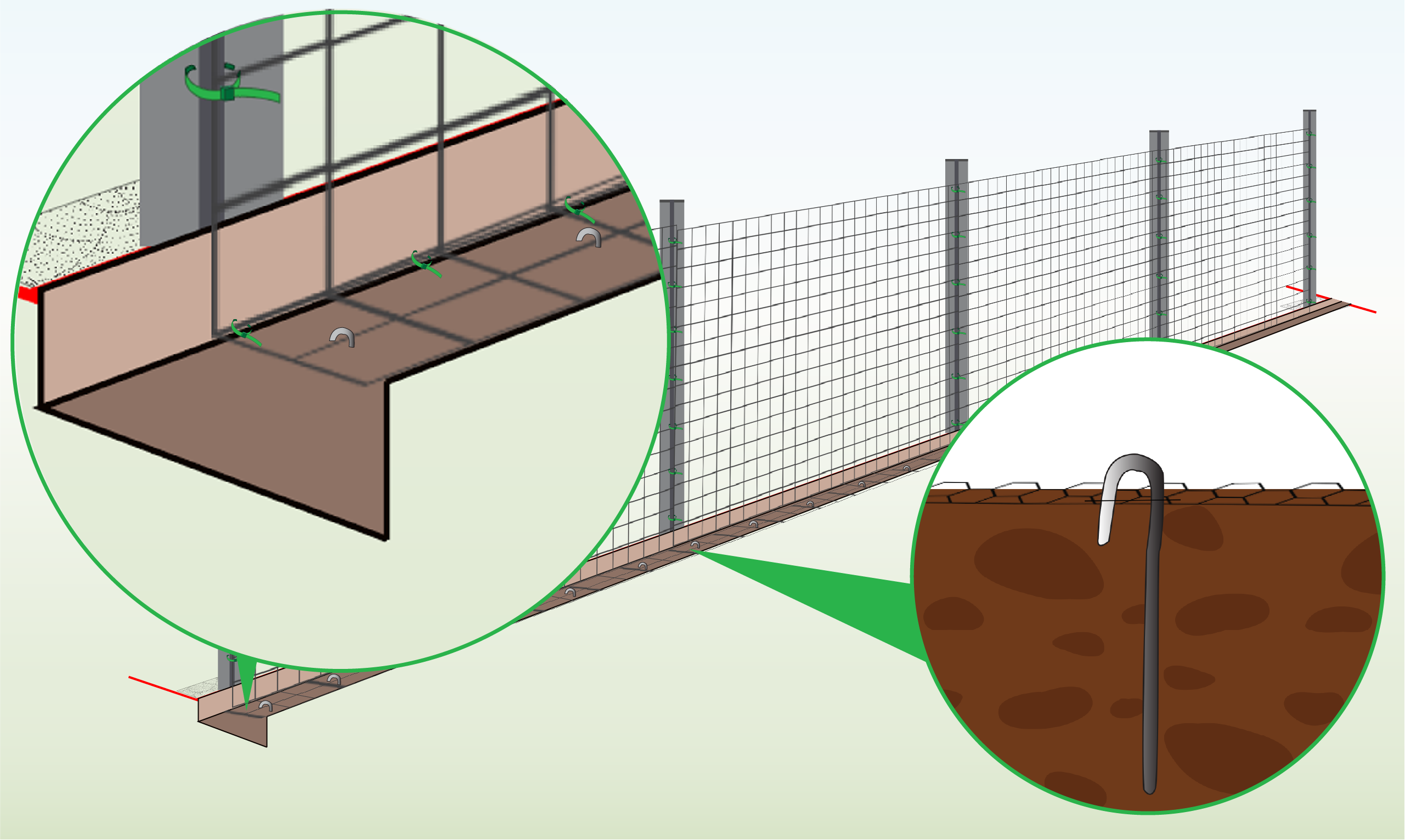

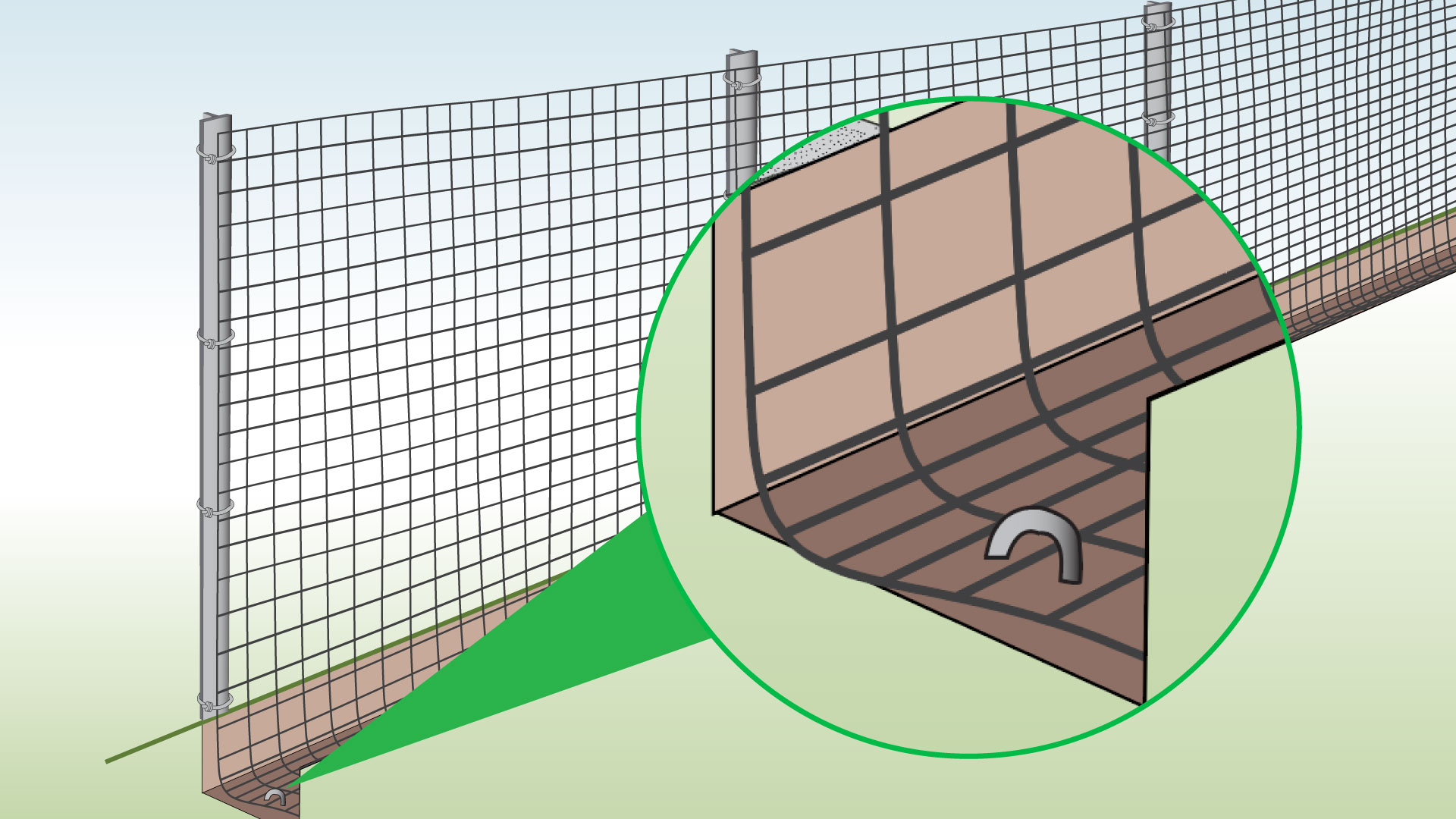

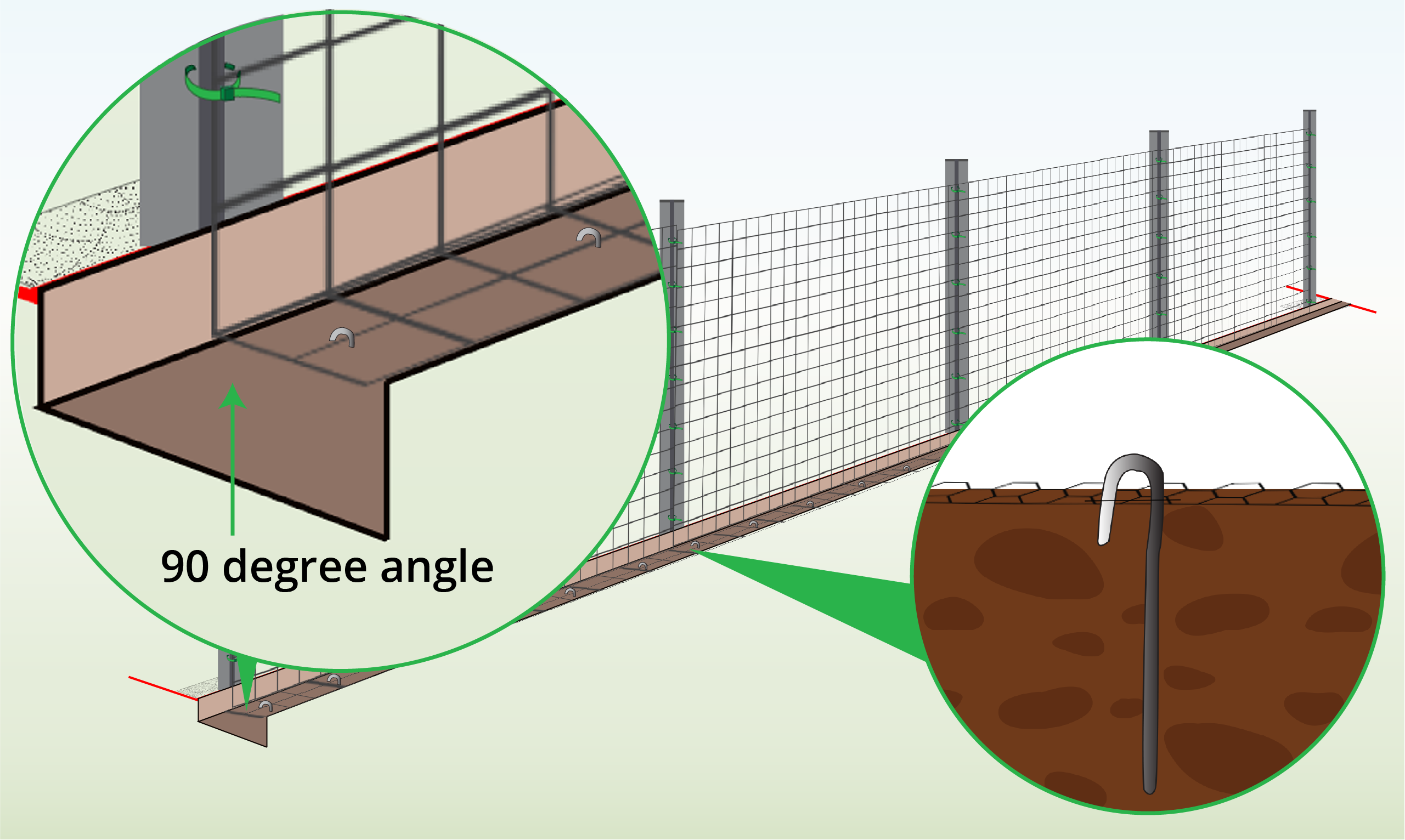

Additional Step to Prevent Digging

dog-fencing-panel-prevent-digging

Dig a trench along your fence line and cover the trench’s bottom with a piece of chicken wire. Attach the wire to the panel by using cable ties.





Use pegs to secure the wire to the ground at every 60cm, then cover it by adding a layer of soil or mulch over it.







FAQ’s

What is the best option to stop my pup from escaping?

If you want to keep your pet happy and healthy a physical barrier is the best option.  Electric and invisible puppy fences will keep your pet from escaping but they can cause damage to the health of your pet.  This has been documented in the TV show ‘It’s me or the Dog‘ (based in the UK and US)

Please look after the health of your canine and stay away from electric shock options.

What is the most cost-effective option?

Electric / hidden options are usually the cheapest which is the reason why pet owners buy them but they do not realise the potential cost to their pet’s health.

At approximately the same cost as an electric dog fence, you can cover 100m area with the plastic field fence.  For most well-behaved canines, this will work perfectly but please read the description before purchasing to ensure its suitability to your hound.

How big should I make my pen/run?

The bigger the better as long as you have space in your yard.  Longer-shaped pens work best as it gives your hound more space to run up and down.  As general guidance we suggest the following dimensions;

  • 2m x 6m for long periods of time
  • 2m x 4m for short periods of time

The area should double in size if the pen is going to be shared
