Chain Link Fence for Dogs

2.5mm+ European-made chain link fence suited to dog proofing for all small to large dog breeds.

  • Complies with British standards for kennels
  • Next day delivery
  • Multi purchase discount

Full product details

BRITISH STANDARDS FOR COMMERCIAL DOG KENNELS

Product Information

Best suited to:


High jumping breeds


– select 1.8m (6ft) – 2.4m (8ft) for the very highest jumpers

Powerful breeds


– select 2.5mm+ options to keep out the most powerful breeds

Good climbers

– 50mm x 50mm is suitable to prevent most paws from sliding into mesh holes.

Diggers

Very small breeds

 – the smallest dogs may be able to slide their paws into the mesh holes

Small breeds



Medium breeds



Large breeds



Very large breeds



Financial



Cost per sq meter (starting from)

£4.60

Discounts for multi purchase

– viewable on product pages & automatically calculated for you during checkout

Minimum qty available to purchase

12.5m

Jumping: prevents jumping over?



Very small breeds



Small breeds



Medium breeds



Large breeds



Very large breeds



Max height available

2.4m (7.8ft)

Increase height

Add extra height using tension wire (download instructions)

Climbing: prevents climbing over?



Very small breeds

 – the smallest dogs may be able to slide their paws into the mesh holes

Small breeds



Medium breeds



Large breeds



Very Large breeds



Smallest hole size available

50mm x 50mm

Strength: prevents pushing over or chewing through wire?



Very small breeds



Small breeds



Medium breeds



Large breeds



Very large breeds



Applications



Suited to indoors



Suited to outdoors

 – see indoor dog fence options

Run or exercise area



Partition off driveways



Portable: good for caravan, camping, etc

Kennels and enclosures



– meets Government standards for boarding and breeding

General



Delivered as

Roll

Made in

EU

Conforms to British Manufacturing Standards



Construction



Maximum height availability

2.4m (7.8ft)

Mesh material

Galvanised steel or PVC coated

Mesh construction

Twisted

Hole size available

50mm x 50mm

Wire diameter (gauge)

2mm+

Smooth edge

– prevents canines from injuring themselves on sharp edges

Length

Can be joined together to create any length required

Colour

Grey or green

Average product weight

20kg per roll

Strength & environment



Corrosion resistant



Abrasion resistance

Very high

Life expectancy under normal conditions

25 Years

Suited to Environments

C2-C4

Installation & maintenance



Speed of installation

Slow

Experience required to install

High

Can be installed with wooden posts?



Can be installed with metal posts?



Can stand alone without posts?



Join together using

Radisseurs & tension wire

Cutting method

Unloop chainlink

Requires protective glove for handling



Installation instructions

Download

Appearance



General look

Green or grey diamond mesh

Invisible from a distance



Can be disguised

Yes, can easily be covered by climbing plants up the mesh or using garden screening

Example installation

Also stops?



Rabbits



Foxes



Cats



Deer



Pigs, sheep, etc




View all animal and pet fencing

Installation Instructions

To Do Explanation

Step 1 – Plan & Measure



Use spray paint or a similar marking tool to measure and mark the locations of your posts. Ensure that the distance between each post is between 2 m and 2.5 m.



After marking the posts, measure the total length between the ends. This measurement will enable you to order the appropriate length of fencing needed.

Step 2 – Dig Holes

chain-link-step2



Utilize a spade to excavate a hole at each of the marked locations.



Ensure that the holes are three times wider than the poles in diameter. The depth of the holes should be equivalent to 1/3 of the length of the poles.

Step 3 – Position Upright Posts

chain-link-step3



With Concrete: For optimal outcomes, begin by filling the holes with 4 inches of gravel, compacting it firmly. Then, add a layer of 6 inches of concrete on top. Place the poles into the wet concrete and allow a minimum of 1 day for the concrete to cure. Finally, fill the remaining space in the holes with dirt.



Without Concrete: Position the poles centrally within the holes, then use large stones to stabilize them in place. Subsequently, fill the holes with earth until tight and compact.

Step 4 – Check for Straightness

chain-link-step4



Utilize a spirit level to ensure that your poles are perfectly straight, then firmly secure them in place. This step is crucial to guaranteeing a straight fence line.



Once all poles are properly positioned, allow several days for the concrete to fully dry and set.

Step 5 – Position End Posts Correctly

chain-link-step5



Ensure that the end poles have a slot for the angle support, positioning it towards the direction of the fence run.

Step 6 – Position Corner Posts Correctly

chain-link-step6



The corner poles should feature slots on two adjoining sides, aligning them towards the two fence runs that the corner is joining.



Step 7 – Attach Angle Supports to End Posts

chain-link-step7



Insert an angle support into the pre-made slot on the end pole.



Note: If there is no pre-made slot available, adhere to the general guideline of attaching the brace at 2/3rd of the upright’s height and at a 45-degree angle.



Position the supports at the appropriate locations to ascertain where the holes need to be dug.



Excavate the hole, then place rubble at the bottom of it. Insert the angle support into the hole.



Cover the hole surrounding the angle support with soil and compact it firmly by stomping it down. Alternatively, you can also use concrete to secure it in place.

Step 8 – Attach Angle Supports to Corners

chain-link-step8



Repeat step 7 for the two angle supports required by the corner post.

Step 9 – Mark Location for Tensioning Wire

chain-link-step9



Chain link fencing requires tensioning with multiple lines of wire:

– 2 lines are enough for heights up to 1.2 metres.
– 3 lines are needed above 1.2 metres in height.



Mark the position for each wire strand on all poles, ensuring consistency to maintain the wire strands level with the ground.

Step 10 – Attach Wire to First Post

chain-link-step10



Secure the first wire strand to the end pole at the lowest marked position.



Wrap it around the concrete, twist it backward, and wind it around itself 4-5 times to firmly secure the tension.

Step 11 – Attach Radisseurs

chain-link-step11



Utilize separate pieces of wire to securely fasten the radisseurs to the corner and end posts.



Note: Skip to step 14 if radisseurs are not available.

Step 12 – Connect Wire to Radisseur

chain-link-step12



Upon reaching the first radisseur, cut the first line of tensioning wire, leaving an additional 10cm of length for adjustment.





Thread the wire through the hole located in the center of the radisseur.

Step 13 – Tension the Wire

chain-link-step13



Employ pliers to rotate the pin on the radisseur in a clockwise direction.

Step 14 – Alternative with No Radisseur

chain-link-step14



If a radisseur is unavailable, twist the wire around the pole and wind it around itself 4-5 times as an alternative method.



Note: Utilizing this method will indeed result in less tension compared to using a radisseur.

Step 15 – Attach Wire to Intermediates

chain-link-step15



Secure the wire to the intermediate poles using cable ties or tying wire.

Step 16 – Attach Remaining Wire

chain-link-step16



Secure the remaining wire strands by repeating steps 10-13.

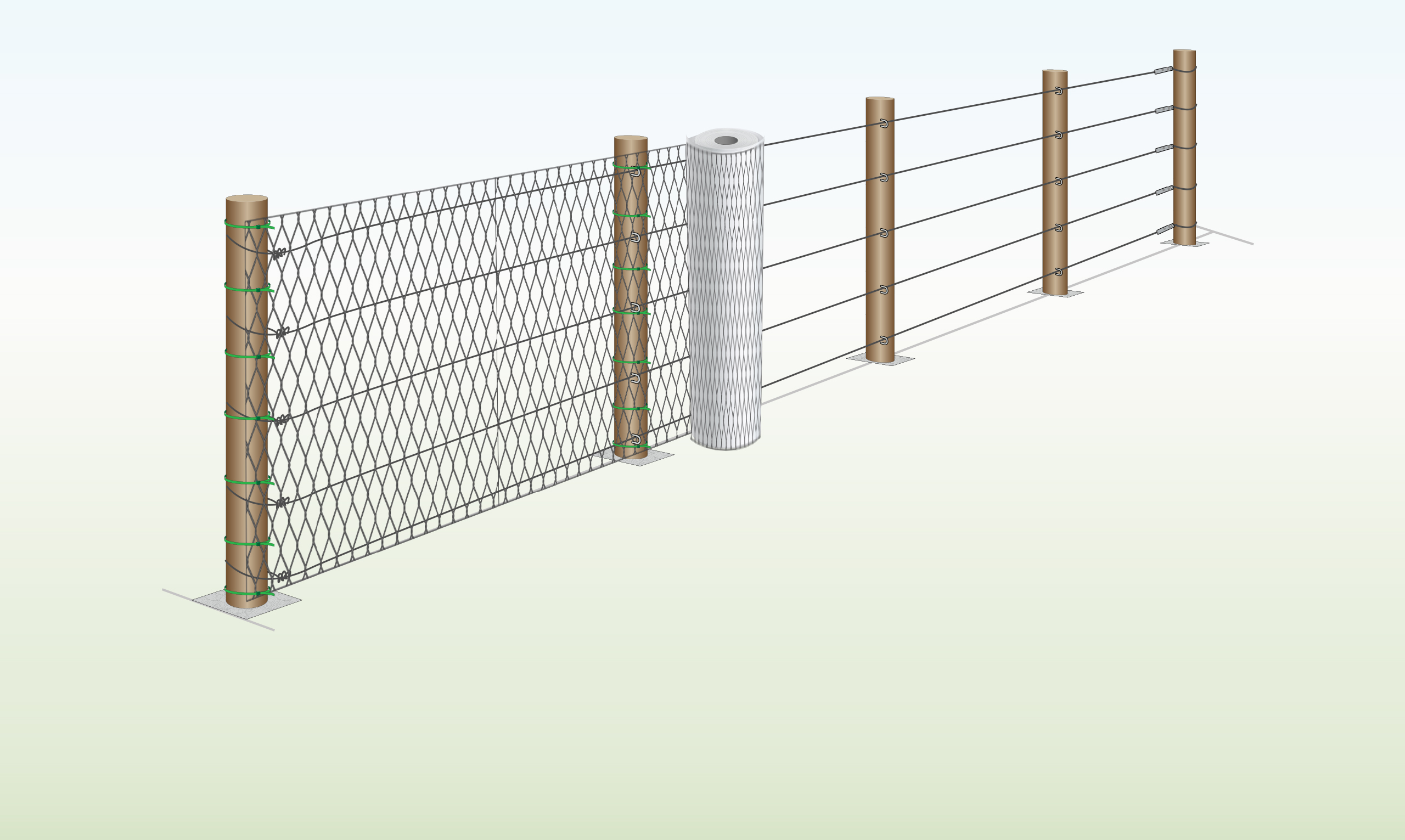

Step 17 – Start Attaching Mesh

chain-link-step17



Unroll enough mesh to cover the distance between the first two uprights.





Important: Ensure that you unroll the mesh with the roll standing upright or placed on a flat and even surface, with the flap facing upwards to prevent snagging.

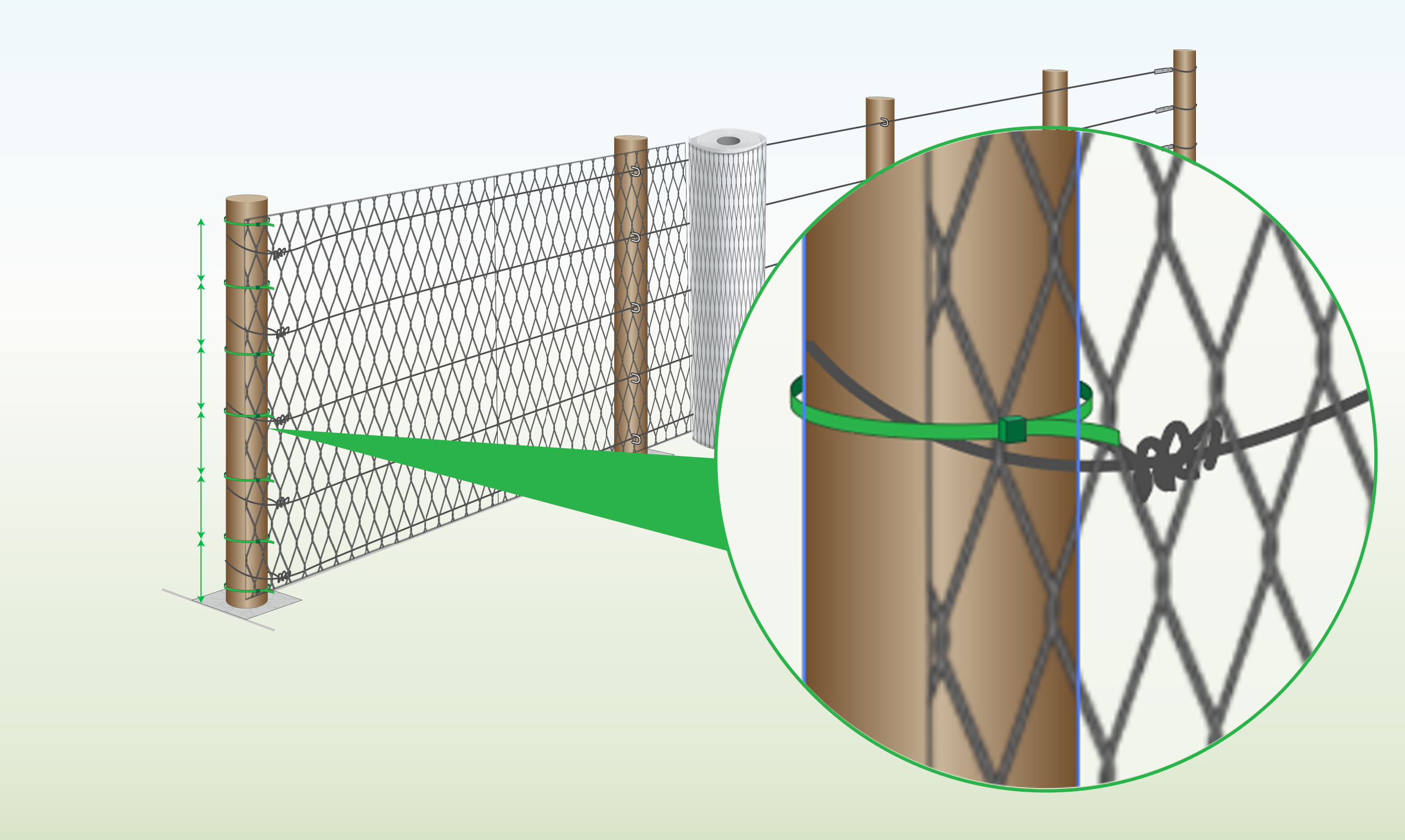

Fasten the mesh to the first pole using cable ties (or tie wire) at intervals of 15cm.

Step 18 – Pull Tight

chain-link-step18



Stretch the mesh tightly, then attach it to the next pole using cable ties.

Step 19 – Attach Remaining Mesh

chain-link-step19



Continue securing the remaining section of the mesh by following the process described in steps 17 and 18.

Step 20 – Secure to Tension Wire

chain-link-step20



Ensure to secure the tensioning wire to the fence at multiple points to uphold the tension of the fence.
