Cattle Fence

Cattle fence to contain and protect your livestock.  Cattle Panels offer the easiest installation whilst Cattle Stock Fencing offers a low-cost solution.

  • Manufactured to BS EN standards



Full product details

Categories

No products were found matching your selection.
LONG LASTING, EUROPEAN MADE CATTLE FENCE



Helpful Cattle Fence Information

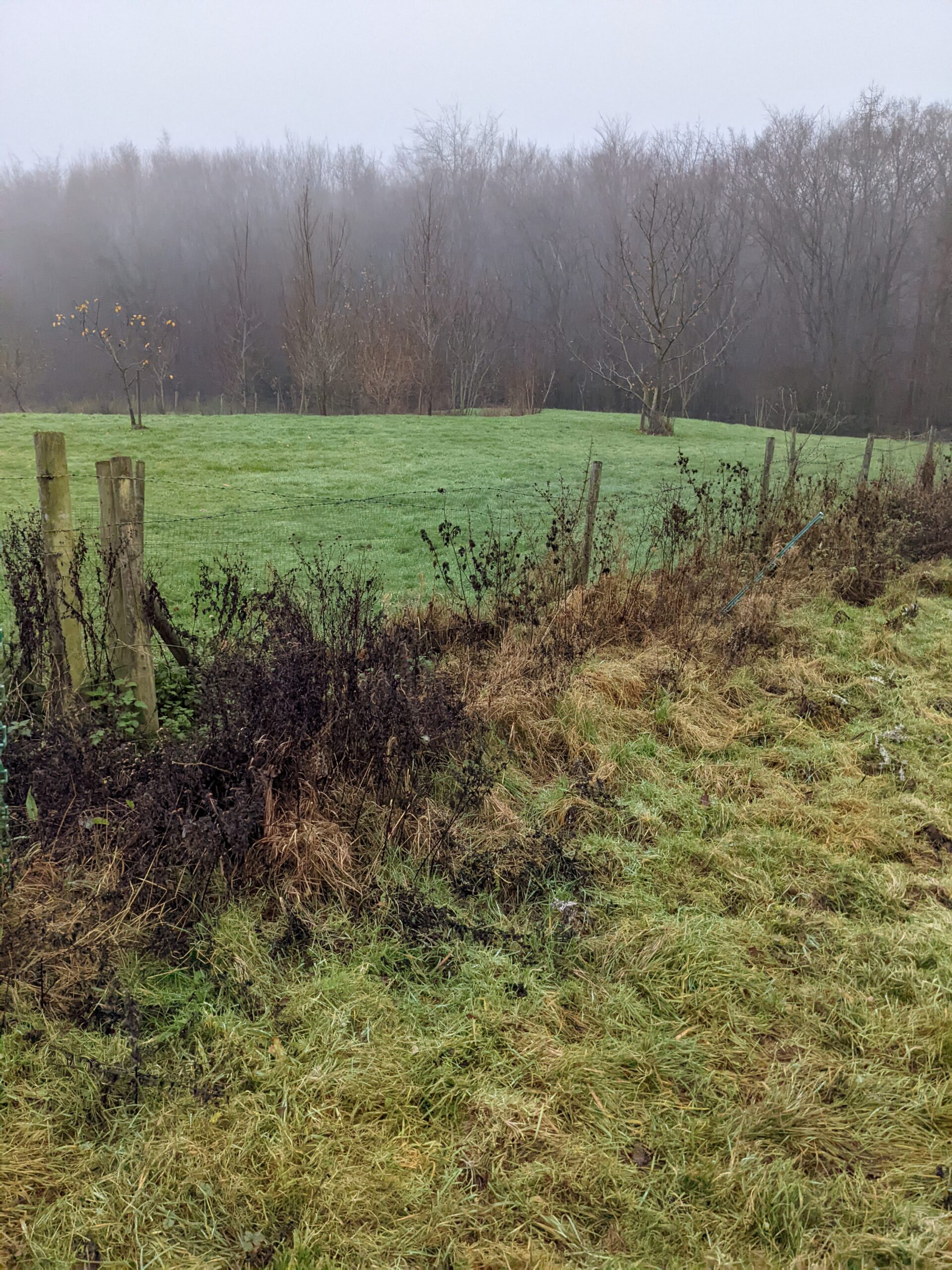

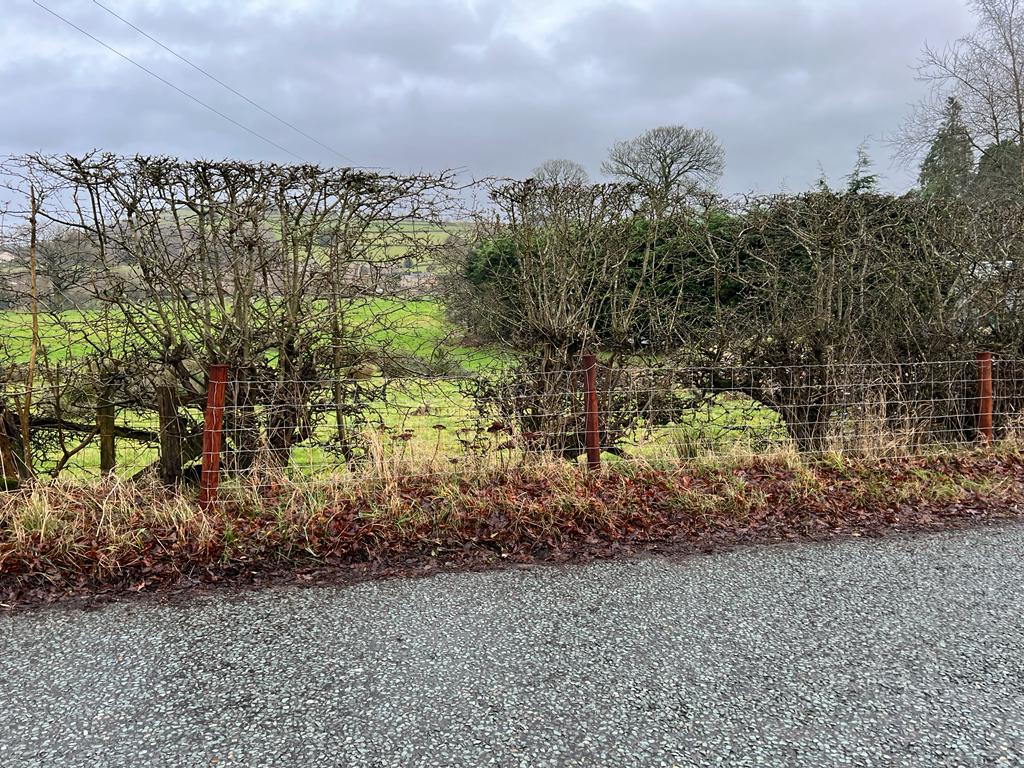

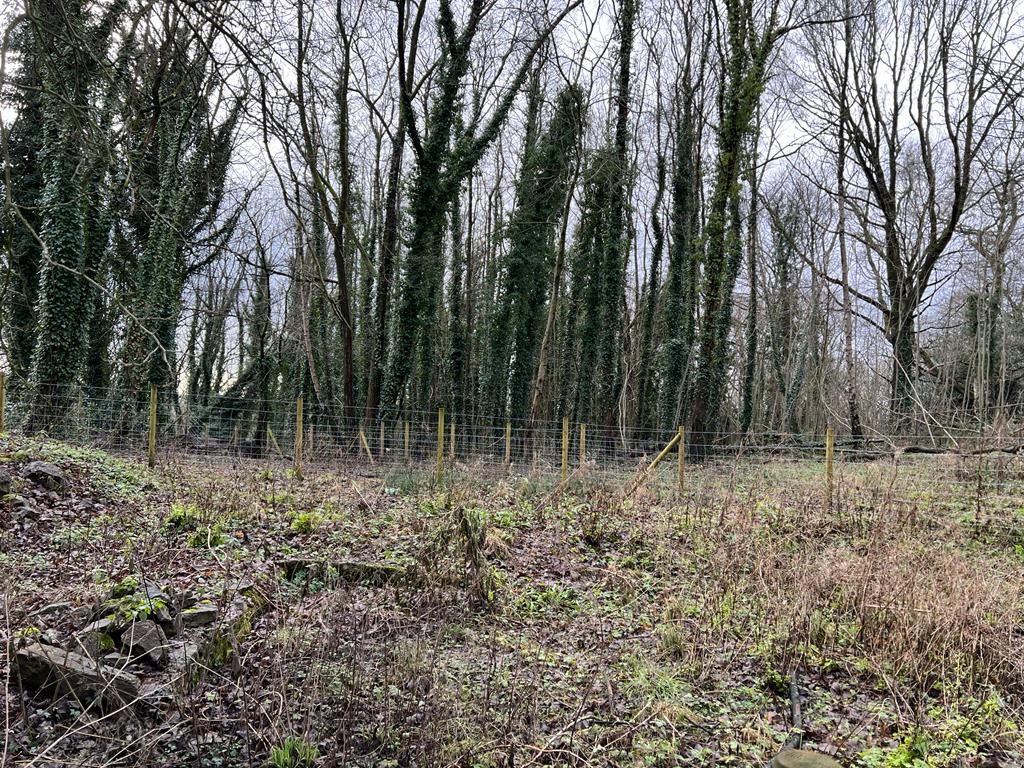

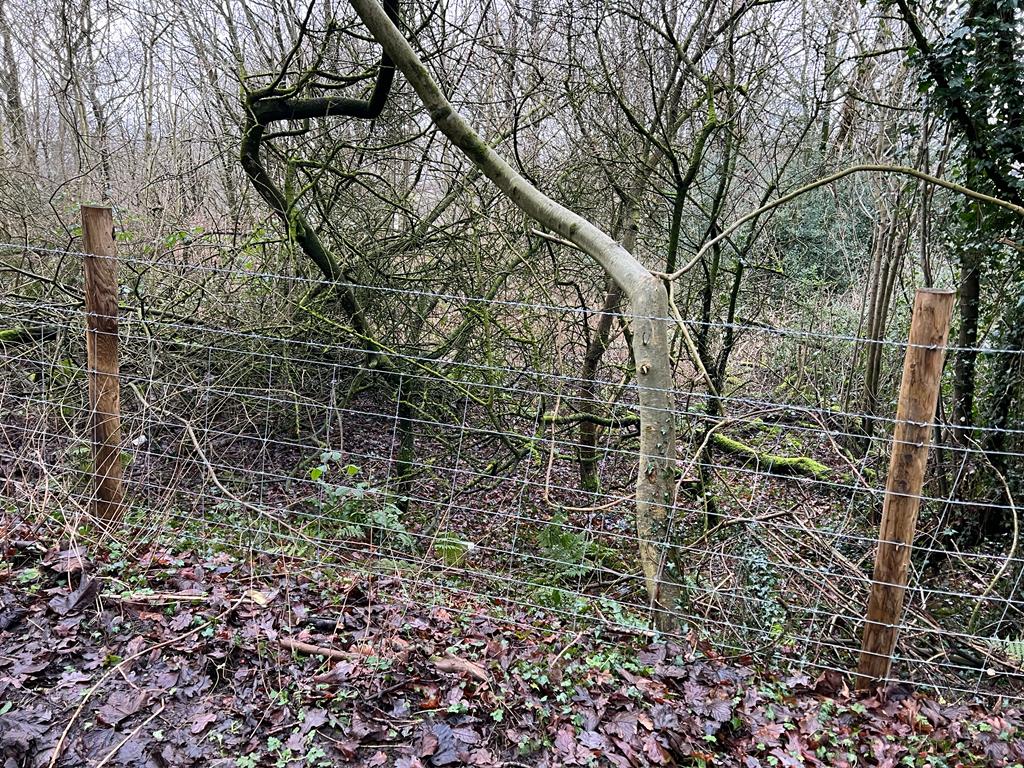

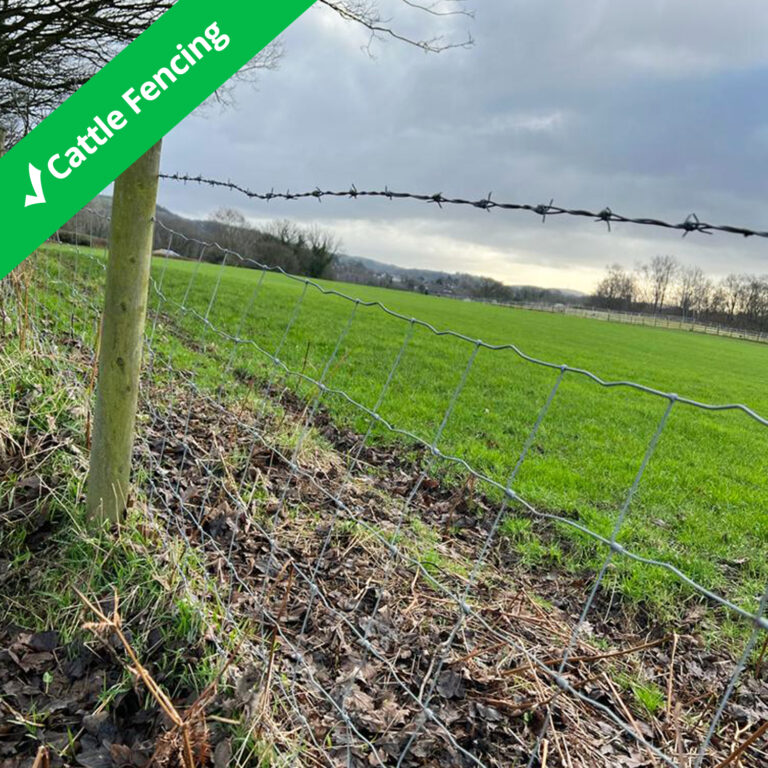

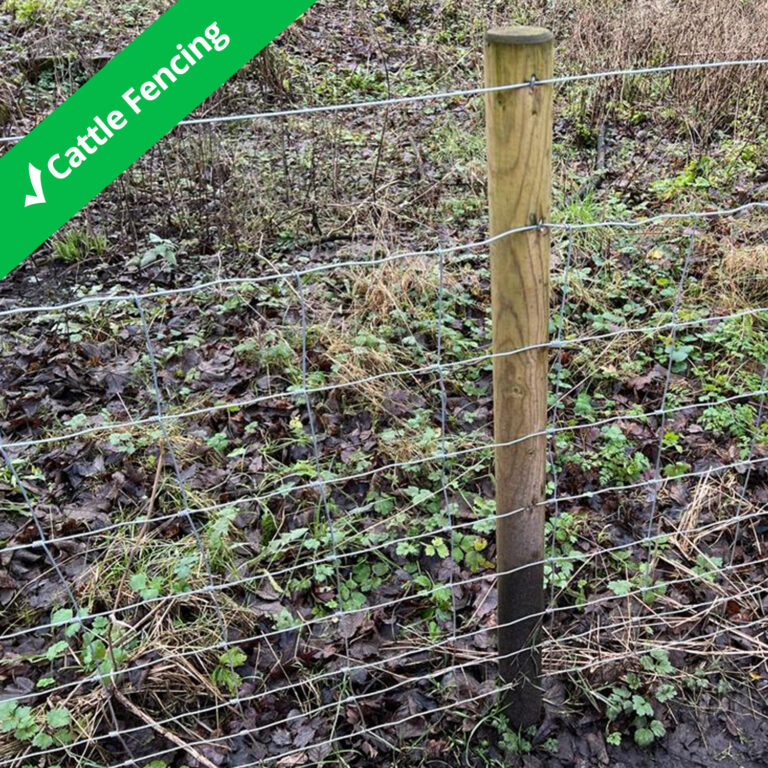

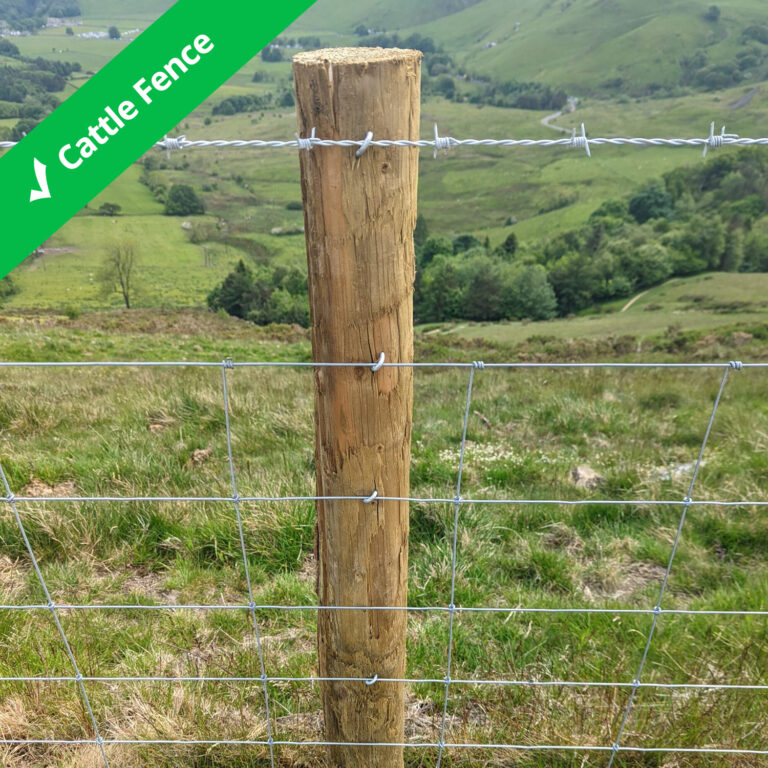

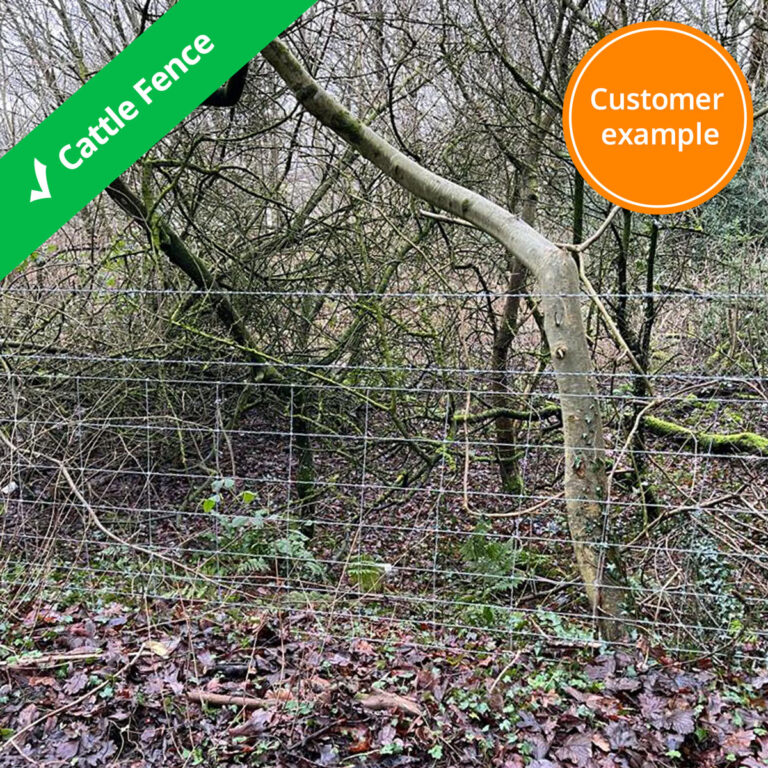

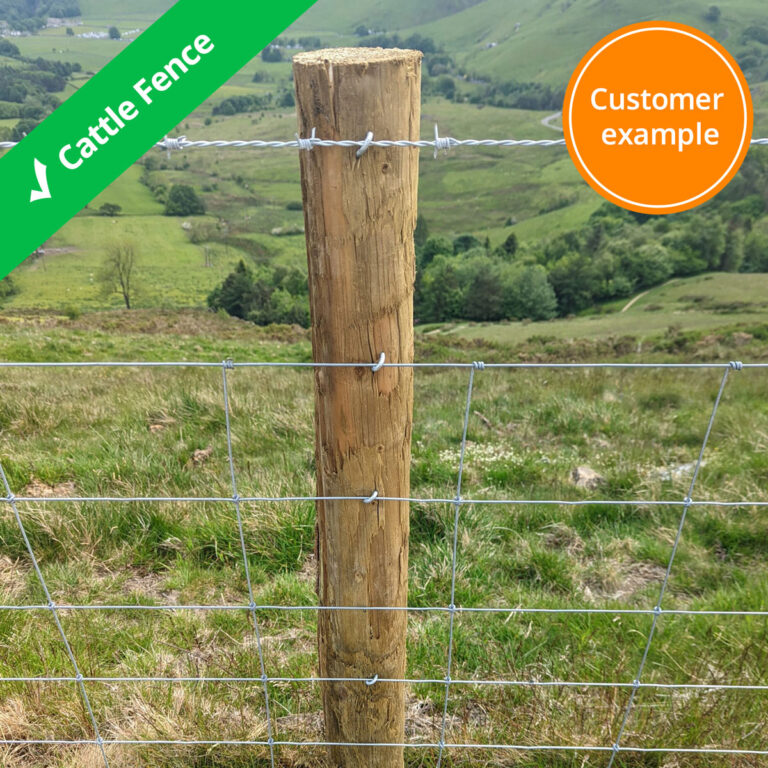

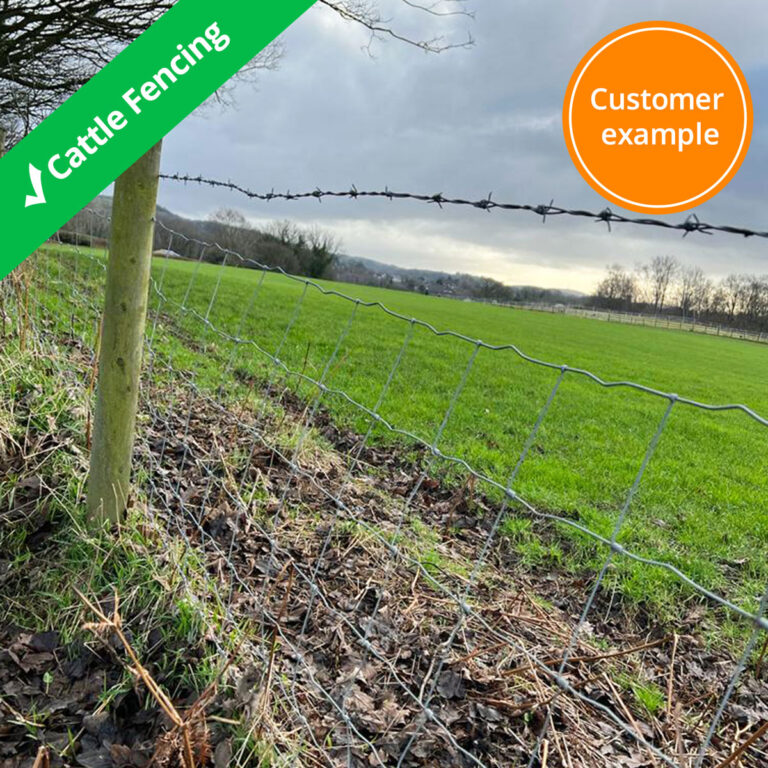

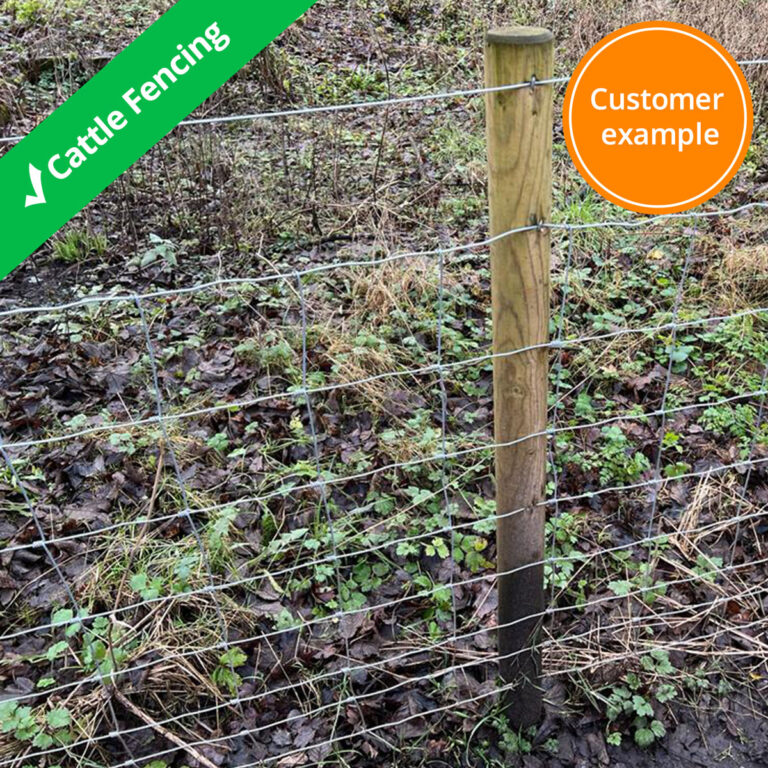

Customer Images



Product Comparison

Best suited to: Stock Fence Wire Panels
Cattle Pens
Most popular
Residential gardens
Farmland Most popular / economic
Large fields Most popular / economic
Ease of installation Hard Very easy
Portable
Prevents chewing through?
 – use with electric tape
Prevents pushing over? Yes, if correctly installed.  Add electric or barbed wire for extra protection.
Prevents head poking through?
Financial
Cost £ ££
Cost per sq meter (starting from) £1.02 £9.10
Discounts for multi purchase
 – viewable on product pages & automatically calculated for you during checkout
Minimum qty available to purchase 50m 1m
General

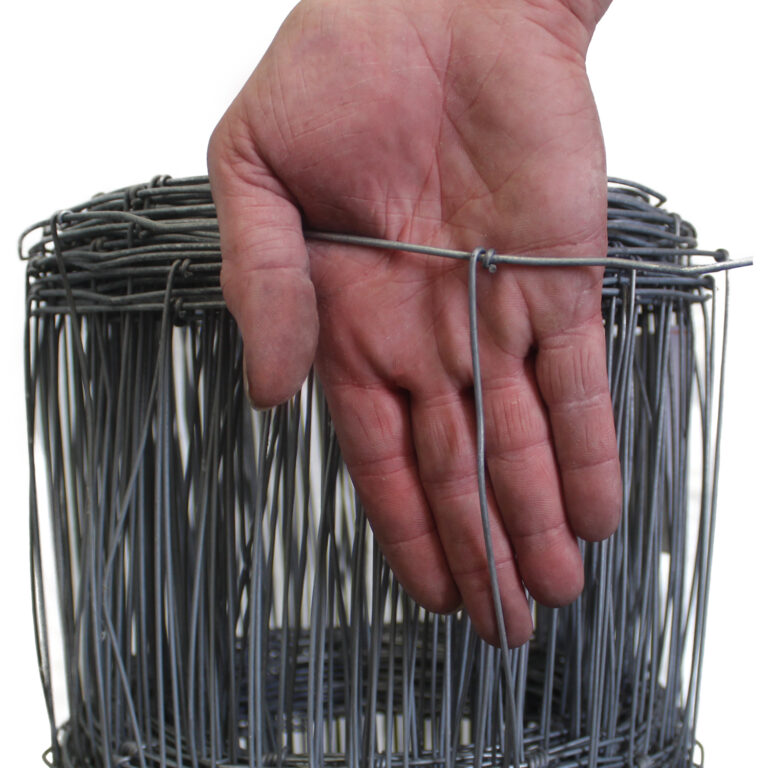

Delivered as Roll Panel
Made in EU UK
Conforms to British Manufacturing Standards BS EN 10223-5:2012

BS EN 10244-2:2009

BS EN 10218-2:2012

BS EN 1179:2003

BS EN 10223-8:2013
Construction
Maximum height availability 80cm (2.6ft) 2m (6.5ft)
Add extra height Add extra height using tension wire (view instructions)
Mesh material Galvanised steel Galfan coated steel (triple strength)
Mesh construction Knotted hinge joint Welded

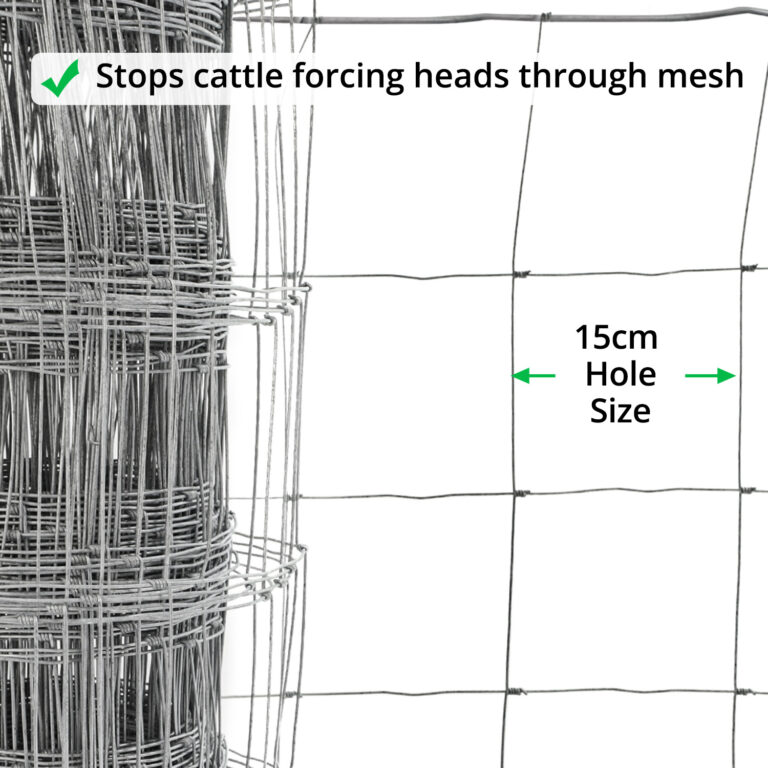

Hole size available 100mm x 150mm+ 75mm x 75mm+

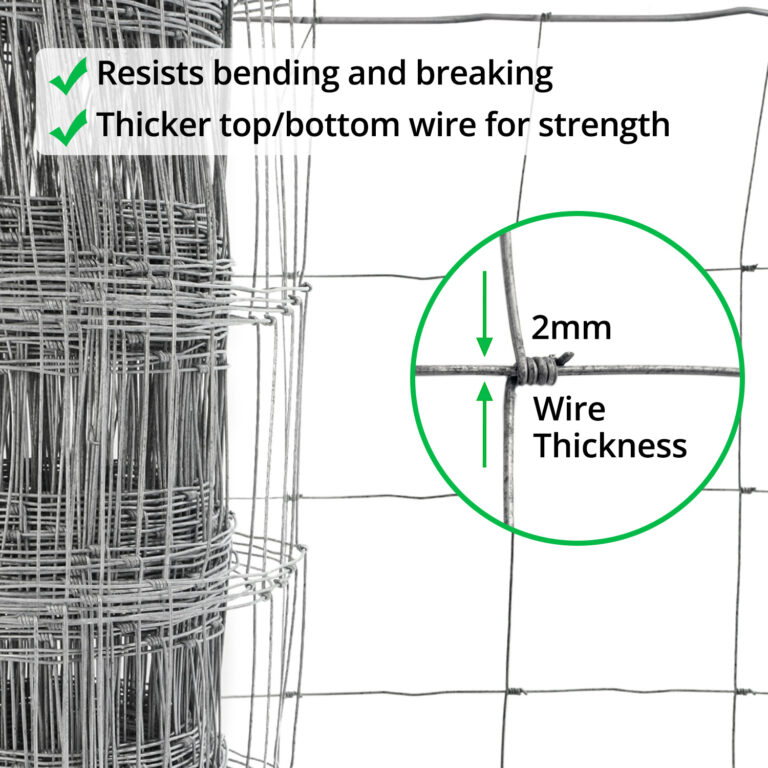

Wire diameter (gauge) 2mm+ 4mm+
Length Can be joined together to create any length required
Colour Grey Grey
Average product weight 20kg 2kg per panel
Strength & environment
Corrosion resistant
Abrasion resistance Very good Very good
Increase lifespan Cows will try to get through a fence to get to fresh grass.  Add barbed wire or a strand of electric tape at nose height to prevent this from happening.
Suited to Environments C2-C4 C2-C4
Installation & maintenance
Speed of installation Long Very quick
Experience required to install Medium None
Can be installed with wooden posts?
Can be installed with metal posts?
Distance between posts 2-3 meters 2 meters
Can stand alone without posts?
Join together using U Staples U Staples
Cut using Wire / bolt cutters Wire / bolt cutters
Requires protective glove for handling
Appearance
General look Field fence Metal mesh
Invisible from a distance
Can be disguised Yes, can easily be covered by climbing plants up the mesh or using garden screening

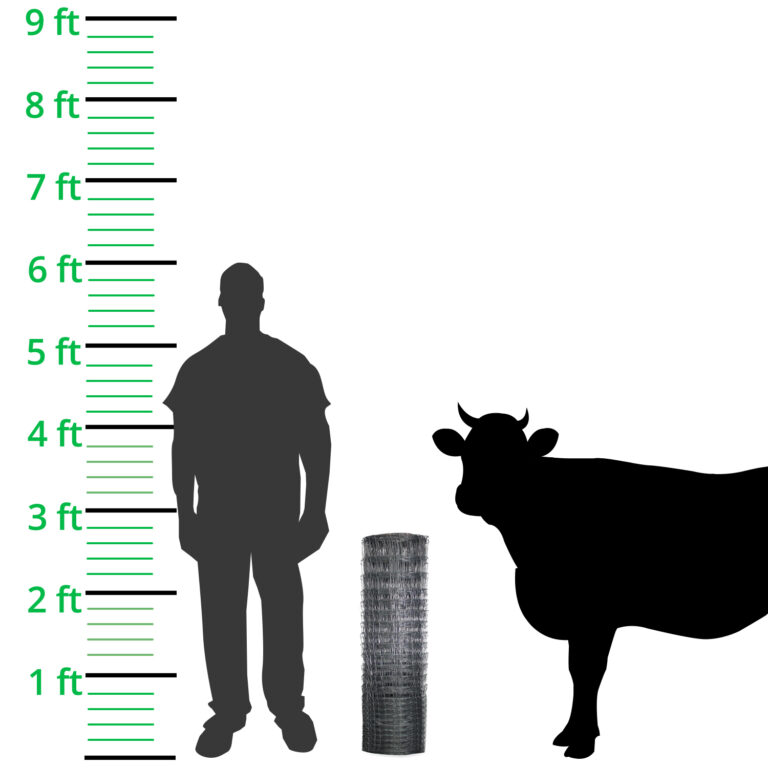

Size Guide

Height required Hole size required Wire diameter required
Cattle 90cm 100mm x 150mm 2mm (19g)
Keep out other animals
Dog High jumping and aggressive dogs may require a taller or stronger fence. See our dog fence category for more details 1.5m 50mm x 50mm 2mm (14g)
Chickens 1.5m 50mm x 50mm 0.7mm (22g)
Fox 1.8m 50mm x 50mm 2mm (14g)
Badger 1.3m 50mm x 50mm 2.5mm
Rabbits 105cm 31mm x 31mm 1.6mm (16g)

View all Animal and Pet Fencing

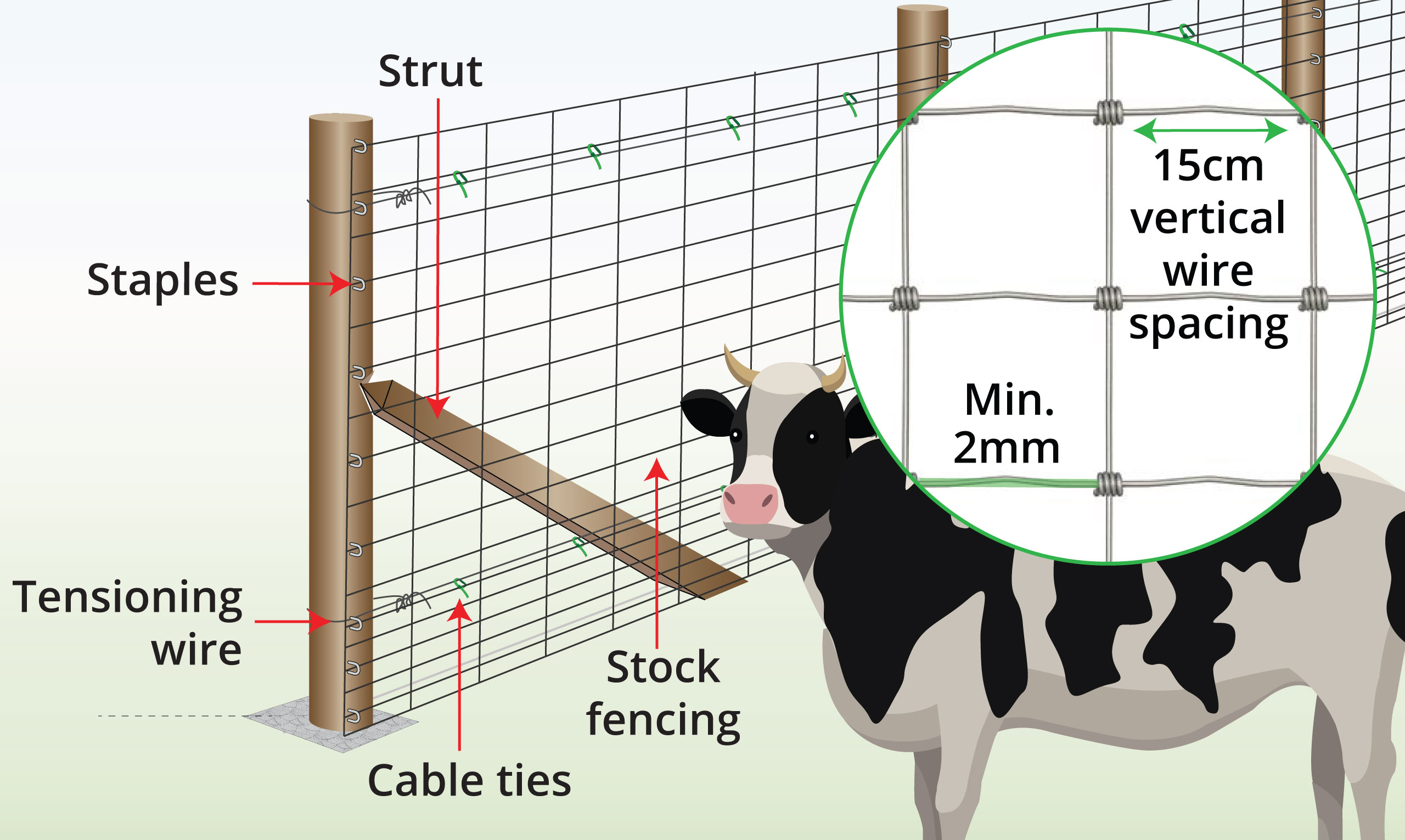

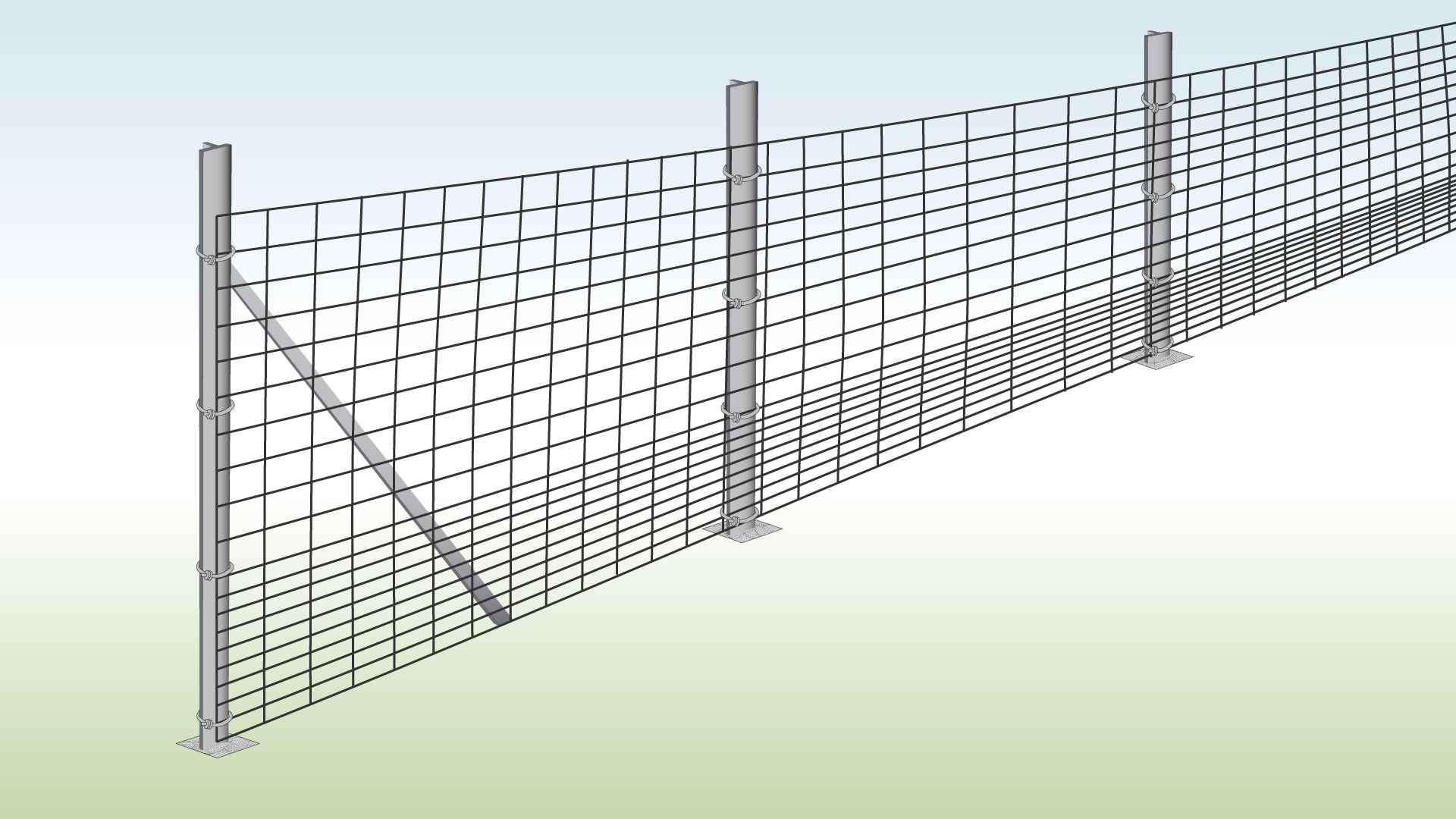

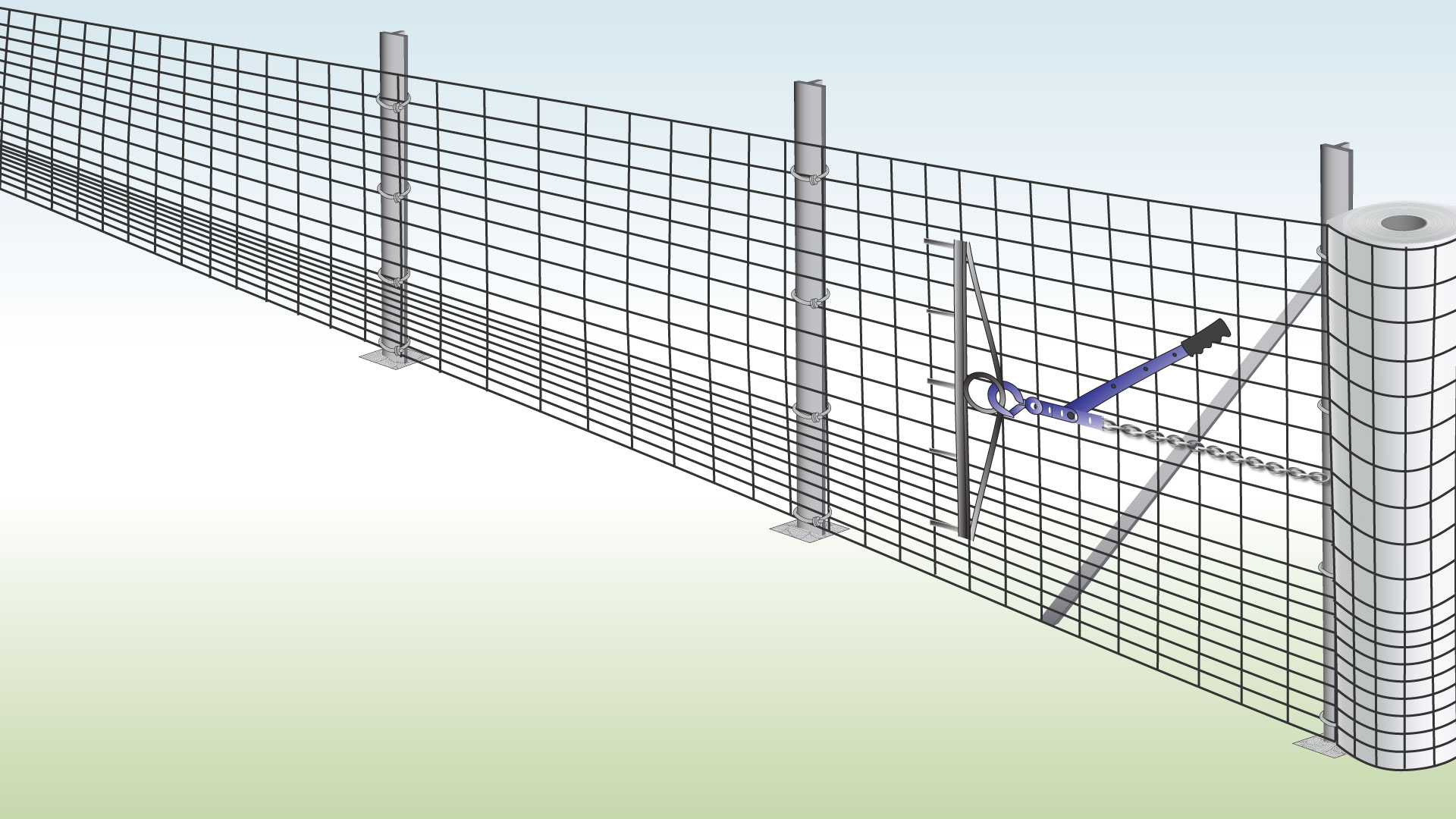

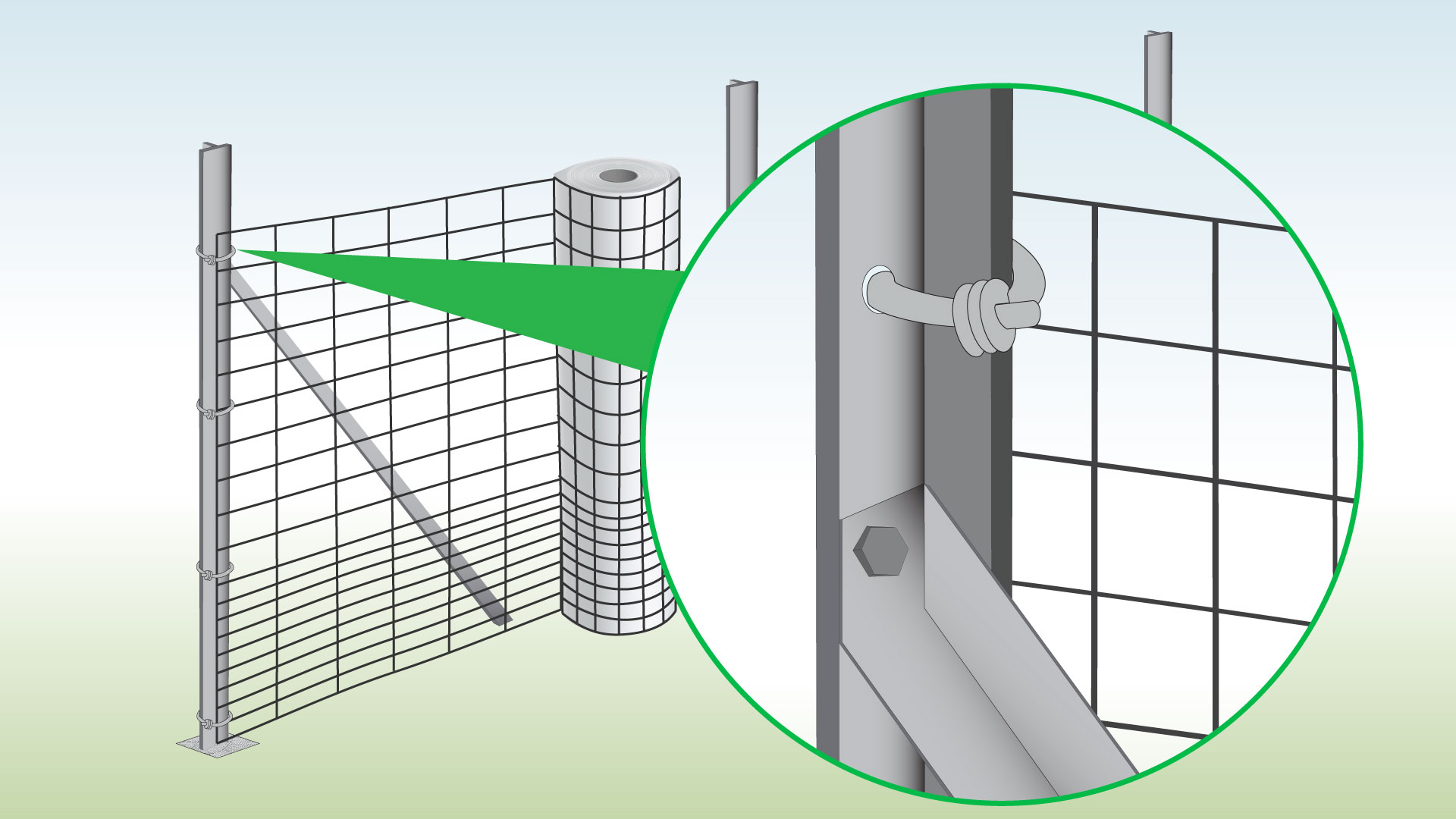

Installation Instructions

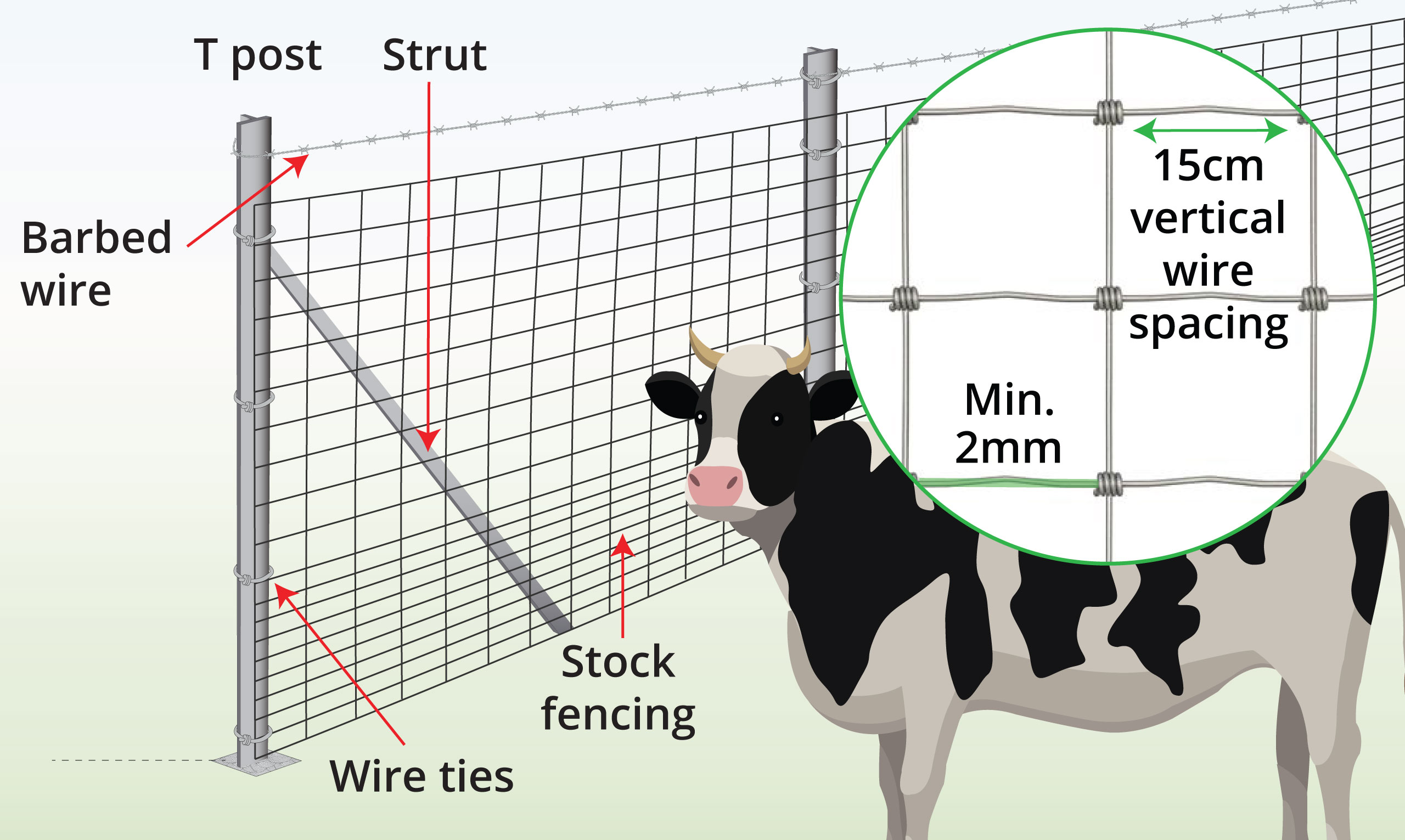

  • Stock fencing

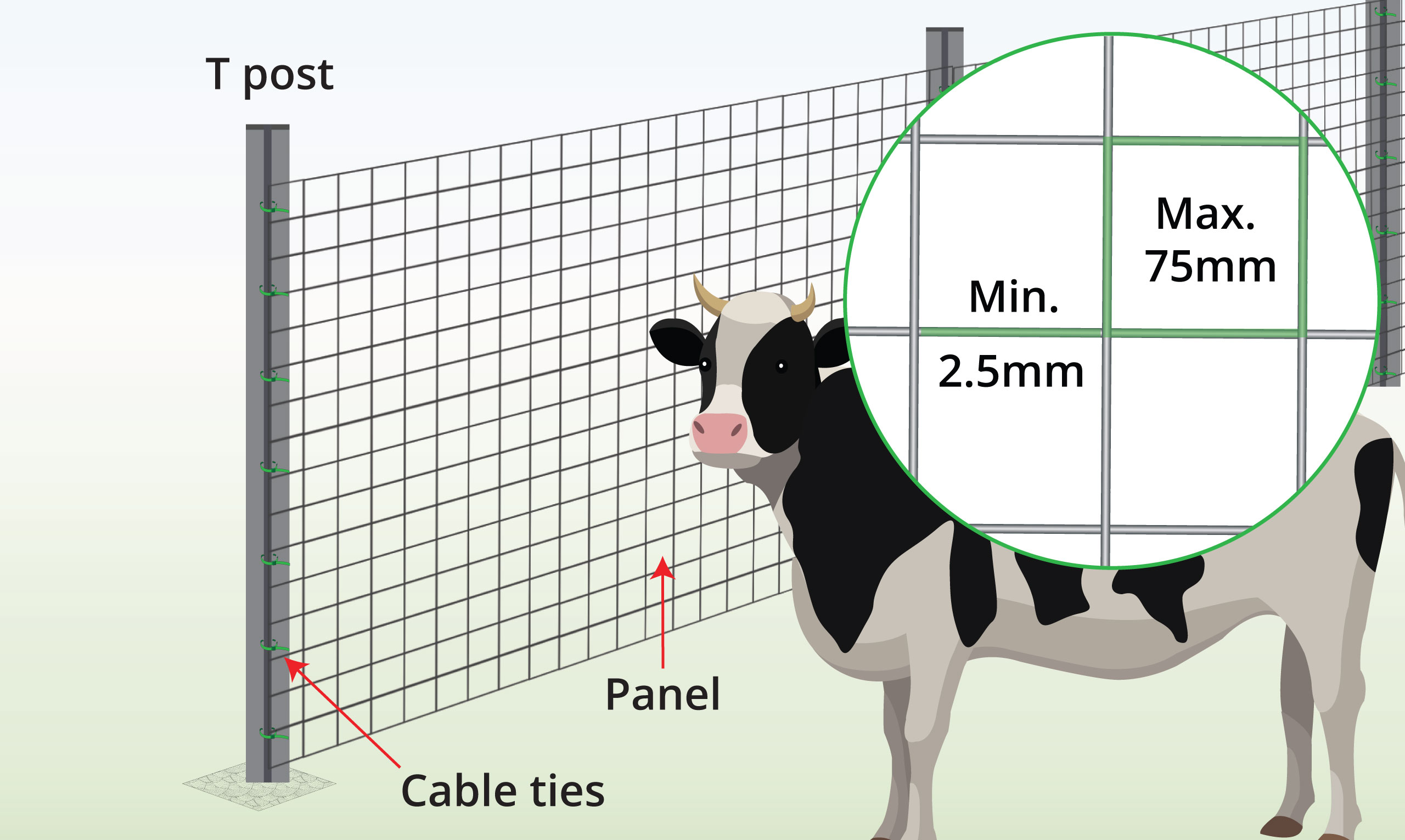

  • Panels


stock-fencing-infographic-1

stock-fencing-infographic-2

stock-fencing-infographic-3

stock-fencing-infographic-4

stock-fencing-infographic-5

stock-fencing-infographic-6



FAQ’s

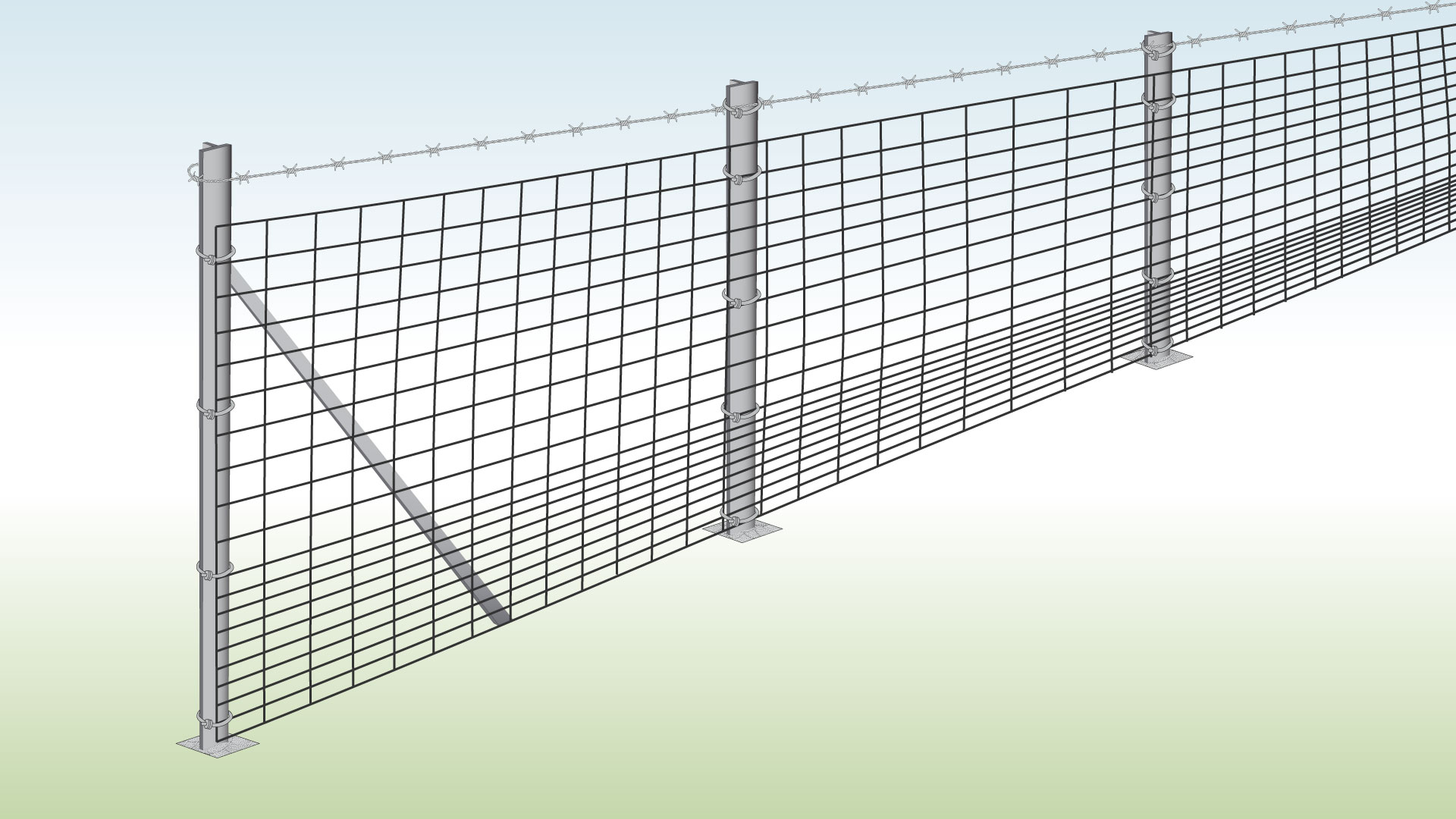

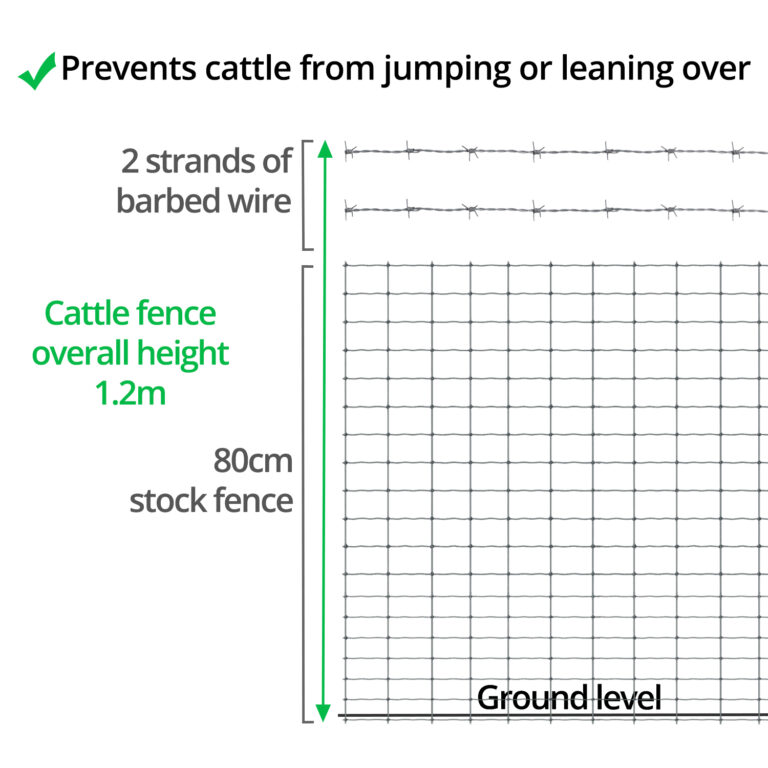

Should I use barbed wire or electrical wire at the top of the cattle fence?

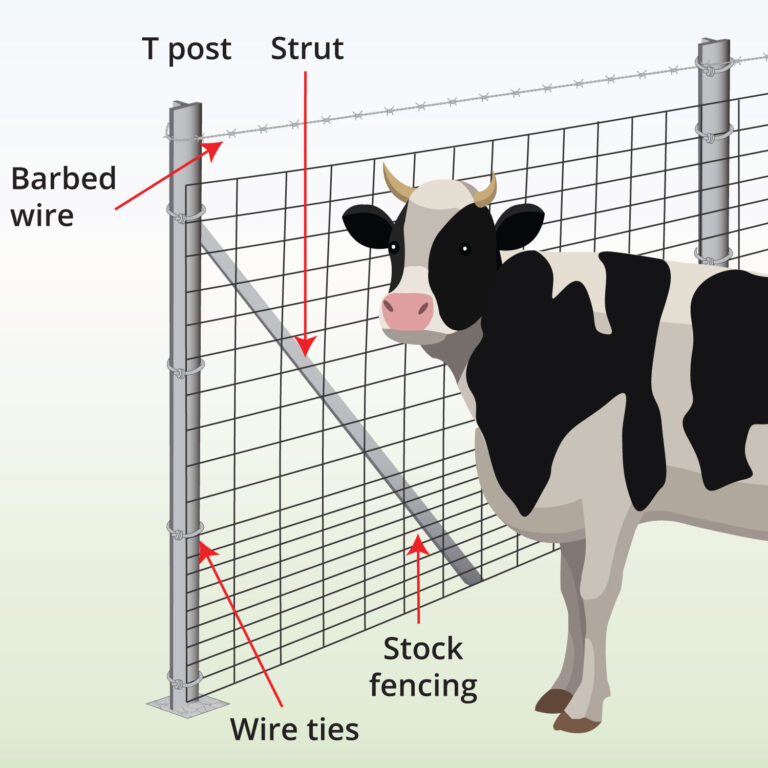

Farmers often add a line of barbed wire at the top of their boundary line.  The barbed wire acts as a deterrent to cows to lean or rub up against the wire mesh. It also increases the height so the cow cannot get their head over the top.

Can I make a cattle fence of barbed wire only?

Many farmers do construct their boundary of barbed wire only as it helps to prevent cows from leaning up against it.  However, it can also cause injury and harm to the animals.  The most common installation includes a line of barbed wire (or electrical tape) at the top and middle of the fence.

How do I stop cows chewing through?

Determined cows can chew or push through most standard fencing, especially if they want to get to fresh grass on the other side.  Installing a strand of electrical tape at the top will help to keep the cows from testing the boundary.

Is barbed wire of electric fencing more effective?

Most customers that we speak to tend to use electrical tape with one strand at the top and one in the middle.  This will prevent the cow from testing the wire mesh.

How long will cattle fencing last?

If it is properly installed and subjected to a normal amount of abrasion you can get decades from wire fencing.
