Fencing for Large Dogs

Strong welded wire mesh fencing conforming to the British Government standards for commercial dog kennels.

Provides guaranteed dog proofing for all large and strong dogs.

Standards met include;

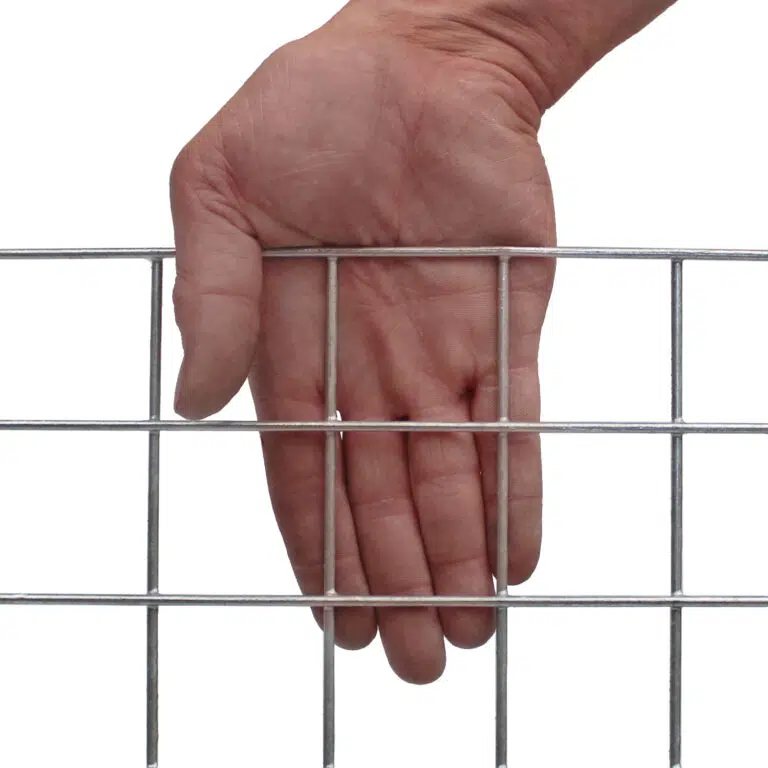

  • Maximum hole size 50mm x 50mm mesh holes
  • Smooth edges to prevent injury to dogs
  • 2mm+ thick wire (14 gauge)

Full product details

BRITISH STANDARDS FOR COMMERCIAL DOGS KENNELS

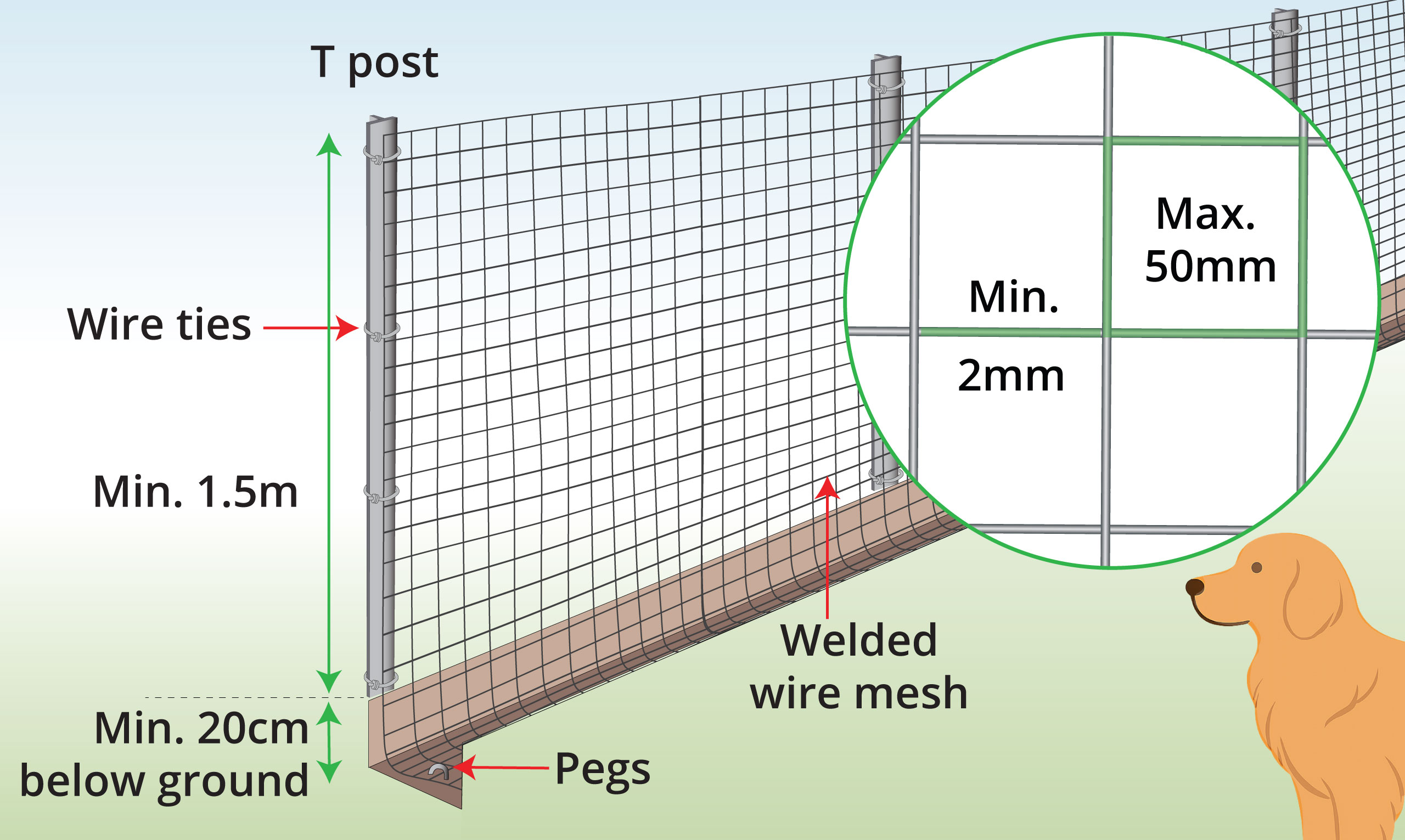

Large Dog Fence Overview

Dog proofing suited to:

Large dogs

High jumping large dogs

– 1.5m (5ft) will stop most large  dogs from jumping over a fence. Select 1.8m (6ft) option if your dog is a high jumper

Powerful medium-sized dogs

– select 2.5mm wire diameter will stop the most powerful large dog breeds from chewing through or pushing over the fence

Good climbers

– choose 25mm x 25mm mesh hole size if your dog is good at climbing otherwise 50mm x 50mm will prevent climbing.

Diggers

download installation guide

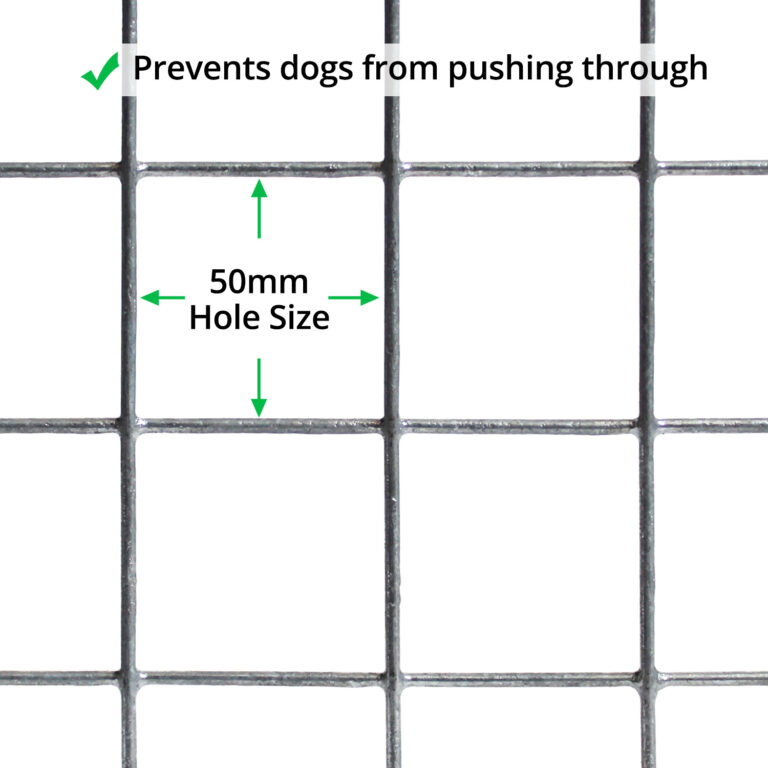

Stop Dogs Climbing: Select Hole Size

If you are unsure of your dog’s ability to climb we suggest going for a mesh hole size of 25mm x 25mm or less. This will ensure that your dog’s paws do not fit into the holes so they can lift themselves up and over the mesh.

Hole size

13mm x 13mm

19mm x 19mm

25mm x 25mm

50mm x 50mm

Large dogs






Very large dogs






Best climbing dogs

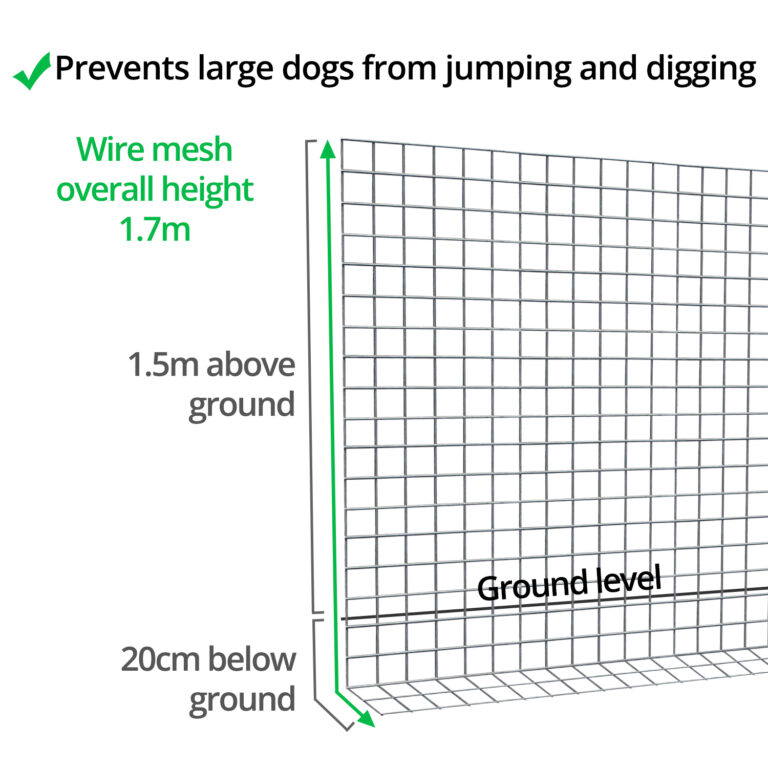

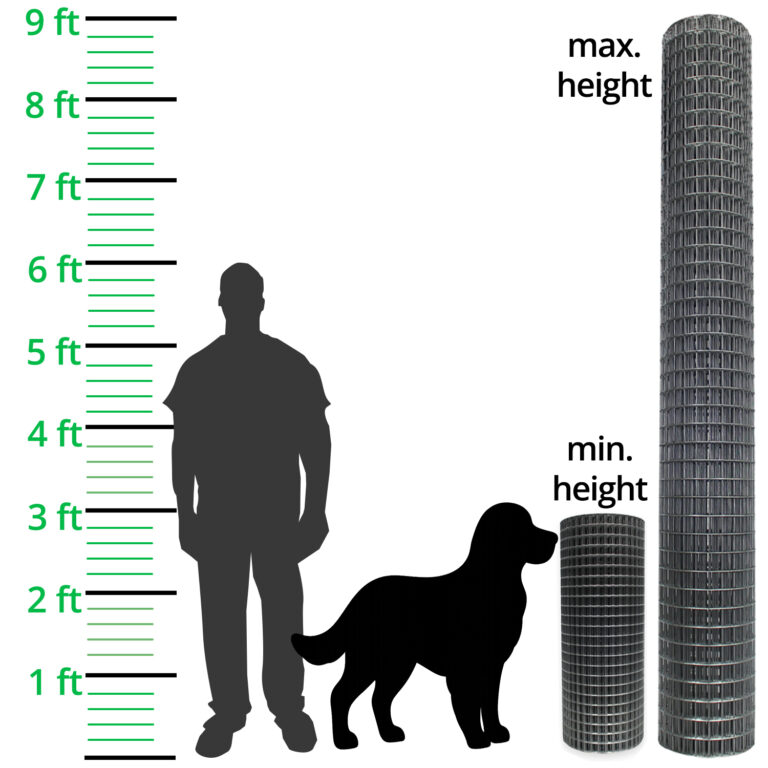

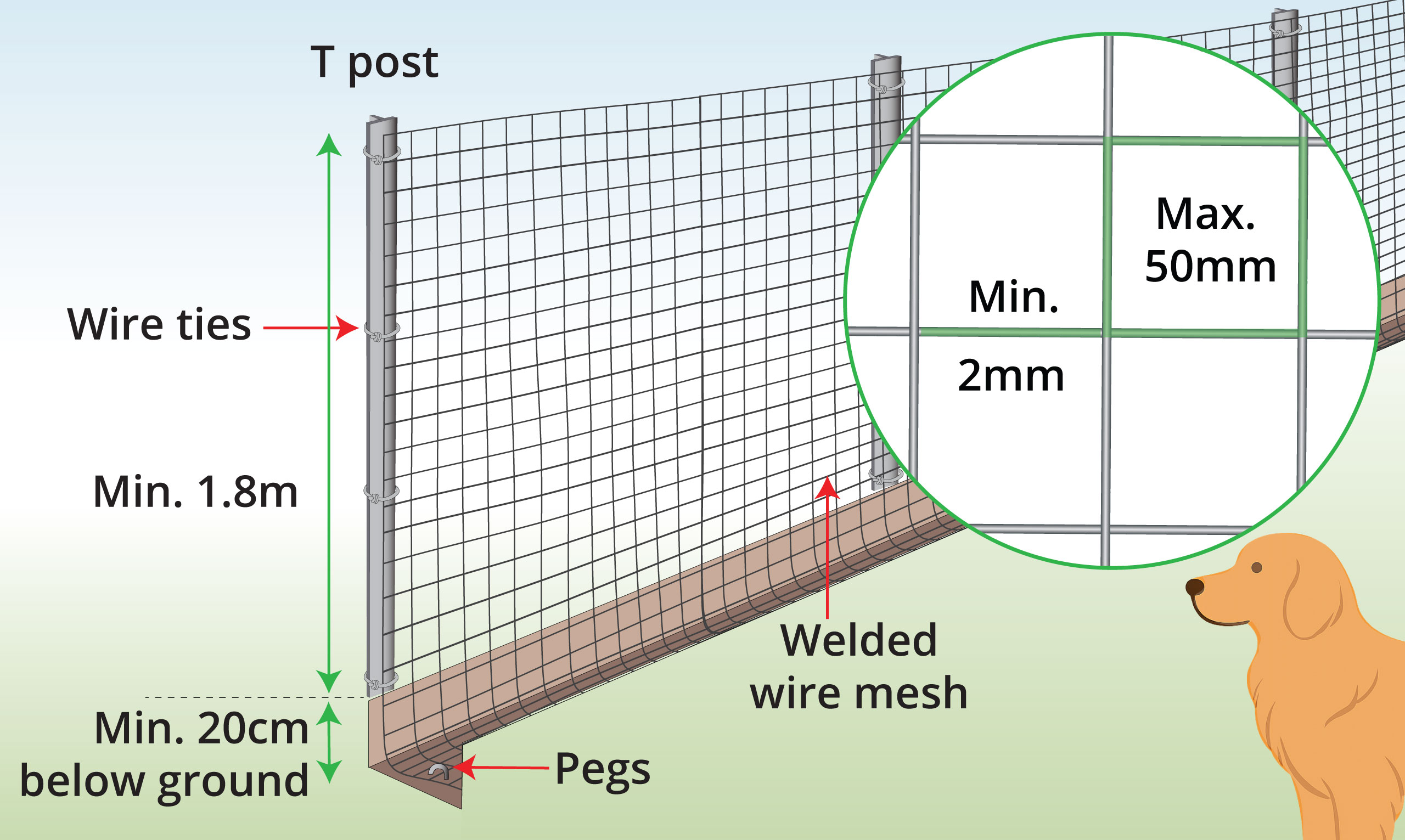

Stop Dogs Jumping Over: Select Height

If you are unsure of your dog’s ability to jump we suggest going for 1.8m (6ft) which will contain 99% of dogs.  The very highest jumping dogs can clear 2.1m (8ft).

Height

50cm (1.6ft)

90cm

(3ft)

1.2m

(4ft)

1.5m

(5ft)

1.8m

(6ft)

2.4m

(8ft)

Large breeds



Maybe




Very large dogs




Maybe



Highest jumping dogs

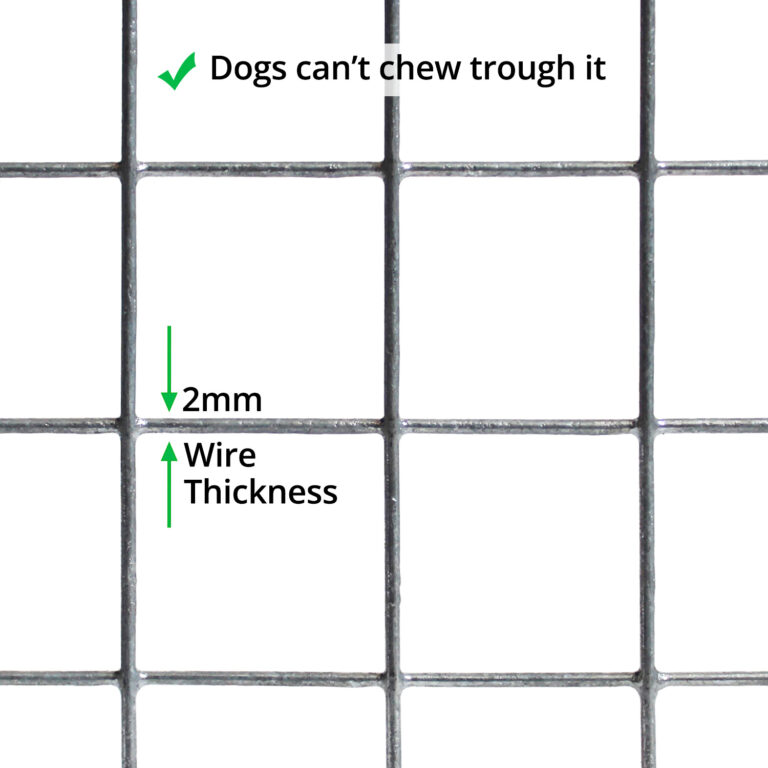

Stop Dogs Chewing Through Wire: Select Wire Diameter

If you are unsure of the strength of your dog’s chewing strength we suggest going for at least 2mm+ wire diameter

Wire diameter

1mm (19g)

1.6mm (16g)

2mm (14g)

2.5mm (12g)

3mm+ (10g)

Large breeds


Maybe




Very large breeds


Maybe




Most powerful breeds



Maybe



General Product Information

Wire mesh options

PRE GALVANISED (PRIME)

HOT DIPPED GALVANISED (SUPER PRIME)

Manufacturing grade

Pre-galvanised

Pre-galvanised then hot dipped again in very thick layer of zinc

Made in

Europe

Conforms to British Manufacturing Standards

BS EN 10218-2:2012 &  BS EN 10244-2:2009

Life expectancy under normal conditions

20 years

25 years

British Kennel Standards

– all products on this page conforms to government standards for commercial dog kennels for boarding and breeding dogs

Has sharp edges and corners?

– all wire mesh on this page is made in Europe with no sharp edges to injure your dog

Delivered as

As a roll

Applications



Suited to indoors

– see indoor dog fence options

Portable: good for caravan, camping, etc



– see portable dog fencing

Suited to outdoors



Run or exercise area



Partition off driveways, etc



Kennels & enclosures



Strength & Environment



Corrosion resistant

Yes – conforms to British manufacturing standard – EN 10244-2:2009

Abrasion resistance

Yes – conforms to British manufacturing standard BS EN 10218-2:2012

Life expectancy under normal conditions

20 Years

25 years

Suited to Environments

C2-C4

Installation & Maintenance



Speed of installation

Quick (download instructions)

Experience required to install

Medium

Can be installed with wooden posts?



Can be installed with metal posts?



Can stand alone without posts?



Join together using

U Staples

Cut using

Wire cutters or bolt cutters

Requires protective glove for handling



Ease of repair

Easy

Installation instructions

Download

Appearance



General look of the fence

Metallic grey, silver look

Invisible from a distance

– Mesh with 50mm x 50mm holes can be difficult to spot from a distance but they are not 100% invisible

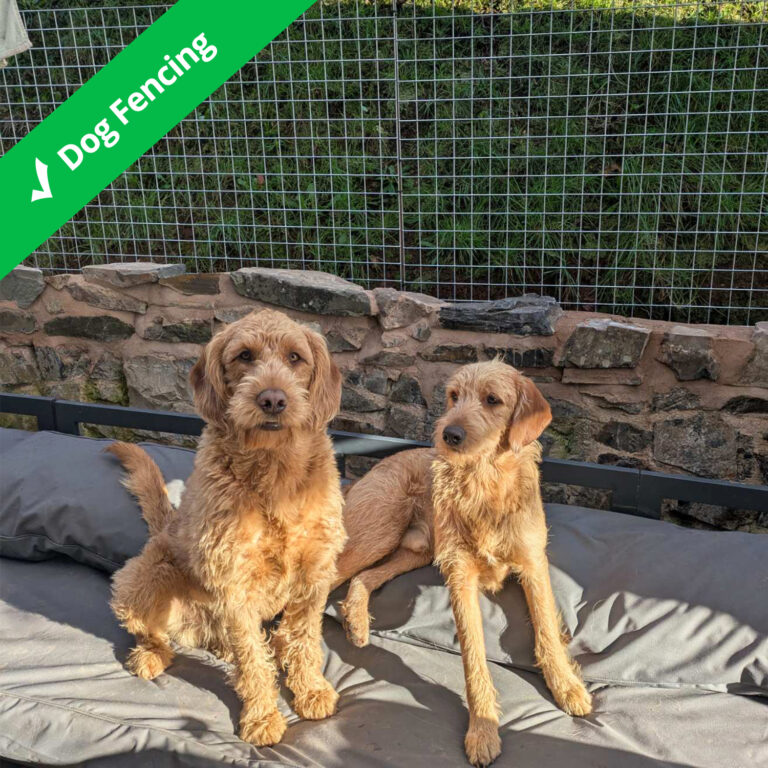

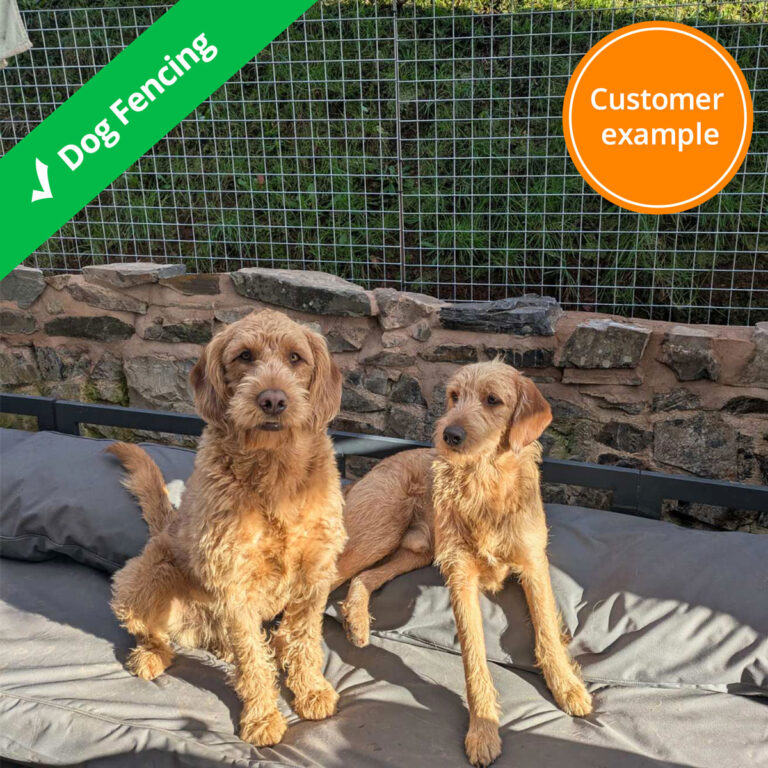

Example installation

View Image

Also stops?



Rabbits

– select minimum 19g wire diameter and hole no bigger than 31mm x 31mm

Foxes

– select minimum 14g wire diameter and hole no bigger than 50mm x 50mm

Cats

– select minimum 19g wire diameter and hole no bigger than 25mm x 25mm

Pigs, sheep, etc

 – select minimum 14g wire and hole size no bigger than 50mm x 50mm


View all animal and pet fencing

Attachments

Attach to: How to:
Wood/
Wooden Posts

(Staples)

Metal/
Metal Posts

(Cable ties)

Concrete Posts

(Tensioning wire,
Eye bolts
)

Soil

(Pegs)

Wire Fence

(Cable ties)



Size chart

Size Lenght/Weight Breed
Large dog Large
107cm L x 71cm W
18.5kg-32kg
Boxer, English Bulldog, Bassett Hounds, Shar Pei,Wheaten & Bull Terrier, Collie,American Staffordshire Terrier
Very large dog Extra Large
122cm L x 76cm W
23kg-41kg
Bloodhound, Labrador & Golden Retriver, German Shepherd, Rottweiler, Siberian Huskies, Weimaraner, Tibetan Mastiff, Airedale, Standard Poodle

Installation Instructions

To Do Explanation

Step 1 – Mark the Post Location

barbed-wire-step-2

Specify the post locations while maintaining a spacing of 2-2.5m between each post.

Step 2 – Dig Holes

barbed-wire-step-3

Dig a hole for the posts, ensuring that the depth of the hole is approx. one-third of the post’s length.





Use a spirit level to verify that the posts are perfectly upright.

Step 3 (Optional) – Cement Posts In

barbed-wire-step-4

After filling the holes with concrete, position your posts within the concrete.

Step 4 – Attach Mesh to End Post

dog-fencing-welded-mesh-wooden-step-4

Take sufficient mesh to cover the distance between the initial two posts.





Secure the mesh to the posts using staples or cable ties at 15cm intervals.

Step 5 – Repeat Step 4

dog-fencing-welded-mesh-wooden-step-5

Proceed with securing the remaining section of the mesh by following the process described in step 4.

Step 6 – Attach Mesh to Last Posts

dog-fencing-welded-mesh-wooden-step-6

Attach the mesh to the last post to complete the fencing installation.

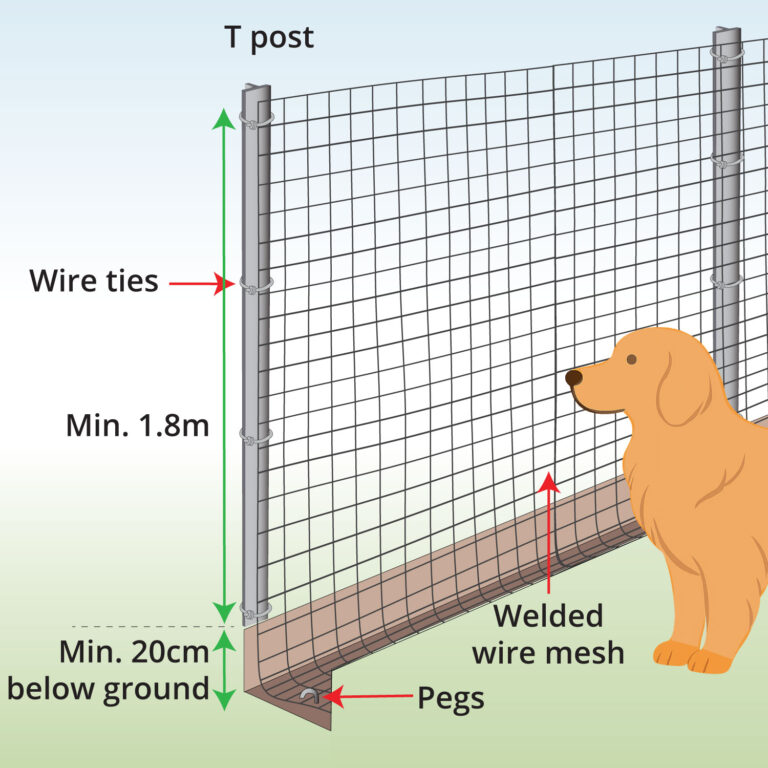

Additional Step to Prevent Digging

dog-fencing-welded-mesh-prevent-digging2

Dig a trench along your fence line, then fold the bottom of the mesh at a 90-degree angle to form a 15cm lip. This extension will cover the trench’s bottom.





Use pegs to secure the extension to the ground at every 60cm, then cover it by adding a layer of soil or mulch over it.
