Fencing for Medium Sized Dogs

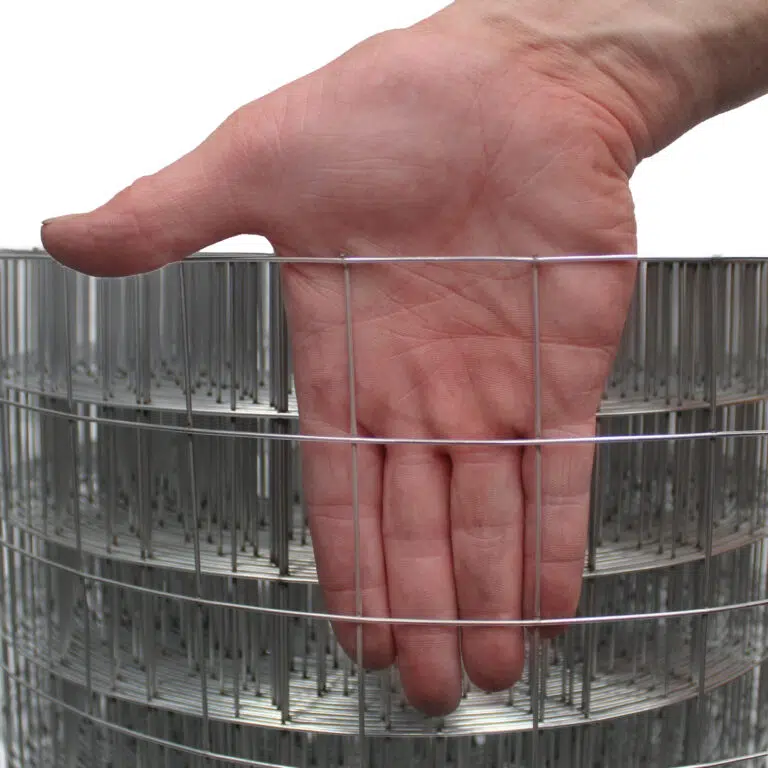

Smooth 1.6mm – 2mm European-made wire mesh suited to creating dog-proof fencing for most medium to large dogs.

If you have a particularly large or strong dog select visit large dog fencing.



Full product details

MADE TO BRITISH & EUROPEAN STANDARDS

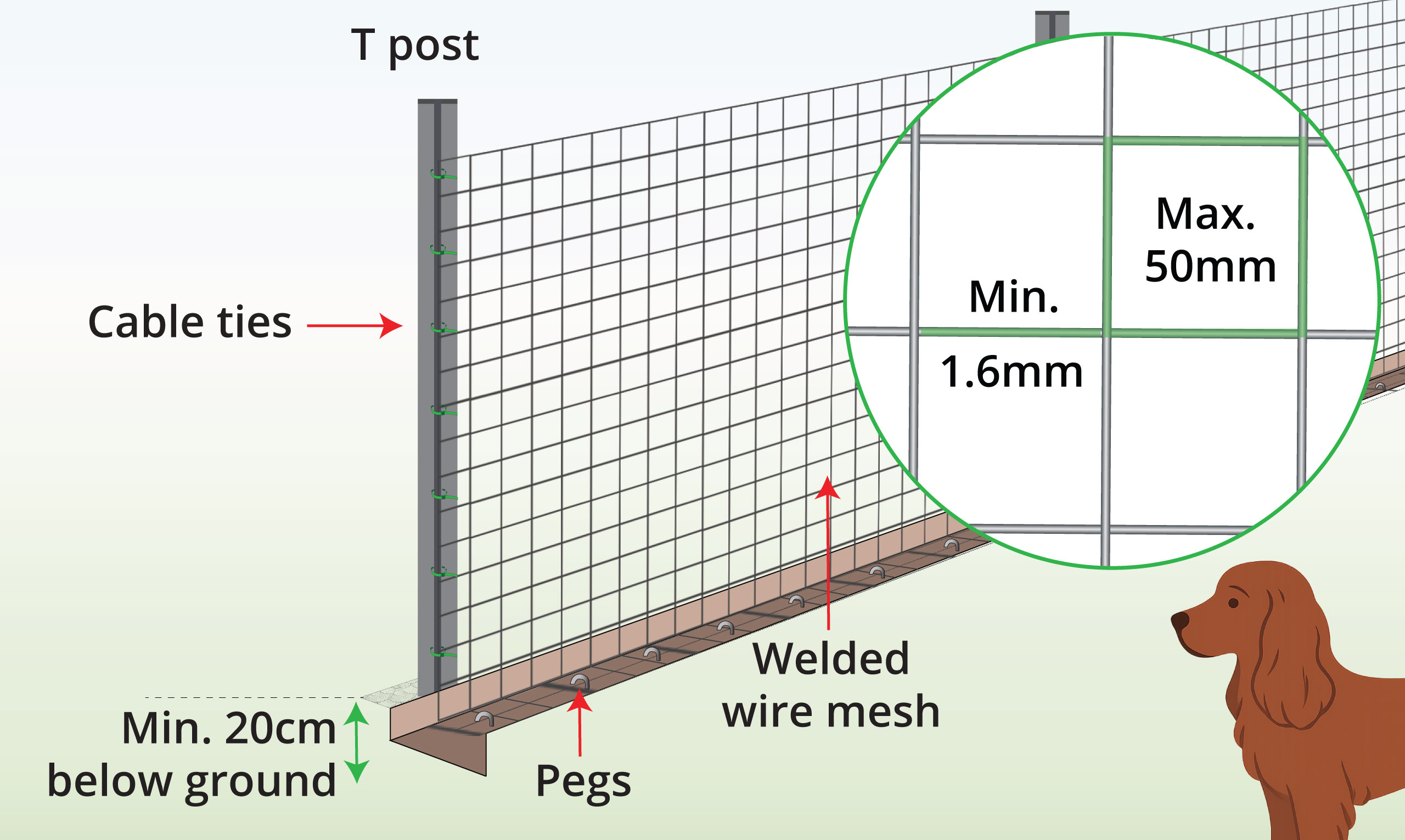

Medium Sized Dog Proofing Overview

Dog proofing suited to:

Medium-sized dogs

High jumping medium-sized dogs

– 1.2m (5ft) will stop most medium size dogs from jumping over a fence. Select 1.5m (5ft) option if your dog is a high jumper

Powerful medium-sized dogs

– select 2mm wire diameter will stop the most powerful medium sized dog breeds from chewing through or pushing over the fence

Good climbers

– choose 25mm x 25mm mesh hole size if your dog is good at climbing otherwise 50mm x 50mm will prevent climbing.

Diggers

download installation guide

Stop Dogs Climbing: Select Hole Size

If you are unsure of your dog’s ability to climb we suggest going for a mesh hole size of 25mm x 25mm or less. This will ensure that your dog’s paws do not fit into the holes so they can lift themselves up and over the mesh.

Hole size

13mm x 13mm

19mm x 19mm

25mm x 25mm

50mm x 50mm

Medium-sized dogs




Usually

Best climbing dogs

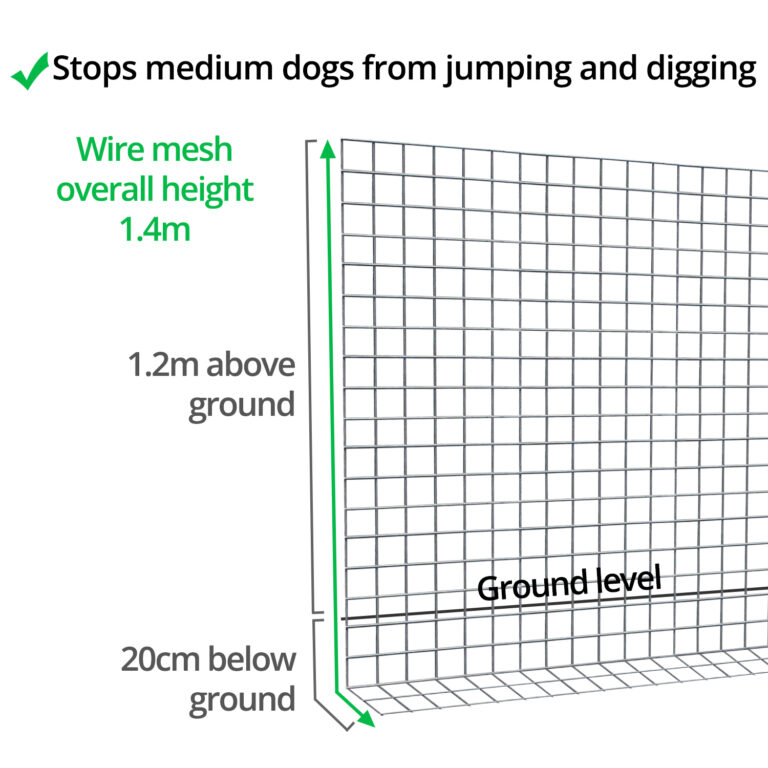

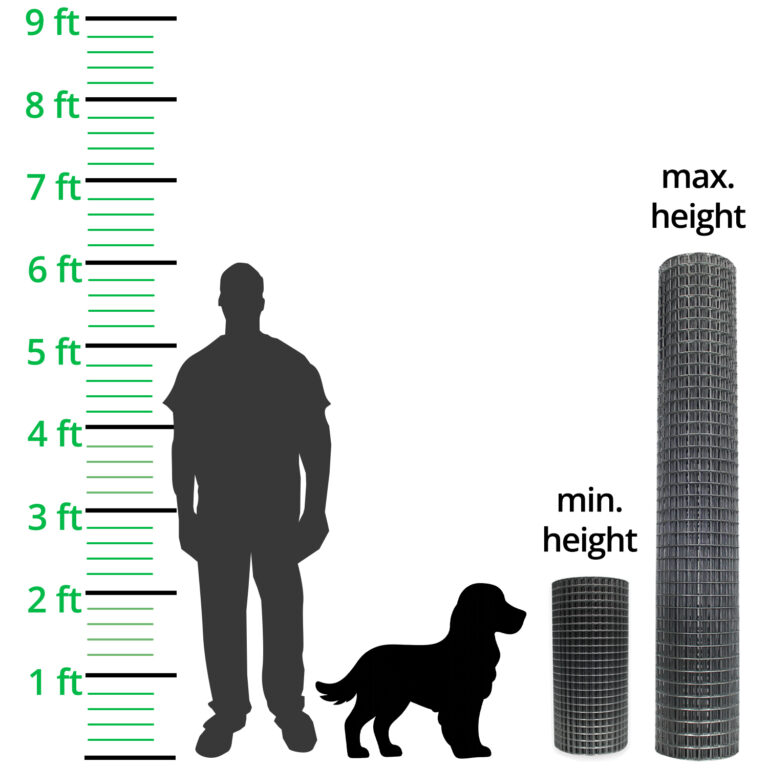

Stop Dogs Jumping Over: Select Height

If you are unsure of your dog’s ability to jump we suggest going for 1.8m (6ft) which will contain 99% of dogs.  The very highest jumping dogs can clear 2.1m (8ft).

Height

50cm (1.6ft)

90cm

(3ft)

1.2m

(4ft)

1.5m

(5ft)

1.8m

(6ft)

Medium-sized dogs


Maybe




Highest jumping medium-sized dogs



Maybe

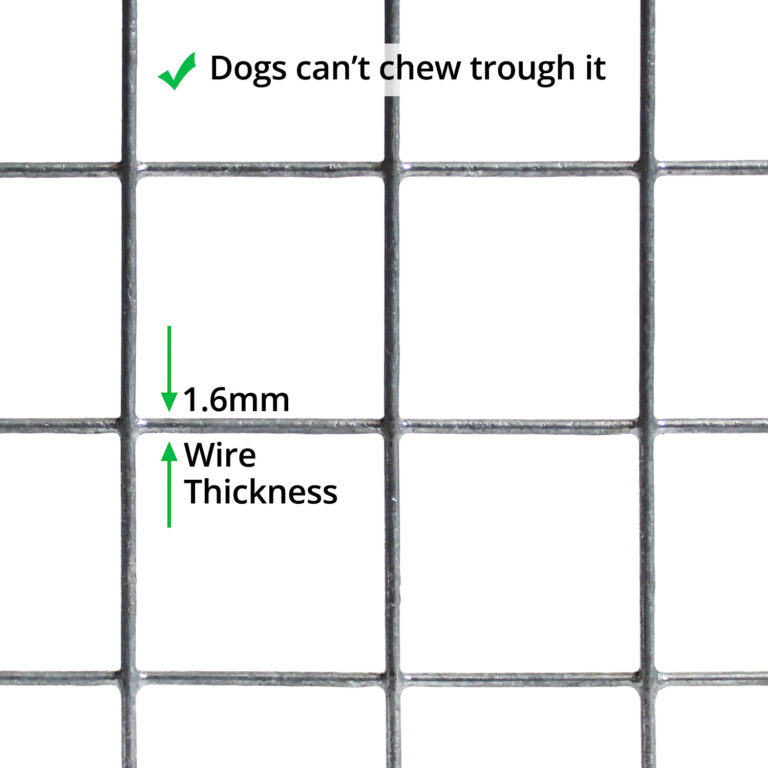

Stop Dogs Chewing Through Wire: Select Wire Diameter

If you are unsure of the strength of your dog’s chewing strength we suggest going for at least 2mm+ wire diameter

Wire diameter

1mm (19g)

1.6mm (16g)

2mm (14g)

Medium-sized dogs


Maybe


Medium-sized dogs with the most powerful jaws





General Product Information

Wire mesh options

PRE GALVANISED (PRIME)

HOT DIPPED GALVANISED (SUPER PRIME)

Manufacturing grade

Pre-galvanised

Pre-galvanised then hot dipped again in very thick layer of zinc

Made in

Europe

Conforms to British Manufacturing Standards

BS EN 10218-2:2012 &  BS EN 10244-2:2009

Life expectancy under normal conditions

20 years

25 years

British Kennel Standards

– see British Kennel Standard fencing

Has sharp edges and corners?

– all wire mesh on this page is made in Europe with no sharp edges to injure your dog

Delivered as

As a roll

Applications



Suited to indoors

– see indoor dog fence options

Portable: good for caravan, camping, etc



– see portable dog fencing

Suited to outdoors



Run or exercise area



Partition off driveways, etc



Kennels & enclosures



Strength & Environment



Corrosion resistant

Yes – conforms to British manufacturing standard – EN 10244-2:2009

Abrasion resistance

Yes – conforms to British manufacturing standard – BS EN 10218-2:2012

Life expectancy under normal conditions

20 Years

25 years

Suited to Environments

C2-C4

Installation & Maintenance



Speed of installation

Quick

Experience required to install

Medium

Can be installed with wooden posts?



Can be installed with metal posts?



Can stand alone without posts?



Join together using

U Staples

Cut using

Wire cutters or bolt cutters

Requires protective glove for handling



Ease of repair

Easy

Installation instructions

Download

Appearance



General look of the fence

Metallic grey, silver look

Invisible from a distance

– Mesh with 50mm x 50mm holes can be difficult to spot from a distance but they are not 100% invisible

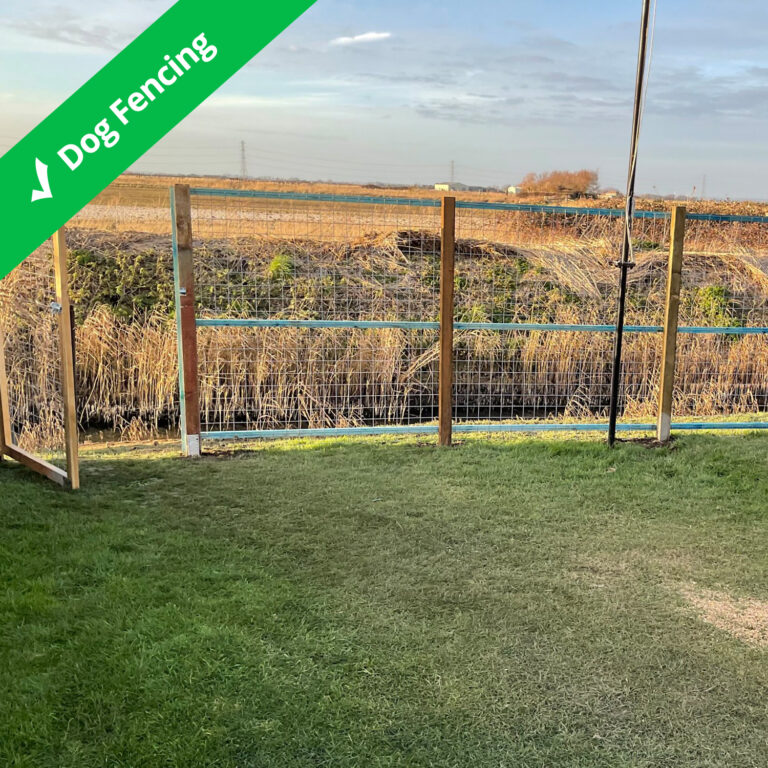

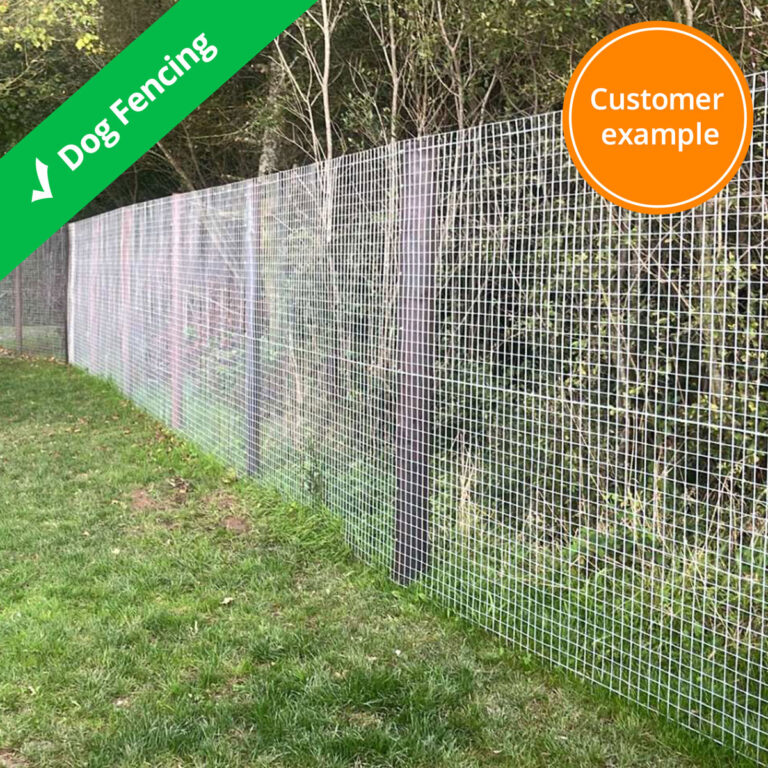

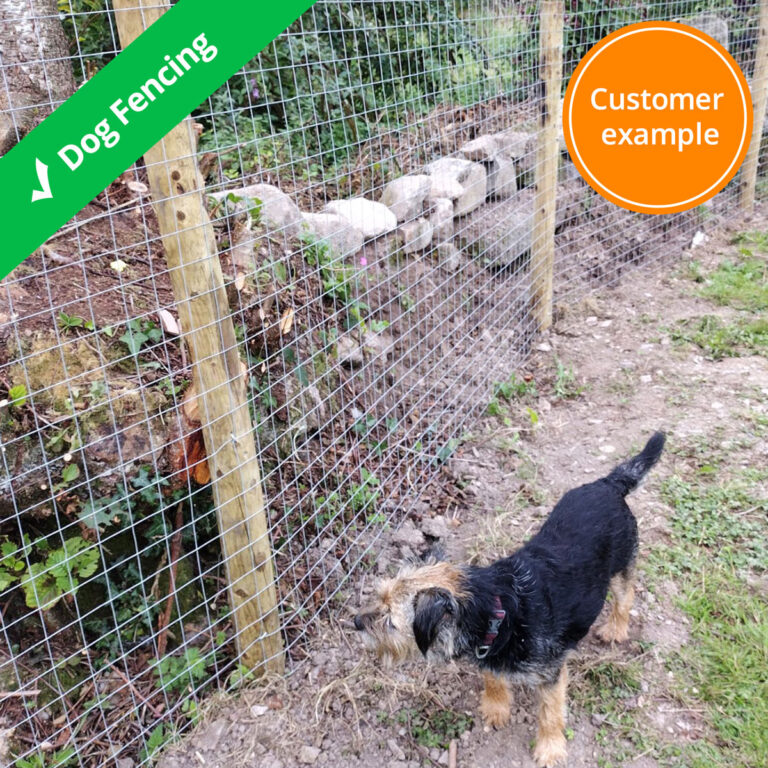

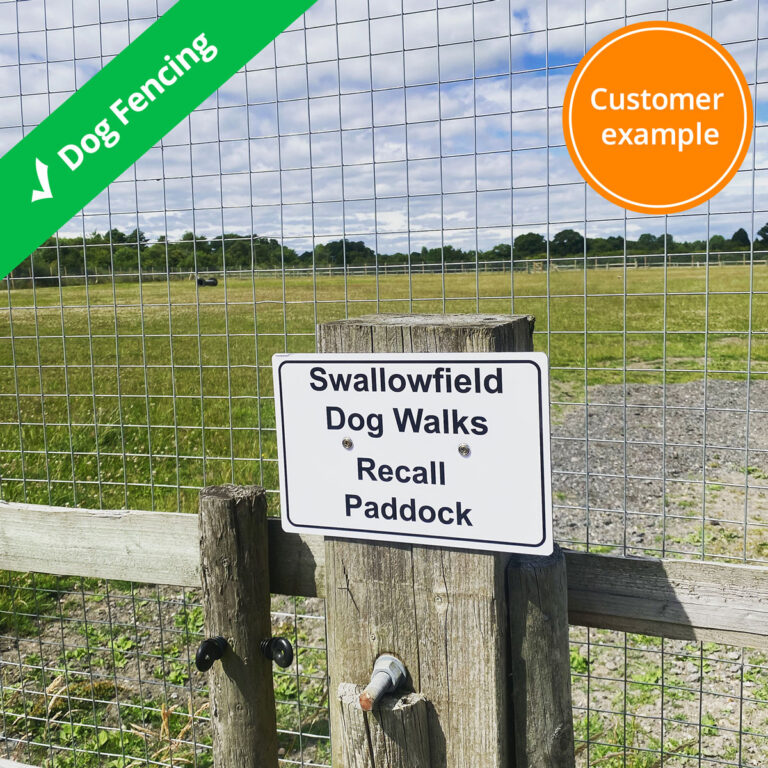

Example installation

View Image

Also stops?



Rabbits

– select minimum 19g wire diameter and hole no bigger than 31mm x 31mm

Foxes

– select minimum 14g wire diameter and hole no bigger than 50mm x 50mm

Cats

– select minimum 19g wire diameter and hole no bigger than 25mm x 25mm

Pigs, sheep, etc

 – select minimum 14g wire and hole size no bigger than 50mm x 50mm


View all animal and pet fencing

Attachments

Attach to: How to:
Wood/
Wooden Posts

(Staples)

Metal/
Metal Posts

(Cable ties)

Concrete Posts

(Tensioning wire,
Eye bolts
)

Soil

(Pegs)

Wire Fence

(Cable ties)



Size chart

Size Length/Weight Breed
Medium dog Medium
91cm L x 61cm W
11kg-18kg
Beagle, Miniature Schnauzer, Shetland Sheepdog, Scottish Terrier, Cocker Spaniel, Welsh Corgis

Installation Instructions

To Do Explanation

Step 1 – Mark the Location

T post step 1 - mark area

Create a straight line to outline the fence between the two end posts.

Step 2 – Measure Post Distance

T post step 2 - welded wire

Mark the post locations, maintaining a 2-3m spacing between them.

Step 3 – Install End Posts

T post step 3 - end posts

Use a post driver or mallet to sink the end posts 50cm into the ground.





Make sure the end posts are pointing in the same direction.

Step 4 – Check for Same Height

T post step 4 - same height

Attach a string across the end posts, and check the height of their installation using a tape measure.

Step 5 – Check for Straightness

T post step 5 - straightness

Ensure that the posts have been installed completely straight by using a spirit level.

Step 6 (Optional) – Set in Concrete

T post step 6 - concrete

For a sturdier and more reliable fence, enhance its stability by setting your posts in concrete.





This involves digging a 50cm hole and pouring cement to create a foundation for the posts.

Step 7 – Install Middle Posts

T post step 7 - middle posts

Follow steps 3 through 5 to install the middle posts.





Ensure that the posts are facing in the same direction and are being installed in a straight and uniform manner.





If you want to make your fence even more robust, consider using concrete to secure the middle posts.

Step 8 – Attach Mesh to End Post

dog-fencing-welded-mesh-step-8

Start at the end post and secure the mesh to it by using cable ties. These ties can be threaded through the pre-drilled holes in the post.





You can add extra cable ties to encircle the entire post.

Step 9 – Attach Mesh to Posts

dog-fencing-welded-mesh-step-9

Secure the remaining part of the mesh by following the steps described in step 8.

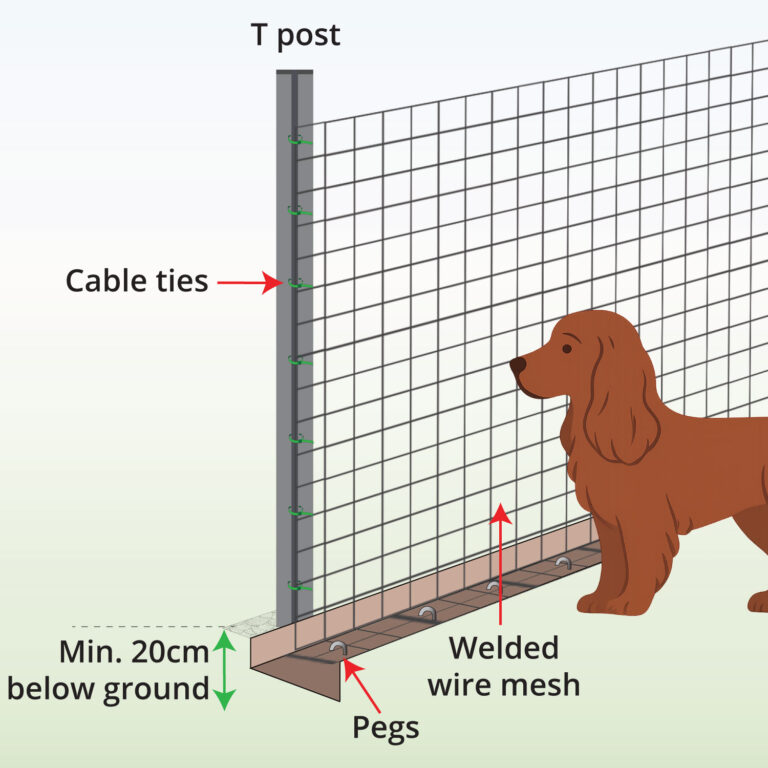

Additional Step to Prevent Digging

dog-fencing-welded-mesh-prevent-digging

Dig a trench along your fence line, then fold the bottom of the mesh at a 90-degree angle to form a 15cm lip. This extension will cover the trench’s bottom.







Use pegs to secure the extension to the ground at every 60cm, then cover it by adding a layer of soil or mulch over it.
