Commercial Dog Fence

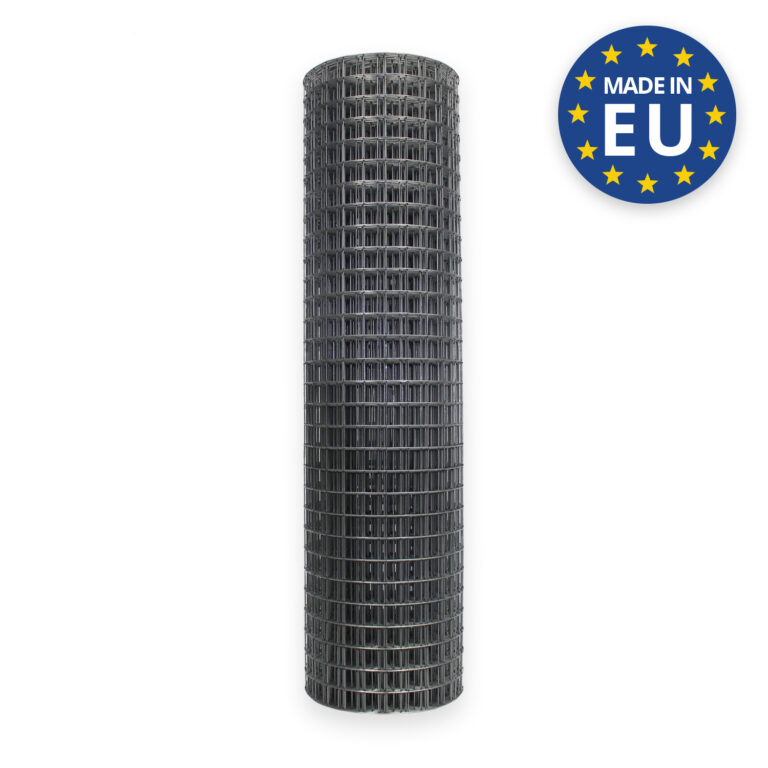

Welded wire mesh fencing conforming to the British Kennel Standards for commercial dog kennels.
Standards met include;
- Maximum hole size 50mm x 50mm mesh holes
- Minimum 2mm thick wire (14 gauge)
- Smooth edges to prevent injury to dogs
Scroll for more details
Customer Images
Dog Proofing Overview
|
Dog proofing suited to: |
|||
|
High jumping breeds |
– select 1.8m (6ft) – 2.4m (8ft) for the highest jumping dogs |
||
|
Powerful breeds |
– select 2mm+ wire diameter options to keep out the most powerful breeds |
||
|
Good climbers |
– choose 25mm x 25mm mesh hole size if your dog is good at climbing and has small paws. 50mm x 50mm is suitable to prevent most dog paws from sliding into the mesh holes. |
||
|
Diggers |
– see digging prevention products (download installation guide) |
||
| Very small dogs |
|
||
|
Small dogs |
|
||
|
Medium dogs |
|
||
|
Large dogs |
|
||
|
Very large dogs |
|
||
|
Please note |
See the detailed guide below to help select the correct product for your particular dog |
||
Stop Dogs Climbing: Select Hole Size
If you are unsure of your dog’s ability to climb we suggest going for a mesh hole size of 25mm x 25mm or less. This will ensure that your dog’s paws do not fit into the holes so they can lift themselves up and over the mesh.
| Hole size |
25mm x 25mm |
50mm x 50mm |
|
Very small dogs |
|
|
|
Small dogs |
|
|
|
Medium dogs |
|
|
|
Large dogs |
|
|
|
Very large dogs |
|
|
|
Best climbers |
|
|
Stop Dogs Jumping Over: Select Height
If you are unsure of your dog’s ability to jump we suggest going for 1.8m (6ft) which will contain 99% of dogs. The very highest jumping dogs can clear 8ft.
| Height |
90cm (3ft) |
1.2m (4ft) |
1.5m (5ft) |
1.8m (6ft) |
2.4m (8ft) |
|
Very small dogs |
|
|
|
|
|
|
Small dogs |
|
|
|
|
|
|
Medium dogs |
Maybe |
|
|
|
|
|
Large dogs |
|
Maybe |
|
|
|
|
Very large dogs |
|
|
Maybe |
|
|
|
Highest jumpers |
|
|
|
Usually |
|
|
Increasing fence height |
Add extra height using tension wire (download instructions) |
||||
Stop Dogs Chewing Through Wire: Select Wire Diameter
If you are unsure of the strength of your dog’s chewing strength we suggest going for at least 2mm+ wire diameter
| Wire diameter |
2mm (14g) |
2.5mm (12g) |
3mm+ (10g) |
|
Very small dogs |
|
|
|
|
Small dogs |
|
|
|
|
Medium dogs |
|
|
|
|
Large dogs |
|
|
|
|
Very large dogs |
|
|
|
|
Most powerful jaws |
Maybe |
|
|
General Product Information
| Wire mesh options |
PRE GALVANISED (PRIME) |
HOT DIPPED GALVANISED (SUPER PRIME) |
|
Manufacturing grade |
Pre-galvanised electro-zinc coated wires are welded together to create the final product |
Uses a double method: pre-galvanised steel wires are assembled to create final product which is then hot dipped again in very thick layer of zinc |
|
Made in |
Europe |
|
|
Conforms to British Manufacturing Standards |
BS EN 10218-2:2012 & BS EN 10244-2:2009 |
|
|
Life expectancy under normal conditions |
20 years |
25 years |
|
British Kennel Standards |
– all 2mm+ wire diameter mesh on this page conforms to government standards for commercial dog kennels for boarding and breeding dogs |
|
|
Has sharp edges and corners? |
– all wire mesh on this page is made in Europe with no sharp edges to injure your dog |
|
|
Delivered as |
As a roll |
|
|
Applications |
||
|
Suited to indoors |
– see indoor dog fence options |
|
|
Suited to outdoors |
|
|
|
Run or exercise area |
|
|
|
Partition off driveways, etc |
|
|
|
Portable: good for caravan, camping, etc |
– see portable dog fencing |
|
|
Kennels & enclosures |
||
|
Strength & Environment |
||
|
Corrosion resistant |
Yes – conforms to British manufacturing standard – EN 10244-2:2009 |
|
|
Abrasion resistance |
Yes – conforms to British manufacturing standard – BS EN 10218-2:2012 |
|
|
Life expectancy under normal conditions |
20 Years |
25 years |
|
Suited to Environments |
C2-C4 |
|
|
Installation & Maintenance |
||
|
Speed of installation |
Medium |
|
|
Experience required to install |
Medium |
|
|
Can be installed with wooden posts? |
|
|
|
Can be installed with metal posts? |
|
|
|
Can stand alone without posts? |
|
|
|
Join together using |
||
|
Cut using |
Wire cutters or bolt cutters |
|
|
Requires protective glove for handling |
– the wire mesh has been manufactured with smooth edges to prevent injury but we always recommend using gloves when working with metal fencing
|
|
|
Ease of repair |
Easy |
|
|
Appearance |
||
|
General look of the fence |
Metallic grey, silver look |
|
|
Invisible from a distance |
– Mesh with 50mm x 50mm holes can be difficult to spot from a distance but they are not 100% invisible |
|
|
Also stops? |
||
|
– select minimum 19g wire diameter and hole no bigger than 31mm x 31mm |
||
|
– select minimum 14g wire diameter and hole no bigger than 50mm x 50mm |
||
|
– select minimum 19g wire diameter and hole no bigger than 25mm x 25mm |
||
|
– select minimum 14g wire and hole size no bigger than 50mm x 50mm |
||
|
View all animal and pet fencing |
||
Installation Instructions
| To Do | Explanation |
|
Step 1 – Mark the Post Location
|
Specify the post locations while maintaining a spacing of 2-2.5m between each post. |
|
Step 2 – Dig Holes
|
Dig a hole for the posts, ensuring that the depth of the hole is approx. one-third of the post’s length.
Use a spirit level to verify that the posts are perfectly upright. |
|
Step 3 (Optional) – Cement Posts In
|
After filling the holes with concrete, position your posts within the concrete. |
|
Step 4 – Attach Mesh to End Post
|
Take sufficient mesh to cover the distance between the initial two posts.
|
|
Step 5 – Repeat Step 4
|
Proceed with securing the remaining section of the mesh by following the process described in step 4. |
|
Step 6 – Attach Mesh to Last Posts
|
Attach the mesh to the last post to complete the fencing installation. |
|
Additional Step to Prevent Digging
|
Dig a trench along your fence line, then fold the bottom of the mesh at a 90-degree angle to form a 15cm lip. This extension will cover the trench’s bottom.
|
