Gabion Cut to Size

Follow the steps below to build your own gabion to the size you require. The gabion mesh hole size is 7.5cm x 7.5cm which means the ‘Length’, ‘Height’ and ‘Depth’ are built-in multiples of 7.5cm.

  • Manufactured in the UK, to BS EN standards.
  • BBA Approved Gabions
  • Starting from £12.99

Full product details

Sort By:
View:

Step

1

Step

2

Step

3

Step

4

Step

5

Step

6

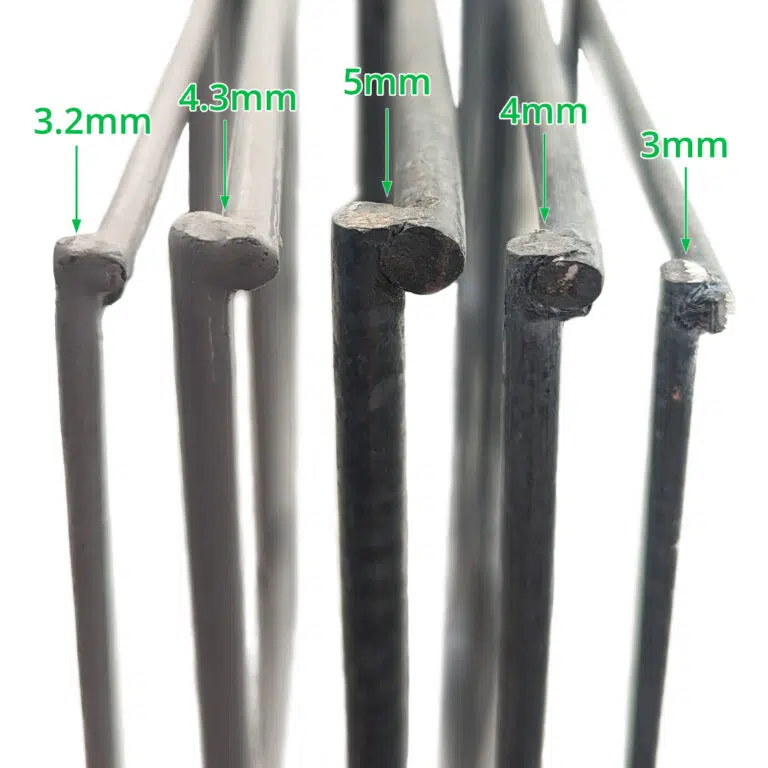

Which Wire Thickness?

Wire Diameter Use For:
3mm Standard wire thickness for walls up to 5m. Low-cost option. Will result in minor bulges when filled with rocks. Suitable if architectural, straight edge finish is not required.
4mm 5m+ high & free-standing walls.  Use for seating or surfaces that will be walked on. Will give an architectural, straight edge finish when filled carefully with interlocking rocks.
5mm 5m+ high walls & free-standing walls.  Use for seating or surfaces that will be walked on. Best for an architectural, uniform and precise finish. For use in public parks. Can be used with rounded stone fill.

Recommended applications & uses

Assembly Instructions

Corner Assembly Fitting
How to assemble Gabions are delivered flat packed with the sides, bottom and lid clipped together. Upon arrival, the corners of the gabions should be attached to complete assembly.

Download assembly instructions

Using tying wire Tying wire is supplied with all gabion orders.

PRO: it’s free
CON: time of installation

Using helicals Helicals can be purchased separately. 4x helicals are required for assembly per gabion (one for each corner).

PRO: looks uniform and quick to install
CON: additional cost

Using CT35 clips Gabion clips are available in bulk quantities. Advised for use by professionals

PRO: discrete / hidden
CON: requires a plier or electronic tool

Calculate Stone Quantity



Gabion Dimensions (cm) Gabion Volume (m3) Bulk Bags of Stone Required Weight of Stone Required (kg)
45 45 45 0.09 1 164
97.5 45 45 0.20 1 197
97.5 97.5 45 0.42 1 770
97.5 97.5 97.5 0.92 2 1,668
150 45 45 0.30 1 546
150 97.5 45 0.66 2 1,185
150 97.5 97.5 1.43 3 2,567
202.5 45 45 0.41 1 738
202.5 97.5 45 0.89 2 1,599
202.5 97.5 97.5 1.93 4 3,465





PDF’s
