Gabion Testing, Manufacturing Standards & Certification

CERTIFIED SUPPLY CHAIN COMPLIANCE

Last updated: October 2026

We dispatch welded gabions out of our shared Burton-on-Trent facility alongside our partner company, Enviromesh. All BBA-approved cages are produced in partnership with certificate holder Link Middle East Ltd (BBA 05/4215), complying strictly with British and European civil engineering standards.

---

1. On-Site Production

We custom fabricate and stock thousands of certified gabions directly at our UK facility. All of our gabions are fabricated in Burton-on-Trent from the same BBA-assessed Link Middle East mesh panels.

2. Certificates (PDF)

Download copies of the independent certificates that cover our gabions. Our product specifications are set out in the tables below.

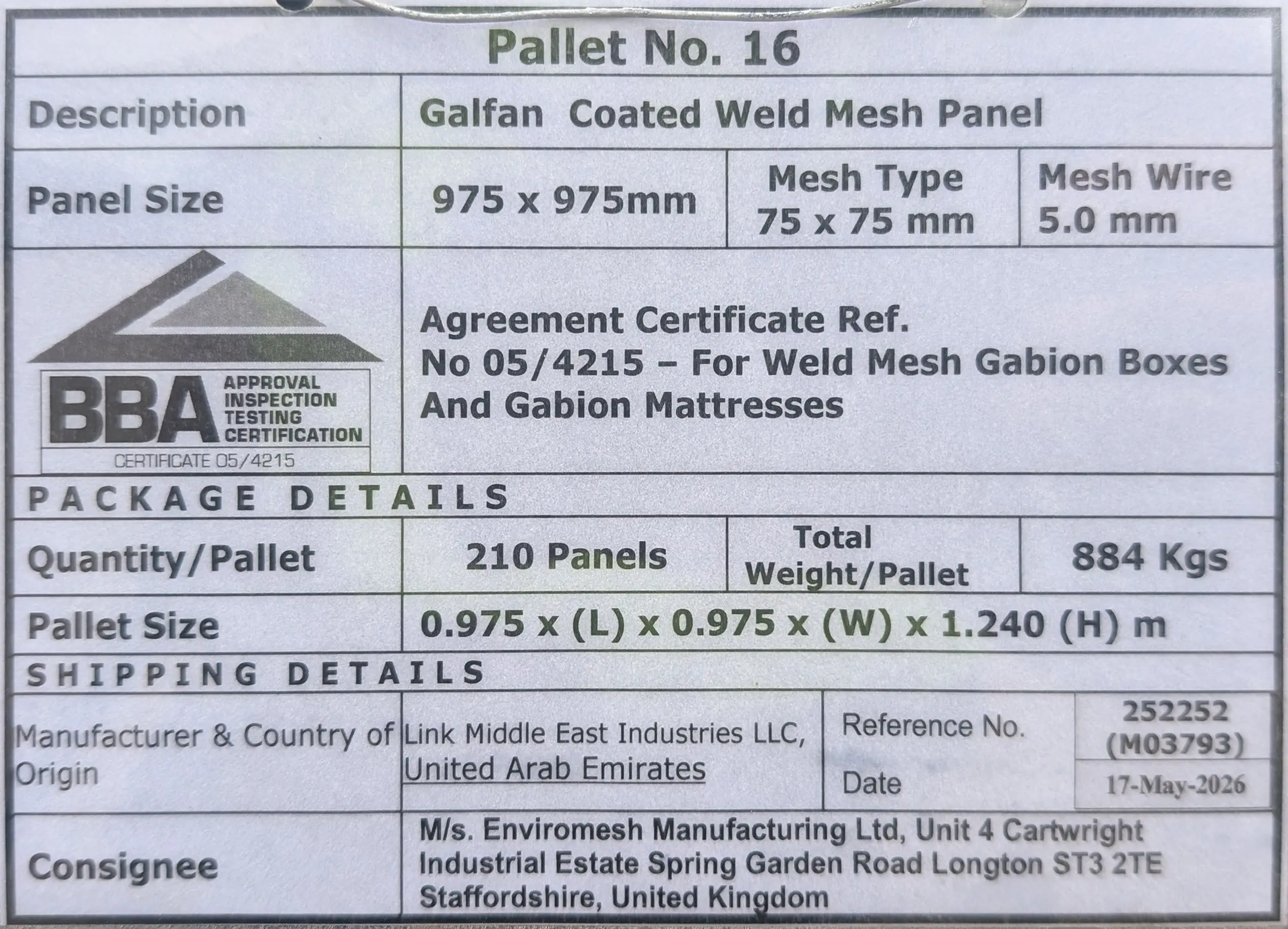

• BBA Certificate 05/4215 – Structural Engineering Approval (PDF)
• ISO 9001:2015 Quality Management Certificate, held by Enviromesh (PDF)

3. British & European (BS EN / ISO) Standards Compliance

Our gabion cages are manufactured, tested, and specified in accordance with the following official engineering frameworks:

Standard Reference	What the Standard Governs	How Our Gabions Comply
BBA Certificate 05/4215	British Board of Agrément third-party assessment of LME welded mesh gabion boxes and mattresses for earth retention, erosion control, cladding and free-standing walls.	Certificate held by our manufacturing partner Link Middle East Ltd; the gabions are supplied in the UK by Enviromesh. Expected life: over 70 years (3mm wire) and over 80 years (4mm and 5mm wire) for Galfan-coated gabions in mild inland conditions, and up to 120 years for PVC-coated gabions in dry land-retaining walls (Section 8) Address Note: The BBA certificate shows Enviromesh’s original registered address (Cartwright Industrial Estate). Enviromesh has since moved to Fauld Lane Industrial Park, Burton-on-Trent (DE13 9HS). The certificate itself is unchanged.
ISO 9001:2015 (1UK/1/8653936469)	Quality Management Systems for manufacturing, design, and distribution.	Held by our partner company Enviromesh for the design, manufacture and distribution of gabions at our shared Burton-on-Trent facility. Certified by Peers Quality Assurance Ltd, valid until June 2028.
BS EN 10223-8:2013	Specifies wire tensile strength, 75mm x 75mm mesh aperture tolerances, and minimum 75% weld shear strength.	Our mesh: 75mm × 75mm aperture, wire tensile strength 540–770 N/mm², welds at least 75% of the wire’s tensile strength Supplier evidence: Manufacturer’s specification
BS EN 10244-2:2009 (Class A Coating)	Non-ferrous metallic coatings on steel wire including Zinc or Zinc-Aluminium alloy coatings.	All wire is Galfan coated (95% zinc and 5% aluminium), achieving Class A heavy coating weight for corrosion resistance. Supplier evidence: Manufacturer’s specification
BS EN 10218-2:2012	Steel wire and wire products including wire dimensions and diameter tolerances.	Wire diameters are made to strict tolerances across our range: 3mm, 4mm and 5mm Galfan-coated wire, and the steel core of our 3.2mm and 4.3mm PVC-coated wire. Supplier evidence: Manufacturer’s specification
BS EN 10245-1 & 10245-2:2011	Organic coatings on steel wire. Part 1 sets the general rules; Part 2 covers PVC-coated wire, including coating thickness, adhesion and resistance to ageing.	Our PVC-coated gabions have a grey polymer coating applied over Galfan-coated wire, giving two layers of protection. That’s why they’re our choice for coastal, salt-water and polluted sites, with an expected life of up to 120 years (BBA Certificate 05/4215). 2.7mm and 3.8mm Galfan steel cores with a grey plastic coating, giving 3.2mm and 4.3mm overall. Supplier evidence: Manufacturer’s specification

Batch test certificates for wire strength and coating weight are available on request: call 0330 124 3556 or email [email protected]

4. Gabion Stone Standards & Sourcing

Our gabion stone comes from two UK suppliers, Holcim UK and Marchington Stone. Class 6G is the gabion fill classification in the Specification for Highway Works, the standard used for UK road schemes: fill must be hard, durable, not frost susceptible and no larger than 200mm.

Stone & Source	Grading	How It Complies	Supplier Evidence
Granite Holcim UK, Bardon Hill Quarry, Leicestershire	63–180mm (about 82% over 80mm)	Class 6G. Very hard (Los Angeles coefficient 11, against a 6G limit of 50). Very low water absorption (0.2%), so frost resistant. Holcim UK is certified to BES 6001 for responsible sourcing, covering Bardon Hill.	Granite datasheet (PDF) Holcim BES 6001 certificate
Limestone Marchington Stone, Dove Holes, Derbyshire	75–150mm (about 88% over 80mm)	Class 6G (Marchington grading, Feb 2026). Los Angeles coefficient 24. Very low water absorption (0.1%), so frost resistant. Tested by a UKAS-accredited lab.	Limestone grading (PDF) Dove Holes test certificate (PDF)
Gritstone Marchington Stone, Shire Hill Quarry, Glossop	100–200mm	Class 6G. Los Angeles coefficient 39, within the 6G limit of 50.	Gritstone grading (PDF)

How we describe stone size: quarries grade stone by sieving it to measure how wide each stone is. Every bag has a few smaller pieces, so on our product pages we show the size most stones are: about 82% of our granite and 88% of our limestone is over 80mm, and nearly all of our gritstone is over 80mm. Some stones are also longer than they are wide, so you may find the odd one bigger than the range.
