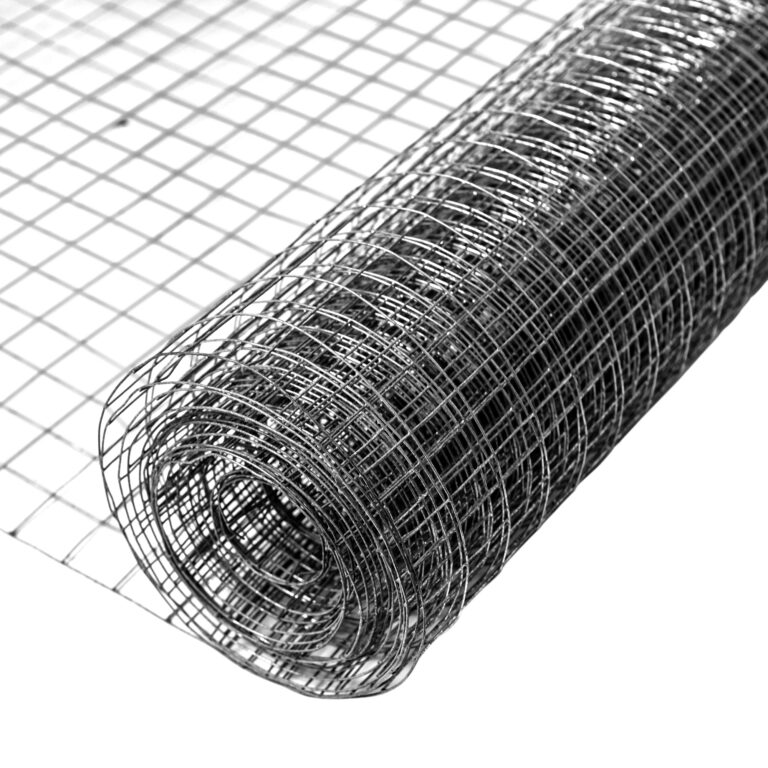

Wire Mesh Dog Fence
All rolls of wire mesh on this page are in stock and ready to ship to you within 5 working days.
If you are looking for guidance on the strength, length and height required for your dog breed please see the guide at the bottom of this page
- 2mm+ wire diameter conforms to British Standards
- Manufactured in the EU
Customer Images
Dog Proofing Overview
Dog proofing suited to: | |||
High jumping breeds | – select 1.8m (6ft) – 2.4m (8ft) for the highest jumping dogs | ||
Powerful breeds | – select 2mm+ wire diameter options to keep out the most powerful breeds | ||
Good climbers | – choose 25mm x 25mm mesh hole size if your dog is good at climbing and has small paws. 50mm x 50mm is suitable to prevent most dog paws from sliding into the mesh holes. | ||
Diggers | – see digging prevention products (download installation guide) | ||
Very small dogs | |||
Small dogs | |||
Medium dogs | |||
Large dogs | |||
Very large dogs | |||
Please note | See the detailed guide below to help select the correct product for your particular dog |
Stop Dogs Climbing: Select Hole Size
If you are unsure of your dog’s ability to climb we suggest going for a mesh hole size of 25mm x 25mm or less. This will ensure that your dog’s paws do not fit into the holes so they can lift themselves up and over the mesh.

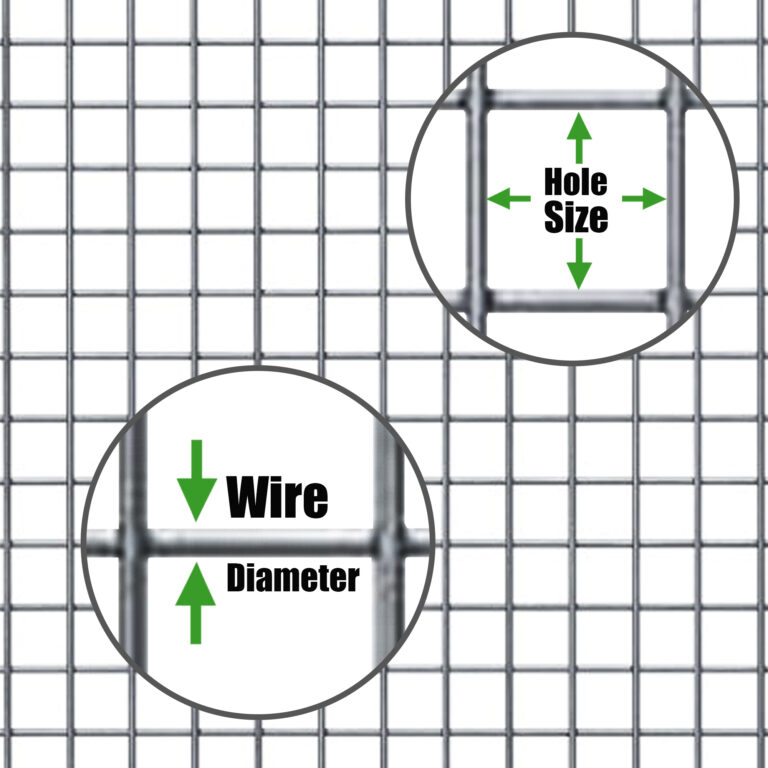

Hole size | 13mm x 13mm | 19mm x 19mm | 25mm x 25mm | 50mm x 50mm |
Very small dogs | ||||
Small dogs | ||||
Medium dogs | ||||
Large dogs | ||||
Very large dogs | ||||
Best climbers |
Stop Dogs Jumping Over: Select Height
If you are unsure of your dog’s ability to jump we suggest going for 1.8m (6ft) which will contain 99% of dogs. The very highest jumping dogs can clear 8ft.
Height | 50cm (1.6ft) | 90cm
(3ft) |
1.2m
(4ft) |
1.5m
(5ft) |
1.8m
(6ft) |
2.4m
(8ft) |
Very small dogs | ||||||
Small dogs | Maybe | |||||
Medium dogs | Maybe | |||||
Large dogs | Maybe | |||||
Very large dogs | Maybe | |||||
Highest jumpers | Usually | |||||
Increasing fence height | Add extra height using tension wire |
Stop Dogs Chewing Through Wire: Select Wire Diameter
If you are unsure of the strength of your dog’s chewing strength we suggest going for at least 2mm+ wire diameter
Wire diameter | 1mm (19g) | 1.6mm (16g) | 2mm (14g) | 2.5mm (12g) | 3mm+ (10g) |
Very small dogs | |||||
Small dogs | Maybe | ||||
Medium dogs | Maybe | ||||
Large dogs | Maybe | ||||
Very large dogs | Maybe | ||||
Most powerful jaws | Maybe |
General Product Information
Wire mesh options | PRE GALVANISED (PRIME) | HOT DIPPED GALVANISED (SUPER PRIME) |
Manufacturing grade | Pre-galvanised | Pre-galvanised then hot dipped again in very thick layer of zinc |
Made in | Europe | |
Conforms to British Manufacturing Standards | BS EN 10218-2:2012 & BS EN 10244-2:2009 | |
Life expectancy under normal conditions | 20 years | 25 years |
British Kennel Standards | – all 2mm+ wire diameter mesh on this page conforms to government standards for commercial dog kennels for boarding and breeding dogs | |
Has sharp edges and corners? | – all wire mesh on this page is made in Europe with no sharp edges to injure your dog | |
Delivered as | As a roll | |
Applications | ||
Suited to indoors | – see indoor dog fence options | |
Suited to outdoors | ||
Run or exercise area | ||
Partition off driveways, etc | ||
Portable: good for caravan, camping, etc | – see portable dog fencing | |
Kennels & enclosures | – meets Government standards for boarding and breeding dogs | |
Strength & Environment | ||
Corrosion resistant | Yes – conforms to British manufacturing standard – EN 10244-2:2009 | |
Abrasion resistance | Yes – conforms to British manufacturing standard – BS EN 10218-2:2012 | |
Life expectancy under normal conditions | 20 Years | 25 years |
Suited to Environments | C2-C4 | |
Installation & Maintenance | ||
Speed of installation | Quick | |
Experience required to install | Medium | |
Can be installed with wooden posts? | ||
Can be installed with metal posts? | ||
Can stand alone without posts? | ||
Join together using | U Staples | |
Cut using | Wire cutters or bolt cutters | |
Requires protective glove for handling |
– the wire mesh has been manufactured with smooth edges to prevent injury but we always recommend using gloves when working with metal fencing
|
|
Ease of repair | Easy | |
Installation instructions | Download | |
Appearance | ||
General look of the fence | Metallic grey, silver look | |
Invisible from a distance | – Mesh with 50mm x 50mm holes can be difficult to spot from a distance but they are not 100% invisible | |
Example installation |
View Image |
|
Also stops? | ||
Rabbits | – select minimum 19g wire diameter and hole no bigger than 31mm x 31mm | |
Foxes | – select minimum 14g wire diameter and hole no bigger than 50mm x 50mm | |
Cats | – select minimum 19g wire diameter and hole no bigger than 25mm x 25mm | |
Pigs, sheep, etc |
– select minimum 14g wire and hole size no bigger than 50mm x 50mm
|
|
View all animal and pet fencing |
Attachments
Attach to: | How to: |
Wood/ Wooden Posts (Staples) |
|
Metal/ Metal Posts |
|
Concrete Posts | |
Soil
(Pegs) |
|
Wire Fence
|
Installation Instructions
For Small Dogs
For Large Dogs
To Do | Explanation |
Step 1 – Mark the Location
|
Create a straight line to outline the fence between the two end posts. |
Step 2 – Measure Post Distance
|
Mark the post locations, maintaining a 2-3m spacing between them. |
Step 3 – Install End Posts
|
Use a post driver or mallet to sink the end posts 50cm into the ground.
Make sure the end posts are pointing in the same direction. |
Step 4 – Check for Same Height
|
Attach a string across the end posts, and check the height of their installation using a tape measure. |
Step 5 – Check for Straightness
|
Ensure that the posts have been installed completely straight by using a spirit level. |
Step 6 (Optional) – Set in Concrete
|
For a sturdier and more reliable fence, enhance its stability by setting your posts in concrete.
This involves digging a 50cm hole and pouring cement to create a foundation for the posts. |
Step 7 – Install Middle Posts
|
Follow steps 3 through 5 to install the middle posts.
|
Step 8 – Attach Mesh to End Post
|
Start at the end post and secure the mesh to it by using cable ties. These ties can be threaded through the pre-drilled holes in the post.
You can add extra cable ties to encircle the entire post. |
Step 9 – Attach Mesh to Posts
|
Secure the remaining part of the mesh by following the steps described in step 8. |
Additional Step to Prevent Digging
|
Dig a trench along your fence line, then fold the bottom of the mesh at a 90-degree angle to form a 15cm lip. This extension will cover the trench’s bottom.
|
