L97.5cm x D45cm x H45cm Welded Gabion (4mm dia.)

L202.5cm-D97.5cm-H97.5cm-Welded-Gabion-diagonal-with-rocks
PVC L202.5cm x D97.5cm x H97.5cm Welded Gabion (3.2mm dia.) £97.99 inc. VAT
L150cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks
L150cm x D45cm x H45cm Welded Gabion (4mm dia.) £53.99 inc. VAT

£35.99 inc. VAT

In Stock
Quantity Price
10 - 29 £34.91
30 - 59 £33.83
60 - 99 £32.75
100 - 299 £30.59
300 - 10000 £29.51
Product Info
delivery-icon 1-2 WORKING DAY DELIVERY available for this product
free-shipping-icon FLAT FEE DELIVERY cost starting at £24.99
invoice-icon UK MANUFACTURED conform to BS EN standards
guarantee-icon PAY BY INVOICE available for trade customers
SKU: EM10.50.54MM Categories: , , , , ,

Frequently bought together

L97.5cm x D45cm x H45cm Welded Gabion (4mm dia.) âž• Helical Corner Kit for 1x H45cm Gabion (Pack of 2) âž• Gabion Corner Ties (Pack of 4) âž• Galfan Coated Gabion Panel (Fits Gabion L97.5cm x H45cm) âž• 5m x 4.5m Polypropylene Geotextile âž• Granite Stone for Gabions
=
Total price
£238.99 inc. VAT






Measurements
Length

97.5cm
Depth

45cm
Height

45cm
Hole Size (Aperture)

75mm x 75mm
Wire Diameter (Gauge)

4mm (8g)
Construction
Material

Galfan coated steel
Coating

Galfan coated
Wire Diameter (Gauge)

4mm (8g)
Hole Size (Aperture)

75mm x 75mm
Hole Shape

Square
Mesh Construction

Welded
Includes Diaphragm

No
Clipped Together Using

Galfan coated steel C clips
Weight

6.64kg
What’s Delivered?
Item Quantity

x2
Gabion Quantity

x1
Tying Wire Quantity

x1
Helical Quantity

Purchased separately
Panel Quantity

Purchased separately
Strength & Environment
Life Expectancy

Up to 50 years
Site Categories

C2 to C4
Corrosion Resistance

Yes – conforms to British Standards
UV Resistance

Yes – conforms to British Standards
Can Withstand Salt Water

No
Weld Strength

75% of min. wire tensile strength
Tensile Strength Range

540-770 N/mm2
Flexibility Grade

Very rigid & cannot bend by hand
How to Cut

Bolt cutters, hacksaw or angle grinder
Manufacturing Standards
BBA Certified

Yes – BBA certificate number: 05/4215
Gabion Quality Standard

Yes – conforms to BS EN 10223-8:2413
Wire Tolerances Standard

Yes – conforms to BS EN 10218-2:2012
Hole Size (Aperture) Standard

Yes – conforms to BS EN 10218-2:2012
Accurate Zinc Coating

Yes – conforms to BS EN 10244-2:2009
Corrosion Resistance Standard

Yes – conforms to BS EN 10244-2:2009
Abrasion Resistance Standard

Yes – conforms to BS EN 60229:2008
Manufactured in

UK
Applications
Can Be Sat On

Yes
Can Be Walked On

Yes
Fence

Yes
Freestanding Wall

Yes
Planter

Yes
Retaining Wall (Up to 5m)

Yes
Retaining Wall (Over 5m)

Yes
Public Leisure Areas

No
Cladding (Up to 4m)

Yes
Cladding (Over 4m)

No
Erosion Control

Yes
River Beds

No
Sea Defence

No
Curved Gabion Feature

Yes
Water Feature

Yes
Look & Feel
Colour

Grey
Handle with Gloves

Recommended
Filling Guidance
Stone Weight Required

360kg
Stone Volume Required

0.2m3

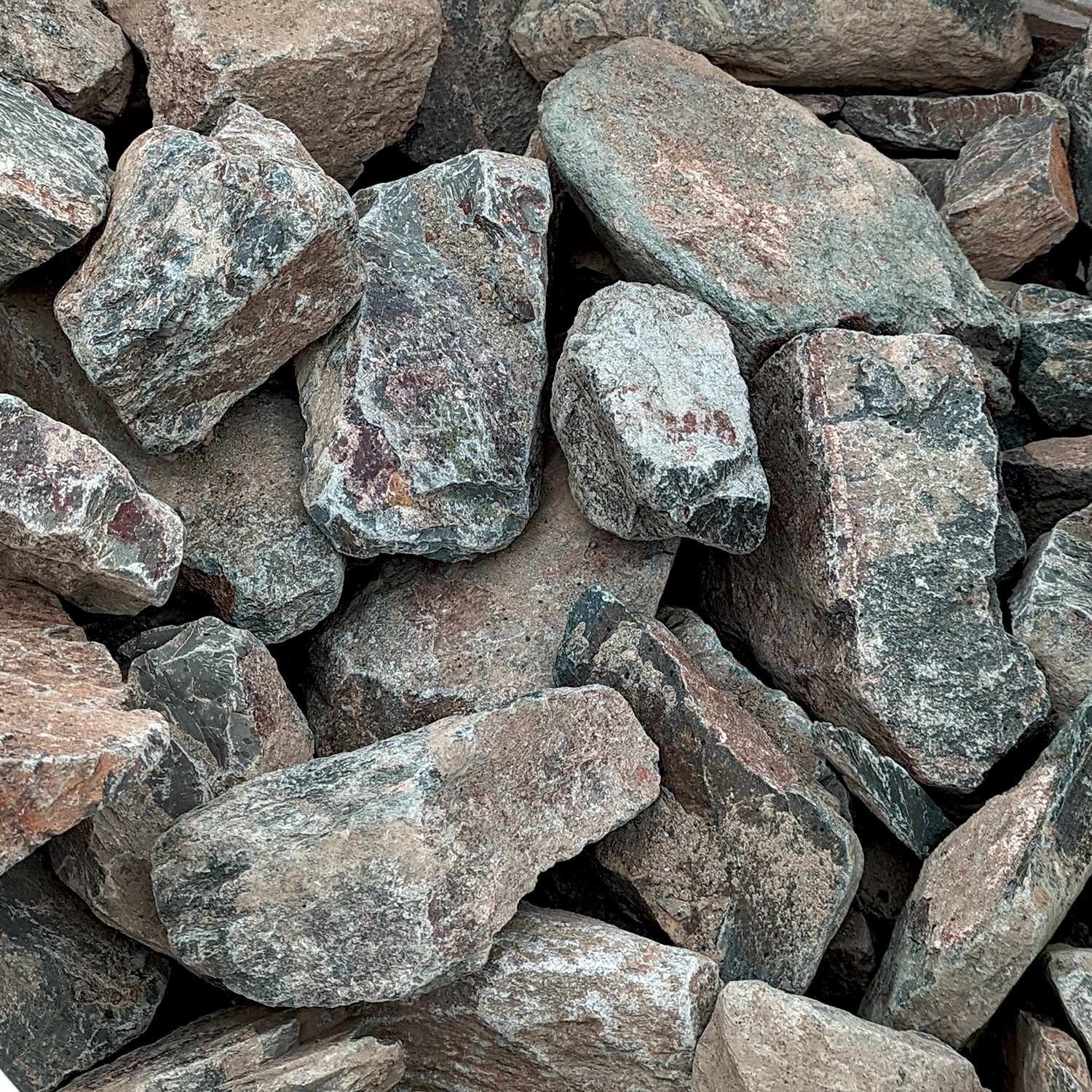

Bags of Granite Required

x1 (490kg leftover)

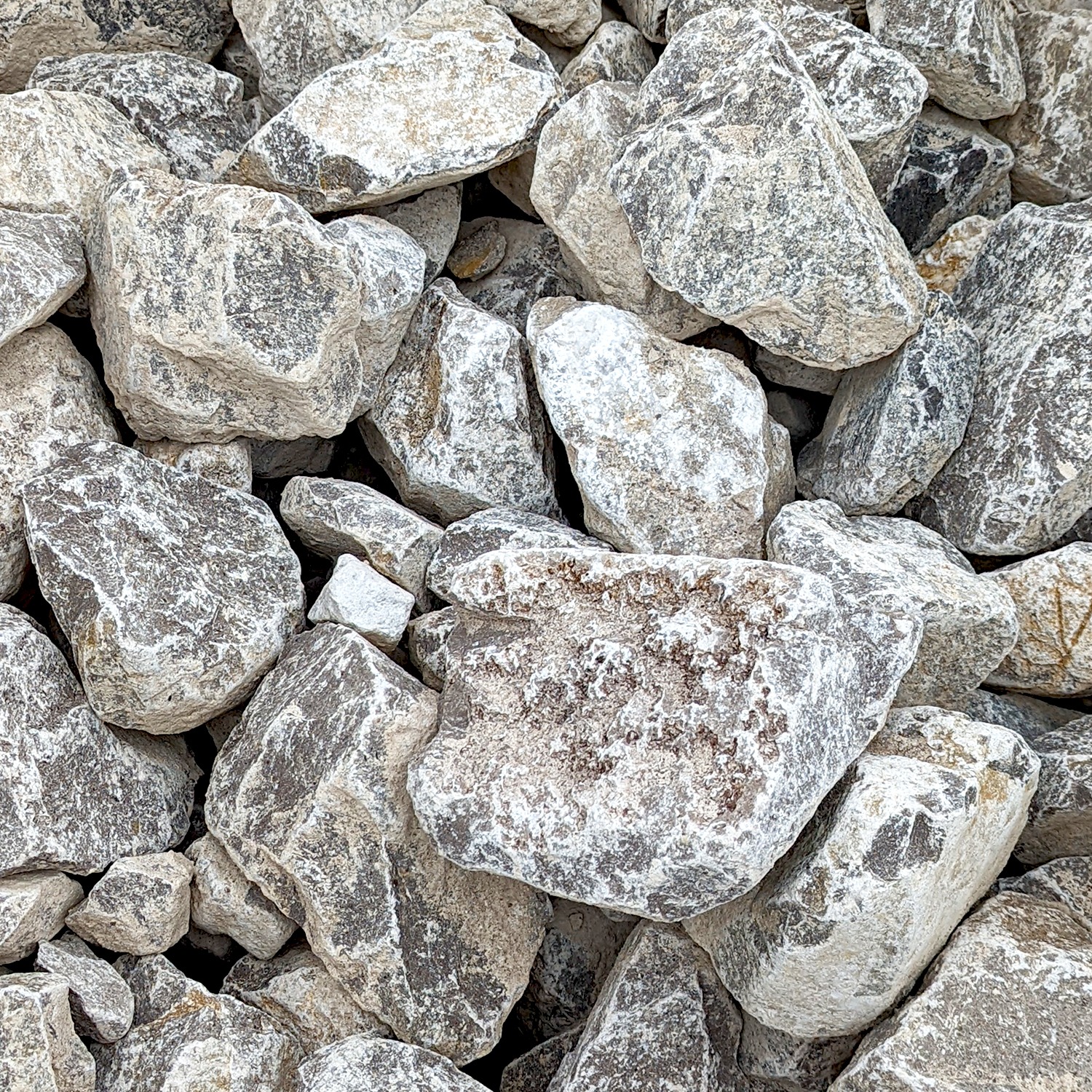

Bags of Limestone Required

x1 (440kg leftover)
Rock Size Required

Minimum 80mm x 80mm
Can Fill with Rounded Rock?

Yes
Requires Angular Rocks?

No

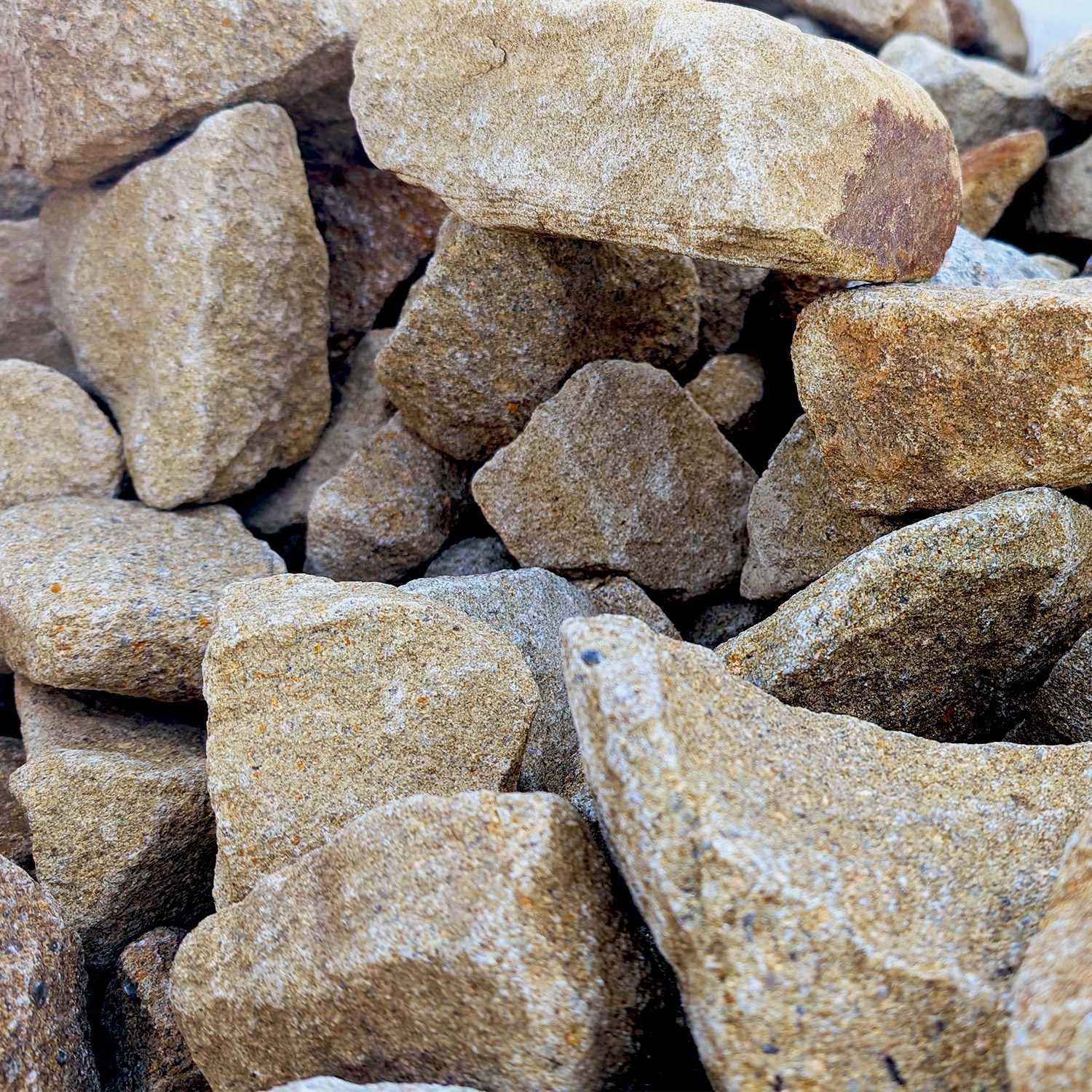

Other Filling Materials

Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags
Installation
Ease of installation

Very easy with helicals or medium difficulty with tying wire
Speed of Installation

Helicals (2-5 mins) or tying wire (10-20 mins)
Tools Required to Install

Pliers only
Suggested Accessories

Helicals for connecting corners and corner ties to help prevent bulging
Prevent Bulging with

Corner ties & middle panel
Downloadable Instructions

Yes – downloadable PDF & video
Attach to Wood

U staples
Attach to Gabion

Helical or tying wire
How to Cut

Bolt cutters, hacksaw or angle grinder
Delivery Info
Delivered As

Flat packed and pre clipped together

Downloadable PDFs

Specification

Certification

Installation

Guides
