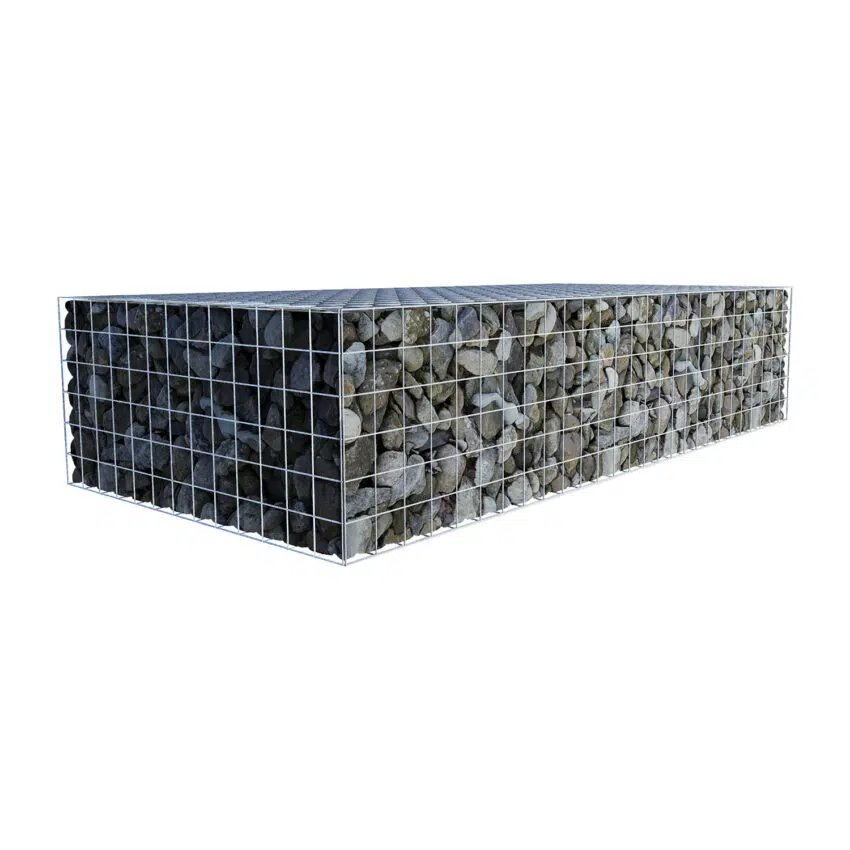

L202.5cm x D97.5cm x H45cm Welded Gabion (3mm dia.)
£56.99 inc. VAT
In StockMake any size gabion on this page
| Quantity | Price |
|---|---|
| 10 - 29 | £55.28 |
| 30 - 59 | £53.57 |
| 60 - 99 | £51.86 |
| 100 - 299 | £48.44 |
| 300 - 10000 | £46.73 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
This item: L202.5cm x D97.5cm x H45cm Welded Gabion (3mm dia.)
-
+
£56.99 inc. VAT
£56.99 inc. VAT
Frequently Bought Together
The total volume of this gabion is 0.89m3. To fill it, you will require 2 bags of granite stone and you will have 100kg left over.
Helicals attach the corners of the gabion quicker than the tying wire that is delivered FREE with all our gabions. You will need 2 helicals to install this gabion.
Corner ties will help prevent the gabion from bulging after it has been filled with rocks. You will require 1 pack of corner ties for this gabion.
Stone separating panels are a cost-effective way to fill gabions. They split the gabion, creating a front compartment to fill with decorative stone and a back compartment to fill with cheaper aggregate. Divide the stone quantity by 2 if you use these.
Measurements
| Length | 202.5cm |
|---|---|
| Depth | 97.5cm |
| Height | 45cm |
| Hole Size (Aperture) | 75mm x 75mm |
| Wire Diameter (Gauge) | 3mm (10g) |
Construction
| Material | Galfan coated steel |
|---|---|
| Coating | Galfan coated |
| Wire Diameter (Gauge) | 3mm (10g) |
| Hole Size (Aperture) | 75mm x 75mm |
| Hole Shape | Square |
| Mesh Construction | Welded |
| Includes Diaphragm | Yes x1 |
| Clipped Together Using | Stainless steel CT35 clips |
| Weight | 12.81kg |
What’s Delivered?
| Item Quantity | x2 |
|---|---|
| Gabion Quantity | x1 |
| Tying Wire Quantity | x1 |
| Helical Quantity | Purchased separately |
| Panel Quantity | Purchased separately |
Strength & Environment
| Life Expectancy | Up to 50 years |
|---|---|
| Site Categories | C2 to C4 |
| Corrosion Resistance | Yes – conforms to British Standards |
| UV Resistance | Yes – conforms to British Standards |
| Can Withstand Salt Water | No |
| Weld Strength | 75% of min. wire tensile strength |
| Tensile Strength Range | 540-770 N/mm2 |
| Flexibility Grade | Rigid & hard to bend |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
Manufacturing Standards
| BBA Certified | Yes – BBA certificate number: 05/4215 |
|---|---|
| Gabion Quality Standard | Yes – conforms to BS EN 10223-8:2413 |
| Accurate Zinc Coating | Yes – conforms to BS EN 10244-2:2009 |
| Wire Tolerances Standard | Yes – conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard | Yes – conforms to BS EN 10218-2:2012 |
| Corrosion Resistance Standard | Yes – conforms to BS EN 10244-2:2009 |
| Abrasion Resistance Standard | Yes – conforms to BS EN 60229:2008 |
| Manufactured in | UK |
Applications
| Can Be Sat On | Not recommended |
|---|---|
| Can Be Walked On | Not recommended |
| Fence | Not recommended |
| Freestanding Wall | Not recommended |
| Planter | Yes |
| Retaining Wall (Up to 5m) | Yes |
| Retaining Wall (Over 5m) | No |
| Public Leisure Areas | No |
| Cladding (Up to 4m) | No |
| Cladding (Over 4m) | No |
| Erosion Control | Yes |
| River Beds | No |
| Sea Defence | No |
| Curved Gabion Feature | Yes |
| Water Feature | Yes |
Look & Feel
| Colour | Grey |
|---|---|
| Handle with Gloves | Recommended |
Filling Guidance
| Stone Weight Required | 1600kg |
|---|---|
| Stone Volume Required | 0.89m3 |
| Bags of Granite Required | x2 (100kg leftover) |
| Bags of Limestone Required | x2 (0kg leftover) |
| Rock Size Required | Minimum 80mm x 80mm |
| Can Fill with Rounded Rock? | No |
| Requires Angular Rocks? | Yes |
| Other Filling Materials | Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags |
Installation
| Ease of Installation | Very easy with helicals or medium difficulty with tying wire |
|---|---|
| Speed of Installation | Helicals (2-5 mins) or tying wire (10-20 mins) |
| Tools Required to Install | Pliers only |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
| Suggested Accessories | Helicals for connecting corners and corner ties to help prevent bulging |
| Attach to Gabion | Helical or tying wire |
| Prevent Bulging with | Corner ties & middle panel |
Delivery Info
| Delivered As | Flat packed and pre clipped together |
|---|
