Description
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Galfan Coated |
Colour | Grey |
Overall Length | 97.5cm |
Overall Depth | 45cm |
Overall Height | 97.5cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 5mm |
Kit Includes | 1 gabion, 6 helicals |

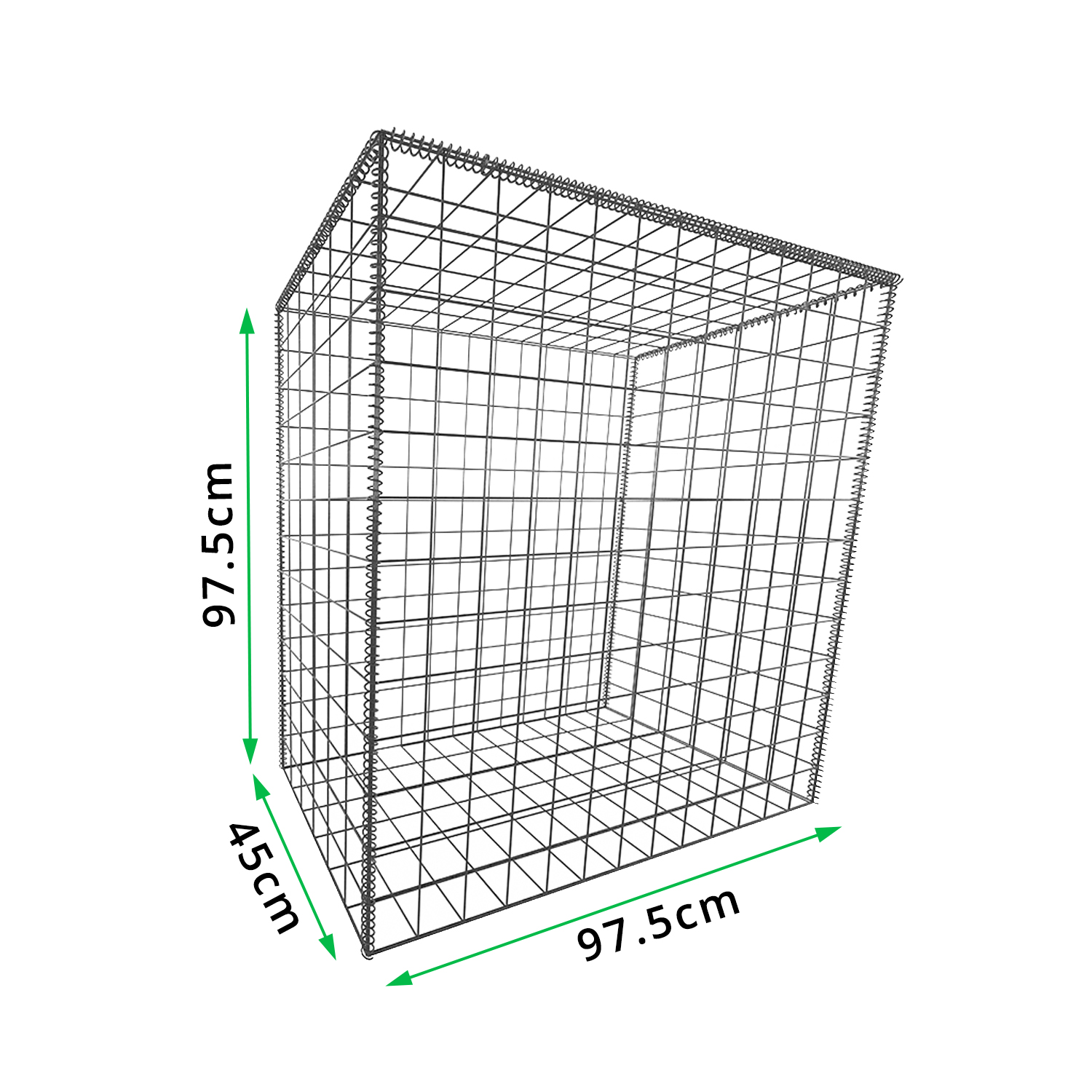

Gabion Dimensions | L97.5cm x D45cm x H97.5cm |
Helical Dimensions | 1 meter each (need to be cut to size as required) |
Comes With | FREE Tying Wire |
Tensile Strength Range | 540-770 N/mm43 |
Weld Strength | 75% of min. wire tensile strength |
Site Categories | C2 to C45 |
Conforms to | BS EN 10223-8:2054 |
Life Expectancy | Min. 50 years for C2 |
Manufactured in | UK |

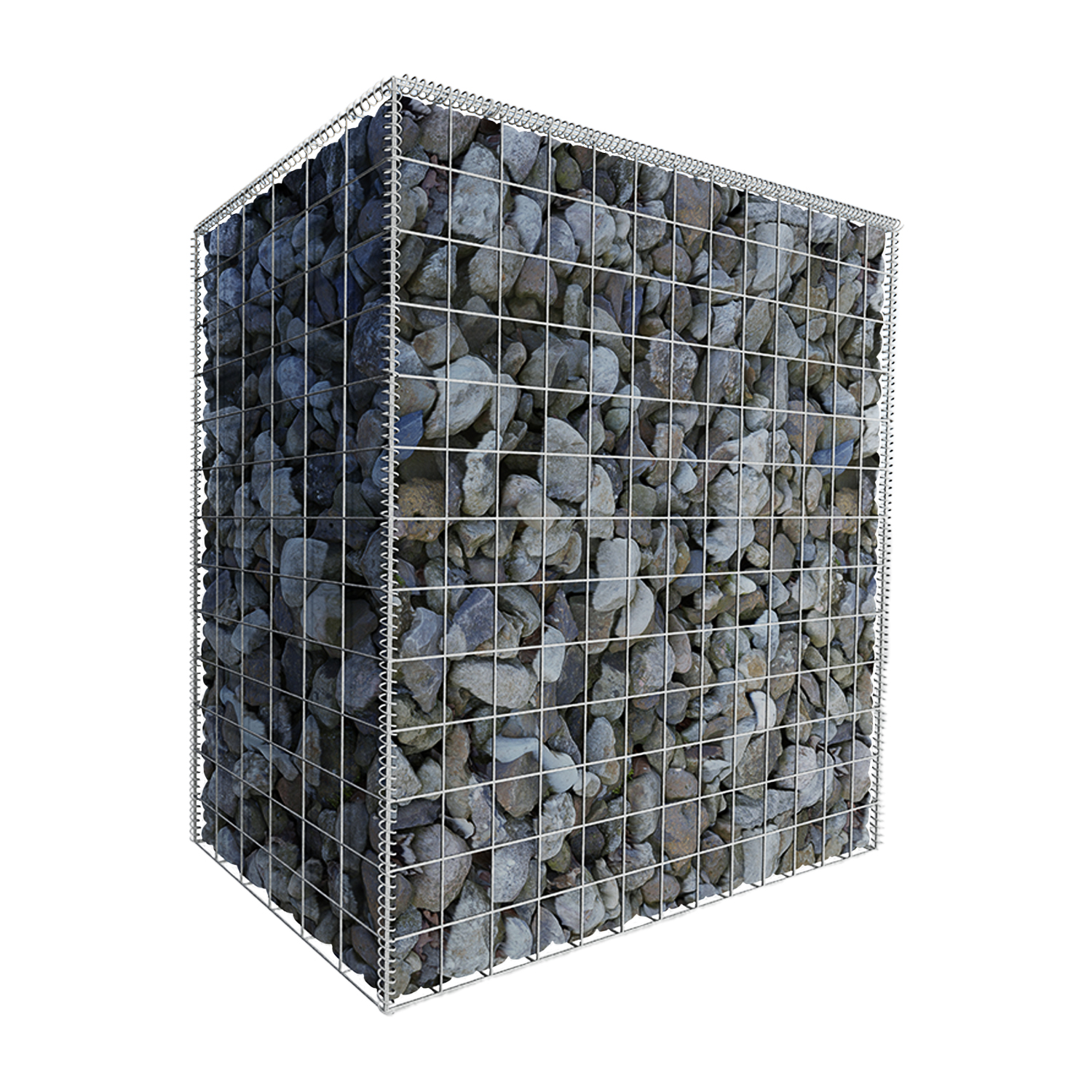

Stone Weight Required (kg) | 770 |
Bags of Granite Stone | 1 |
Bags of Limestone | 1 |
Shipping Weight | 25.02 kg |
Shipping Dimensions | 975mm x 450mm x 975mm |
