L97.5cm x D45cm x H45cm Gabion Wall Kit (4mm dia.)
£44.99 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 10 - 29 | £43.64 |
| 30 - 59 | £42.29 |
| 60 - 99 | £40.94 |
| 100 - 299 | £38.24 |
| 300 - 10000 | £36.89 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
Frequently bought together
Select items from the list below to add them to your basket.
âž•
âž•
=
Total price
£67.65 inc. VAT
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |
| Overall Length | 97.5cm |
| Overall Depth | 45cm |
| Overall Height | 45cm |
| Hole Size | 75mm x 75mm |
| Wire Diameter | 4mm |
| Gabion Quantity | 1 |

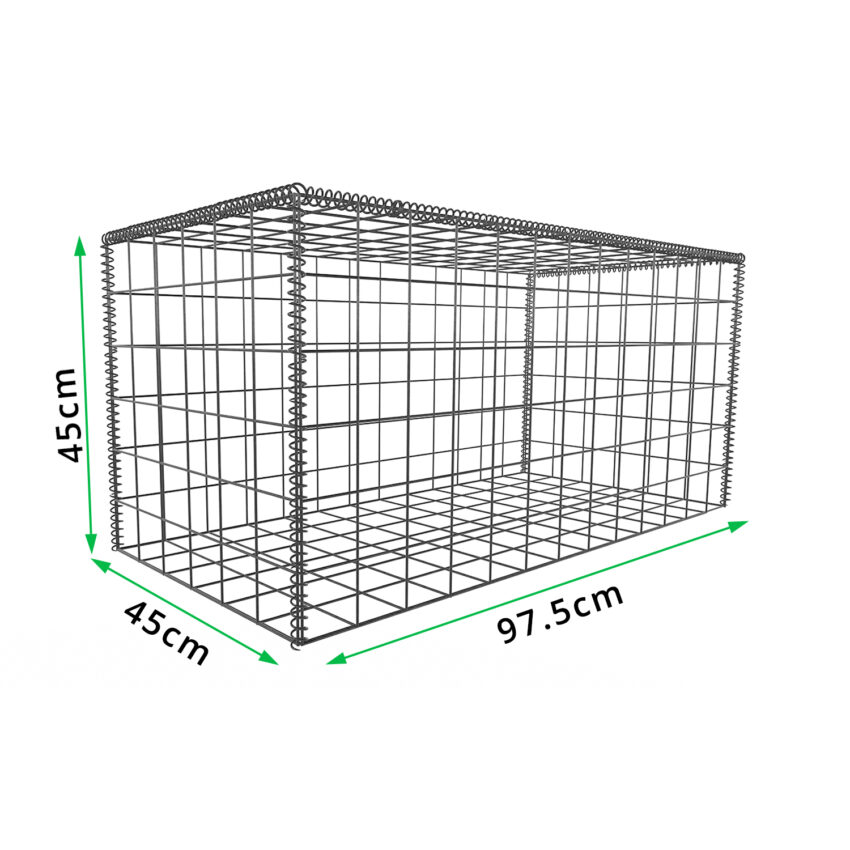

| Gabion Dimensions | L97.5cm x D45cm x H45cm |

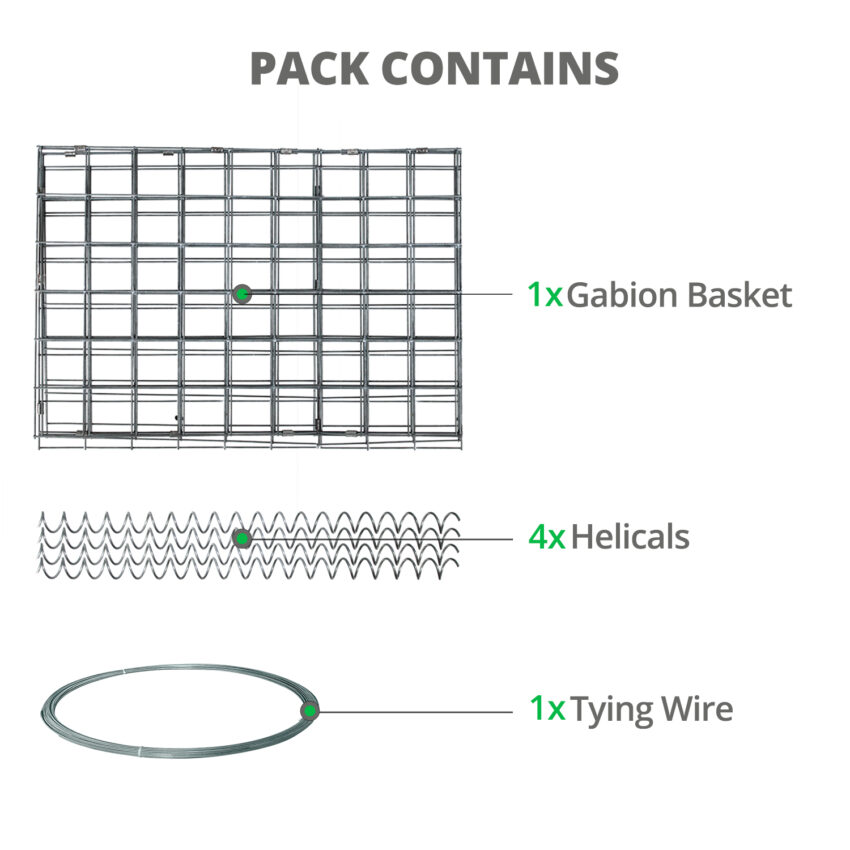

| Helical Quantity | 4 |
| Helical Dimensions | 1 meter each (need to be cut to size as required) |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm12 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C4 |
| Conforms to | BS EN 10223-8:2023 |
| Life Expectancy | Min. 50 years for C2 |

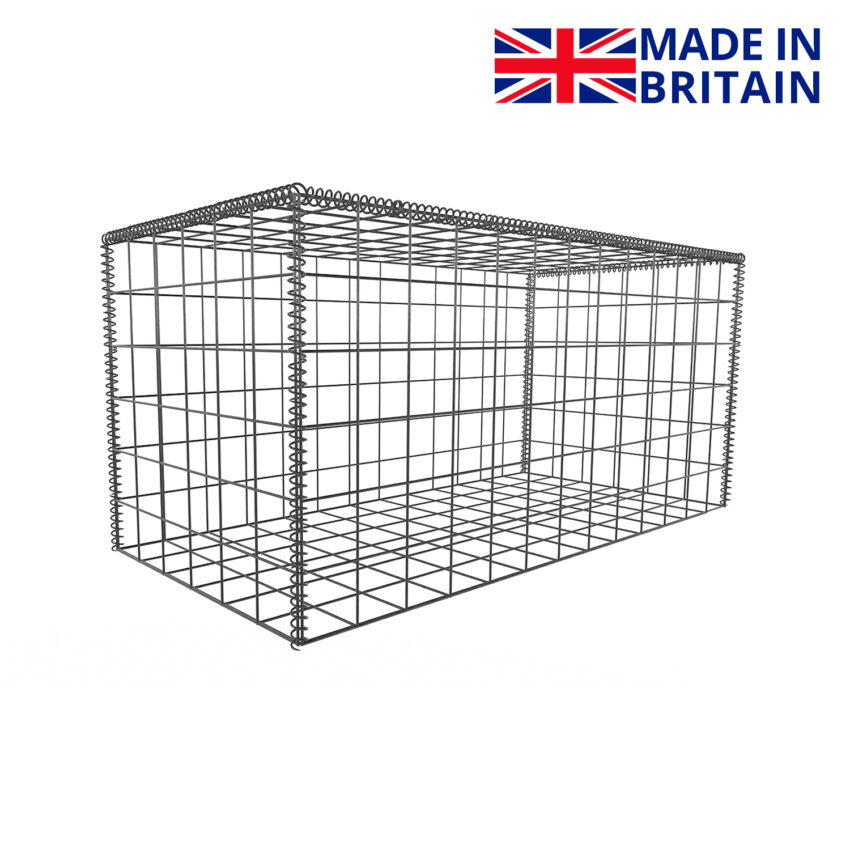

| Manufactured in | UK |
| Stone Weight Required (kg) | 360 |
| Bags of Granite Required | 1 |
| Bags of Limestone Required | 1 |
| Shipping Weight | 7.32 kg |
| Shipping Dimensions | 50mm x 450mm x 975mm |
Downloadable PDFs
