£58.99 inc. VAT

1 in Stock
Product Info
delivery-icon 5 WORKING DAY DELIVERY available for this product
free-shipping-icon FLAT FEE DELIVERY cost starting at £19.99
invoice-icon UK MANUFACTURED conform to BS EN standards
guarantee-icon PAY BY INVOICE available for trade customers
SKU: EM.WALL45H21 See more in:

Description



adobe-pdf-iconHow to assemble a Gabion?





adobe-pdf-icon Galfan Welded Gabion Technical Specification





adobe-pdf-icon Stone Quantity Required For Gabions



Additional information

Material

Galfan Coated Steel

Construction

Bi-axial electrically welded square mesh

Coating

Galfan Coated

Colour

Grey

Overall Length

97.5cm

Overall Depth

97.5cm

Overall Height

45cm

Hole Size

75mm x 75mm

Wire Diameter

4mm

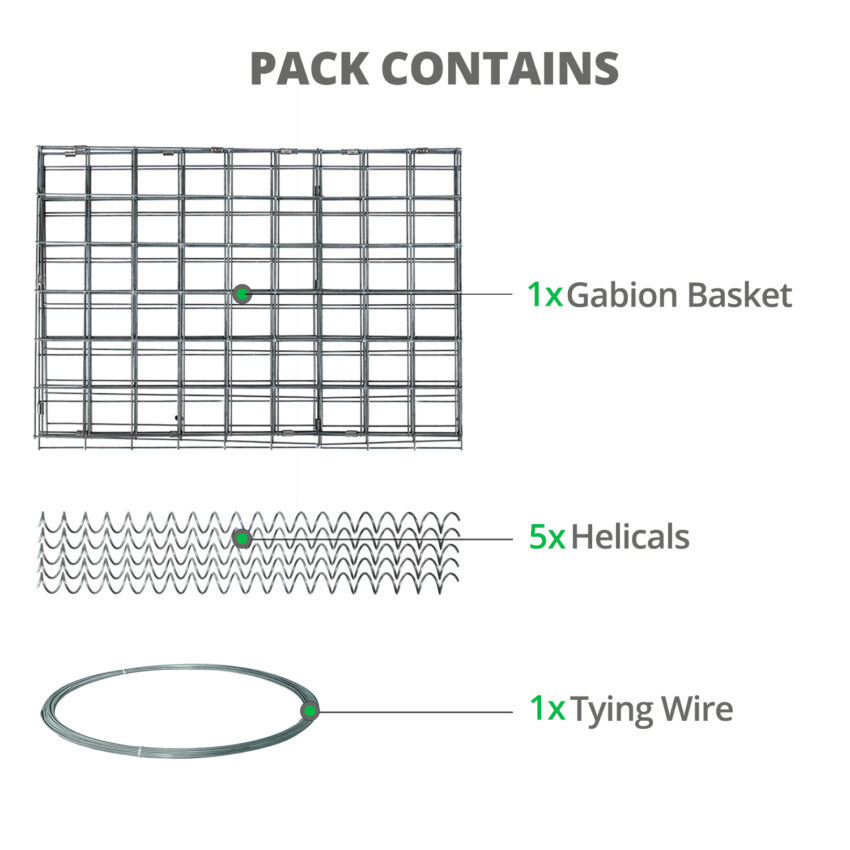

Kit Includes

1 gabion, 5 helicals

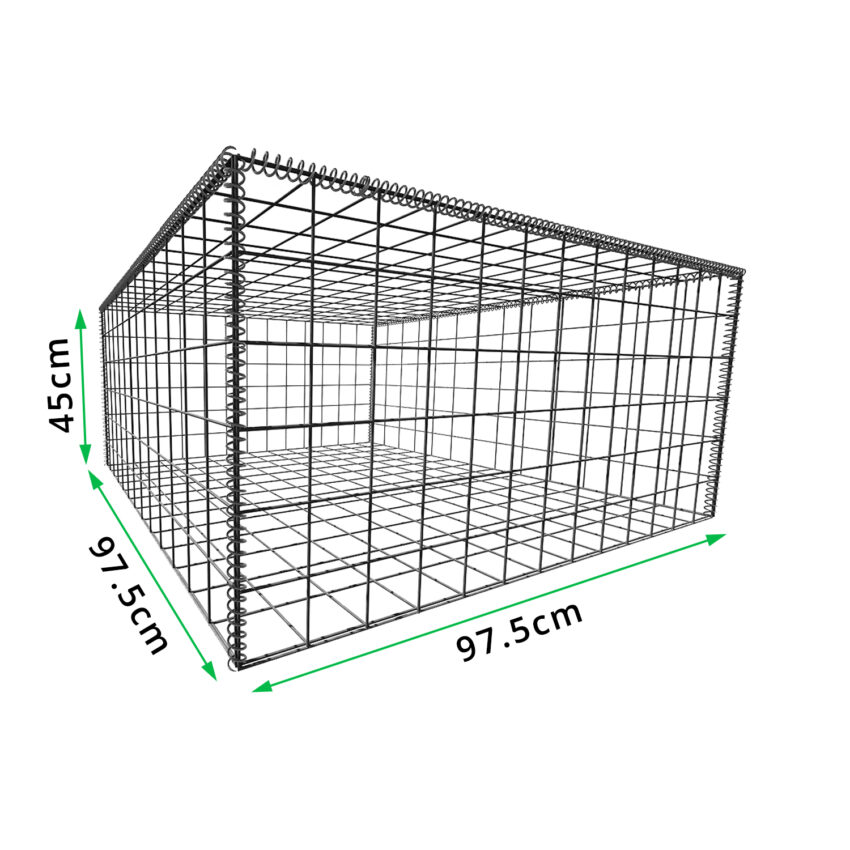

Gabion Dimensions

L97.5cm x D97.5cm x H45cm

Helical Dimensions

1 meter each (need to be cut to size as required)

Comes With

FREE Tying Wire

Tensile Strength Range

540-770 N/mm22

Weld Strength

75% of min. wire tensile strength

Site Categories

C2 to C24

Conforms to

BS EN 10223-8:2033

Life Expectancy

Min. 50 years for C2

Manufactured in

UK

Stone Weight Required (kg)

770

Bags of Granite Stone

1

Bags of Limestone

1

Shipping Weight 11.39 kg
Shipping Dimensions 450mm x 975mm x 975mm
