Description



adobe-pdf-iconHow to assemble a Gabion?





adobe-pdf-icon Galfan Welded Gabion Technical Specification





adobe-pdf-icon Stone Quantity Required For Gabions



Additional information

Material

Galfan Coated Steel

Construction

Bi-axial electrically welded square mesh

Coating

Galfan Coated

Colour

Grey

Length

150cm

Depth

22.5cm

Height

67.5cm

Hole Size

75mm x 75mm

Wire Diameter

4mm

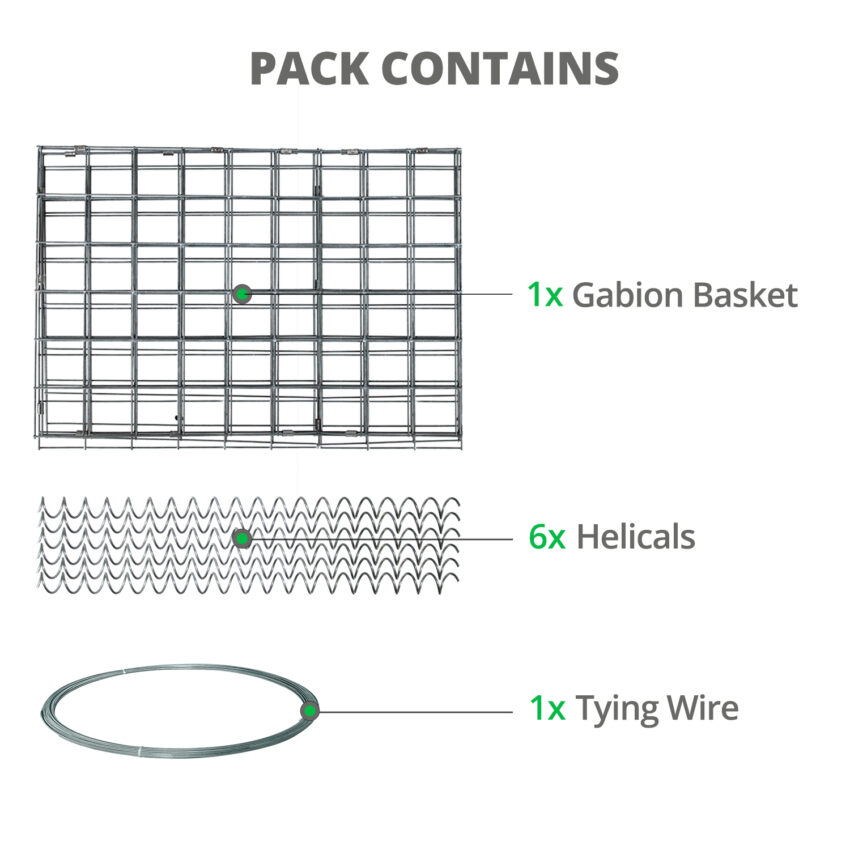

Kit Includes

1 gabion, 6 helicals

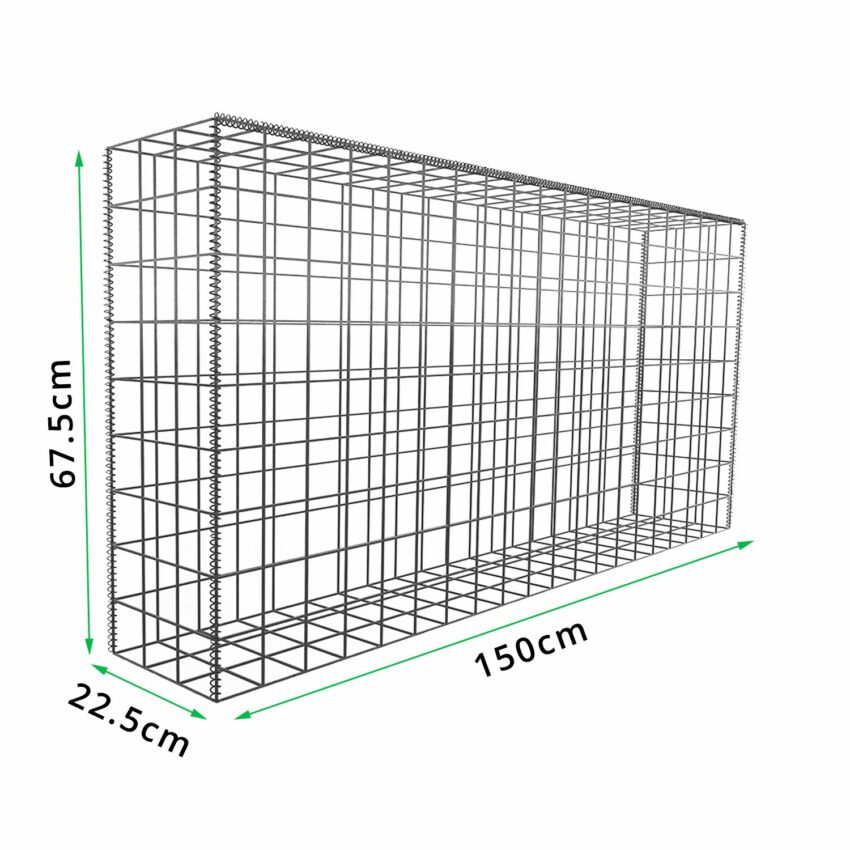

Gabion dimension

L150cm x D22.5cm x H67.5cm

Helical dimensions

1 meter (need to be cut to size as required)

Comes With

FREE Tying Wire

Tensile Strength Range

540-770 N/mm2

Weld Strength

75% of min. wire tensile strength

Site Categories

C2 to C4

Conforms to

BS EN 10223-8:2013

Life Expectancy

Min. 50 years for C2

Manufactured in

UK

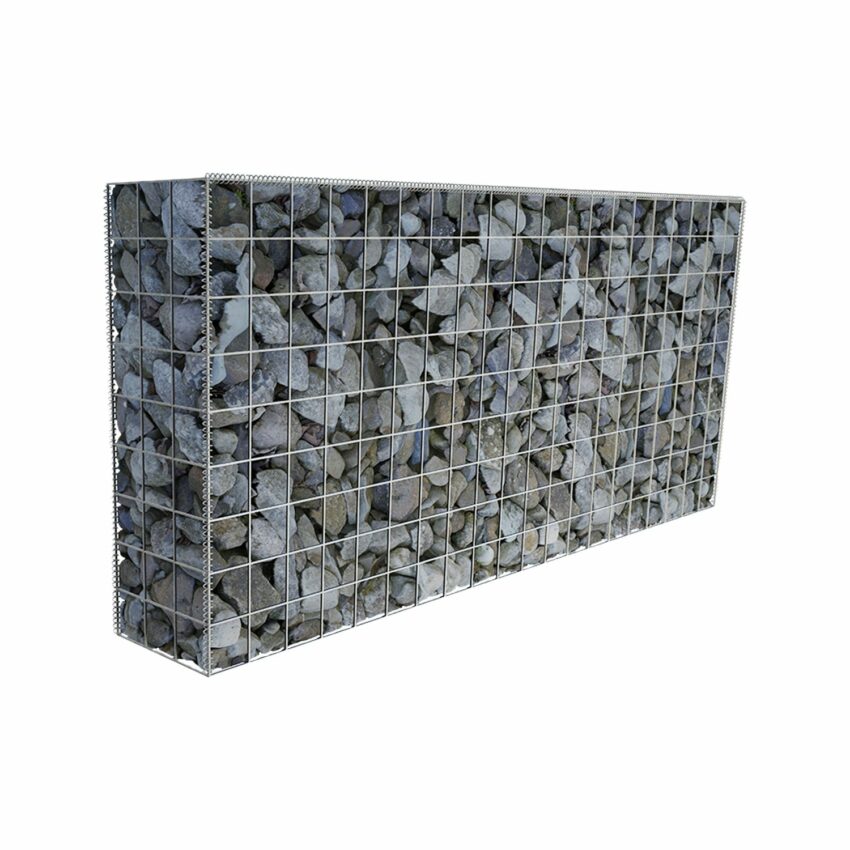

Stone Weight Required (kg)

410

Bags of Granite Stone

1

Bags of Limestone

1

Support pole required

No

Shipping Weight 15.59 kg
Shipping Dimensions 675mm x 225mm x 1500mm
