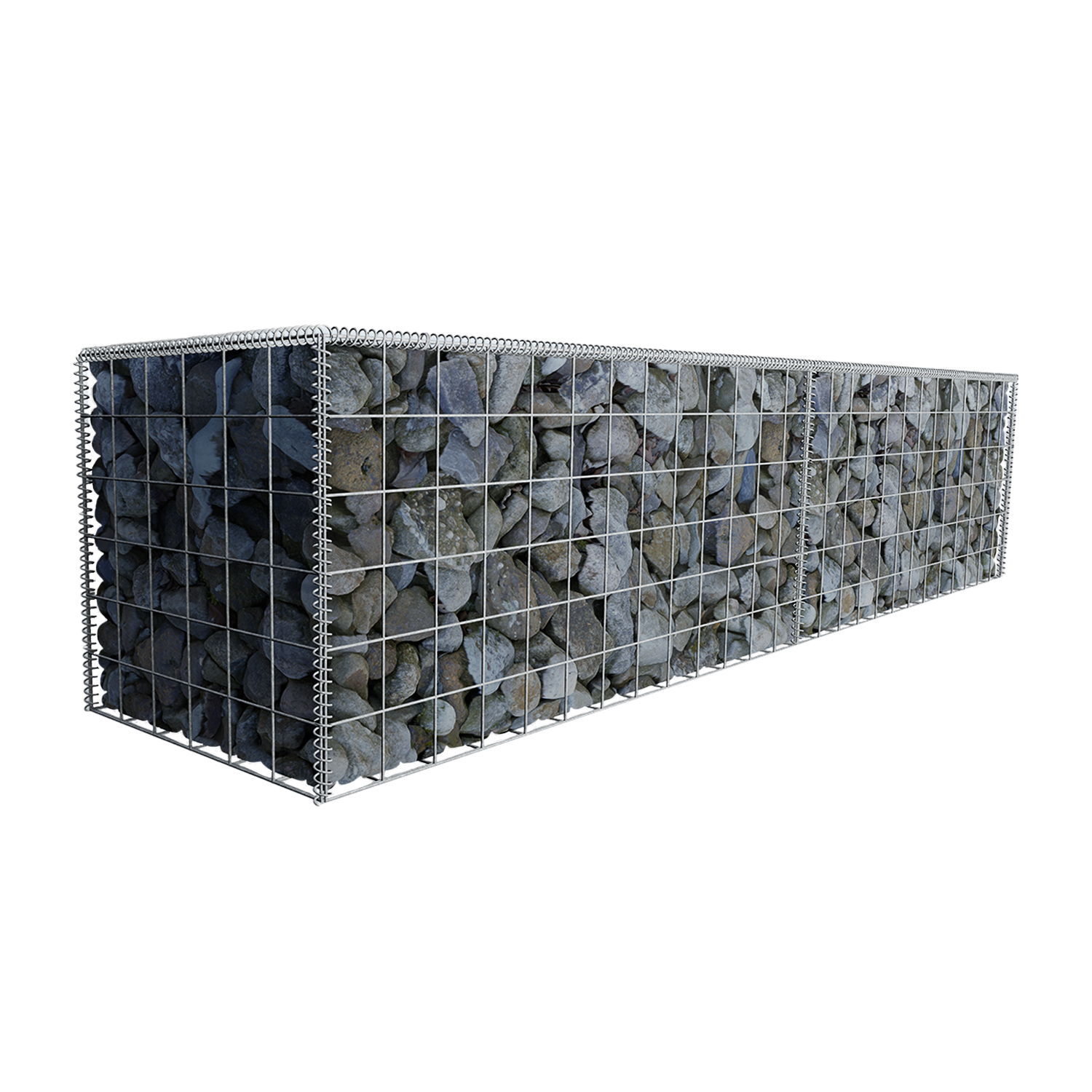

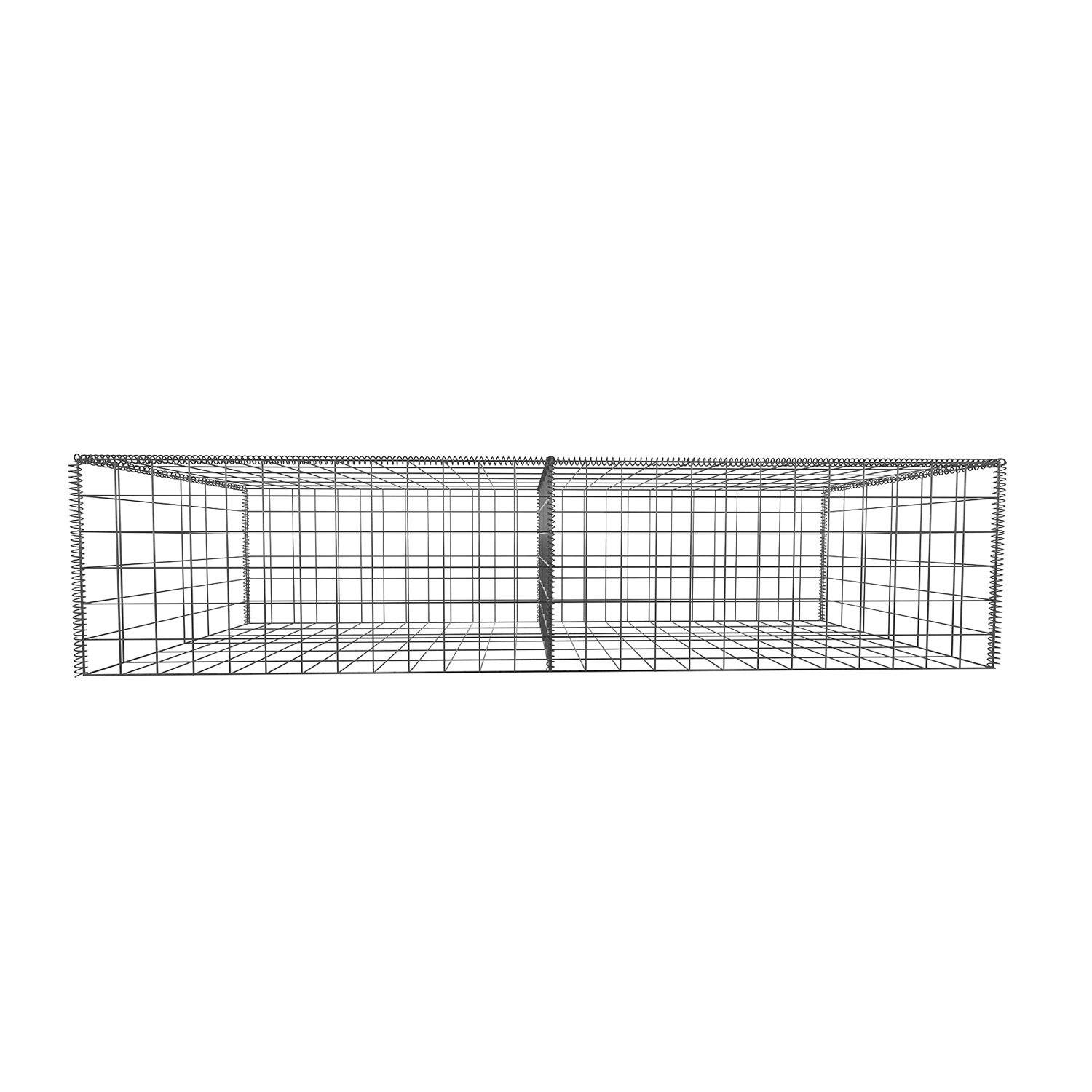

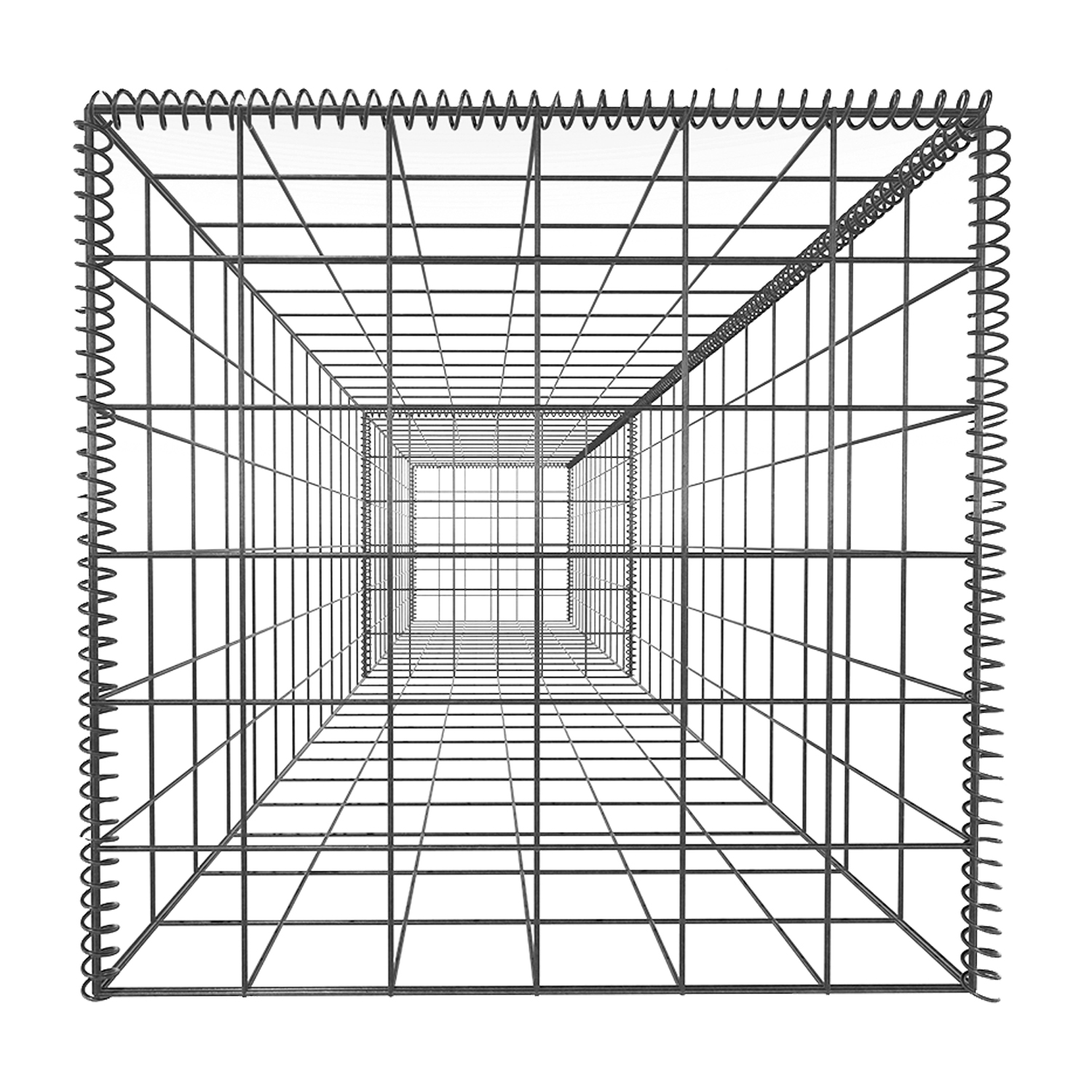

L195cm x D45cm x H45cm Gabion Wall Kit (5mm dia.)
£121.32 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 5 - 14 | £117.68 |
| 15 - 29 | £114.04 |
| 30 - 49 | £110.40 |
| 50 - 149 | £103.12 |
| 150 - 1000 | £99.48 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
Frequently bought together
Select items from the list below to add them to your basket.
âž•
âž•
=
Total price
£143.98 inc. VAT
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |

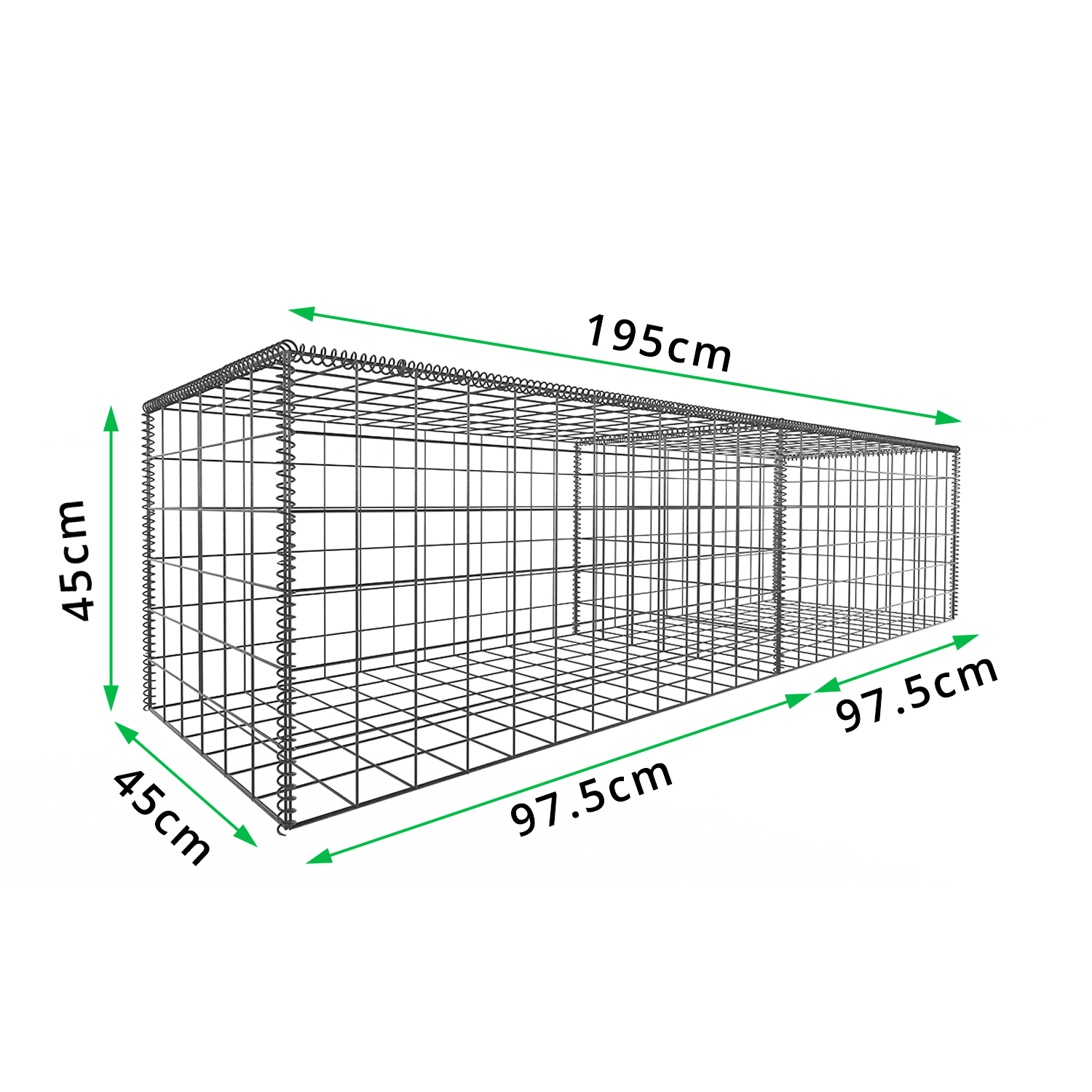

| Overall Length | 195cm |
| Overall Depth | 45cm |
| Overall Height | 45cm |
| Hole Size | 75mm x 75mm |
| Wire Diameter | 5mm |

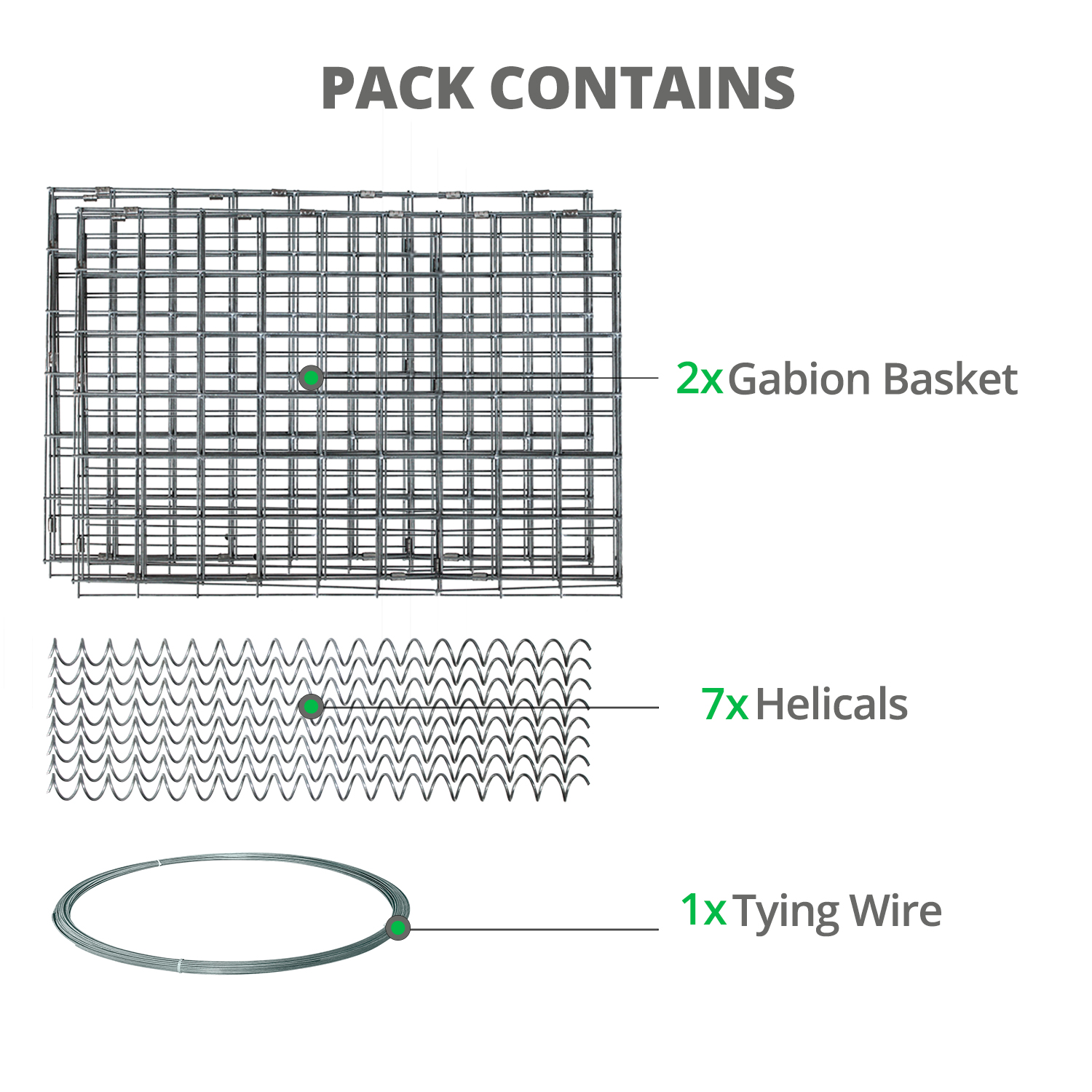

| Gabion Quantity | 2 |
| Gabion Dimensions | L97.5cm x D45cm x H45cm |
| Helical Quantity | 7 |
| Helical Dimensions | 1 meter each (need to be cut to size as required) |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm15 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C4 |
| Conforms to | BS EN 10223-8:2026 |
| Life Expectancy | Min. 50 years for C2 |

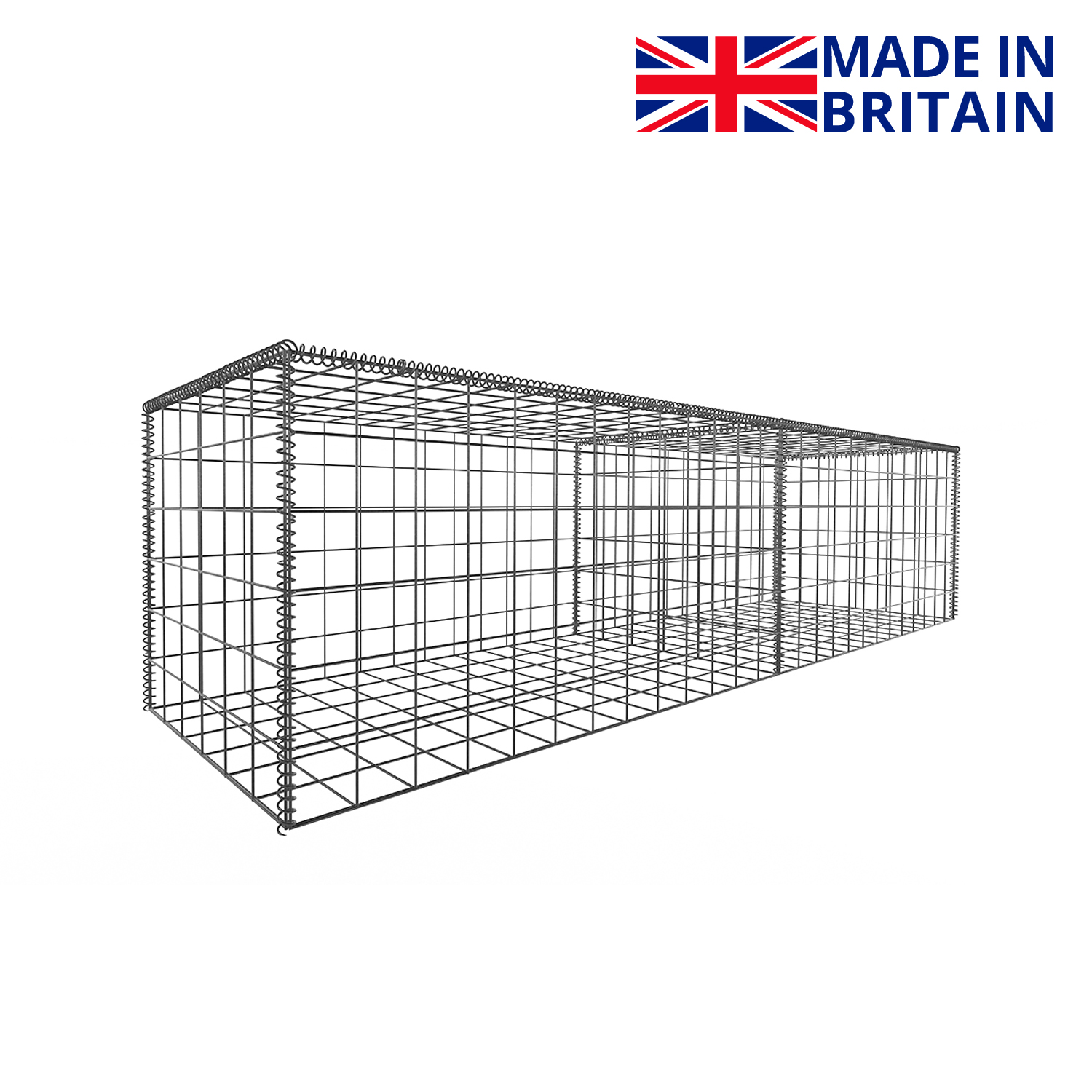

| Manufactured in | UK |
| Stone Weight Required (kg) | 700 |
| Bags of Granite Required | 1 |
| Bags of Limestone Required | 1 |
| Shipping Weight | 19.19 kg |
| Shipping Dimensions | 60mm x 450mm x 975mm |
