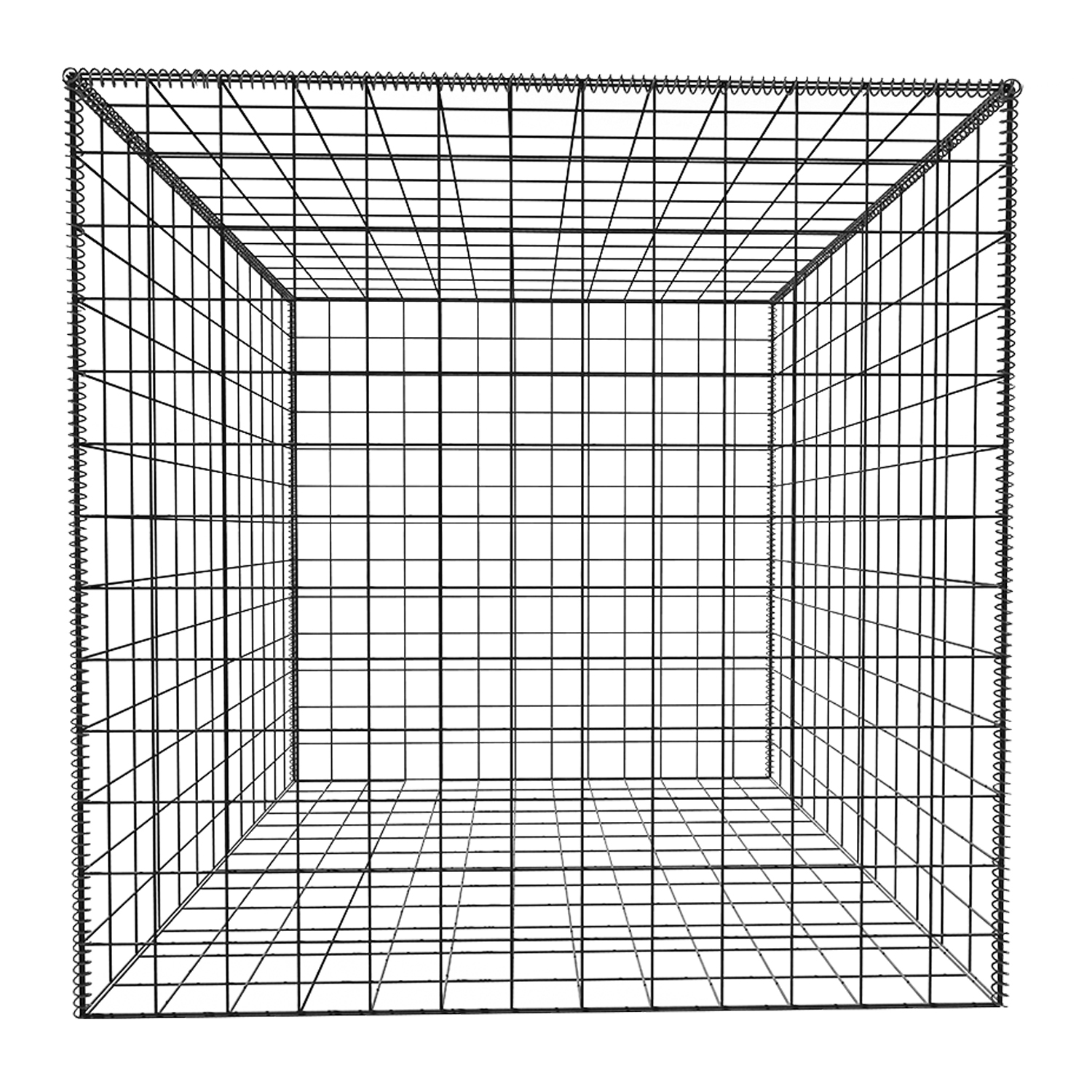

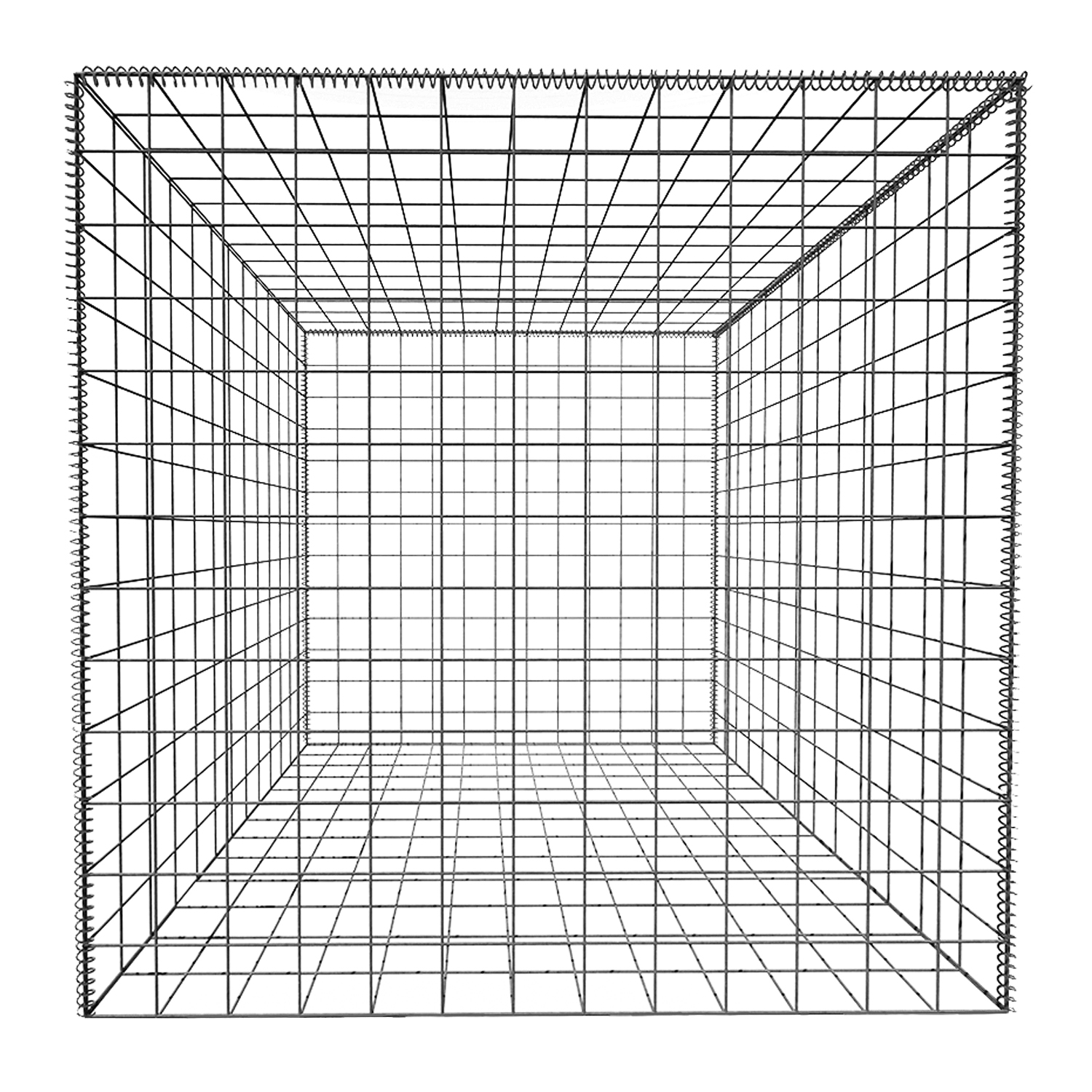

L97.5cm x D97.5cm x H97.5cm Gabion Wall Kit (4mm dia.)
£73.99 inc. VAT
In StockQuantity | Price |
---|---|
10 - 29 | £71.77 |
30 - 59 | £69.55 |
60 - 99 | £67.33 |
100 - 299 | £62.89 |
300 - 10000 | £60.67 |
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Galfan Coated |
Colour | Grey |

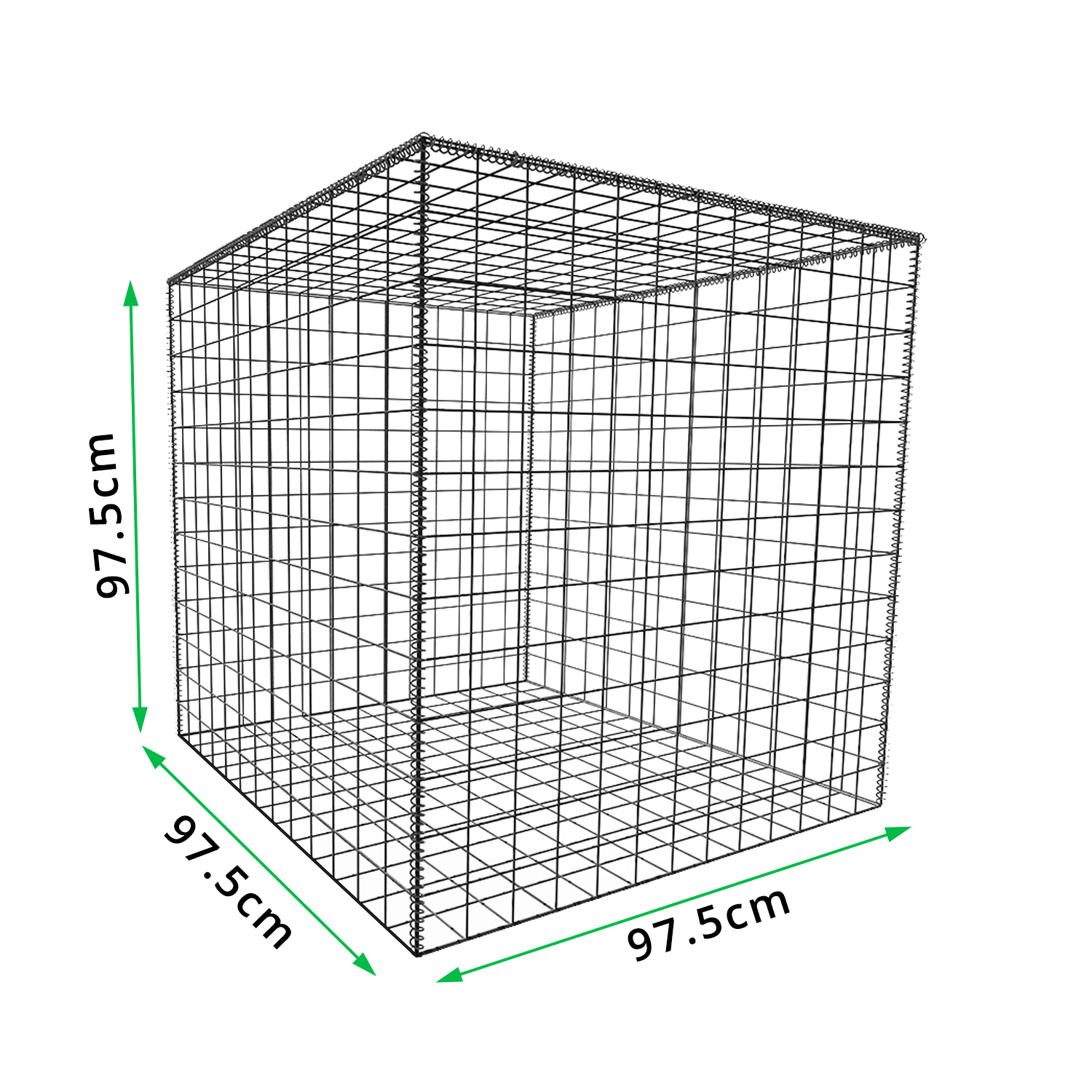

Overall Length | 97.5cm |
Overall Depth | 97.5cm |
Overall Height | 97.5cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 4mm |
Gabion Quantity | 1 |
Gabion Dimensions | L97.5cm x D97.5cm x H97.5cm |

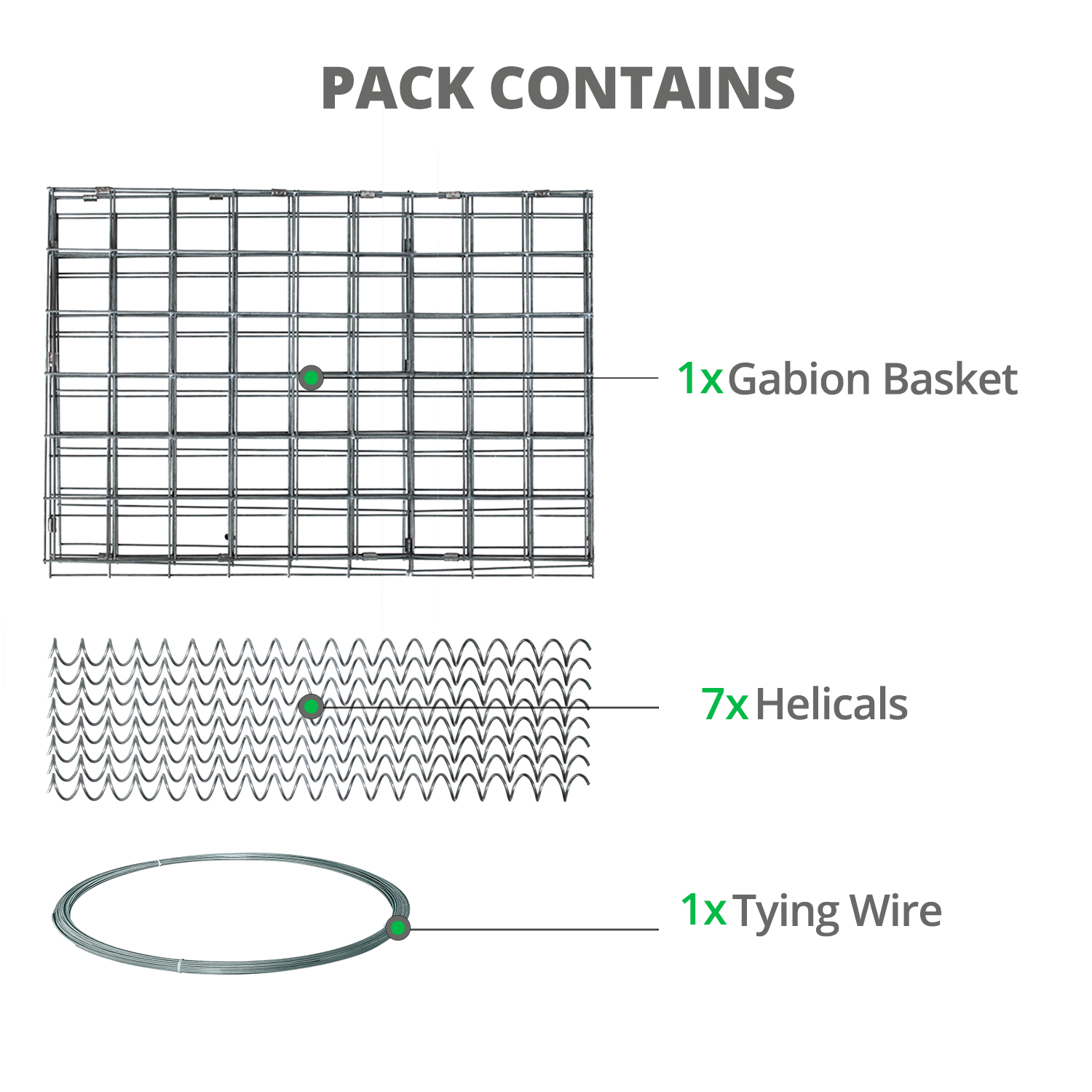

Helical Quantity | 7 |
Helical Dimensions | 1 meter each (need to be cut to size as required) |
Comes With | FREE Tying Wire |
Tensile Strength Range | 540-770 N/mm52 |
Weld Strength | 75% of min. wire tensile strength |
Site Categories | C2 to C4 |
Conforms to | BS EN 10223-8:2063 |
Life Expectancy | Min. 50 years for C2 |

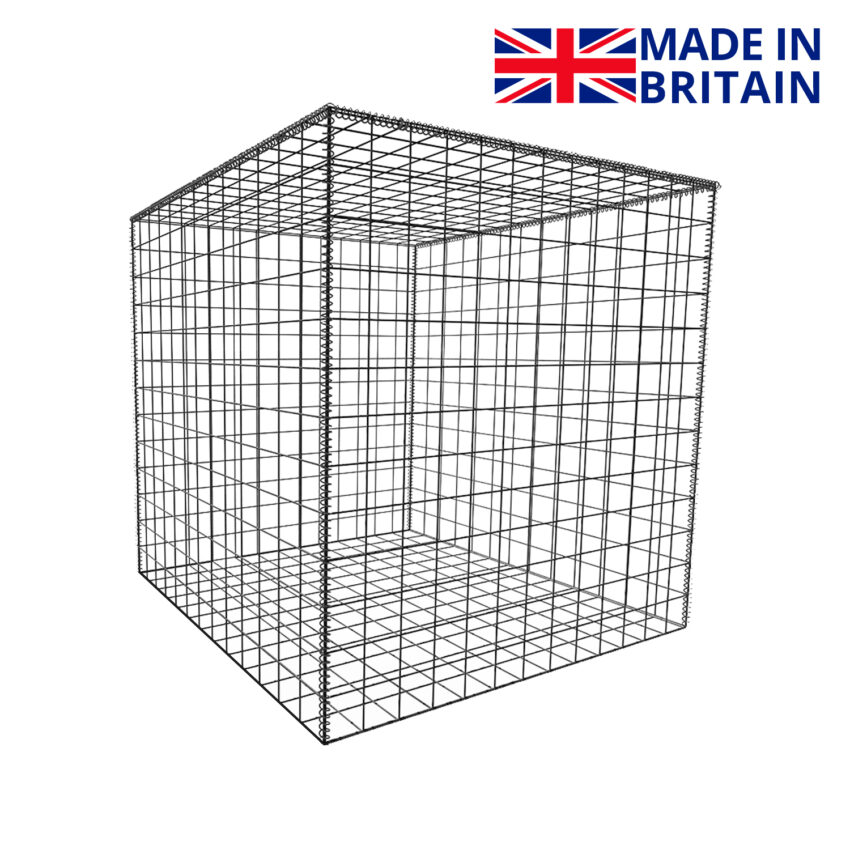

Manufactured in | UK |

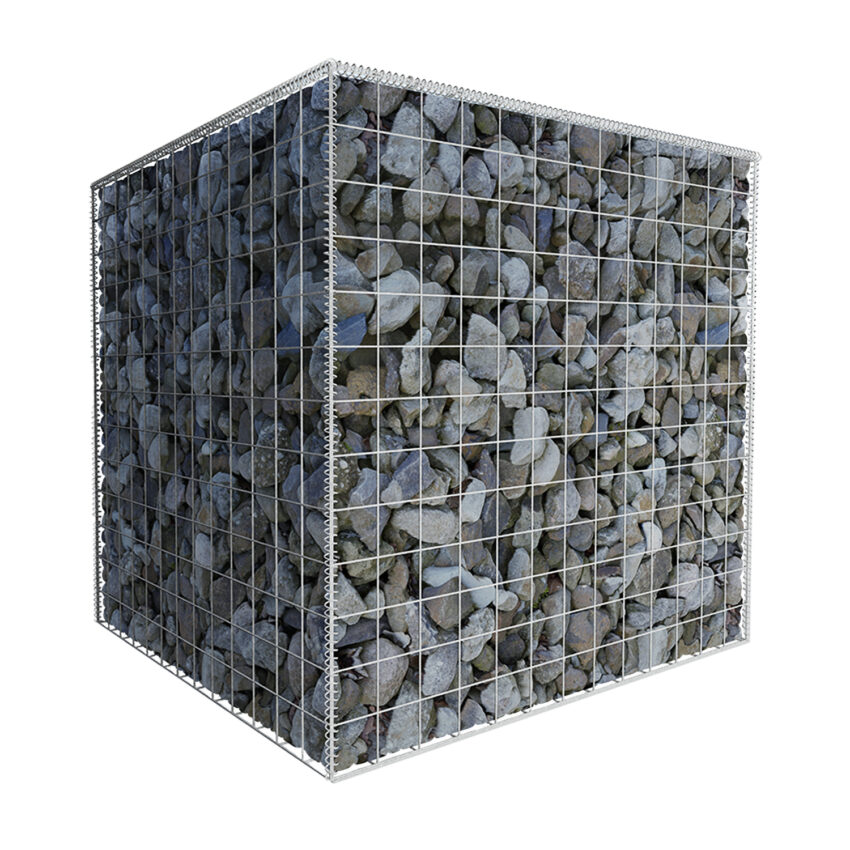

Stone Weight Required (kg) | 1670 |
Bags of Granite Required | 3 |
Bags of Limestone Required | 3 |
Shipping Weight | 17.33 kg |
Shipping Dimensions | 50mm x 975mm x 975mm |
