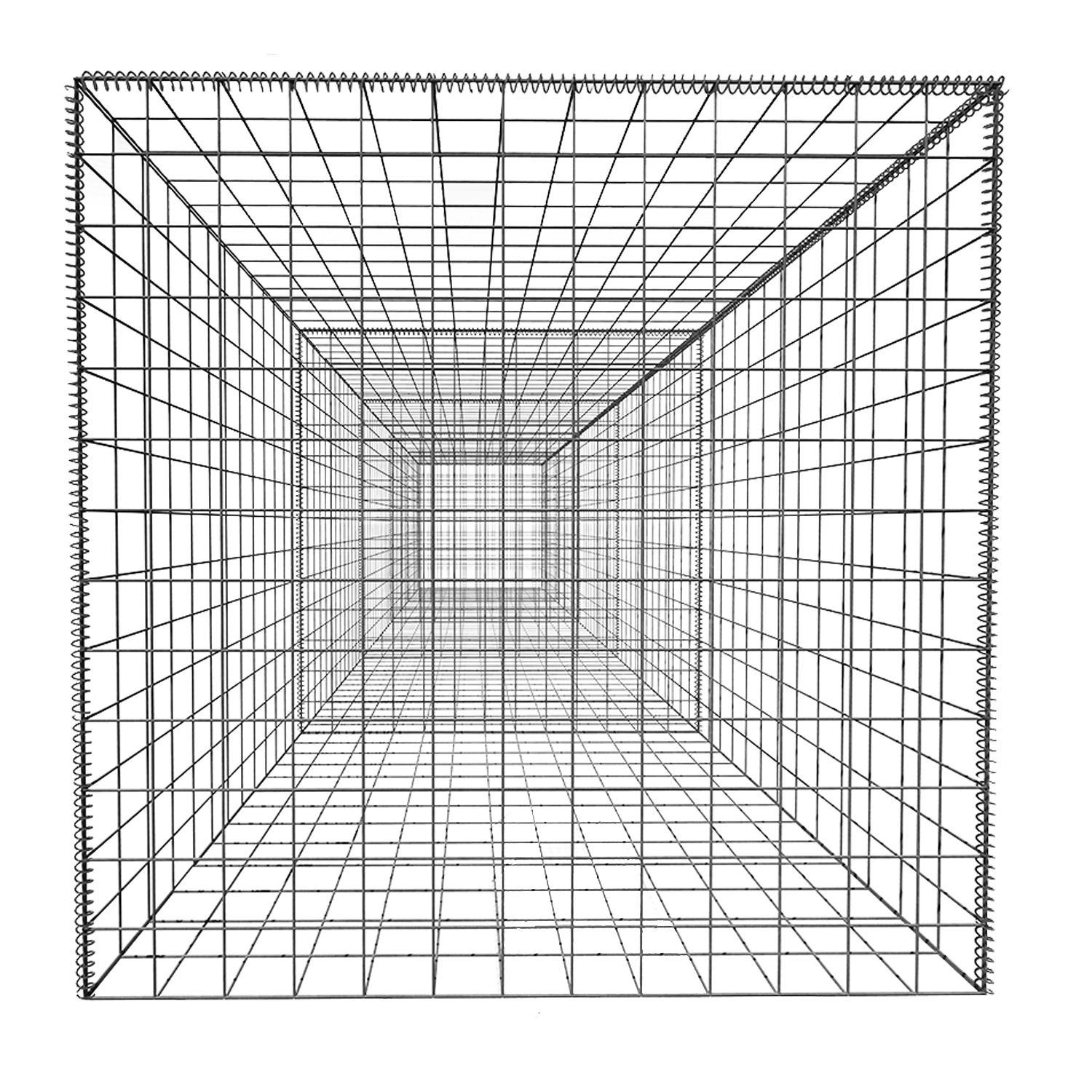

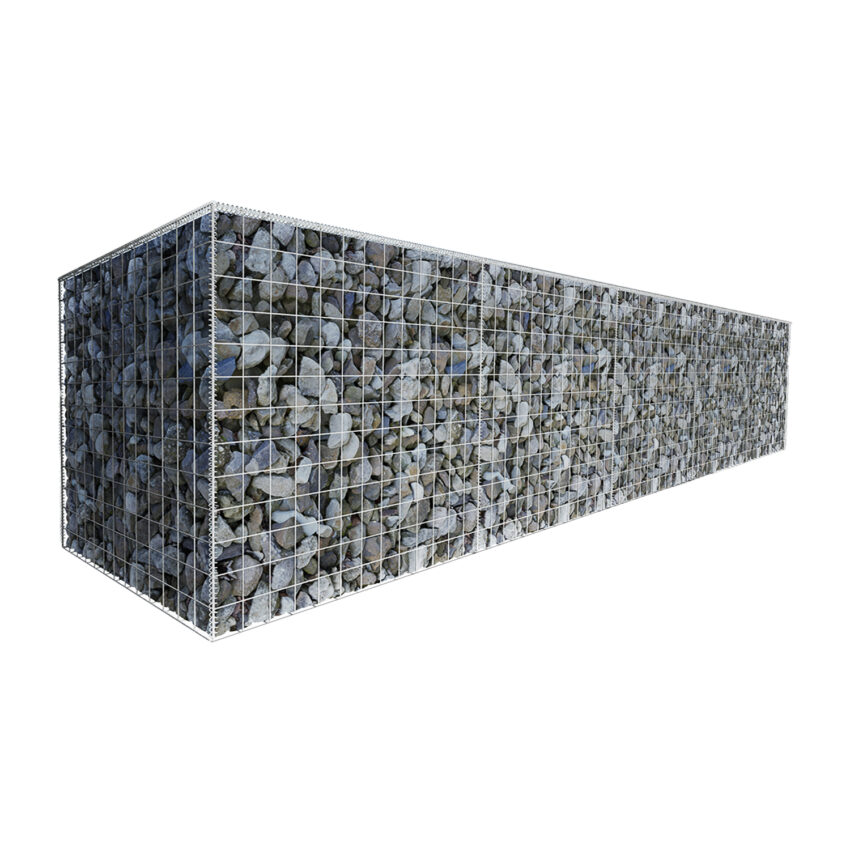

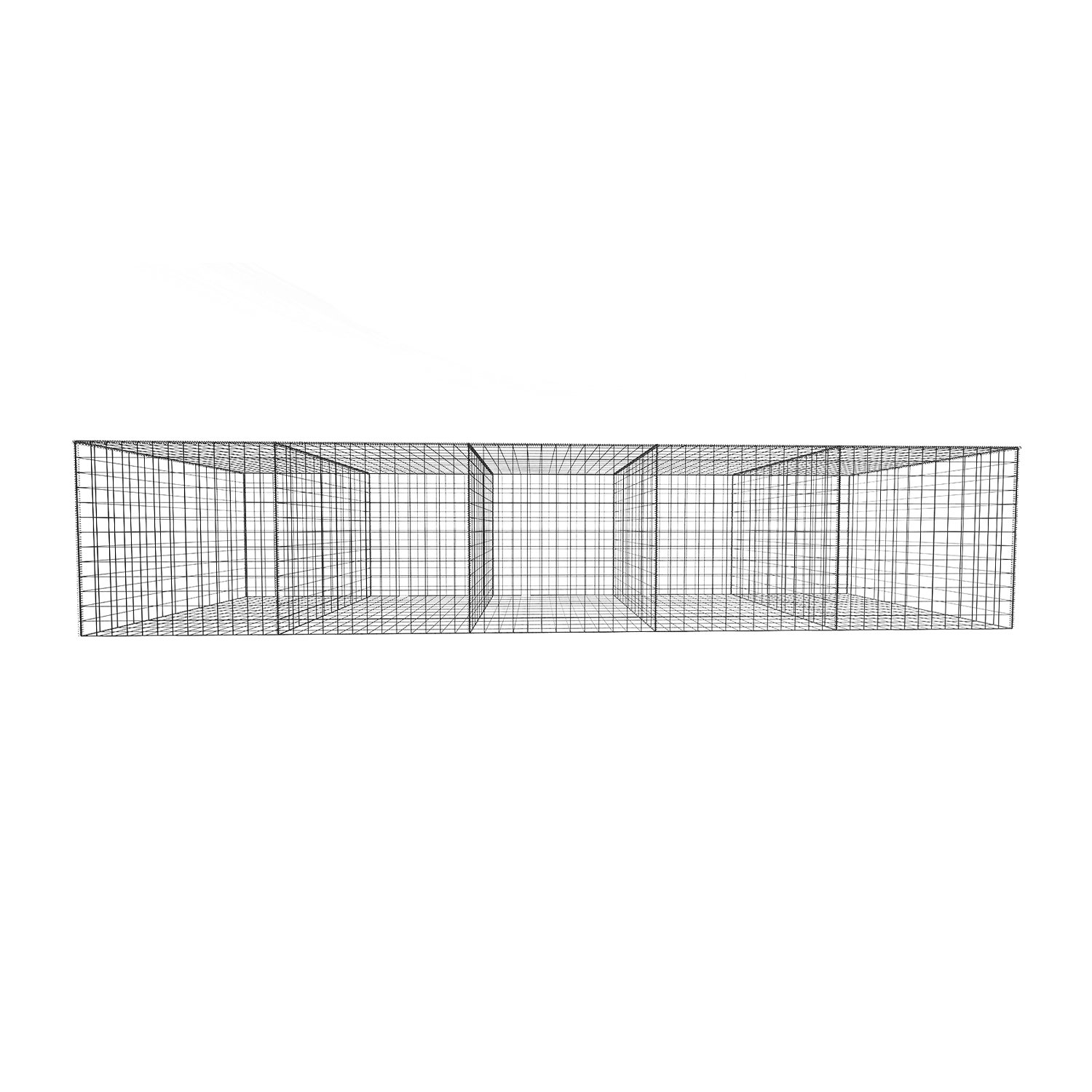

L487.5cm x D97.5cm x H97.5cm Gabion Wall Kit (4mm dia.)
£356.99 inc. VAT
In StockQuantity | Price |
---|---|
2 - 5 | £346.28 |
6 - 11 | £335.57 |
12 - 19 | £324.86 |
20 - 59 | £303.44 |
60 - 1000 | £292.73 |
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Galfan Coated |
Colour | Grey |

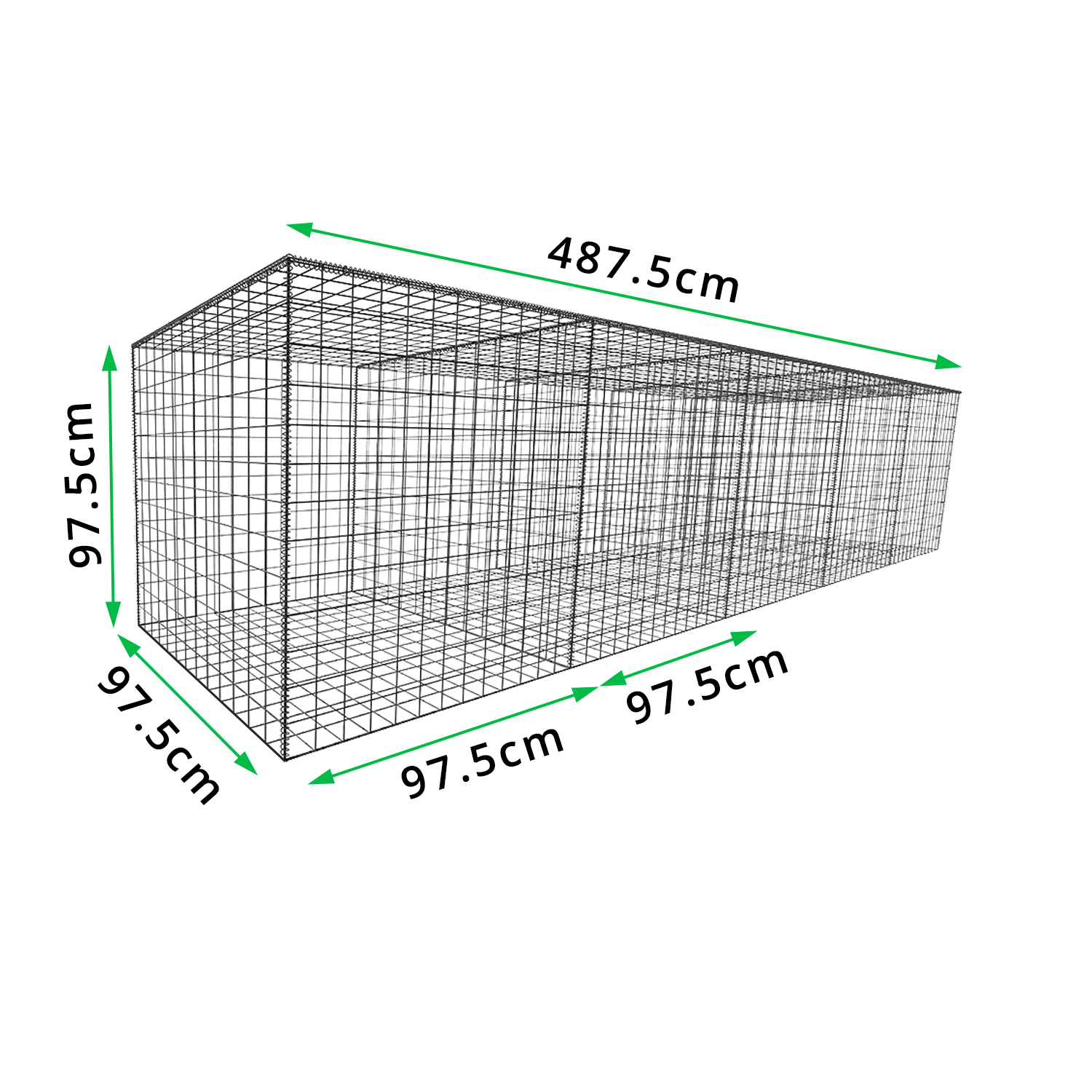

Overall Length | 487.5cm |
Overall Depth | 97.5cm |
Overall Height | 97.5cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 4mm |

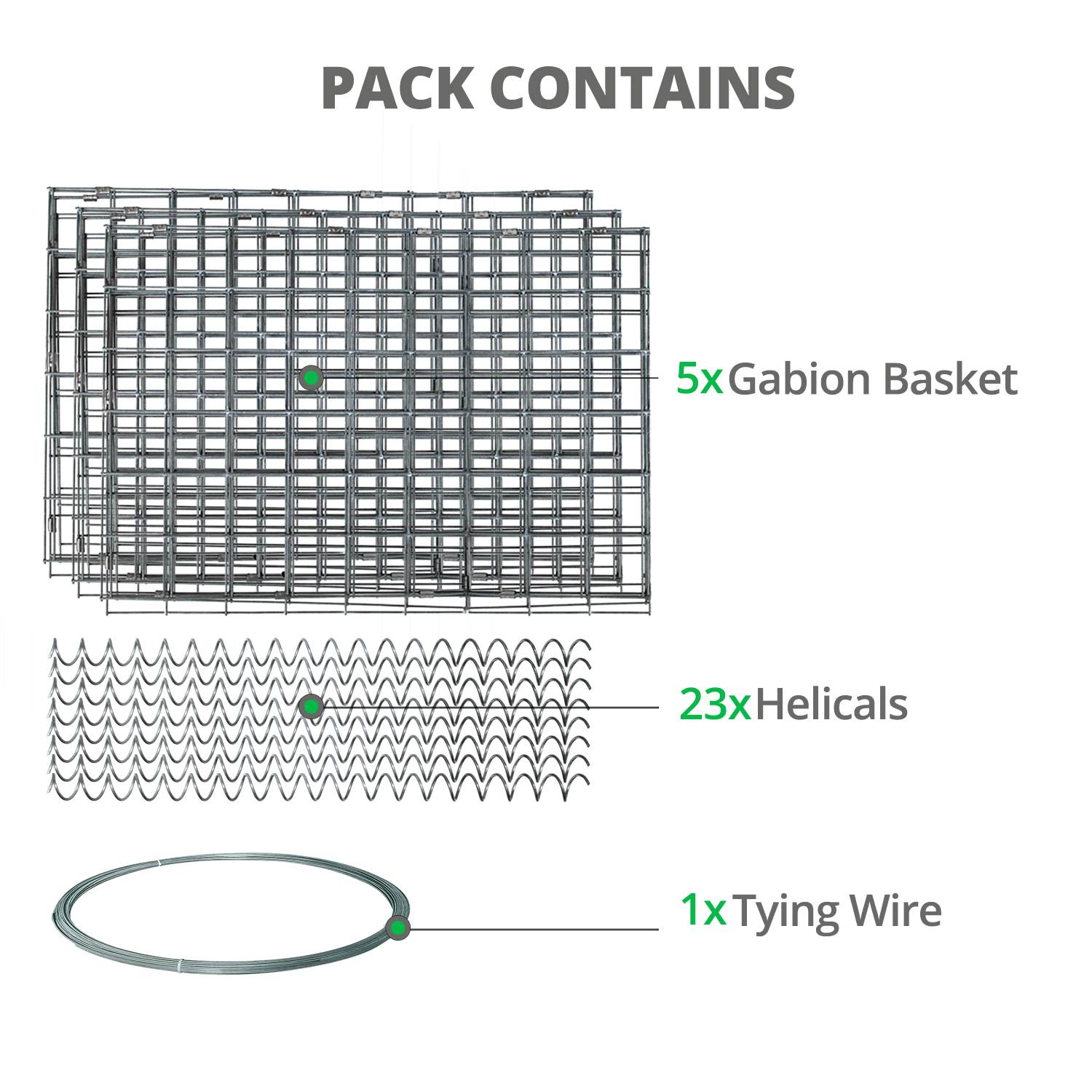

Gabion Quantity | 5 |
Gabion Dimensions | L97.5cm x D97.5cm x H97.5cm |
Helical Quantity | 23 |
Helical Dimensions | 1 meter each (need to be cut to size as required) |
Comes With | FREE Tying Wire |
Tensile Strength Range | 540-770 N/mm60 |
Weld Strength | 75% of min. wire tensile strength |
Site Categories | C2 to C4 |
Conforms to | BS EN 10223-8:2071 |
Life Expectancy | Min. 50 years for C2 |
Manufactured in | UK |
Stone Weight Required (kg) | 8330 |
Bags of Granite Required | 10 |
Bags of Limestone Required | 11 |
Shipping Weight | 84.61 kg |
Shipping Dimensions | 50mm x 975mm x 975mm |
