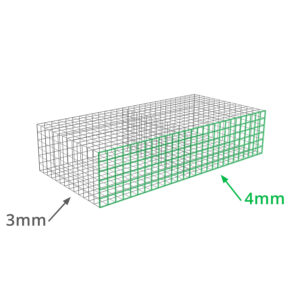

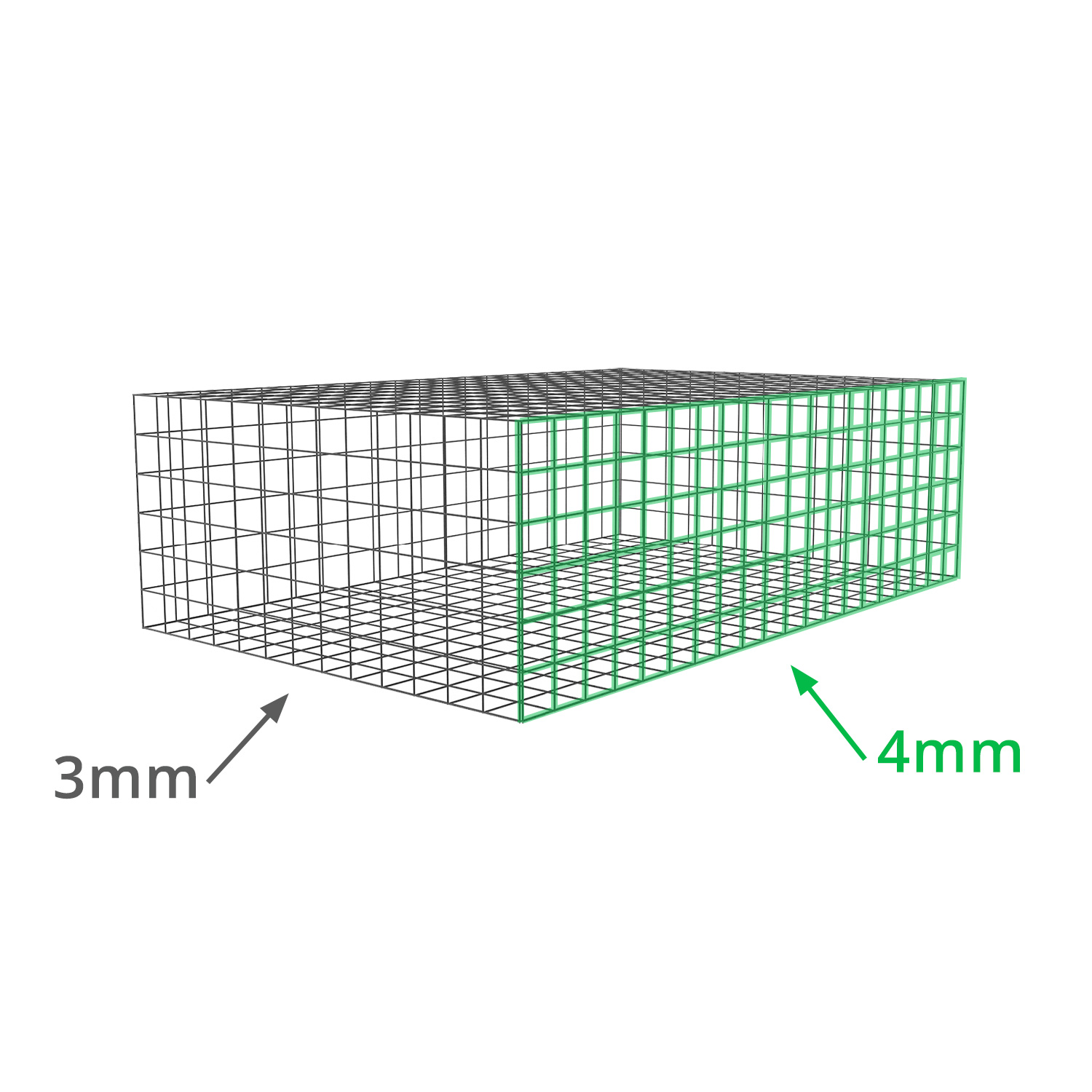

L150cm x D97.5cm x H45cm Welded Gabion (3mm dia / 4mm Face)
£49.99 inc. VAT
in Stock| Quantity | Price |
| 10 - 30 | £48.49 |
| 30 - 60 | £46.99 |
| 60 - 100 | £45.49 |
| 100 - 300 | £43.99 |
| 300 - 1000 | £39.99 |
Description
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |
| Length | 150cm |
| Depth | 97.5cm |
| Height | 45cm |
| Hole Size | 75mm x 75mm |

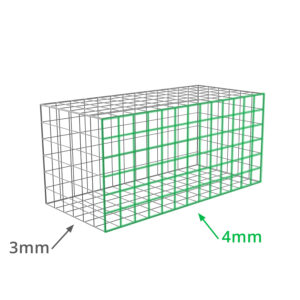

| Wire Diameter | 3mm |

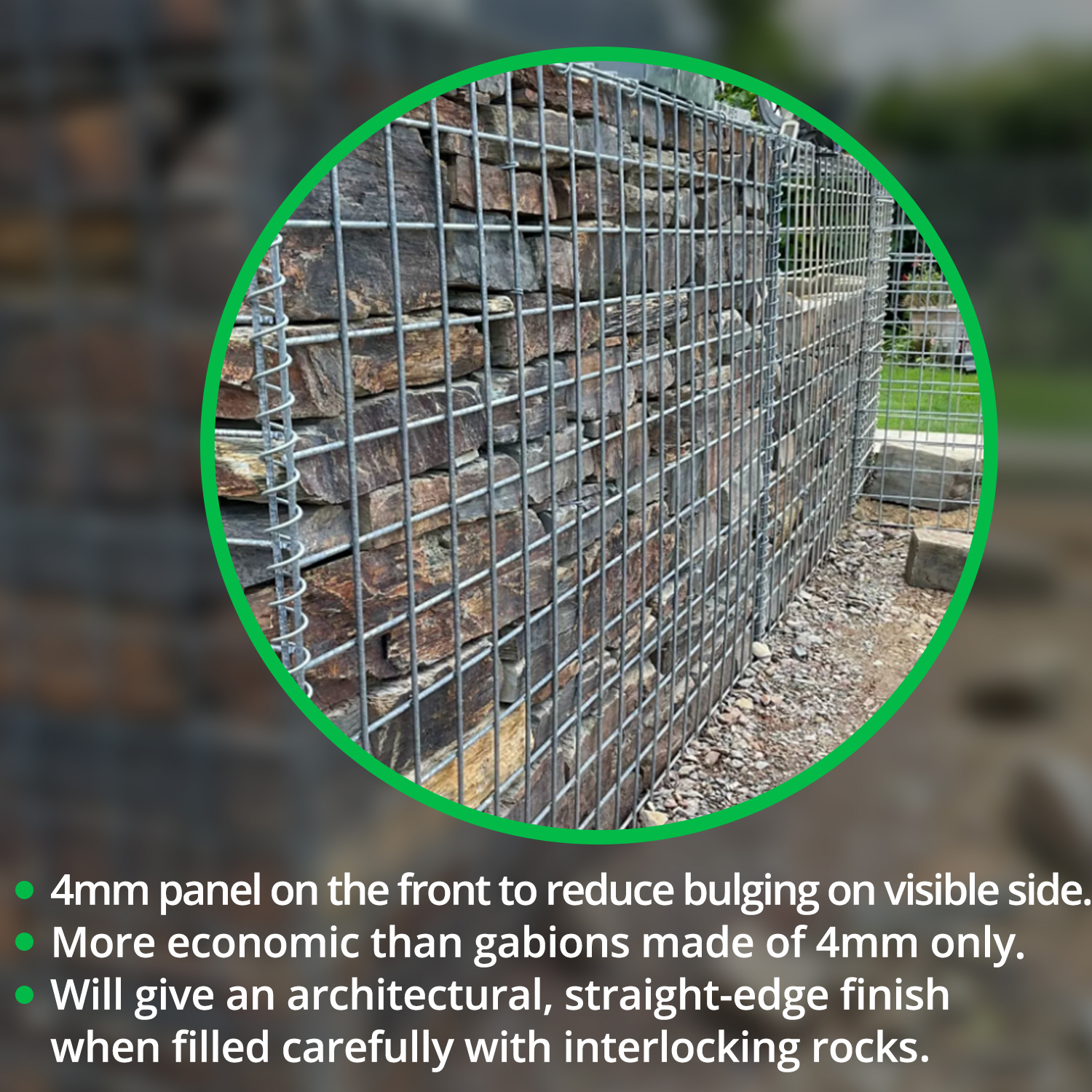

| Face Panel Wire Dia. | 4mm |
| Includes Diaphragm | No |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm2 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C4 |
| Conforms to | BS EN 10223-8:2013 |
| Life Expectancy | Min. 50 years for C2 |
| Manufactured in | UK |
| Stone Volume Required (m3) | 0.66 |
| Bags of Stone Required | 2 |
| Stone Weight Required (kg) | 1185 |
| Shipping Weight | 9.18 kg |
| Shipping Dimensions | 450mm x 975mm x 1500mm |
