Next Day Delivery
All Gabions on this page will ship same day if ordered before 11:00am, delivered to you within 1-2 working days.
If you cannot find the size you require please see our full range
- BBA approved for retaining wall construction
- Manufactured in the UK, to BS EN standards
Scroll for more details
| All of our Gabions have been tested and certified to the following standards | |
| BBA Certified | Yes – BBA certificate number: 05/4215 Certification Body: BBA |
| Gabion Quality Standard |
– conforms to BS EN 10223-8:2413 |
| Accurate Zinc Coating |
– conforms to BS EN 10244-2:2009 |
| Wire Tolerances Standard |
– conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard |
– conforms to BS EN 10218-2:2012 Certification Body: British Standards Institution |
| Corrosion Resistance Standard |
– conforms to BS EN 10244-2:2009 |
| Abrasion Resistance Standard |
– conforms to BS EN 60229:2008 |
| PVC Coating Standard |
– conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011 |

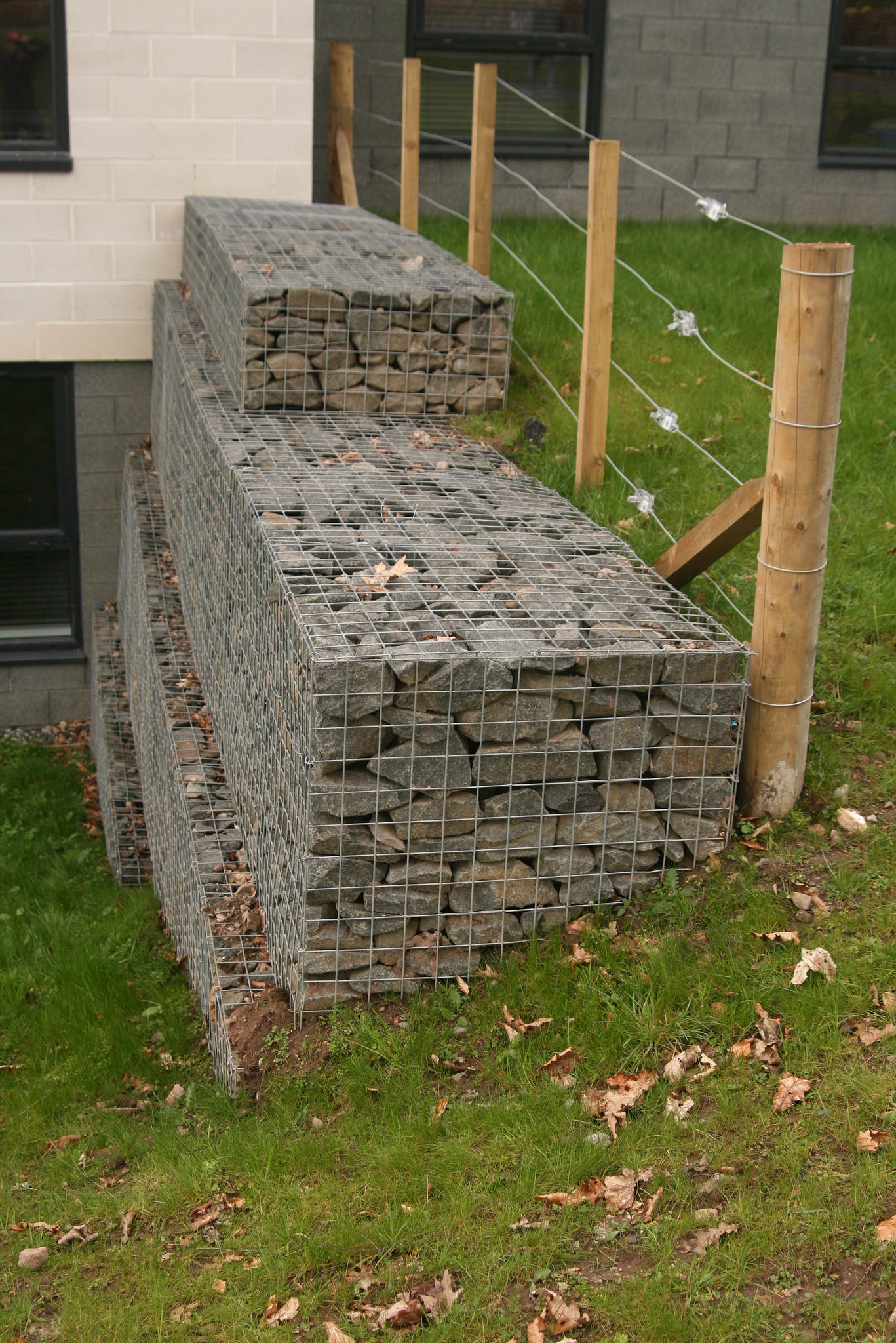

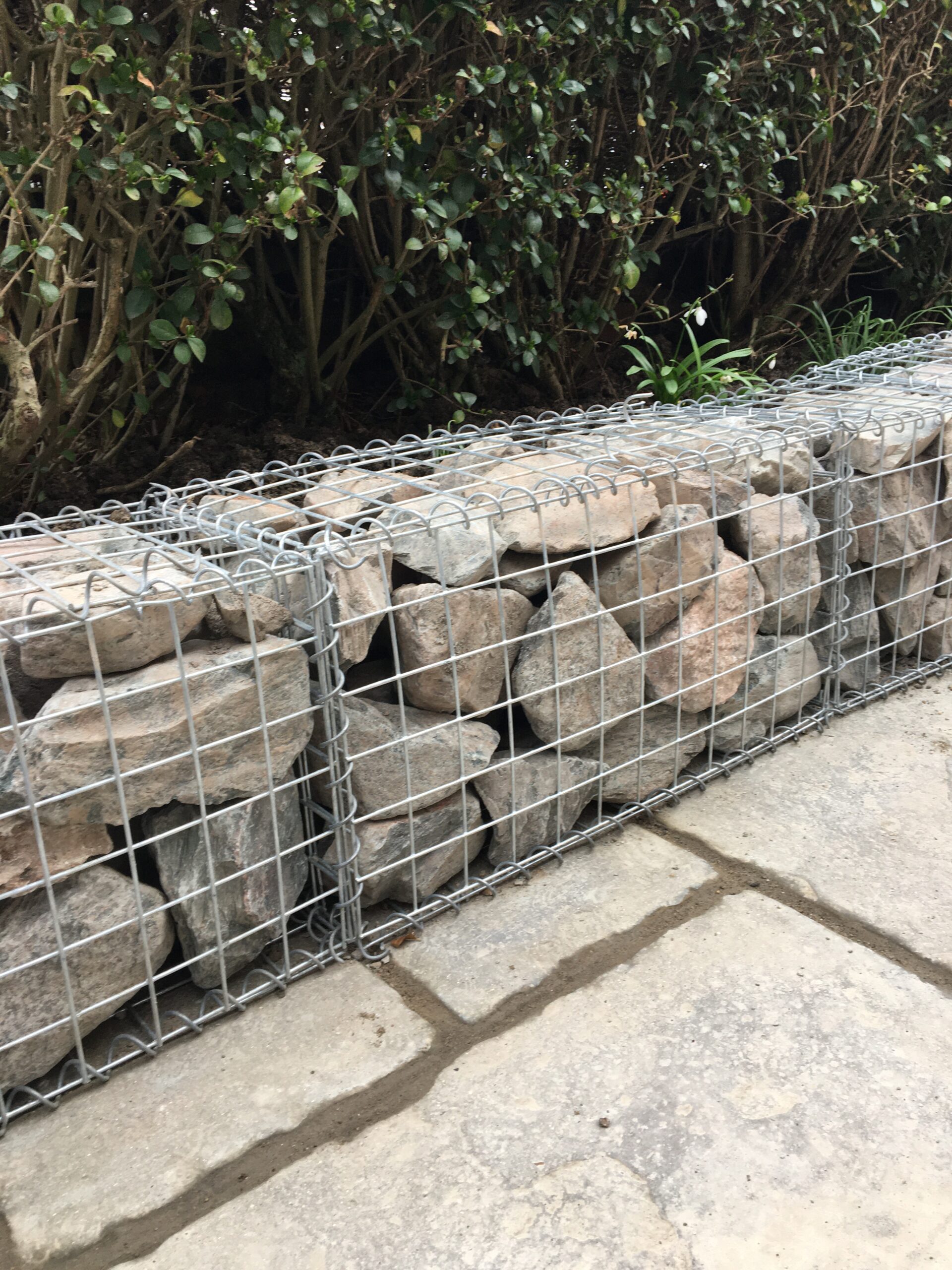

Customer Images
Videos
How to assemble a gabion (WITH HELICALS)
How to assemble a gabion (WITH TYING WIRE)
Gabion rigidity test (COMPARING DIAMETERS)
PVC gabion rigidity test (COMPARING DIAMETERS)
How to use corner ties
How to use stone separating panels
How to brace a gabion with tying wire
How to cut gabion panels
Gabion wire diameter guide
How likely is a gabion basket to bulge?
How to build a freestanding gabion wall
How to build a gabion retaining wall
How to join gabion baskets together with helicals
How to assemble a gabion ( In 3 MINUTES)
Gabion deflection test
PVC gabion deflection test
How to make a gabion planter
How a gabion basket is manufactured
How to attach wood top to gabion baskets
How to install a gabion pillar
How to make gabion steps
Which Wire Thickness?
| Wire Diameter | Use For: |
| 3mm | Standard wire thickness for walls up to 5m. Low-cost option. Will result in minor bulges when filled with rocks. Suitable if architectural, straight edge finish is not required. |
| 4mm | 5m+ high & free-standing walls. Use for seating or surfaces that will be walked on. Will give an architectural, straight edge finish when filled carefully with interlocking rocks. |
| 5mm | 5m+ high walls & free-standing walls. Use for seating or surfaces that will be walked on. Best for an architectural, uniform and precise finish. For use in public parks. Can be used with rounded stone fill. |
Recommended applications & uses
| Galfan Coated | PVC Coated | ||||
| 3mm Wire Diameter | 4mm Wire Diameter | 5mm Wire Diameter | 3.2mm Wire Diameter | 4.3mm Wire Diameter | |
| Furniture: can be walked on | |||||

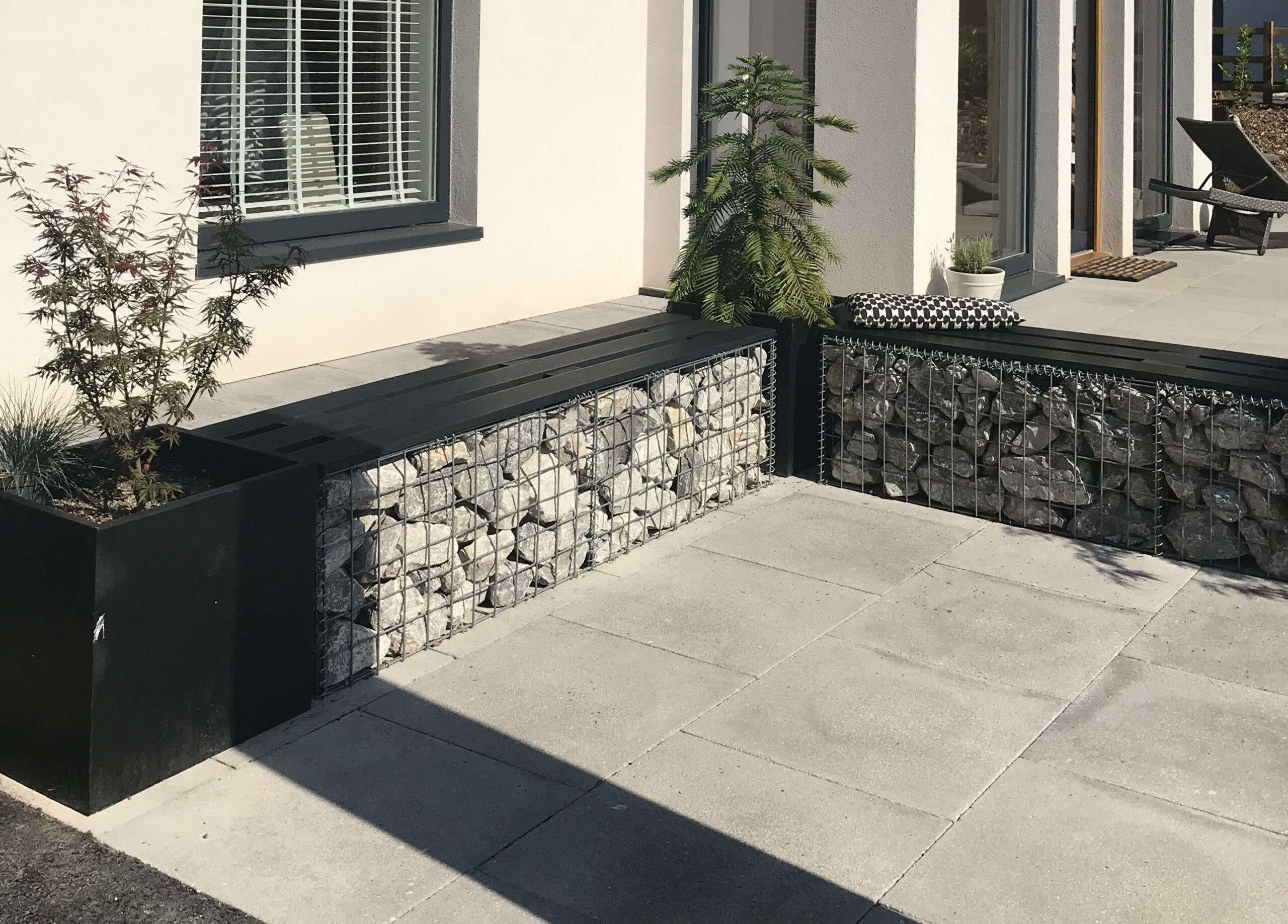

| Furniture: can be sat on | |||||
| Fences: tall / thin structures | |||||
| Freestanding wall | |||||
| Planters | |||||
| Landscaping: no bulges when filled with rocks | |||||
| Retaining walls (up to 5m) | |||||
| Retaining walls (5m and over) | |||||
| Public leisure areas | |||||
| Cladding (up to 4m) | |||||
| Cladding (over 4m) | |||||
| Erosion control | |||||
| Erosion control: river beds | |||||
| Erosion control: reservoirs beds | |||||
| Erosion control: canals beds | |||||
| Sea Defence | |||||
| General | |||||
| Delivered as | Flat packed in small to large truck depending on order quantity | ||||
| Delivered with | Delivered with FREE tying wire | ||||
| Also available | Helicals for quicker assembly of the 4 vertical corners (ordered separately) | ||||
| Also available | Corner ties to prevent bulging (ordered separately) | ||||
| Can wires be cut | Yes – with a good wire cutter | ||||
| Made in UK | Yes | ||||
| Conforms to British manufacturing standard | BS EN 10223-8:2013 | ||||
| Certificate of conformity | Yes – download | ||||
| Construction | |||||
| Mesh Hole Size | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm |
| Mesh Material | Galfan coated steel | Galfan coated steel | Galfan coated steel | Galfan coated steel with PVC coating | Galfan coated steel with PVC coating |
| Mesh Construction | Welded | Welded | Welded | Welded | Welded |
| Mesh panels joined
together by |
Stainless steel C Clips | ||||
| Strength and environment | |||||
| Tensile strength range | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² |
| Corrosion resistance | Yes, conforms to British standard BS EN 10244-2:2009 | ||||
| Abrasion resistance | Conforms to EN 60229:2008 | ||||
| Life Expectancy | 50 – 100 years | 50 – 100 years | 50 – 100 years | 120 years | 120 years |
| Suited to Environments | C2 – C4 | C2 – C4 | C2 – C4 | C2 – C5 | C2 – C5 |
| Rocks / Filling / Installation | |||||
| Speed of installation | 2-5 mins each | ||||
| Experience required to install | Easy install | ||||
| Rock size required | Minimum 80mm x 80mm | ||||
| Requires angular, interlocking rocks | |||||
| Can be filled with crushed concrete | |||||
| Can fill with rounded rocks | |||||
Assembly Instructions
| Corner Assembly Fitting | |
| How to assemble | Gabions are delivered flat packed with the sides, bottom and lid clipped together. Upon arrival, the corners of the gabions should be attached to complete assembly. |
| Using tying wire | Tying wire is supplied with all gabion orders.
PRO: it’s free |
| Using helicals | Helicals can be purchased separately. 4x helicals are required for assembly per gabion (one for each corner).
PRO: looks uniform and quick to install |
| Using CT35 clips | Gabion clips are available in bulk quantities. Advised for use by professionals
PRO: discrete / hidden |
Calculate Stone Quantity
- Use gabion stone calculator to quickly calculate the stone tonnage you need

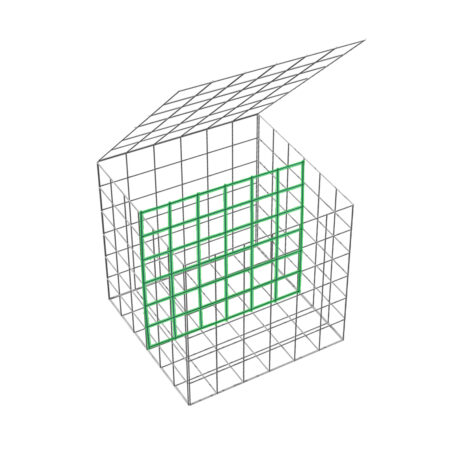

- Use partitions to reduce the amount of rocks required and save money.
| Gabion Dimensions (cm) | Gabion Volume (m3) | Bulk Bags of Stone Required | Weight of Stone Required (kg) | ||
| 45 | 45 | 45 | 0.09 | 1 | 164 |
| 97.5 | 45 | 45 | 0.20 | 1 | 197 |
| 97.5 | 97.5 | 45 | 0.42 | 1 | 770 |
| 97.5 | 97.5 | 97.5 | 0.92 | 2 | 1,668 |
| 150 | 45 | 45 | 0.30 | 1 | 546 |
| 150 | 97.5 | 45 | 0.66 | 2 | 1,185 |
| 150 | 97.5 | 97.5 | 1.43 | 3 | 2,567 |
| 202.5 | 45 | 45 | 0.41 | 1 | 738 |
| 202.5 | 97.5 | 45 | 0.89 | 2 | 1,599 |
| 202.5 | 97.5 | 97.5 | 1.93 | 4 | 3,465 |
