Gabion Baskets
All Gabions on this page are in stock and ready to ship to you within 4 working days.
If you are looking for non-standard size gabions you can create any size gabion you require on this page

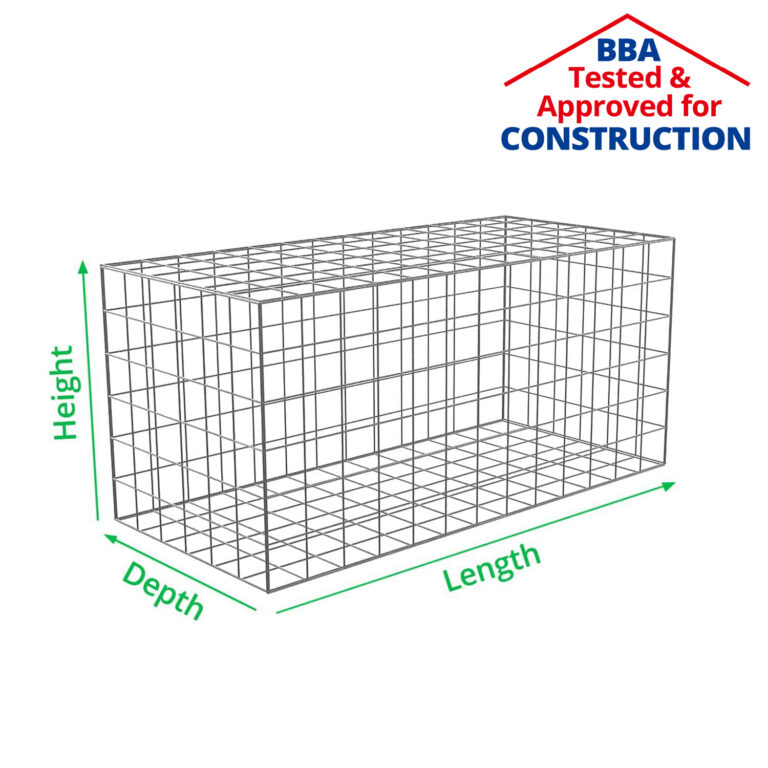

- BBA approved for retaining wall construction
- Manufactured in the UK, to BS EN standards
- Starting from £15.99
Scroll for more details
| All of our Gabions have been tested and certified to the following standards | |
| BBA Certified | Yes – BBA certificate number: 05/4215 Certification Body: BBA |
| Gabion Quality Standard |
– conforms to BS EN 10223-8:2413 |
| Accurate Zinc Coating |
– conforms to BS EN 10244-2:2009 |
| Wire Tolerances Standard |
– conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard |
– conforms to BS EN 10218-2:2012 Certification Body: British Standards Institution |
| Corrosion Resistance Standard |
– conforms to BS EN 10244-2:2009 |
| Abrasion Resistance Standard |
– conforms to BS EN 60229:2008 |
| PVC Coating Standard |
– conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011 |

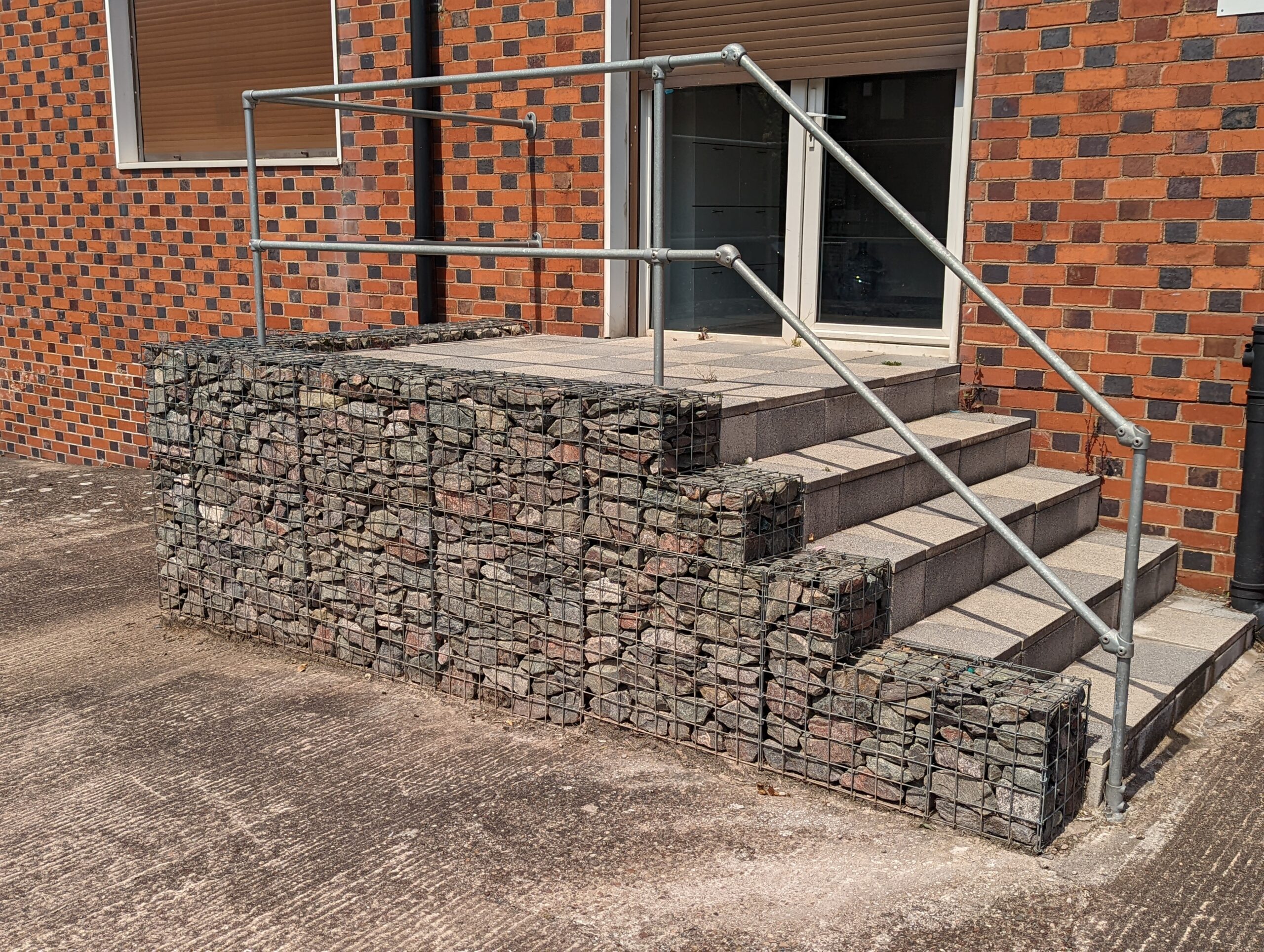

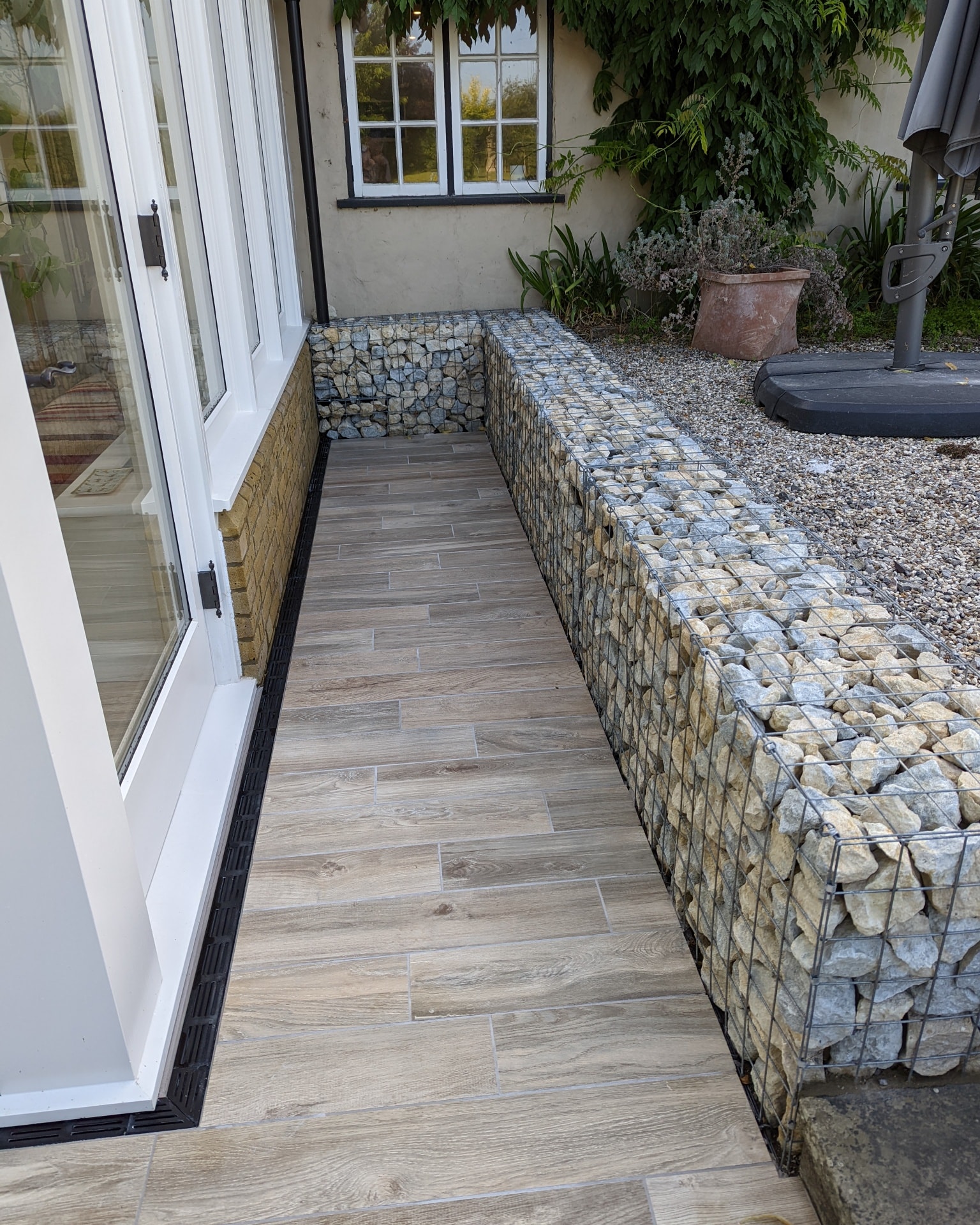

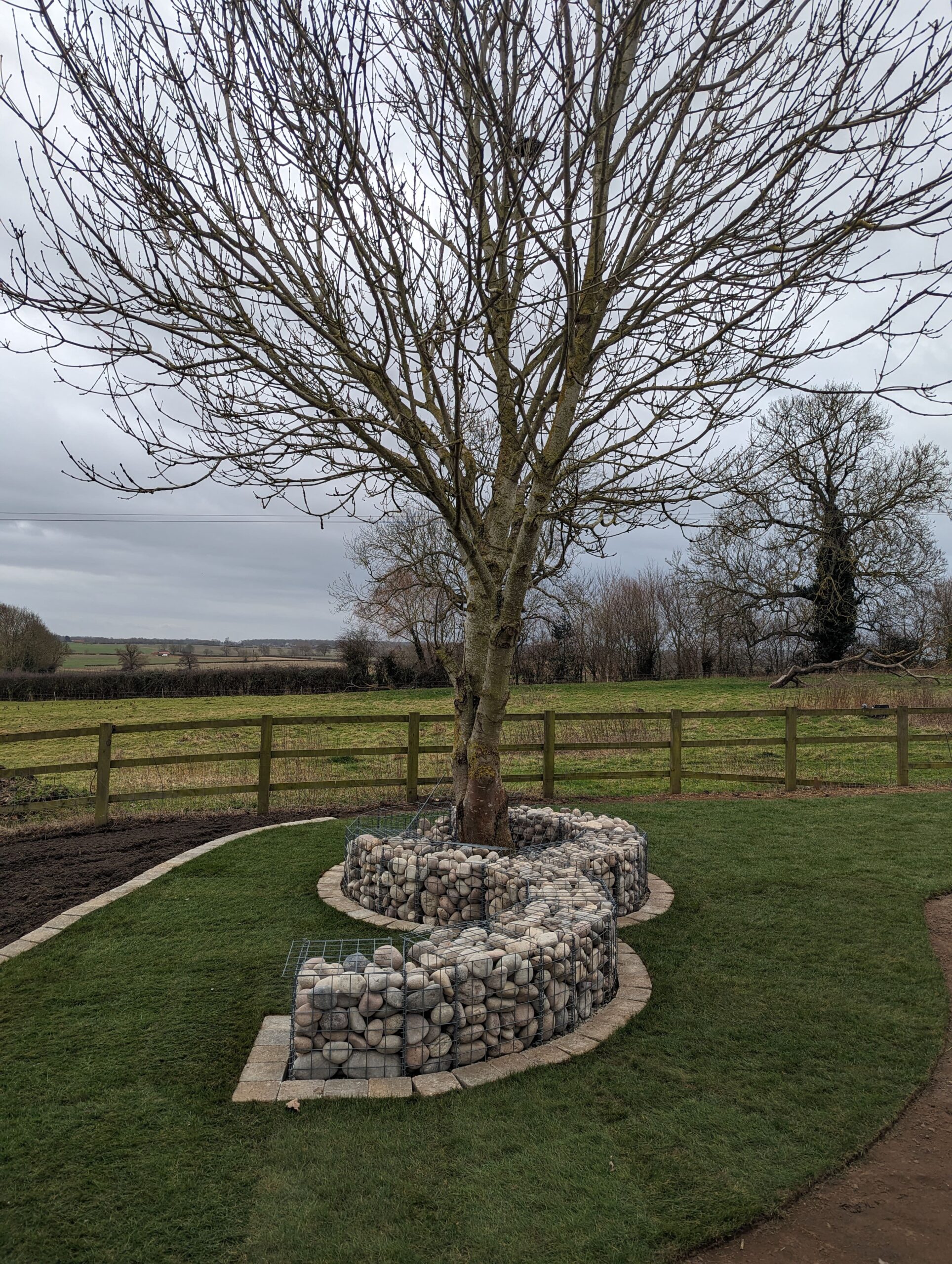

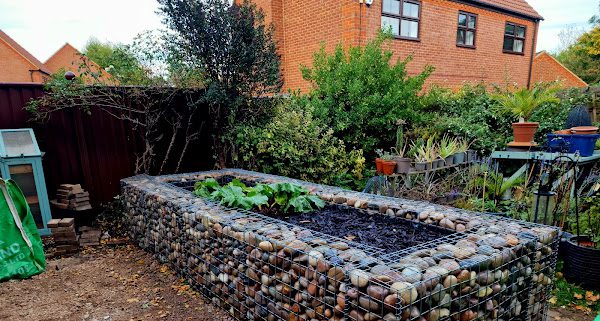

Customer Images
Videos
Installation Instructions
Behind the scenes
| What’s Included? | Play Video |
| How to assemble a gabion cage with Helicals | |
| How to assemble a gabion cage with Tying Wire | |
| How to install and save money with a stone separating panel | |
| How to stop bulging with corner ties | |
| Strength difference between 3mm, 4mm and 5mm |
More videos and helpful information can be found on our Gabion Hub page
Which Wire Thickness?
| Wire Diameter | Use For: |
| 3mm | Standard wire thickness for walls up to 5m. Low-cost option. Will result in minor bulges when filled with rocks. Suitable if architectural, straight edge finish is not required. |
| 4mm | 5m+ high & free-standing walls. Use for seating or surfaces that will be walked on. Will give an architectural, straight edge finish when filled carefully with interlocking rocks. |
| 5mm | 5m+ high walls & free-standing walls. Use for seating or surfaces that will be walked on. Best for an architectural, uniform and precise finish. For use in public parks. Can be used with rounded stone fill. |
Recommended applications & uses
| Galfan Coated | PVC Coated | ||||
| 3mm Wire Diameter | 4mm Wire Diameter | 5mm Wire Diameter | 3.2mm Wire Diameter | 4.3mm Wire Diameter | |
| Furniture: can be walked on | |||||

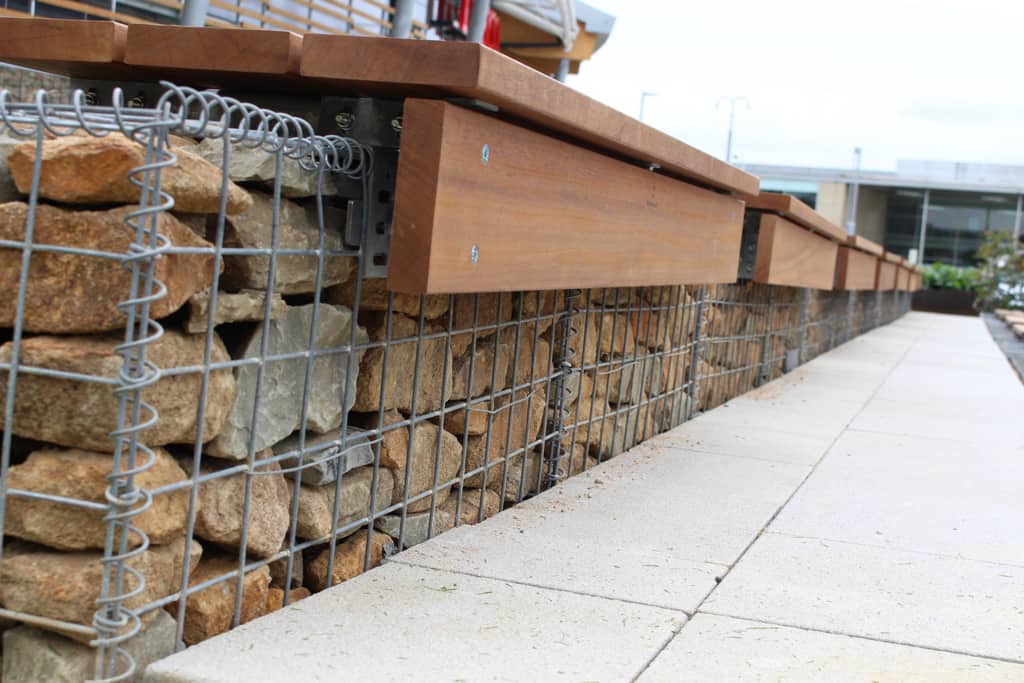

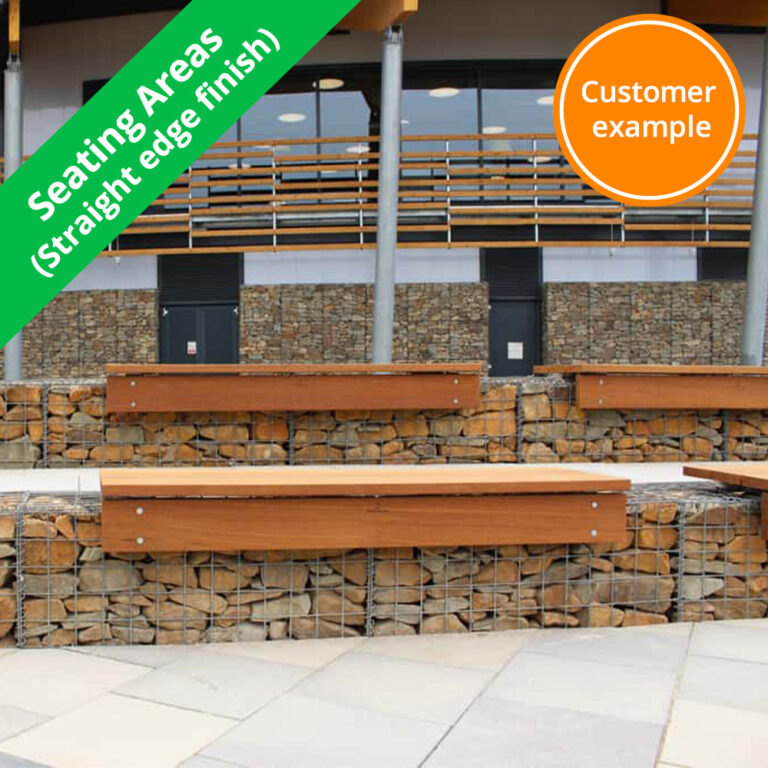

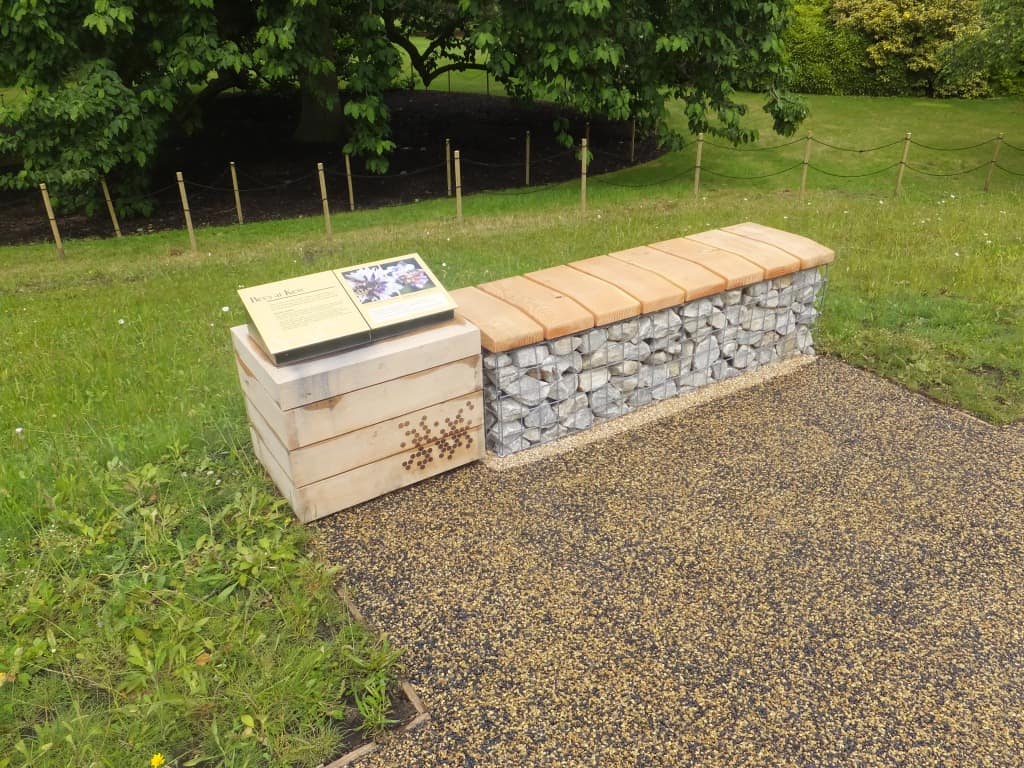

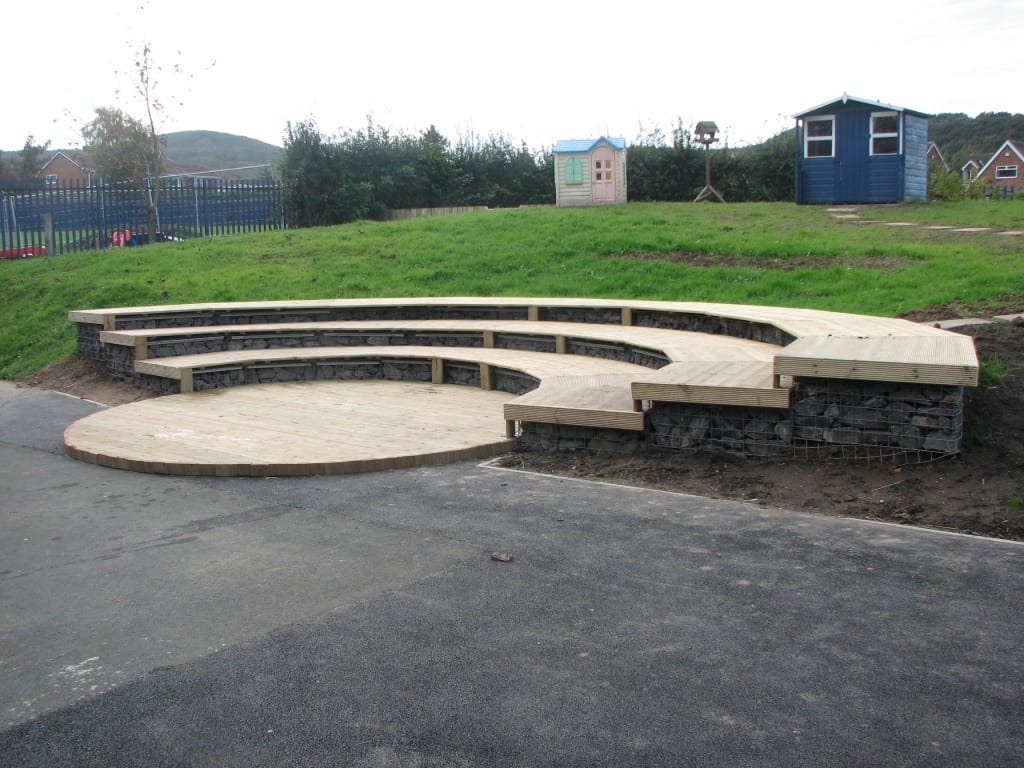

| Furniture: can be sat on | |||||
| Fences: tall / thin structures | |||||
| Freestanding wall | |||||

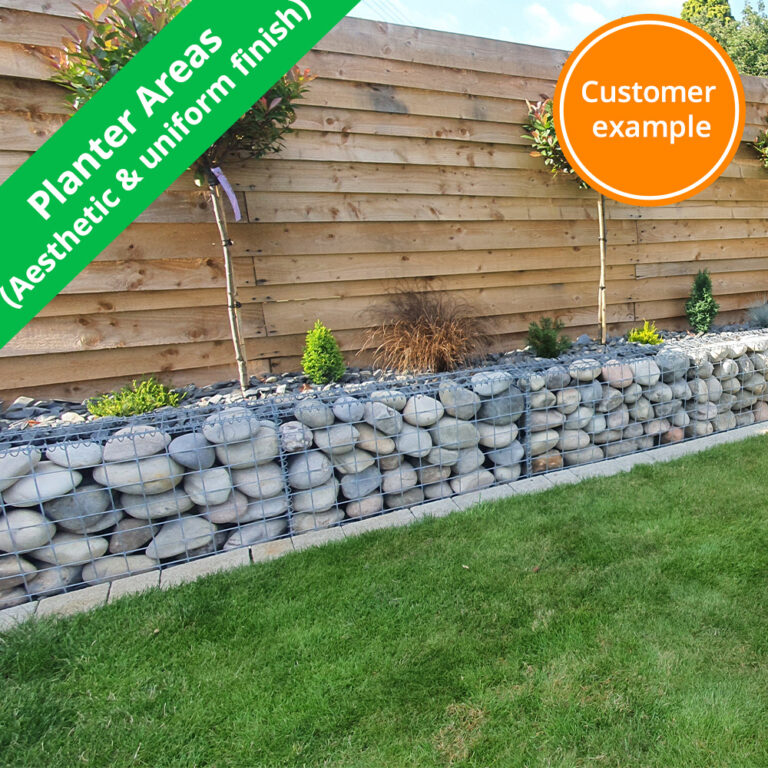

| Planters | |||||
| Landscaping: no bulges when filled with rocks | |||||

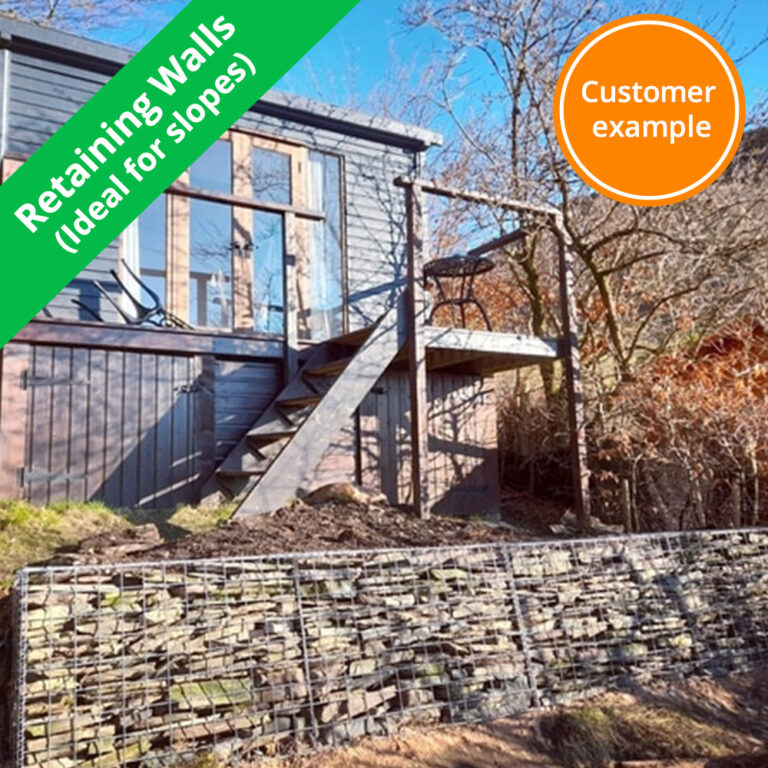

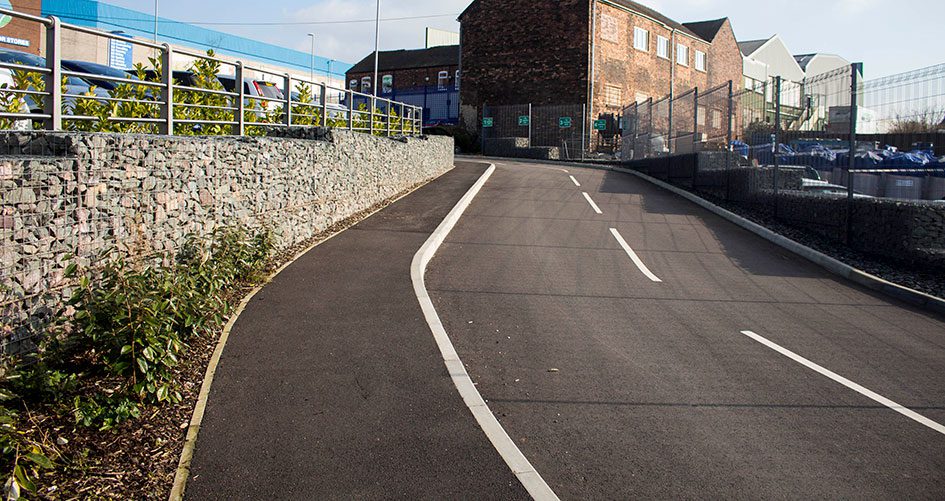

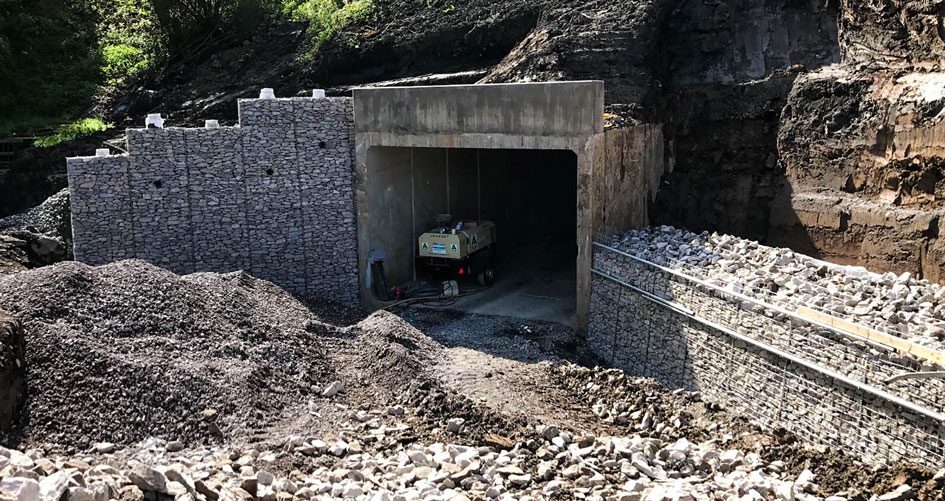

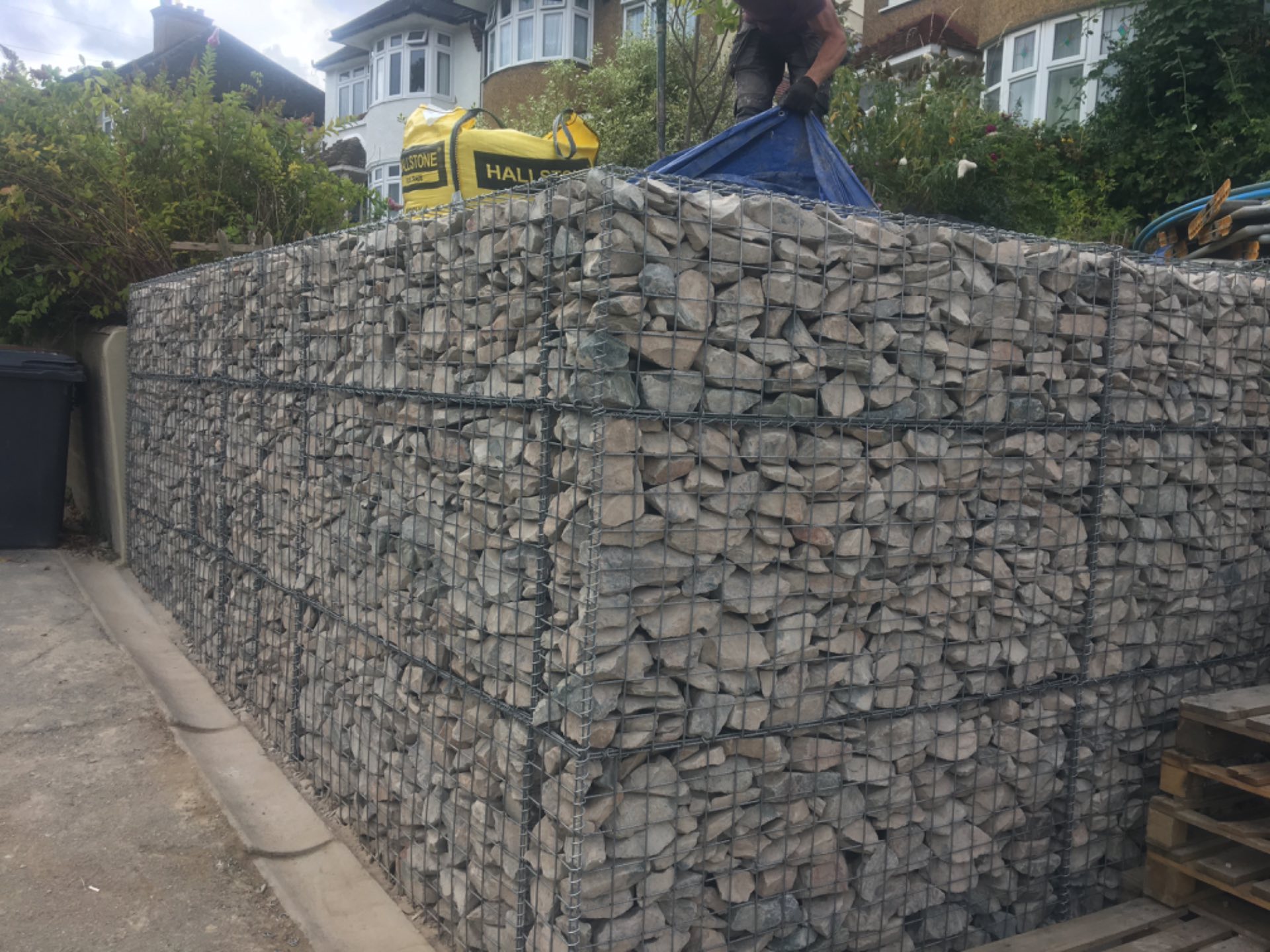

| Retaining walls (up to 5m) | |||||
| Retaining walls (5m and over) | |||||
| Public leisure areas | |||||

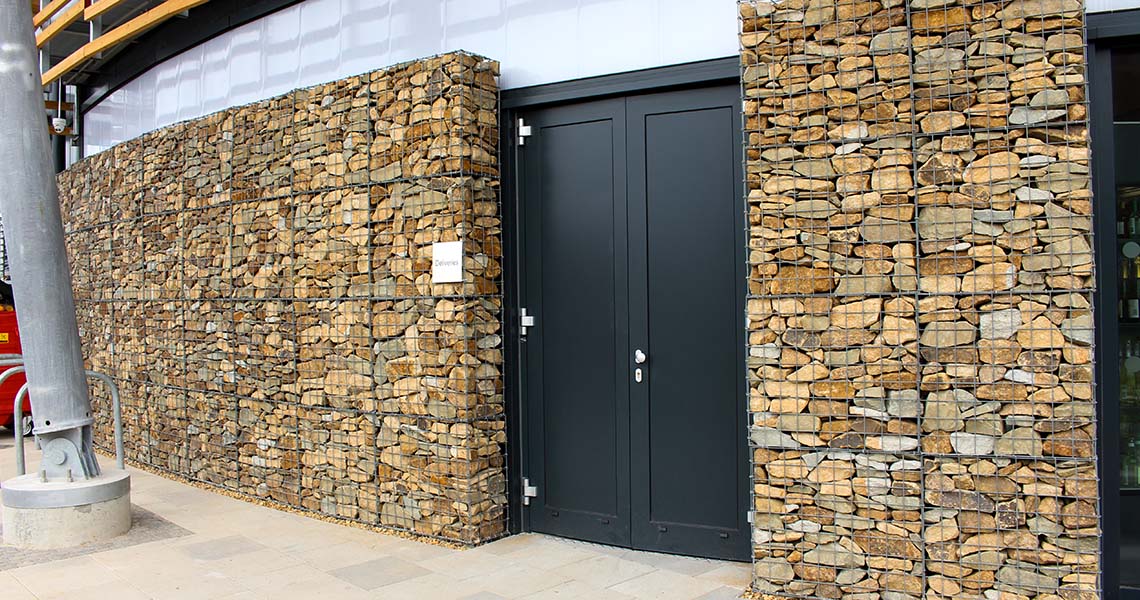

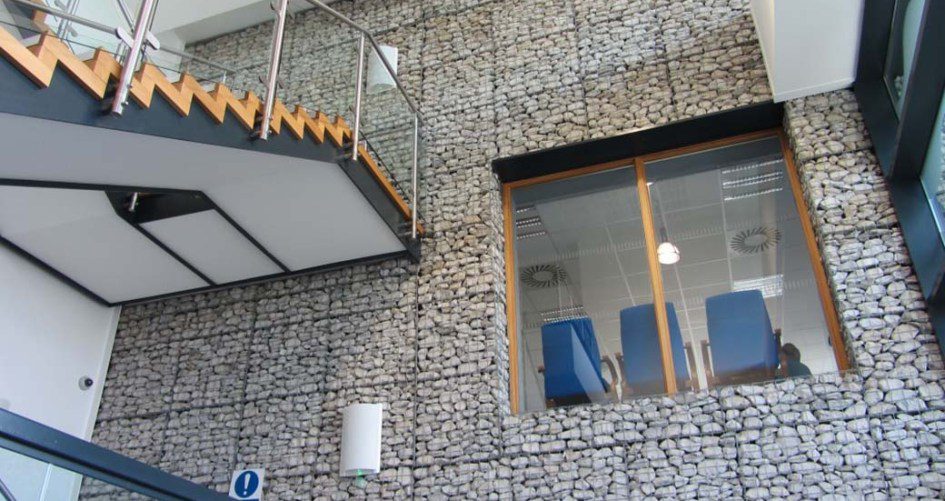

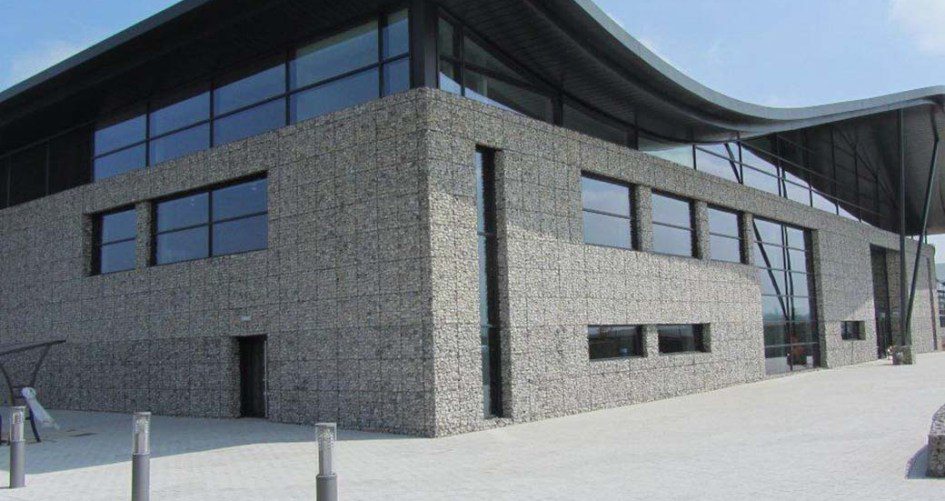

| Cladding (up to 4m) | |||||
| Cladding (over 4m) | |||||
| Erosion control | |||||
| Erosion control: river beds | |||||
| Erosion control: reservoirs beds | |||||
| Erosion control: canals beds | |||||
| Sea Defence | |||||
| General | |||||

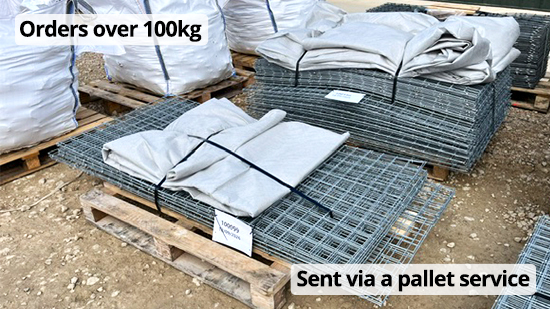

| Delivered as | Flat packed in small to large truck depending on order quantity | ||||
| Delivered with | Delivered with FREE tying wire. Included central support panel for gabions longer than 150cm. | ||||
| Also available | Helicals for quicker assembly of the 4 vertical corners (ordered separately) | ||||
| Also available | Corner ties to prevent bulging (ordered separately) | ||||
| Can wires be cut | Yes – with a good wire cutter | ||||
| Made in UK | Yes | ||||
| Conforms to British manufacturing standard | BS EN 10223-8:2013 | ||||
| Certificate of conformity | Yes – download | ||||
| Construction | |||||
| Mesh Hole Size | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm |
| Mesh Material | Galfan coated steel | Galfan coated steel | Galfan coated steel | Galfan coated steel with PVC coating | Galfan coated steel with PVC coating |
| Mesh Construction | Welded | Welded | Welded | Welded | Welded |
| Mesh panels joined
together by |
Stainless steel C Clips | ||||
| Strength and environment | |||||
| Tensile strength range | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² |
| Corrosion resistance | Yes, conforms to British standard BS EN 10244-2:2009 | ||||
| Abrasion resistance | Conforms to EN 60229:2008 | ||||
| Life Expectancy | 50 – 100 years | 50 – 100 years | 50 – 100 years | 120 years | 120 years |
| Suited to Environments | C2 – C4 | C2 – C4 | C2 – C4 | C2 – C5 | C2 – C5 |
| Disclaimer | Using iron-rich stone in coastal environments may lead to apparent rust on the gabion, resulting from the iron ore leaching out of the stones and onto the wires. | Using iron-rich stone in coastal environments may lead to a slight discoloration of the coating. | |||
| Rocks / Filling / Installation | |||||
| Speed of installation | 2-5 mins each | ||||
| Experience required to install | Easy install | ||||
| Rock size required | Minimum 80mm x 80mm | ||||
| Requires angular, interlocking rocks | |||||
| Can be filled with crushed concrete | |||||
| Can fill with rounded rocks | |||||
Assembly Instructions
| Corner Assembly Fitting | |
| How to assemble | Gabions are delivered flat packed with the sides, bottom and lid clipped together. Upon arrival, the corners of the gabions should be attached to complete assembly. |
| Using tying wire | Tying wire is supplied with all gabion orders.
PRO: it’s free |
| Using helicals | Helicals can be purchased separately. 4x helicals are required for assembly per gabion (one for each corner).
PRO: looks uniform and quick to install |
| Using CT35 clips | Gabion clips are available in bulk quantities. Advised for use by professionals
PRO: discrete / hidden |
Calculate Stone Qty
- Use gabion stone calculator to quickly calculate the stone tonnage you need
- Use partitions to reduce the amount of rocks required and save money.
| Gabion Dimensions (cm) | Bulk Bags of Granite Stone Required | Bulk Bags of Limestone Required | Weight of Stone Required (kg) | ||
| 45 | 45 | 45 | 1 | 1 | 160 |
| 97.5 | 45 | 45 | 1 | 1 | 360 |
| 97.5 | 97.5 | 45 | 1 | 1 | 770 |
| 97.5 | 97.5 | 97.5 | 2 | 2 | 1670 |
| 150 | 45 | 45 | 1 | 1 | 540 |
| 150 | 97.5 | 45 | 2 | 2 | 1190 |
| 150 | 97.5 | 97.5 | 3 | 4 | 2570 |
| 202.5 | 45 | 45 | 1 | 1 | 740 |
| 202.5 | 97.5 | 45 | 2 | 2 | 1600 |
| 202.5 | 97.5 | 97.5 | 4 | 5 | 3470 |
