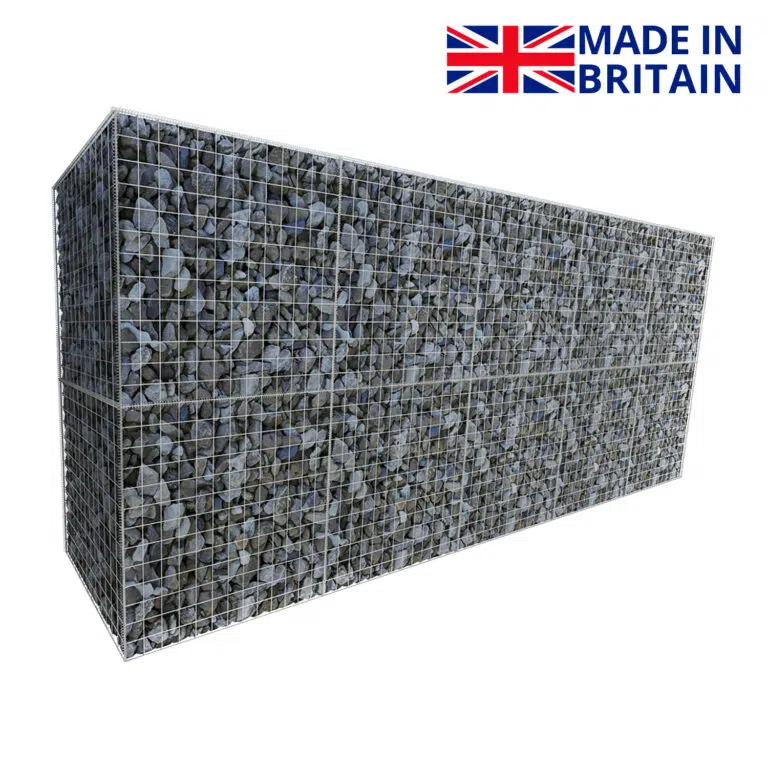

Gabion Wall (Up to 2m) | Wire Fence

Gabion wall kits include all equipment and instructions needed to create a 2m tall gabion wall.

Easy to install, no DIY experience necessary
Manufactured in the UK, to BS EN standards

RELATED: cut to size gabions – wall builder – 1m walls

Full product details

No products were found matching your selection.

Helpful Information

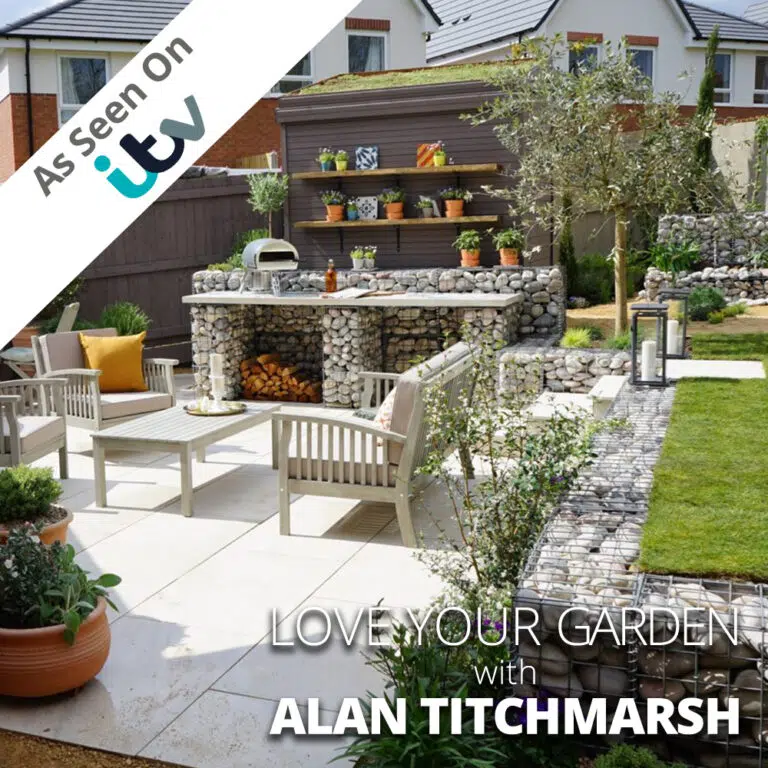

Customer Images

Gabion Kit Includes

Included	Explanation
Full Installation Instructions	– download freestanding wall instructions / retaining wall instructions
Gabion Baskets	– 2x 97.5cm long gabion basket will be included in your pack for every 97.5cm length of gabion wall ordered
Helicals	– Helicals will be included so you can attach the corners and lids for all gabion baskets in your order.
Geotextile	If required, geotextile is ordered separately. Jump to quantity guide
Stone separating panels	If required, stone separating panels can be ordered separately
Stones	If required, gabion stone provided separately. Jump to quantity guide
Tools	None required but you may need a spade and some gravel depending on the way you plan to install. For more information, jump to installation instructions

Gabion Wall Overview

	Galfan Coated		PVC Coated
	4mm Wire Diameter	5mm Wire Diameter	4.3mm Wire Diameter
Freestanding wall
Retaining wall
Can be walked on
Can be sat on
No bulges when filled with rocks
Erosion control
Residential areas
Public leisure area		Best
Delivered as	Flat packed, strapped to a wood pallet with option of small or large truck
Can wires be cut	Yes – with a good wire cutter
Made in UK	Yes
Conforms to British manufacturing standard	BS EN 10223-8:2013
Certificate of conformity	Yes – download
Construction
Mesh Hole Size	75mm x 75mm	75mm x 75mm	75mm x 75mm
Mesh Material	Galfan coated steel	Galfan coated steel	Galfan coated steel with PVC coating
Mesh Construction	Welded	Welded	Welded
Mesh panels joined together by	Stainless steel C Clips
Strength and environment
Tensile strength range	540-770 N/mm²	540-770 N/mm²	540-770 N/mm²
Corrosion resistance	Yes, conforms to British standard BS EN 10244-2:2009
Abrasion resistance	Yes, conforms to EN 60229:2008
Life Expectancy	50 – 100 years	50 – 100 years	120 years
Suited to Environments	C2 – C4	C2 – C4	C2 – C5
Rocks / Filling / Installation
Speed of installation	2-5 mins each
Experience required to install	Easy install
Rock size required	Minimum 80mm x 80mm
Requires angular, interlocking rocks	No – these commercial grade gabions can be filled with any shape of stone without bulging.
Can be filled with crushed concrete
Can fill with rounded rocks
Save money	Stone separating panel (ordered separately). Allows you to backfill the cages with cheaper stone or rubble

Installation Instructions

Please use the following information as guidance only. If you are unsure about how to install your retaining wall please contact a Civil Engineer.

Freestanding Wall Instructions
Retaining Wall Instructions

To Do	Explanation
Step 1 – Identify Location	Use spray paint, stones or other materials to mark the location where you plan to construct your wall.
Step 2 – Dig	Dig 20cm or until the ground is firm.
Step 3 – Geotextile	Place a layer of geotextile or weed mat to prevent soil to prevent weeds from growing up and through your gabions.
Step 4 – Add Basecourse	Add a 20cm layer of gravel or basecourse on top of the geotextile.
Step 5 – Compact Gravel	Walk and stomp on the gravel to make it compact.
Optional – Concrete Foundation (If Required)	Most low-level gabion walls do not require a foundation but if you have a large amount of groundwater or the soil is weak it may be needed.
Step 6 – Unfold the Baskets	Unfold and lift up the sides of the baskets.
Step 7 – Join the Cages	Assemble and attach the baskets together with the helicals included in the kit.
Step 8 – Fill with Stone	Fill the gabions with your choice of stone.
Step 9 – Close Lids	Fold the lids down to close your baskets.
Step 10 – Add Second Row	Place the second row of baskets on top of the first one and connect them together with helicals at the front.
Step 11 – Fill and Join	Fill the top baskets with rocks as well. For added security, you can join the baskets with helicals from front to back. You may need to cut some of them to fit the depth of your wall.
Step 12 – Finished Project	Your 2m tall freestanding gabion wall is done!

To Do	Explanation
Step 1 – Identify location	Use spray paint, stones or other materials to mark the location where you plan to construct your wall.
Step 2 – Dig	Regulations state that retaining walls should start at 50cm below ground. However, Gabion walls lower than 2m are often placed directly on the ground or at a shallower depth. Digging between 20cm-50cm or until the ground is firm ground, such as clay instead of the topsoil should be adequate.
Step 3 – 6 Degree Slope	If you are retaining a lot of earth, the hole should have a 6-degree slope leaning back. If you are retaining a small amount of earth, such as a garden bed or the wall is mostly decorative, you can maintain an upright edge instead of a 6 degree slope if you prefer.
Step 4 – Add Gravel	Add a 20cm layer of gravel or basecourse on top of the soil.
Step 5 – Compact Gravel	Walk and stomp on the gravel to make it compact
Optional – Concrete Foundation (If Required)	Most low-level gabion walls do not require a foundation but if you have a large amount of groundwater or the soil is weak it may be needed.
Step 6 – Geotextile	Cover the back of the gabion baskets with a geotextile or weed mat to prevent soil and earth clogging up behind the wall.
Step 7 – Unfold the Baskets	Unfold and lift up the sides of the baskets.
Step 8 – Join the Cages	Assemble and attach the baskets together with the helicals included in the kit.
Step 9 – Fill with Stone	Fill the gabions with your choice of stone.
Step 10 – Close Lids	Fold the lids down to close your baskets.
Step 11 – Add Second Row	Place the second row of baskets on top of the first one and connect them together with helicals at the front.
Step 12 – Fill and Join	Fill the top baskets with rocks as well. For added security, you can join the baskets with helicals from front to back. You may need to cut some of them to fit the depth of your wall.
Step 13 – Finished Project	Your 2m tall gabion retaining wall is done!

Calculate Stone Quantity

Use the guide below to calculate the amount of stone that you need to fill your gabion wall
You can use stone separating panels to reduce the amount of decorative rocks required and save money

Gabion Wall Dimensions (cm)			Bulk Bags of Stone Required	Bulk Bags of Stone Required if using Partitions
97.5cm	22.5cm	195cm	1	–
195cm	22.5cm	195cm	2	–
292.5cm	22.5cm	195cm	3	–
390cm	22.5cm	195cm	4	–
487.5cm	22.5cm	195cm	5	–
97.5cm	45cm	195cm	2	1
195cm	45cm	195cm	4	2
292.5cm	45cm	195cm	6	3
390cm	45cm	195cm	8	4
487.5cm	45cm	195cm	10	5
97.5cm	97.5cm	195cm	4	2
195cm	97.5cm	195cm	8	4
292.5cm	97.5cm	195cm	12	6
390cm	97.5cm	195cm	16	8
487.5cm	97.5cm	195cm	20	10
