L97.5cm x D22.5cm x H195cm Gabion Wall Kit (5mm dia.)
£199.99 inc. VAT
1 in Stock
Description
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |

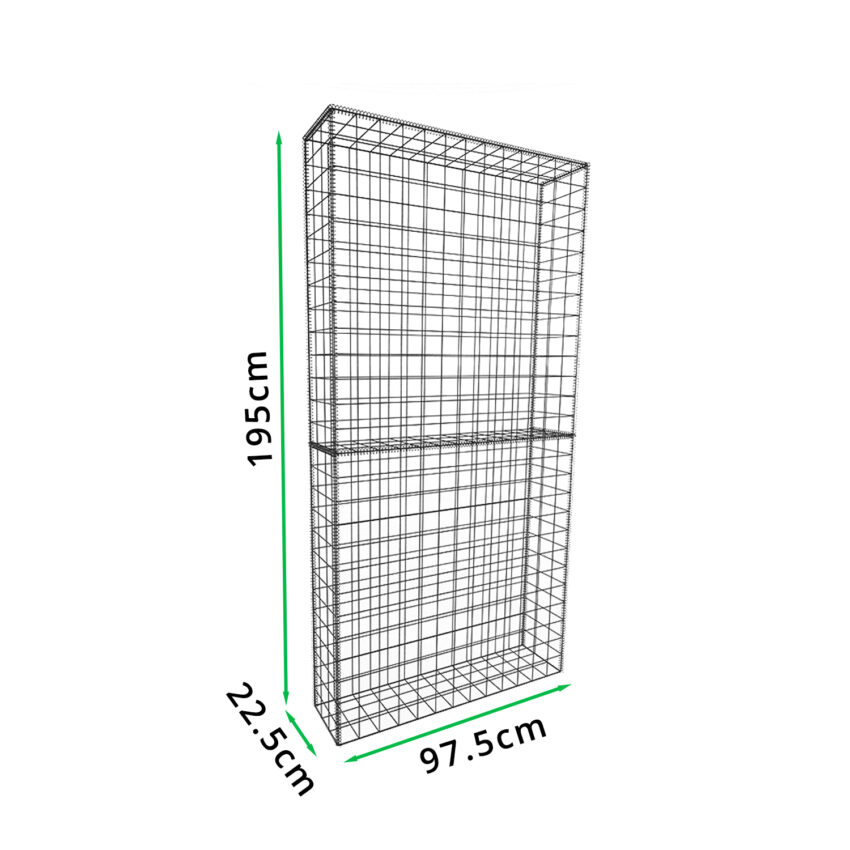

| Overall Length | 97.5cm |
| Overall Depth | 22.5cm |
| Overall Height | 195cm |
| Hole Size | 75mm x 75mm |
| Wire Diameter | 5mm |

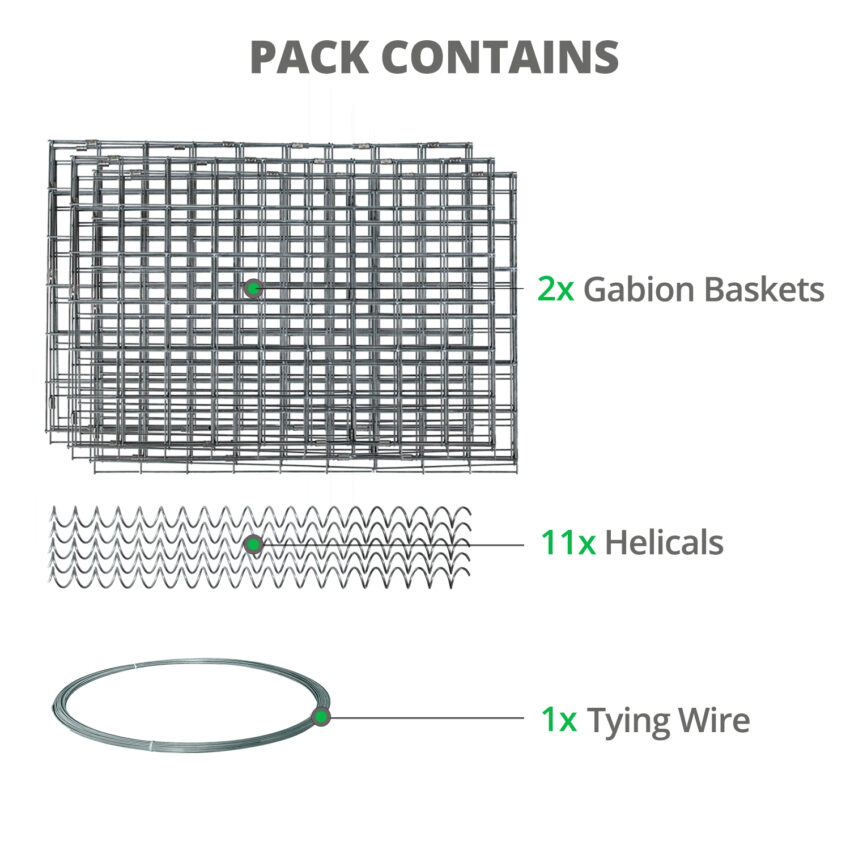

| Kit Includes | 11 helicals, 2 gabions |
| Gabion Dimensions | L97.5cm x D22.5cm x H97.5cm |
| Helical Dimensions | 1 meter each (need to be cut to size as required) |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm63 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C65 |
| Conforms to | BS EN 10223-8:2074 |
| Life Expectancy | Min. 50 years for C2 |
| Manufactured in | UK |
| Stone Weight Required (kg) | 770 |
| Bags of Granite Stone | 1 |
| Bags of Limestone | 1 |
| Shipping Weight | 49.87 kg |
| Shipping Dimensions | 975mm x 225mm x 975mm |
