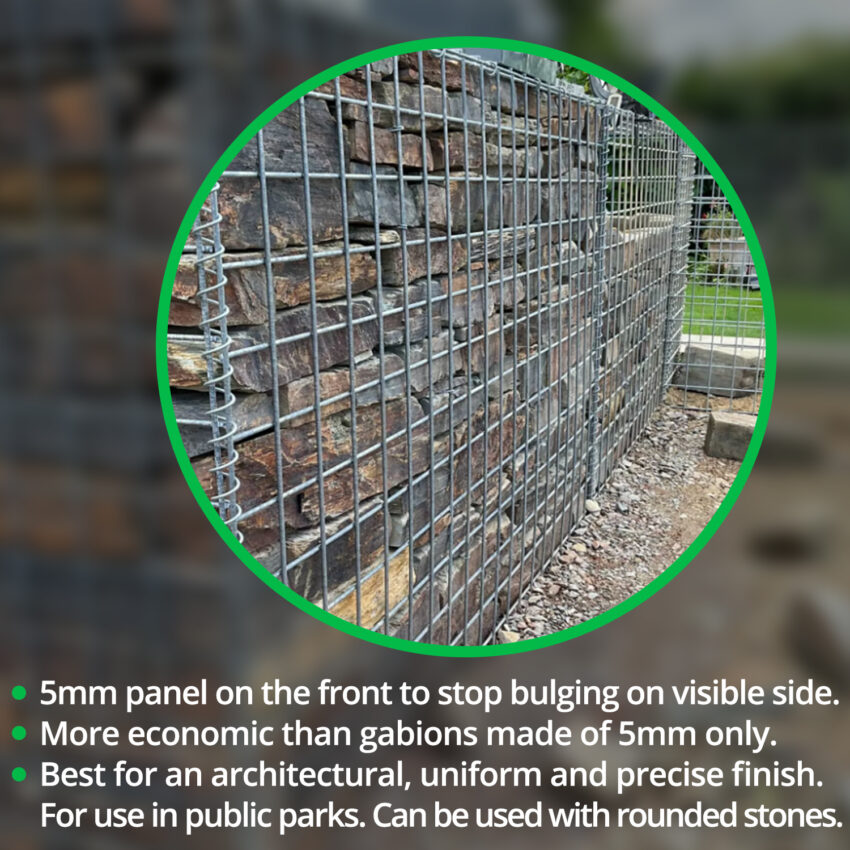

Bulging-4mm-gabions-5mm-Front
10-L97.5cm-x-D97.5cm-x-H97.5cm-Gabion-silhouette
galfan-coated-gabion-decorative-wall
gabions-modular-and-sturdy
gabions-erosion-control
galfan-coated-gabion-support-wall
galfan-coated-gabion-curved
galfan-coated-gabion-freestanding-wall
galfan-coated-gabion-customer-image
galfan-coated-gabion-large-stock

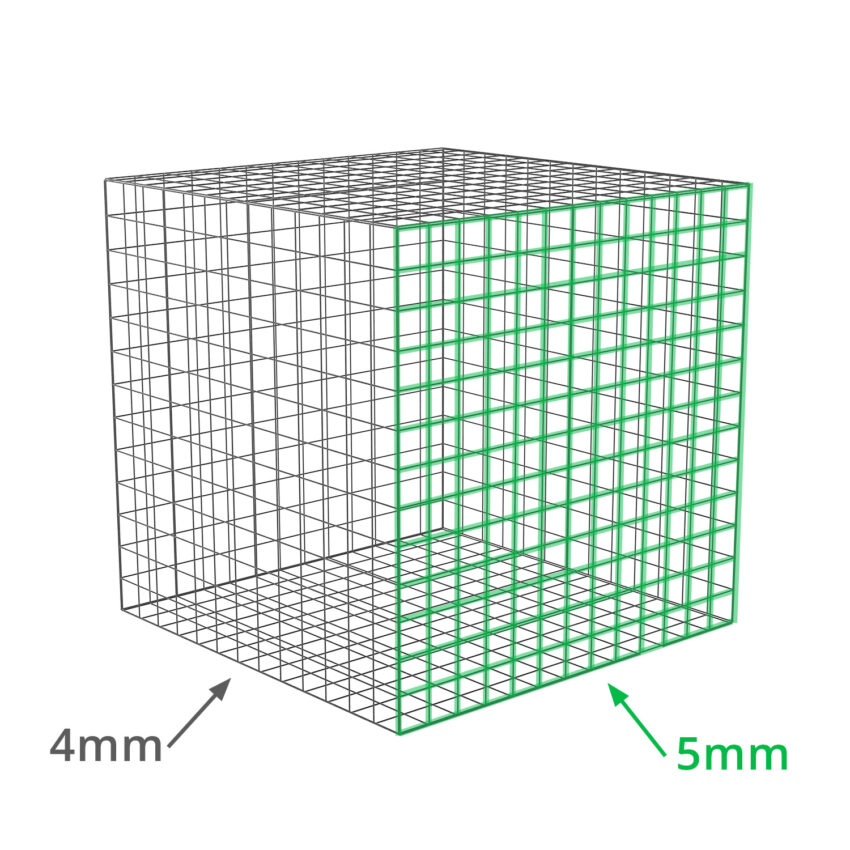

L97.5cm x D97.5cm x H97.5cm Welded Gabion (4mm dia / 5mm Face)

L45cm-D45cm-H45cm-Welded-Gabion-diagonal-with-rocks
L45cm x D45cm x H45cm Welded Gabion (4mm dia / 5mm Face) £26.99 inc. VAT
L202.5cm-D97.5cm-H45cm-Welded-Gabion-diagonal-with-rocks
L202.5cm x D97.5cm x H45cm Welded Gabion (4mm dia / 5mm Face) £90.99 inc. VAT

£66.99 inc. VAT

In Stock
Quantity Price
10 - 29 £64.98
30 - 59 £62.97
60 - 99 £60.96
100 - 299 £56.94
300 - 10000 £54.93
Product Info
delivery-icon 4 WORKING DAY DELIVERY available for this product
free-shipping-icon FLAT FEE DELIVERY cost starting at £24.99
invoice-icon UK MANUFACTURED conform to BS EN standards
guarantee-icon PAY BY INVOICE available for trade customers
SKU: EM.FACE17 Category:

Frequently bought together

L97.5cm x D97.5cm x H97.5cm Welded Gabion (4mm dia / 5mm Face) âž• Helical Connector – 1m âž• Gabion Corner Ties (Pack of 4)
=
Total price
£72.28 inc. VAT



Additional information

Material

Galfan Coated Steel
Construction

Bi-axial electrically welded square mesh
Coating

Galfan Coated
Colour

Grey
Length

97.5cm
Depth

97.5cm
Height

97.5cm
Hole Size

75mm x 75mm
Wire Diameter

4mm
Face Panel Wire Dia.

5mm
Includes Diaphragm

No
Comes With

FREE Tying Wire
Tensile Strength Range

540-770 N/mm2
Weld Strength

75% of min. wire tensile strength
Site Categories

C2 to C4
Conforms to

BS EN 10223-8:2013
Life Expectancy

Min. 50 years for C2
Manufactured in

UK
Stone Volume Required (m3)

0.92
Bags of Stone Required

2
Stone Weight Required (kg)

1668
Shipping Weight 17.47 kg
Shipping Dimensions 975mm x 975mm x 975mm
