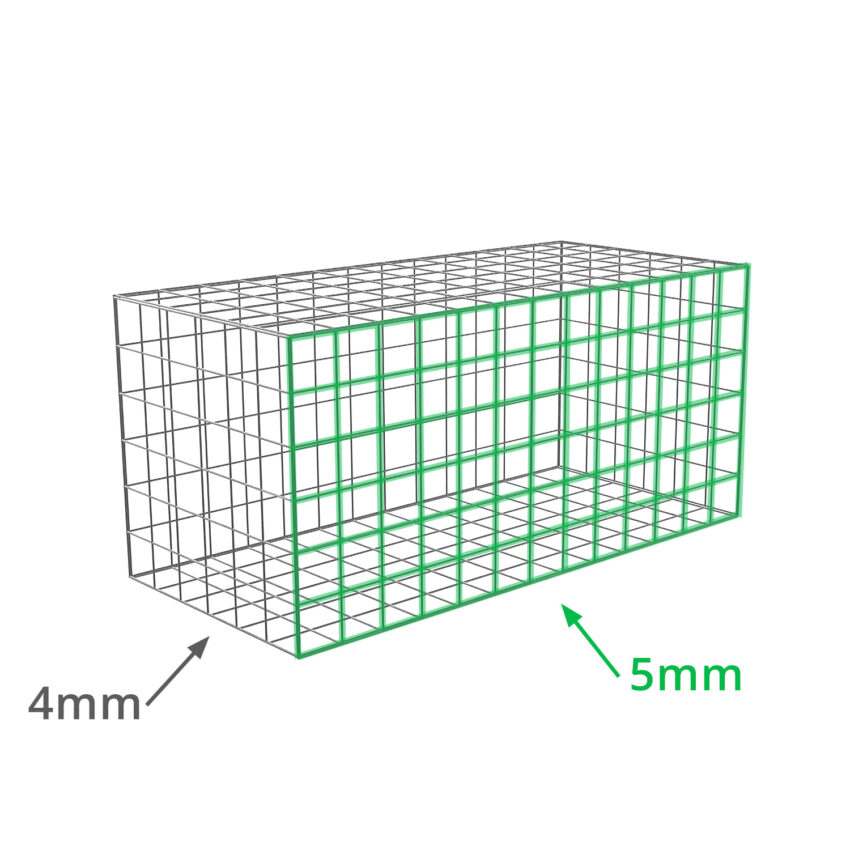

L97.5cm x D45cm x H45cm Welded Gabion (4mm dia / 5mm Face)
£33.99 inc. VAT
in Stock| Quantity | Price |
| 10 - 30 | £32.97 |
| 30 - 60 | £31.95 |
| 60 - 100 | £30.93 |
| 100 - 300 | £29.91 |
| 300 - 1000 | £27.19 |
Description
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |
| Length | 97.5cm |
| Depth | 45cm |
| Height | 45cm |
| Hole Size | 75mm x 75mm |
| Wire Diameter | 4mm |
| Face Panel Wire Dia. | 5mm |
| Includes Diaphragm | No |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm2 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C4 |
| Conforms to | BS EN 10223-8:2013 |
| Life Expectancy | Min. 50 years for C2 |
| Manufactured in | UK |
| Stone Volume Required (m3) | 0.2 |
| Bags of Stone Required | 1 |
| Stone Weight Required (kg) | 197 |
| Shipping Weight | 6.73 kg |
| Shipping Dimensions | 450mm x 450mm x 975mm |
