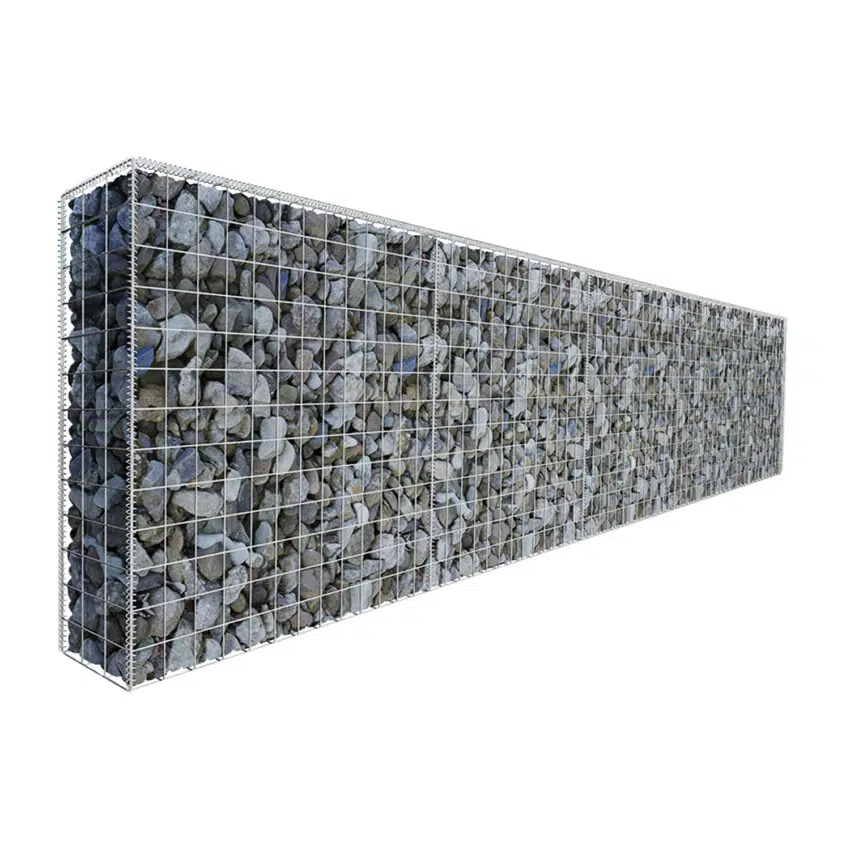

L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks

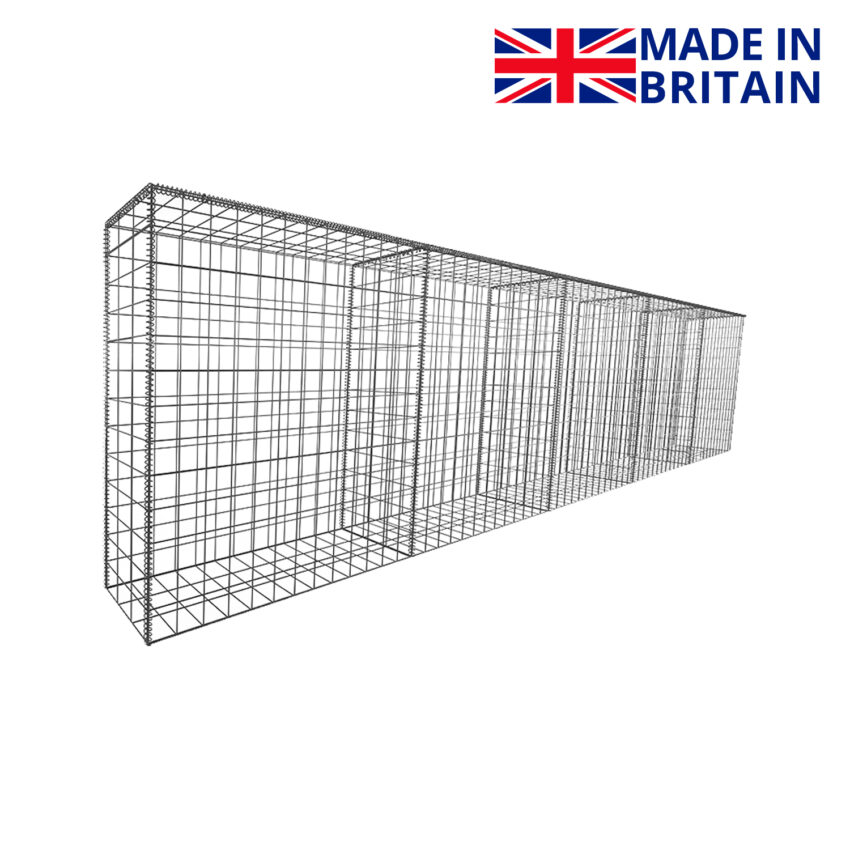

L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

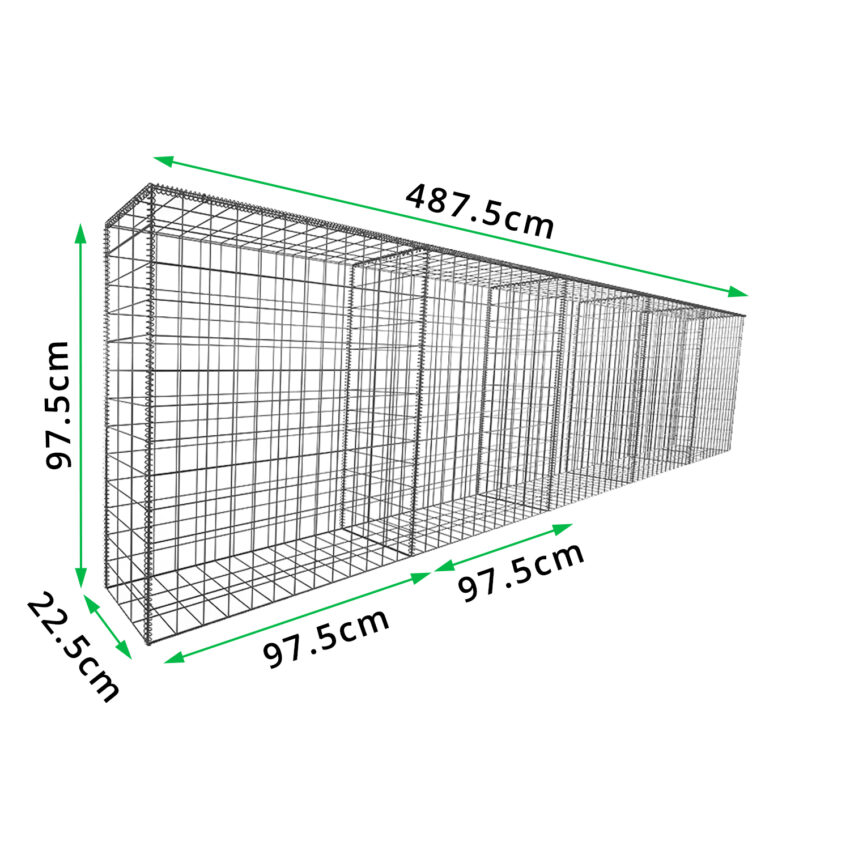

L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-measurements

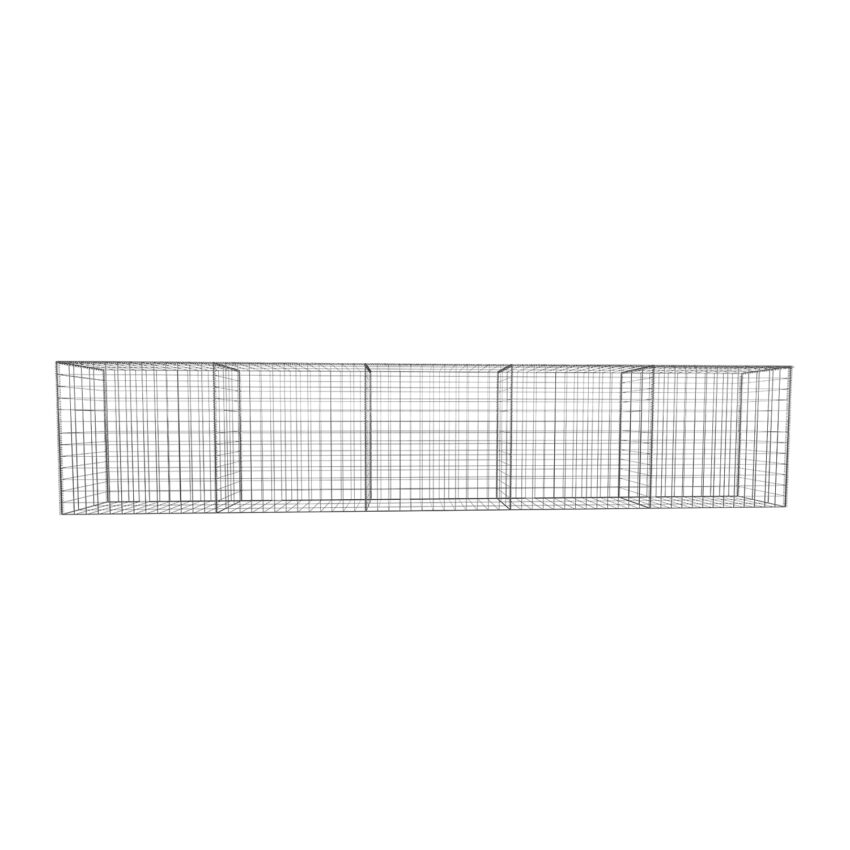

L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-front

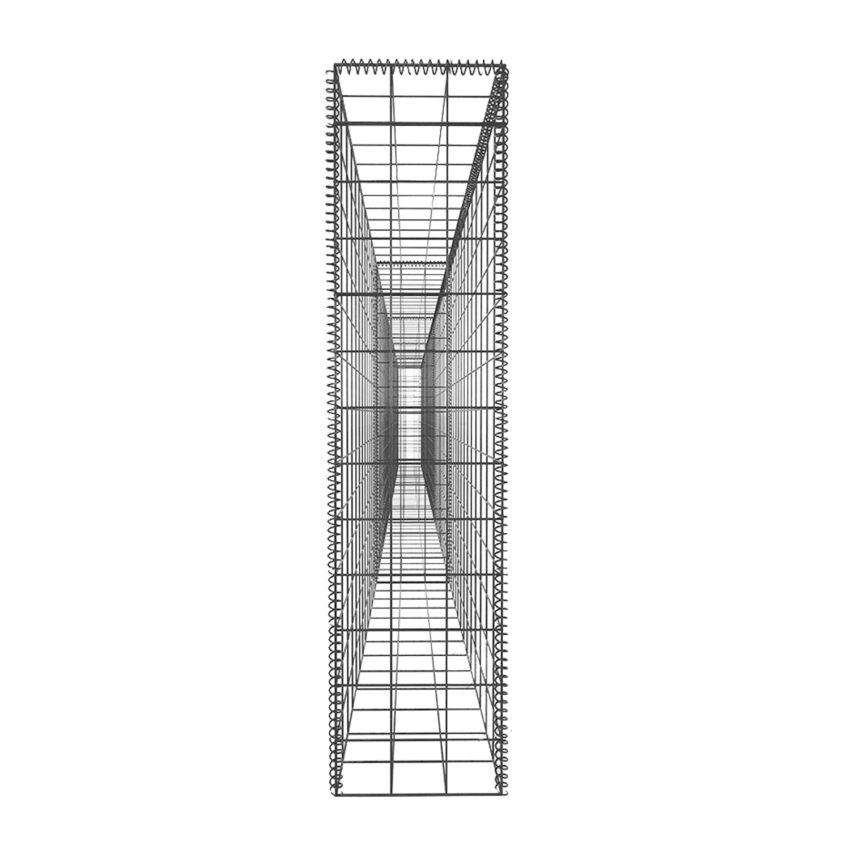

L487.5cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-side
Installation-instructions

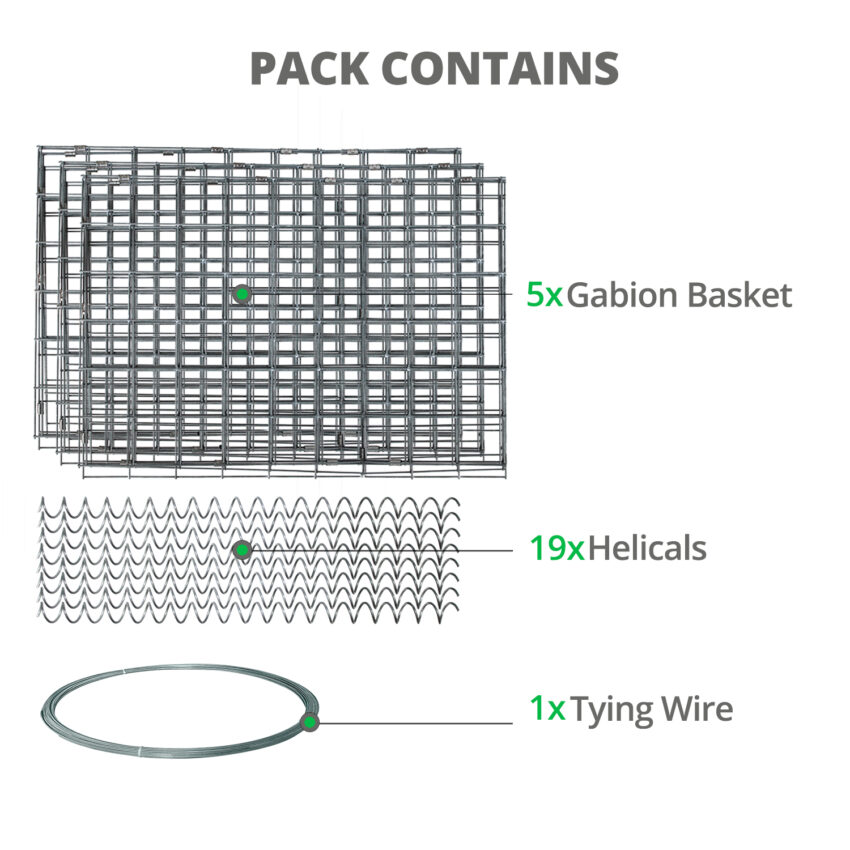

gabion-pack-5-baskets-19-helicals
4mm-straight-gabion
gabion-stone-required
as-seen-on-itv-love-your-garden-with-alan-titchmarsh
galfan-coated-gabions-decorative-wall
gabion-wall-long-lifespan
galfan-coated-gabions-water-features
galfan-coated-gabion-large-stock

L487.5cm x D22.5cm x H97.5cm Gabion Wall Kit (5mm dia.)

L390cm-D22.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L390cm x D22.5cm x H97.5cm Gabion Wall Kit (5mm dia.) £399.99 inc. VAT
L97.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L97.5cm x D45cm x H97.5cm Gabion Wall Kit (4mm dia.) £72.99 inc. VAT

£494.99 inc. VAT

In Stock
Quantity Price
2 - 5 £480.14
6 - 11 £465.29
12 - 19 £450.44
20 - 59 £420.74
60 - 1000 £405.89
Product Info
delivery-icon 4 WORKING DAY DELIVERY available for this product
free-shipping-icon FLAT FEE DELIVERY cost starting at £24.99
guarantee-icon RETURN GUARANTEE includes original shipping cost
guarantee-icon PAY BY INVOICE available for trade customers
SKU: EM.WALL97.5H10 Category:

Frequently bought together

L487.5cm x D22.5cm x H97.5cm Gabion Wall Kit (5mm dia.) ➕ Gabion Corner Ties (Pack of 4) ➕ 5m x 4.5m Polypropylene Geotextile
=
Total price
£517.65 inc. VAT



Additional information

Material

Galfan Coated Steel
Construction

Bi-axial electrically welded square mesh
Coating

Galfan Coated
Colour

Grey
Overall Length

487.5cm
Overall Depth

22.5cm
Overall Height

97.5cm
Hole Size

75mm x 75mm
Wire Diameter

5mm
Gabion Quantity

5
Gabion Dimensions

L97.5cm x D22.5cm x H97.5cm
Helical Quantity

19
Helical Dimensions

1 meter each (need to be cut to size as required)
Comes With

FREE Tying Wire
Tensile Strength Range

540-770 N/mm41
Weld Strength

75% of min. wire tensile strength
Site Categories

C2 to C4
Conforms to

BS EN 10223-8:2052
Life Expectancy

Min. 50 years for C2
Manufactured in

UK
Stone Weight Required (kg)

1930
Bags of Granite Required

3
Bags of Limestone Required

3
Shipping Weight 123.23 kg
Shipping Dimensions 60mm x 975mm x 975mm

Downloadable PDFs

Specification

Certification

Installation

gabions
