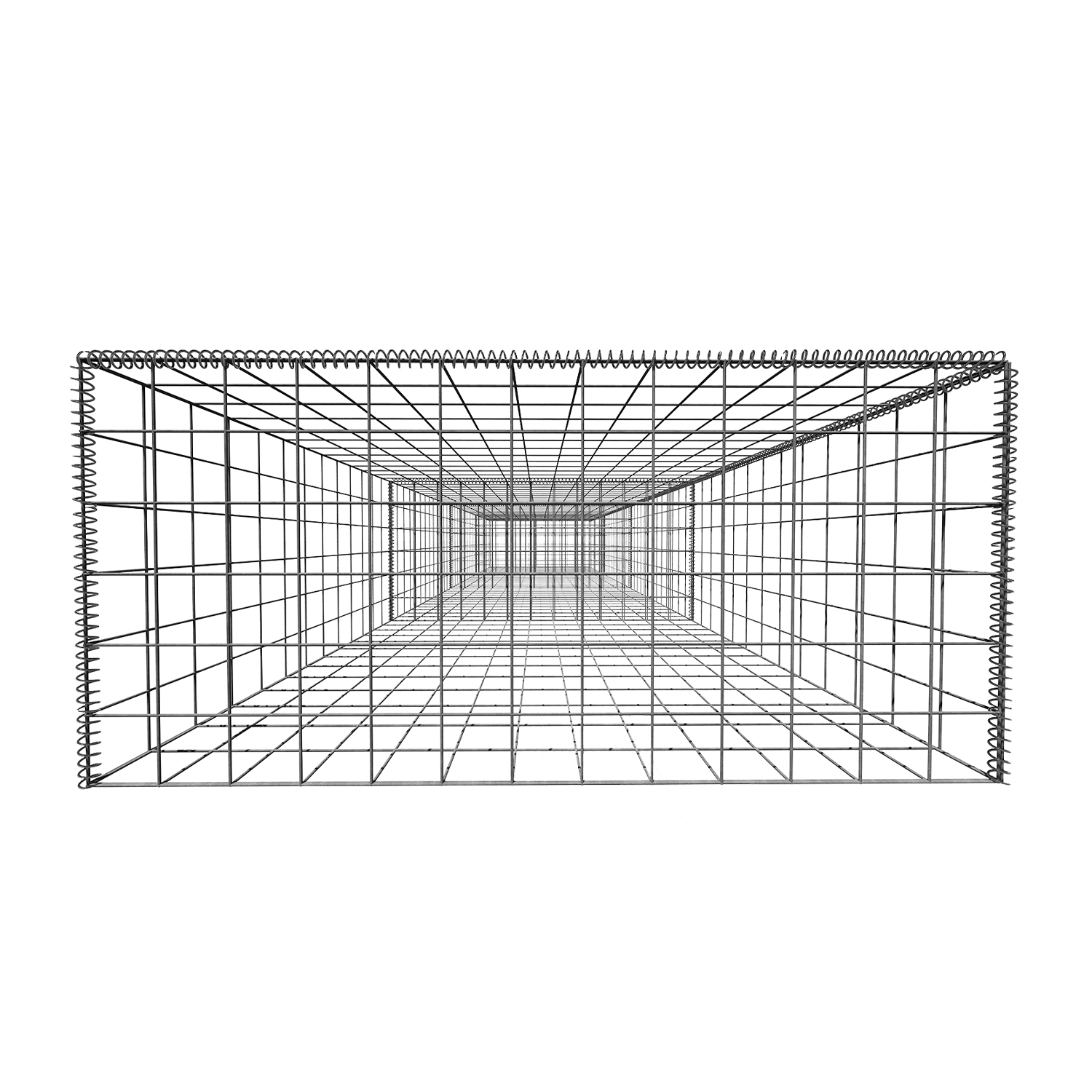

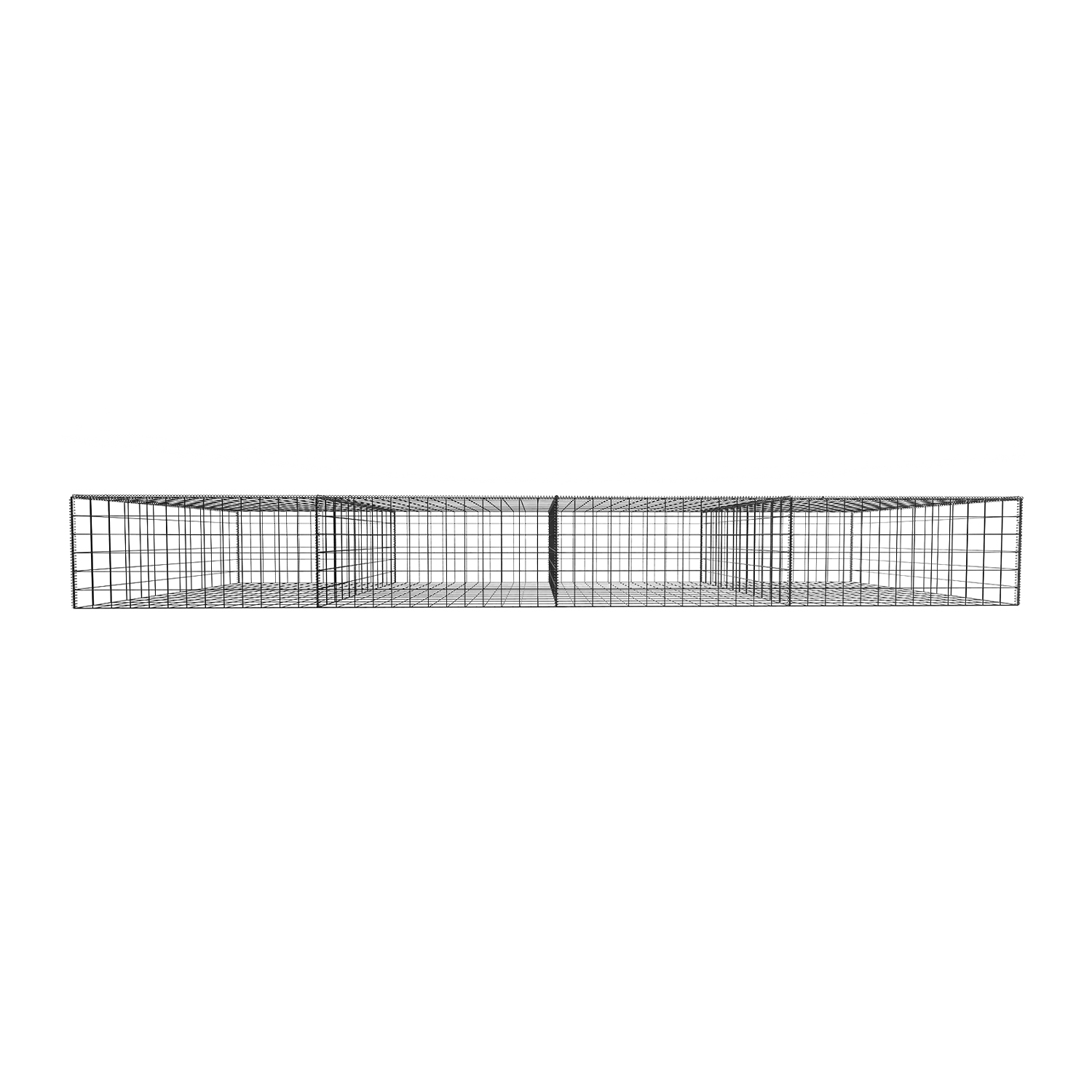

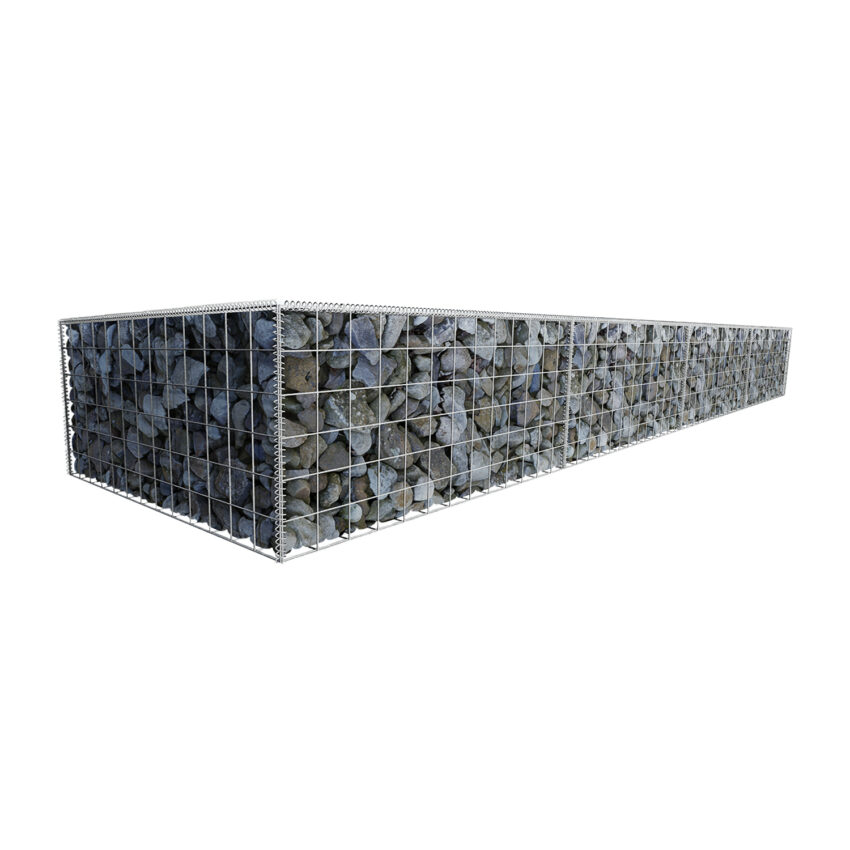

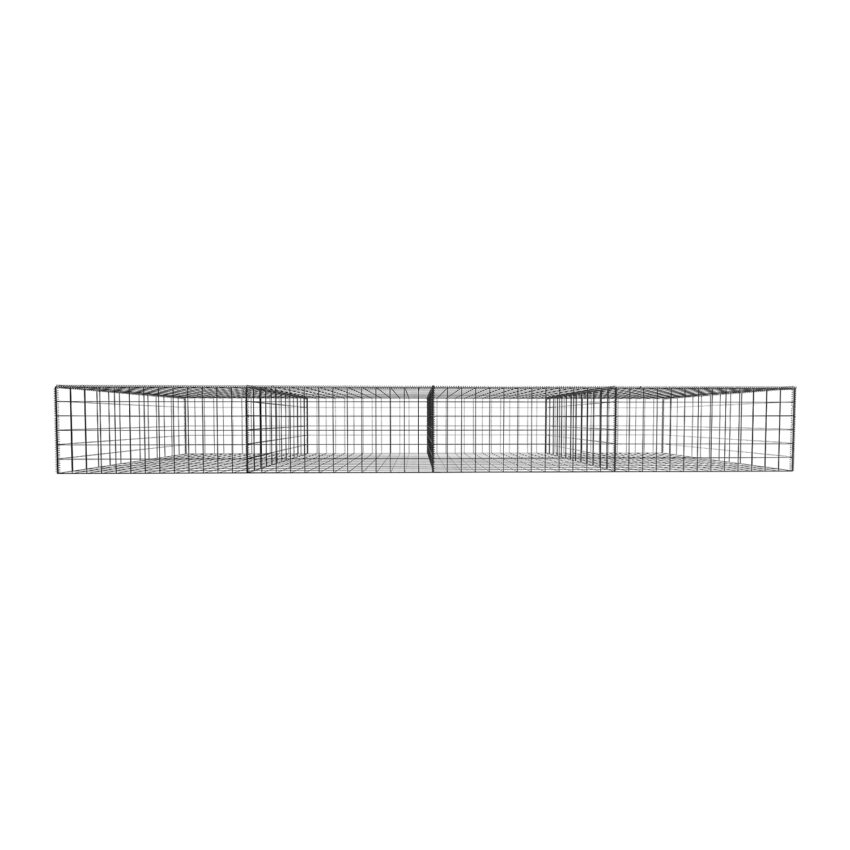

L390cm x D97.5cm x H45cm Gabion Wall Kit (4mm dia.)
£230.64 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 3 - 7 | £223.72 |
| 8 - 14 | £216.80 |
| 15 - 24 | £209.88 |
| 25 - 74 | £196.04 |
| 75 - 1000 | £189.12 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
RETURN GUARANTEE includes original shipping cost
PAY BY INVOICE available for trade customers
Frequently bought together
Select items from the list below to add them to your basket.
➕
➕
=
Total price
£253.30 inc. VAT
Additional information
| Material | Galfan Coated Steel |
|---|---|
| Construction | Bi-axial electrically welded square mesh |
| Coating | Galfan Coated |
| Colour | Grey |

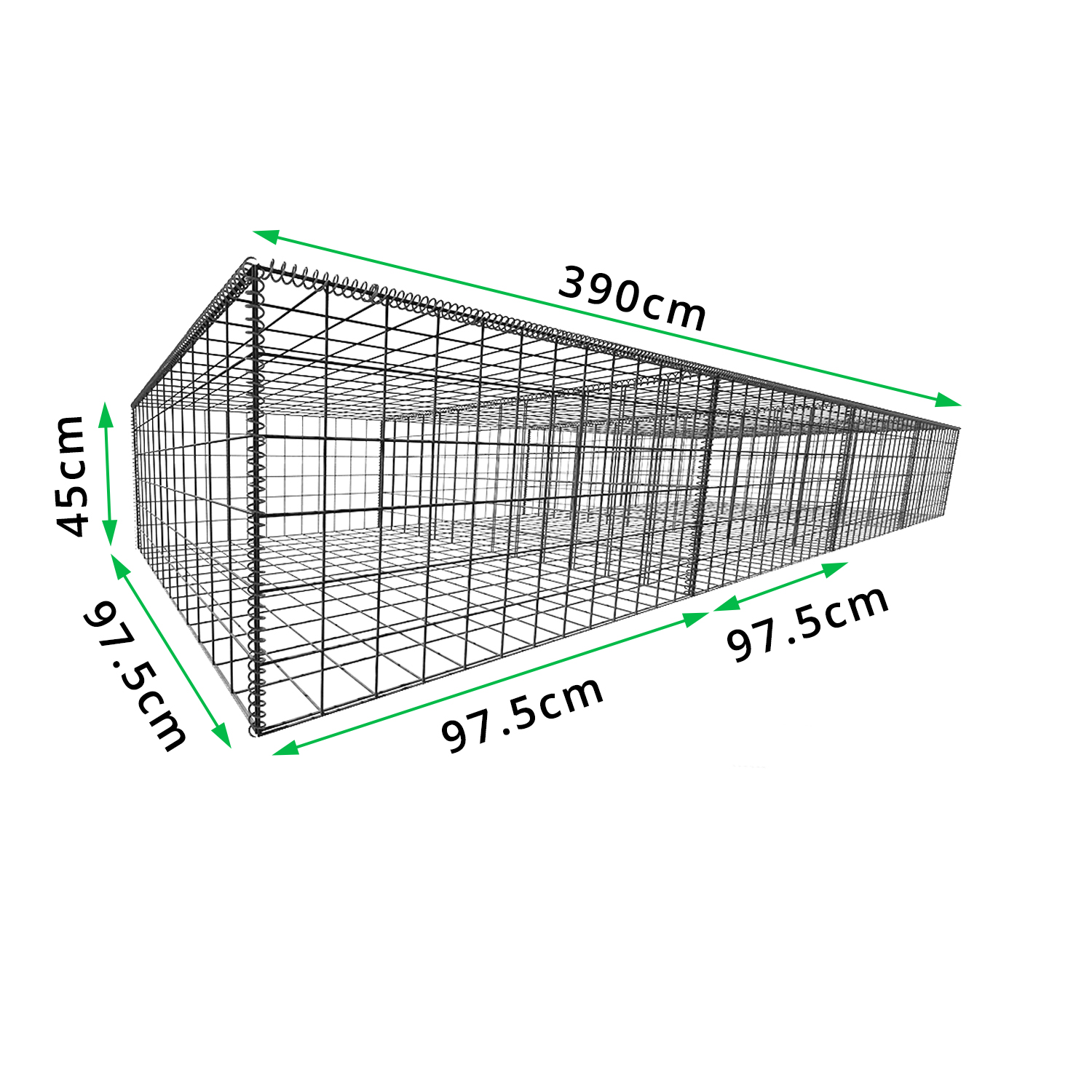

| Overall Length | 390cm |
| Overall Depth | 97.5cm |
| Overall Height | 45cm |
| Hole Size | 75mm x 75mm |
| Wire Diameter | 4mm |

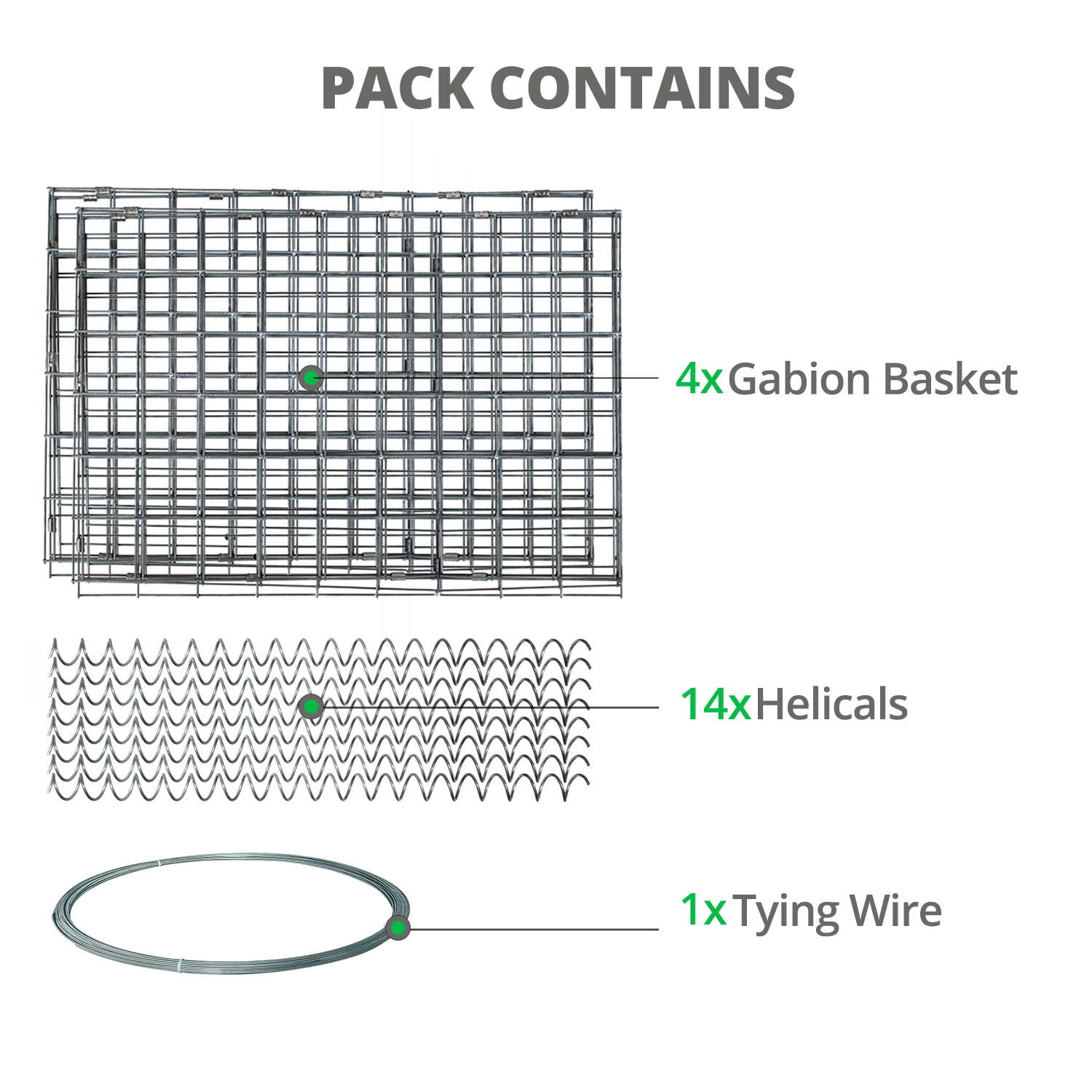

| Gabion Quantity | 4 |
| Gabion Dimensions | L97.5cm x D97.5cm x H45cm |
| Helical Quantity | 14 |
| Helical Dimensions | 1 meter each (need to be cut to size as required) |
| Comes With | FREE Tying Wire |
| Tensile Strength Range | 540-770 N/mm28 |
| Weld Strength | 75% of min. wire tensile strength |
| Site Categories | C2 to C4 |
| Conforms to | BS EN 10223-8:2039 |
| Life Expectancy | Min. 50 years for C2 |

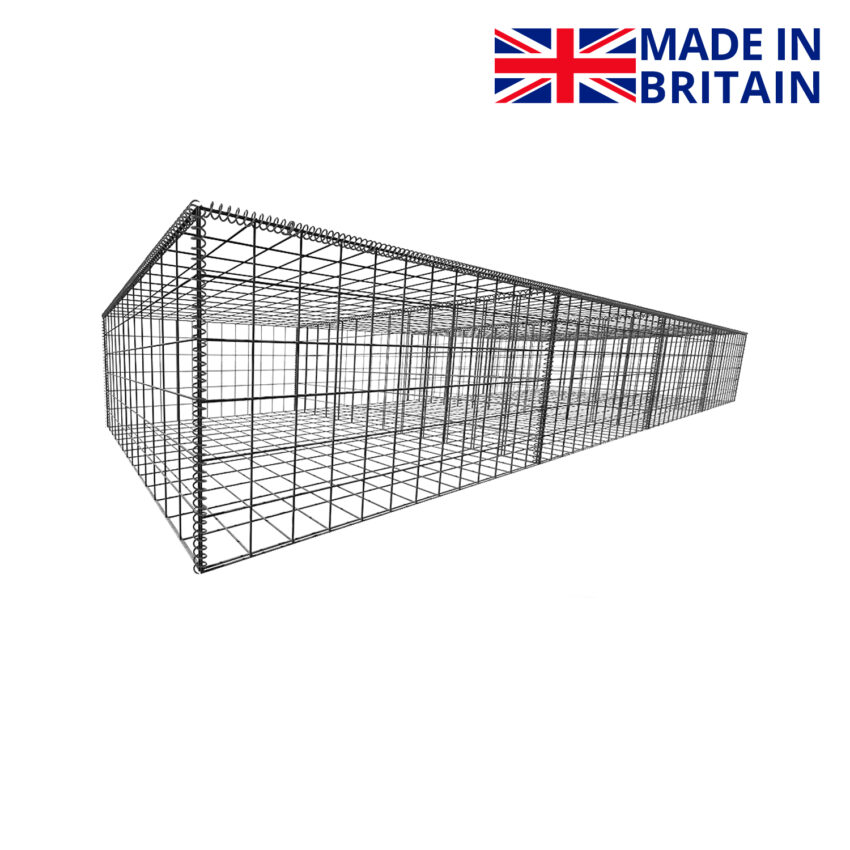

| Manufactured in | UK |
| Stone Weight Required (kg) | 3080 |
| Bags of Granite Required | 3 |
| Bags of Limestone Required | 3 |
| Shipping Weight | 44.54 kg |
| Shipping Dimensions | 50mm x 450mm x 975mm |
