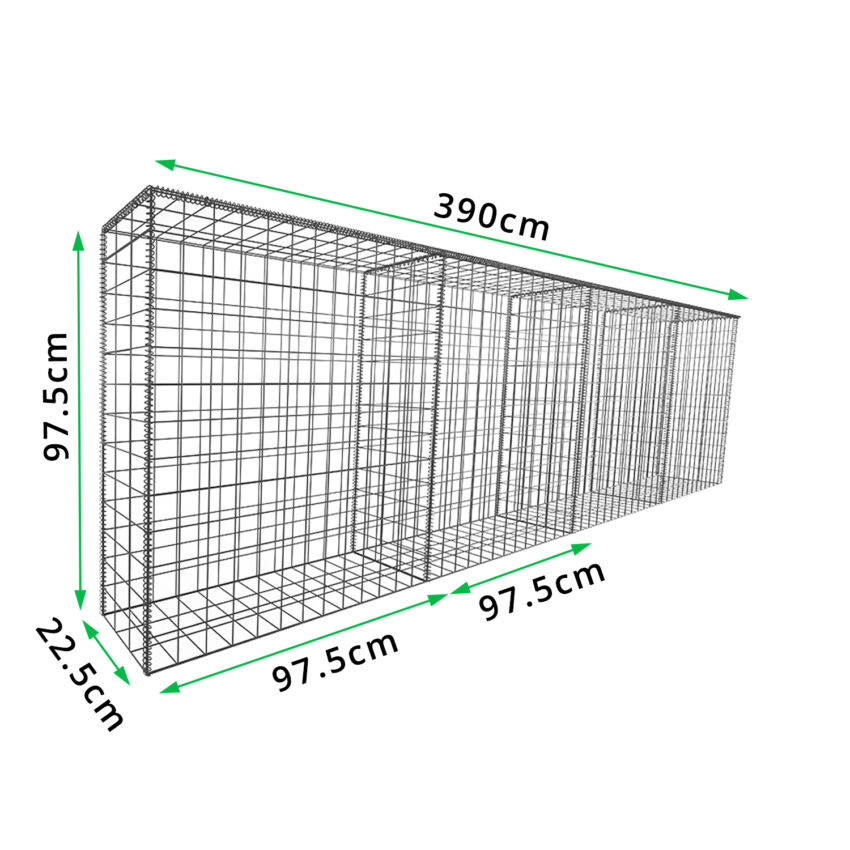

L390cm x D22.5cm x H97.5cm Gabion Wall Kit (4mm dia.)
£233.88 inc. VAT
In StockQuantity | Price |
---|---|
3 - 7 | £226.86 |
8 - 14 | £219.85 |
15 - 24 | £212.83 |
25 - 74 | £198.80 |
75 - 1000 | £191.78 |
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Galfan Coated |
Colour | Grey |
Overall Length | 390cm |
Overall Depth | 22.5cm |
Overall Height | 97.5cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 4mm |

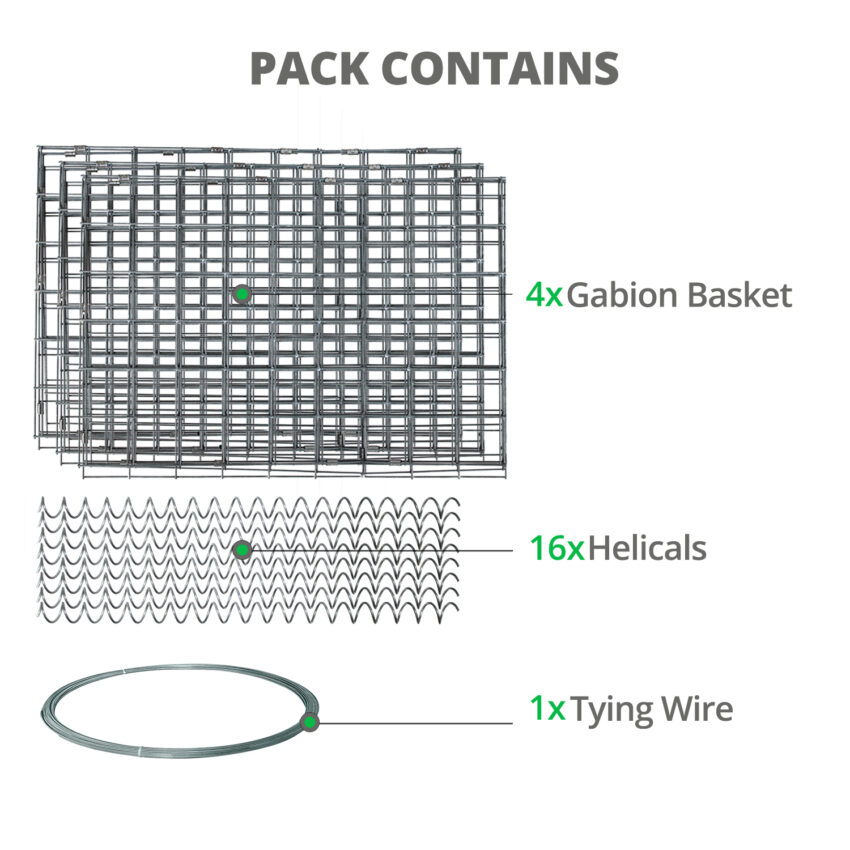

Gabion Quantity | 4 |
Gabion Dimensions | L97.5cm x D22.5cm x H97.5cm |
Helical Quantity | 16 |
Helical Dimensions | 1 meter each (need to be cut to size as required) |
Comes With | FREE Tying Wire |
Tensile Strength Range | 540-770 N/mm38 |
Weld Strength | 75% of min. wire tensile strength |
Site Categories | C2 to C4 |
Conforms to | BS EN 10223-8:2049 |
Life Expectancy | Min. 50 years for C2 |
Manufactured in | UK |
Stone Weight Required (kg) | 1550 |
Bags of Granite Required | 2 |
Bags of Limestone Required | 2 |
Shipping Weight | 67.28 kg |
Shipping Dimensions | 50mm x 975mm x 975mm |
