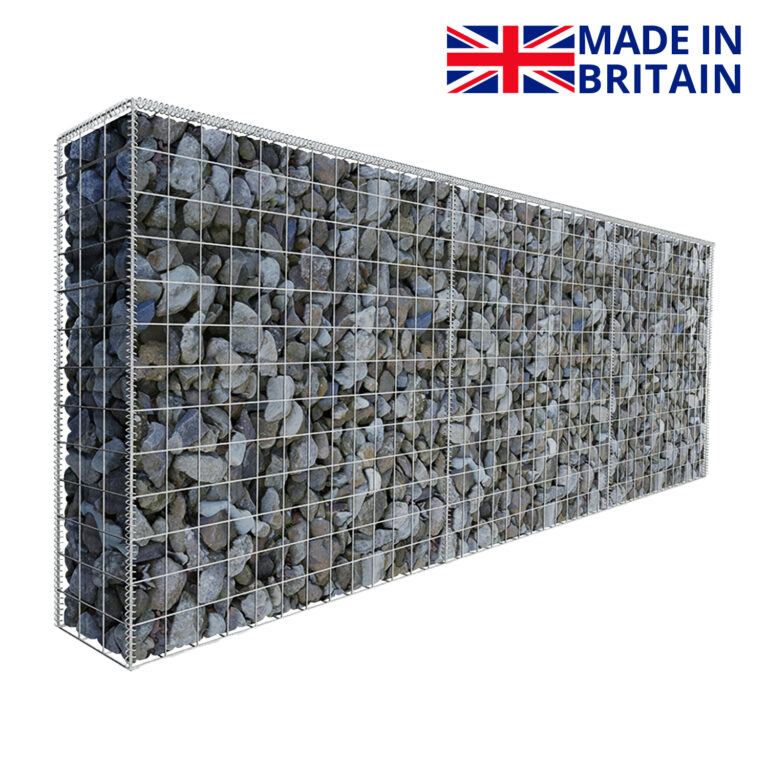

Gabion Wall (1m Tall)

Gabion wall kits include all equipment and instructions needed to create a gabion wall.  2m wall kits and garden trellis wall kits are also available.

  • Easy to install, no DIY experience necessary
  • Manufactured in the UK, to BS EN standards


Full product details

BBA Certificate Number: 05/4215 held by Link Middle East Ltd

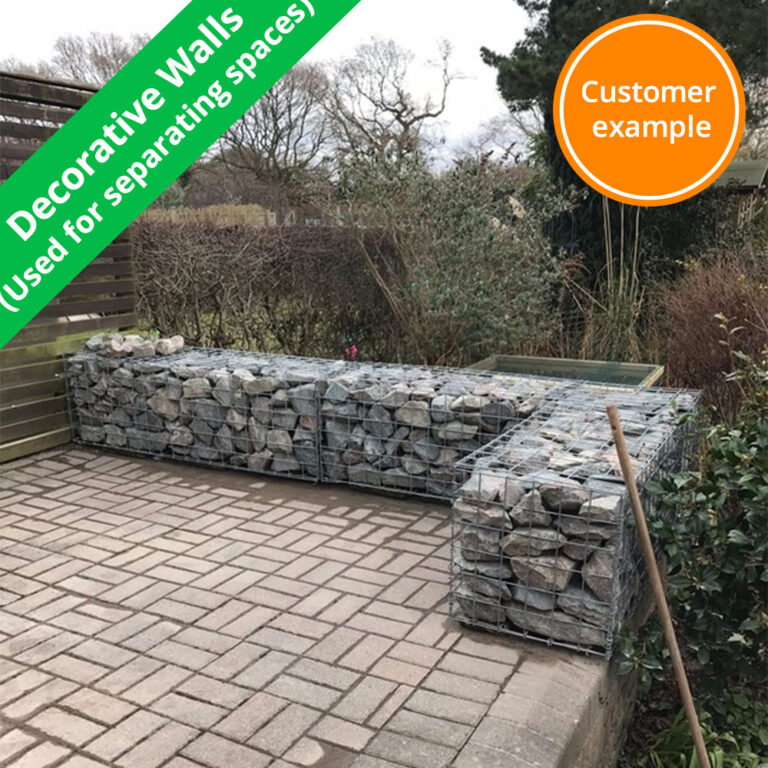

Customer Images

Gabion Kit Includes

Gabion Wall Overview

Installation Instructions

Please use the following information as guidance only. If you are unsure about how to install your gabion wall, please contact a Civil Engineer.


  • Freestanding Wall Instructions

  • Retaining Wall Instructions

To Do Explanation

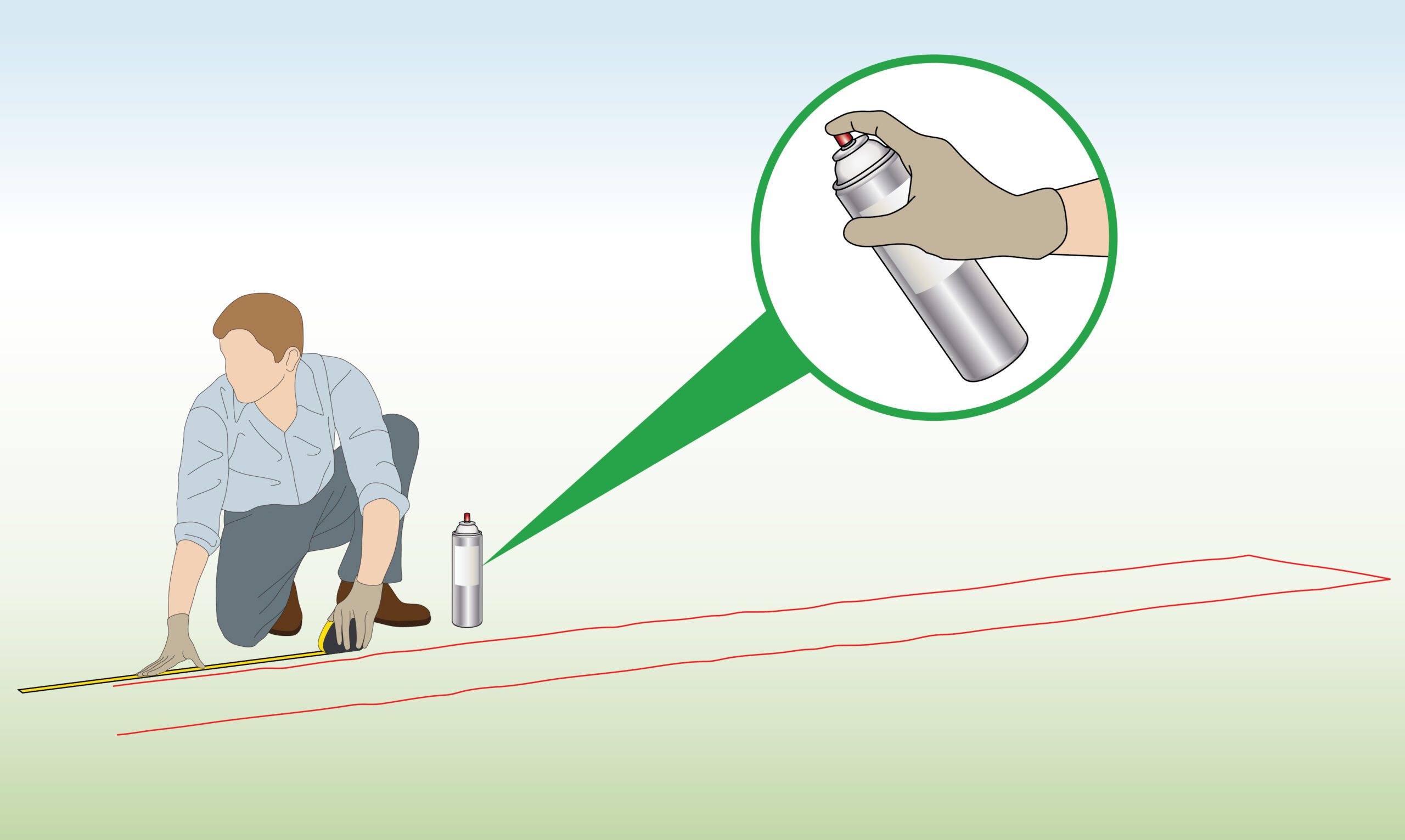

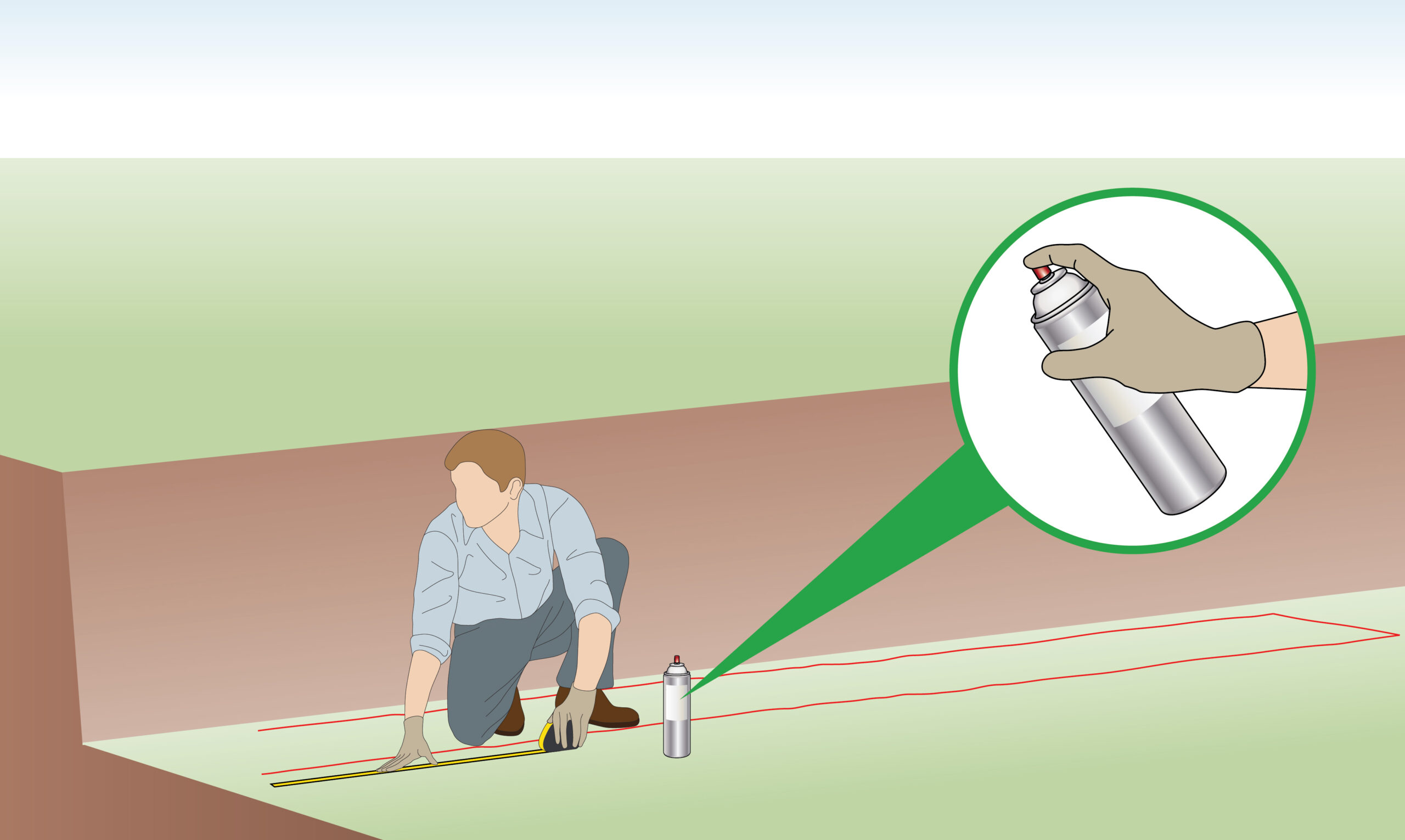

Step 1 – Identify location

Use spray paint, stones or other materials to mark the location where you plan to construct your wall.

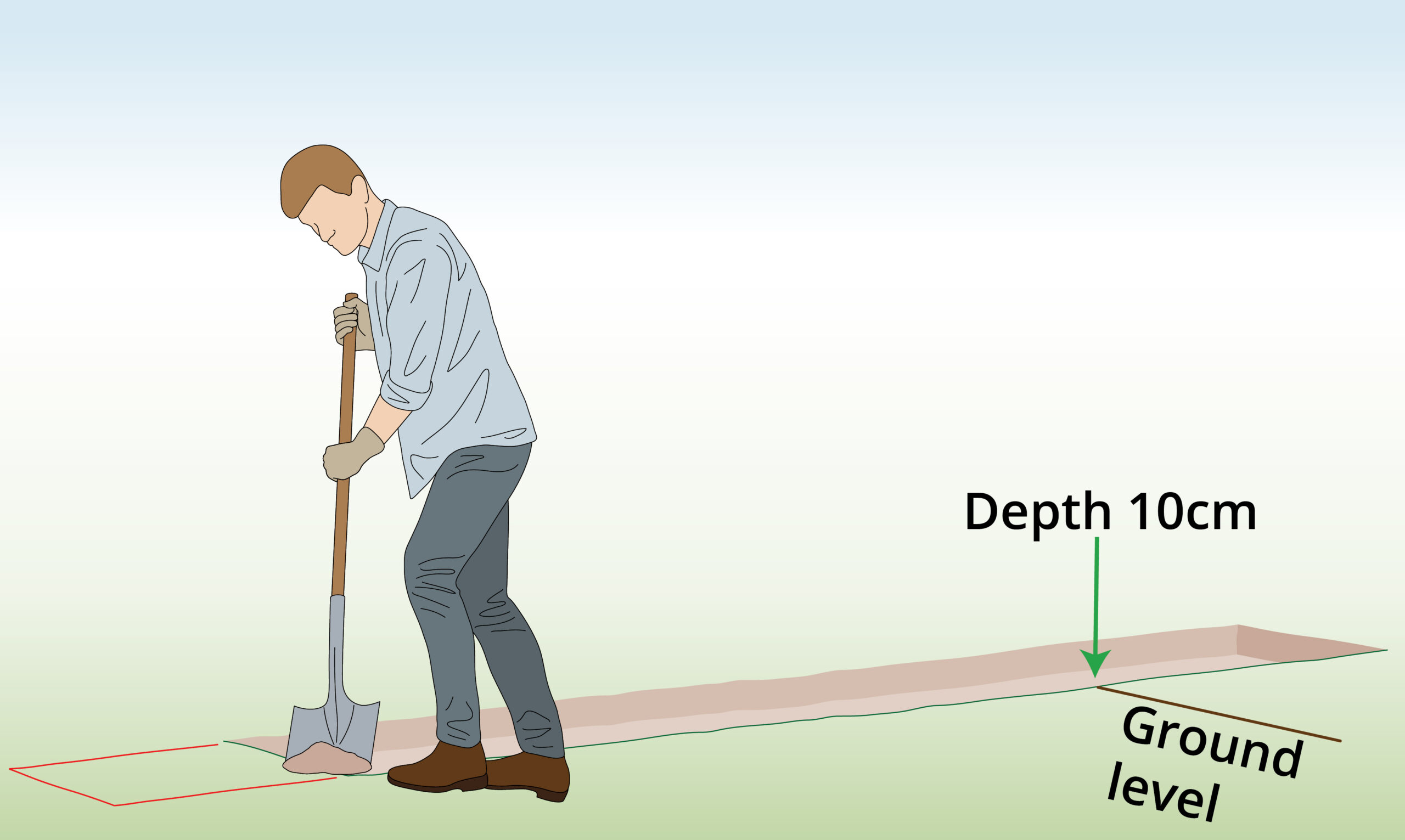

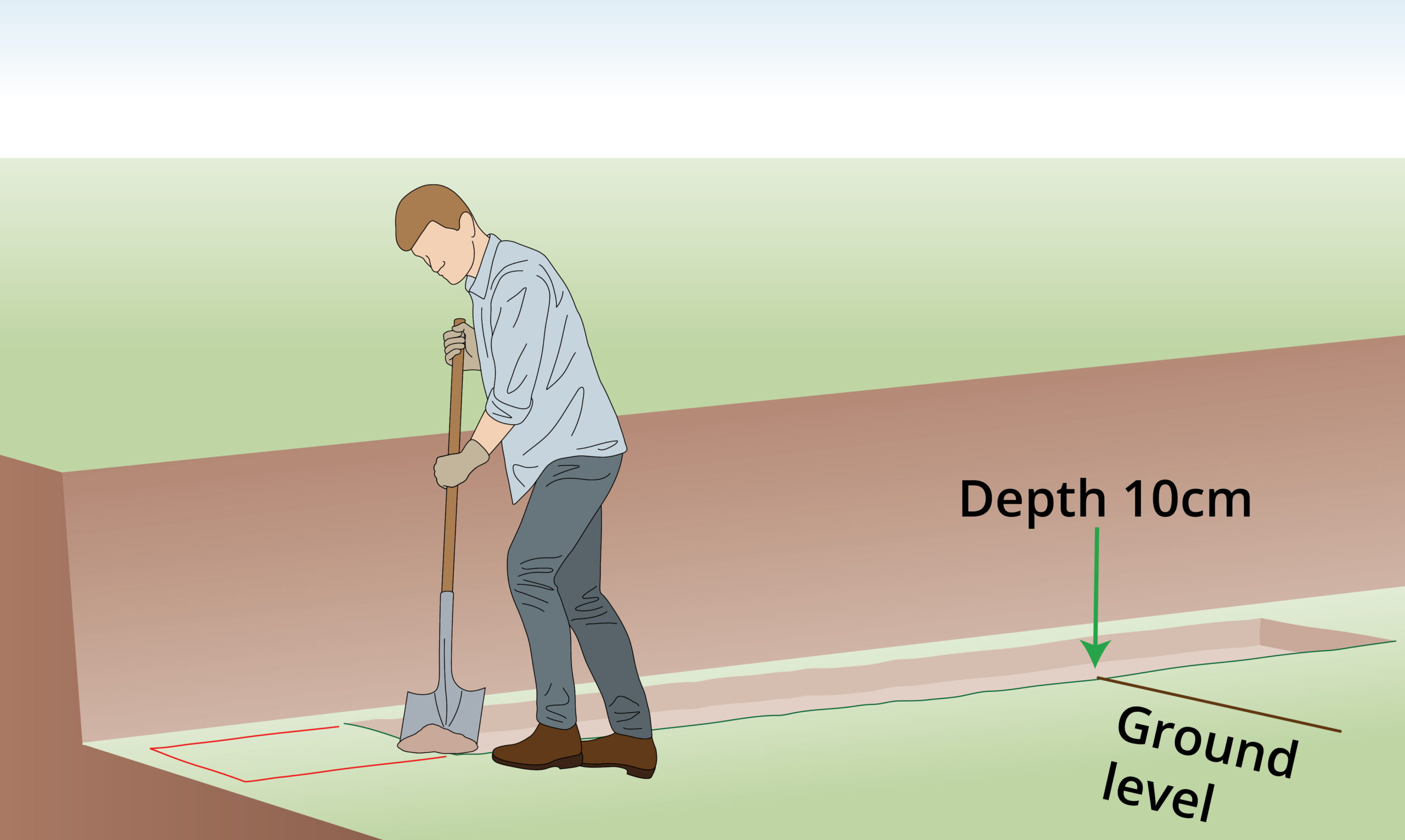

Step 2 – Dig

Dig 10cm or until the ground is firm.  Gabion walls lower than 1m are often placed directly on the ground but it will be more stable if placed on firm ground such as clay instead of the topsoil.

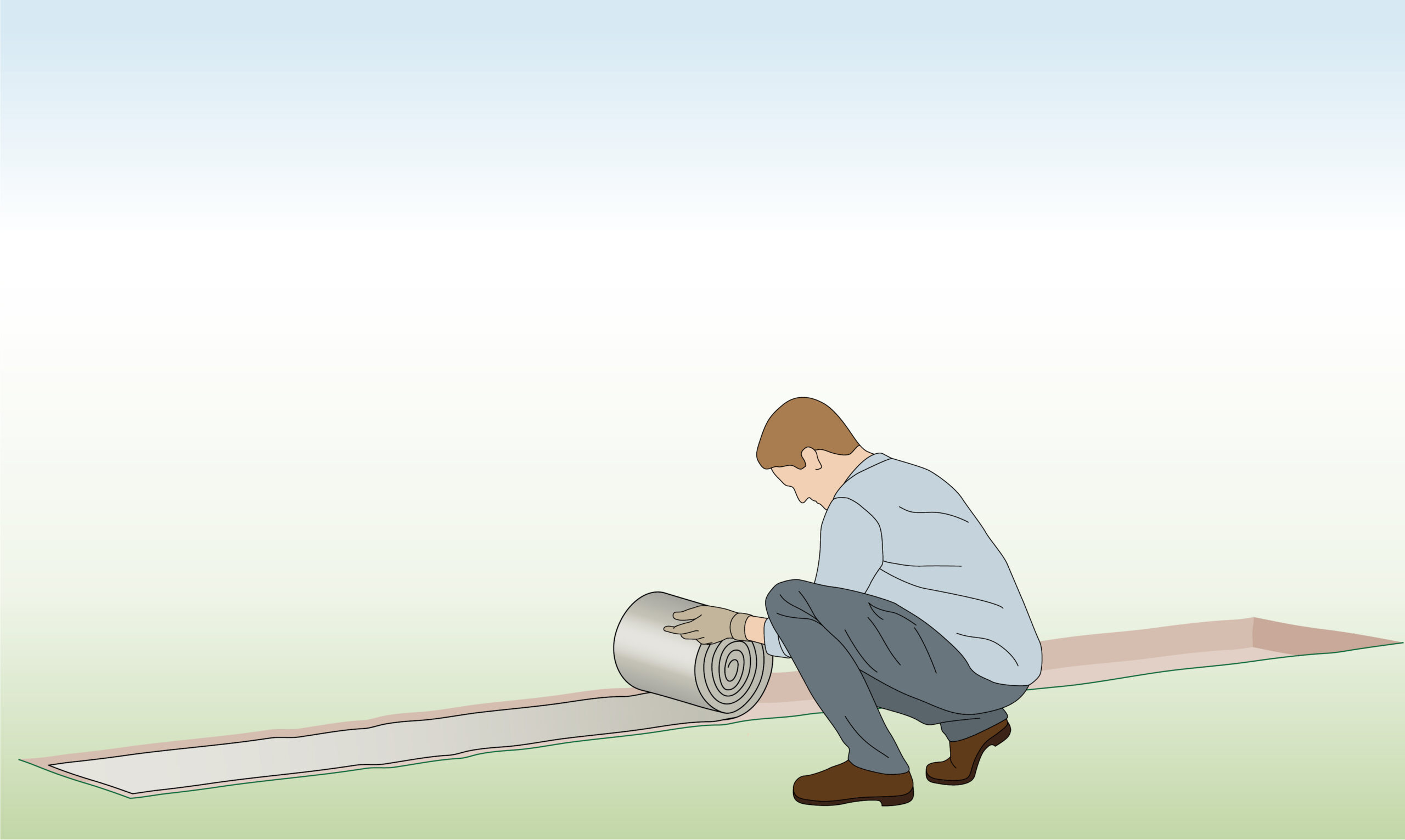

Step 3 – Geotextile

Place a layer of geotextile or weed mat on the soil to prevent weeds from growing up and through your gabions.

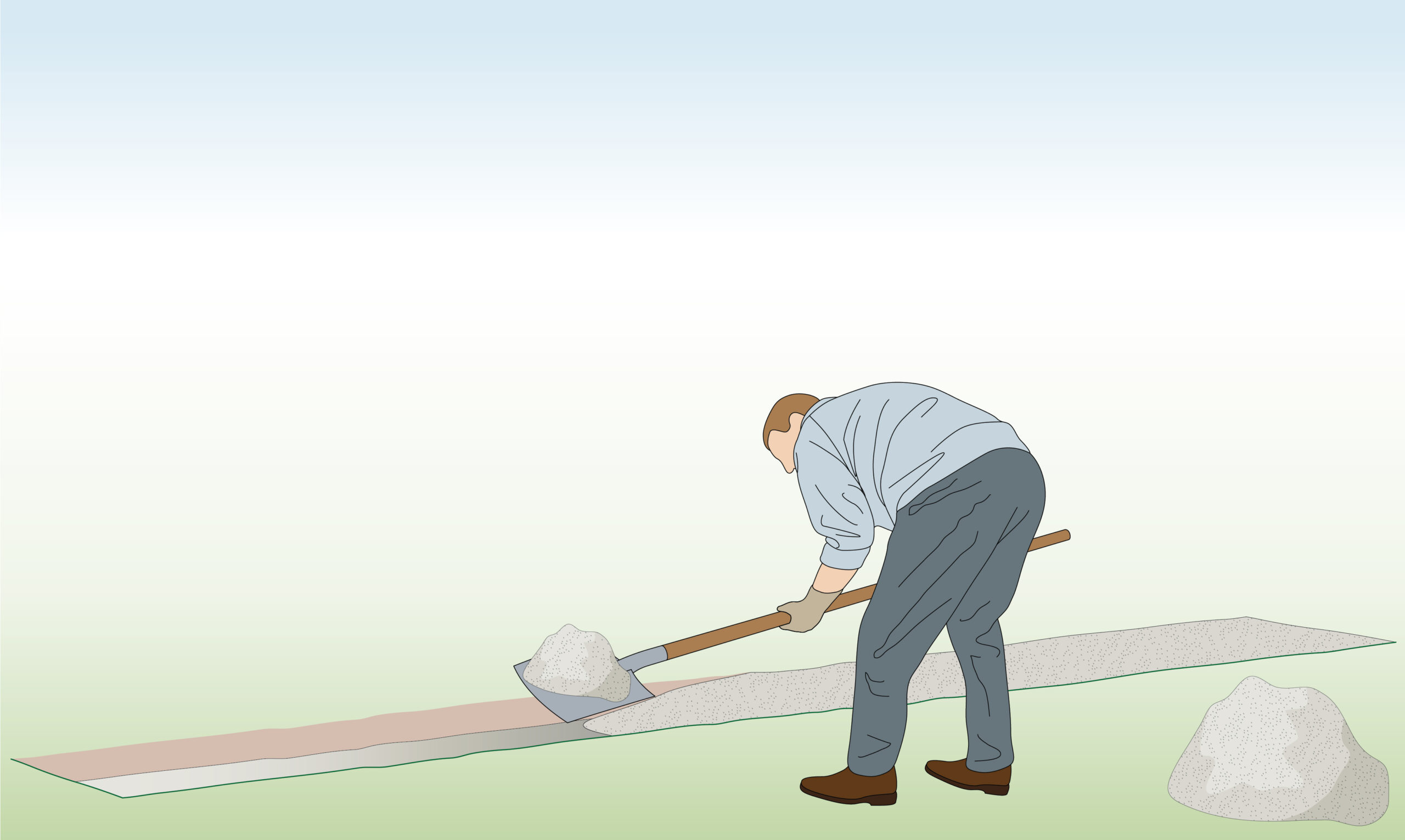

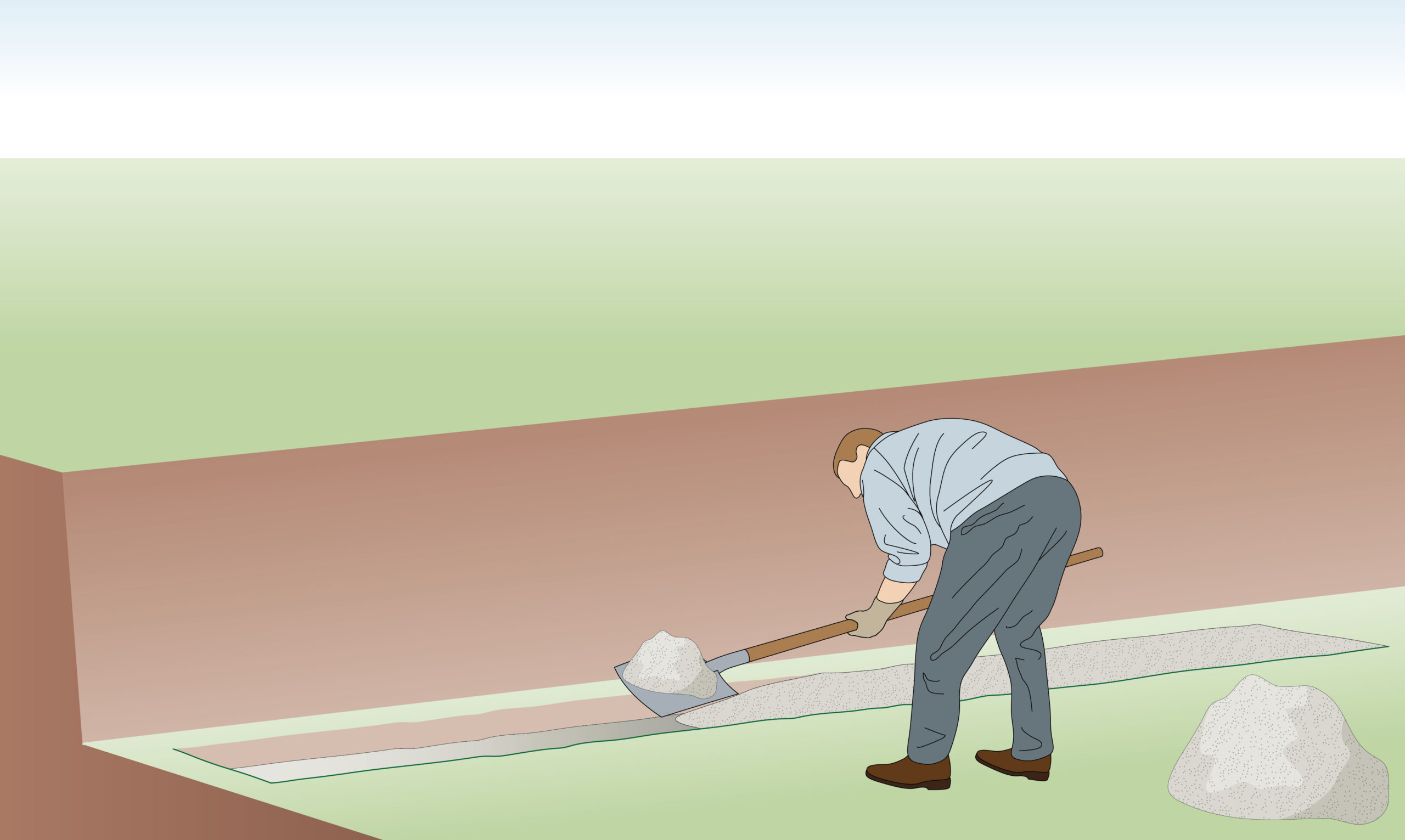

Step 4 – Add Basecourse

Add a 10cm layer of gravel or basecourse on top of the geotextile.

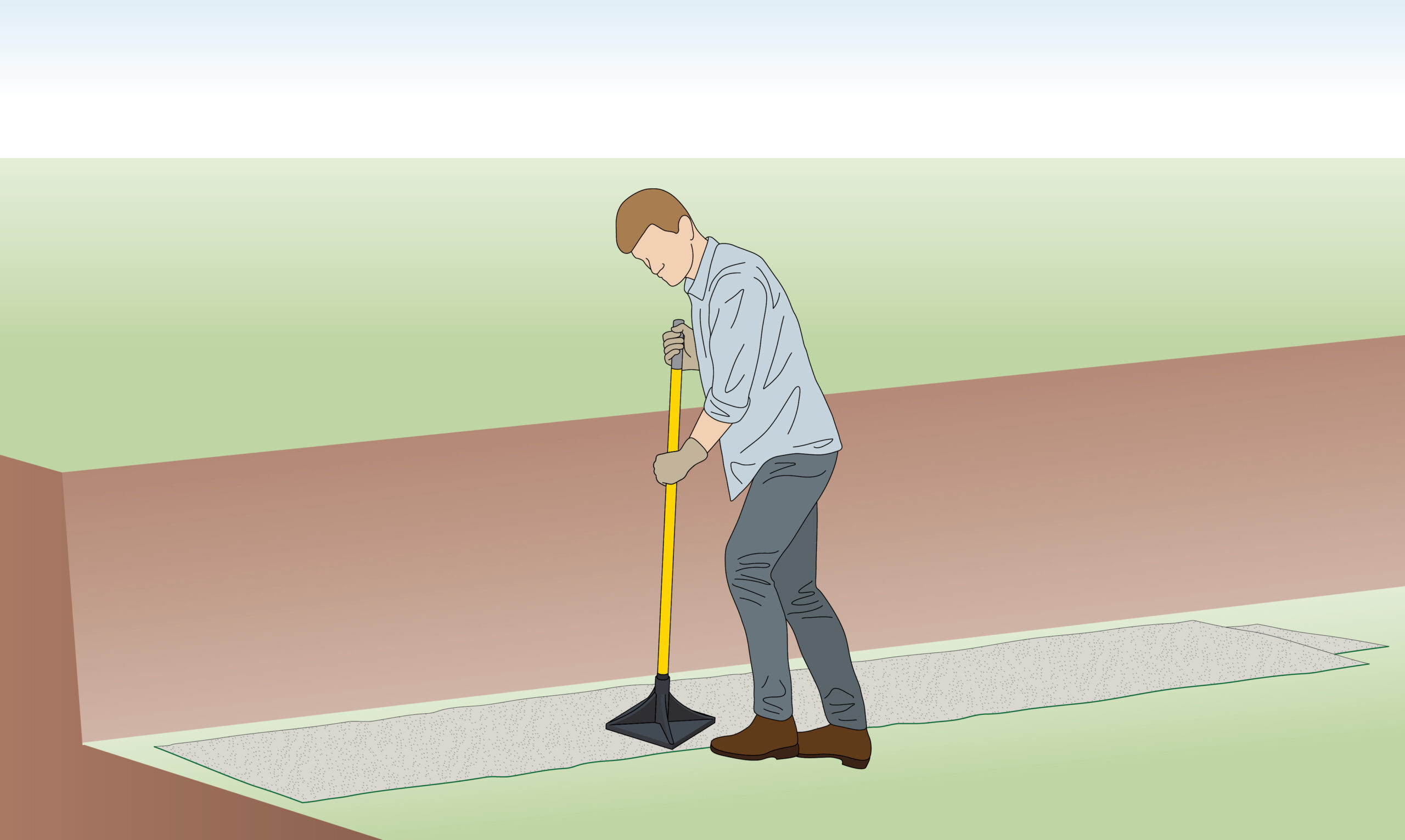

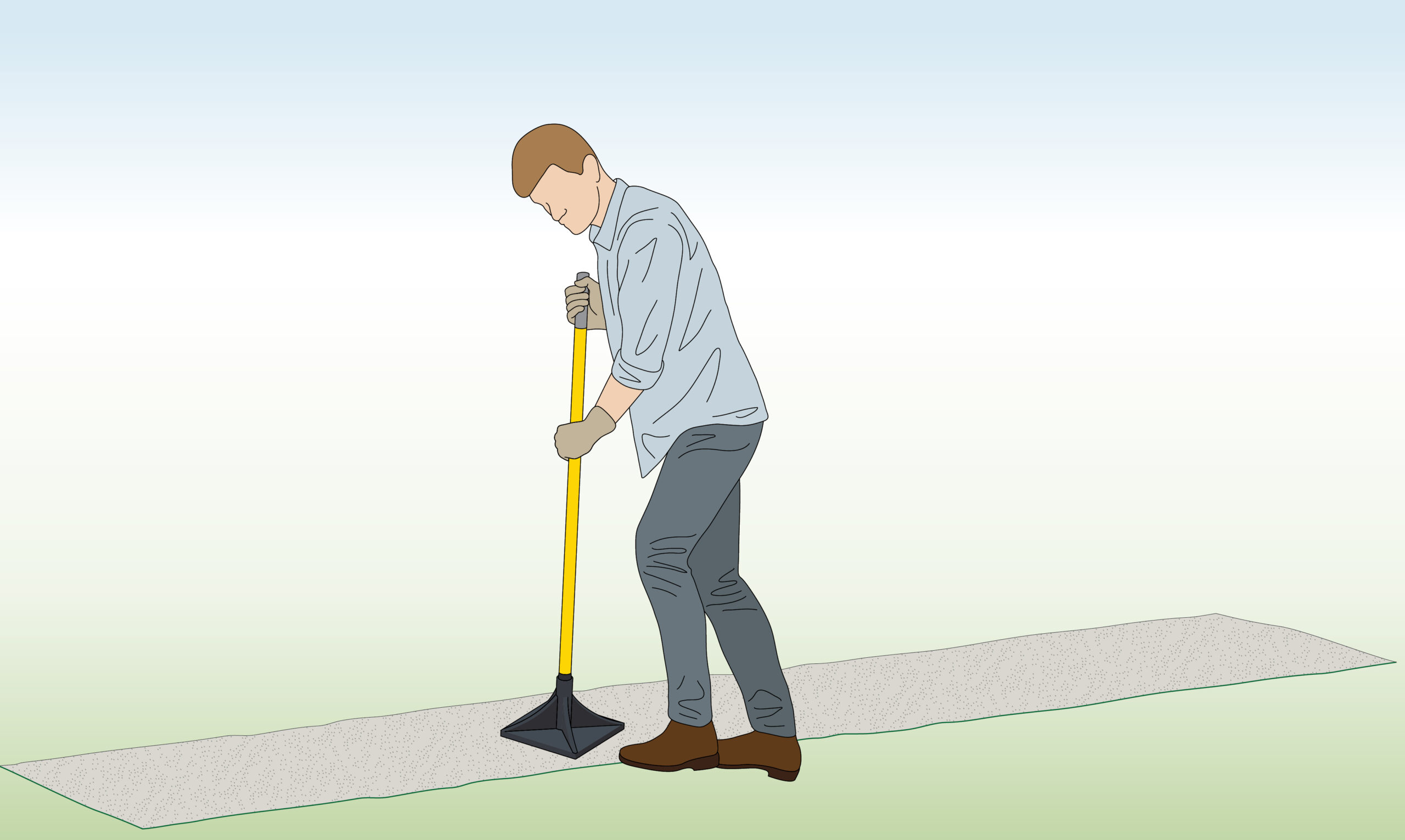

Step 5 – Compact Gravel


Walk and stomp on the gravel to make it compact.
Optional – Concrete Foundation

Most low-level gabion walls do not require a foundation but if you have a large amount of groundwater or the soil is weak, it may be needed.

Step 6 – Unfold the Baskets


Unfold and lift up the sides of the baskets.

Step 7 – Join the Cages


Assemble and attach the baskets together with the helicals included in the kit.

Step 8 – Fill with Stone


Fill the gabions with your choice of stone.

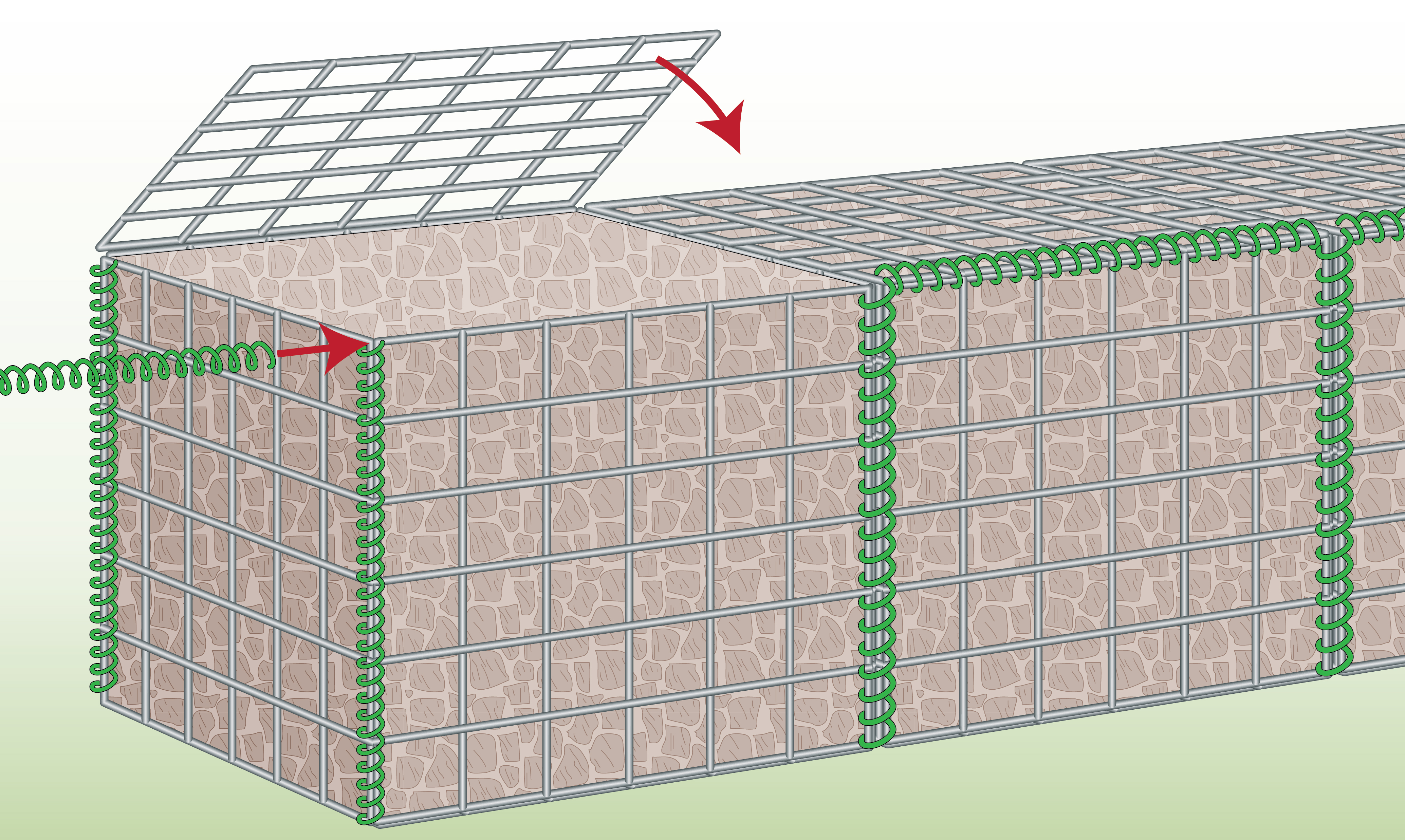

Step 9 – Close Lids



Fold the lids down and close your baskets with the helicals provided in the kit.

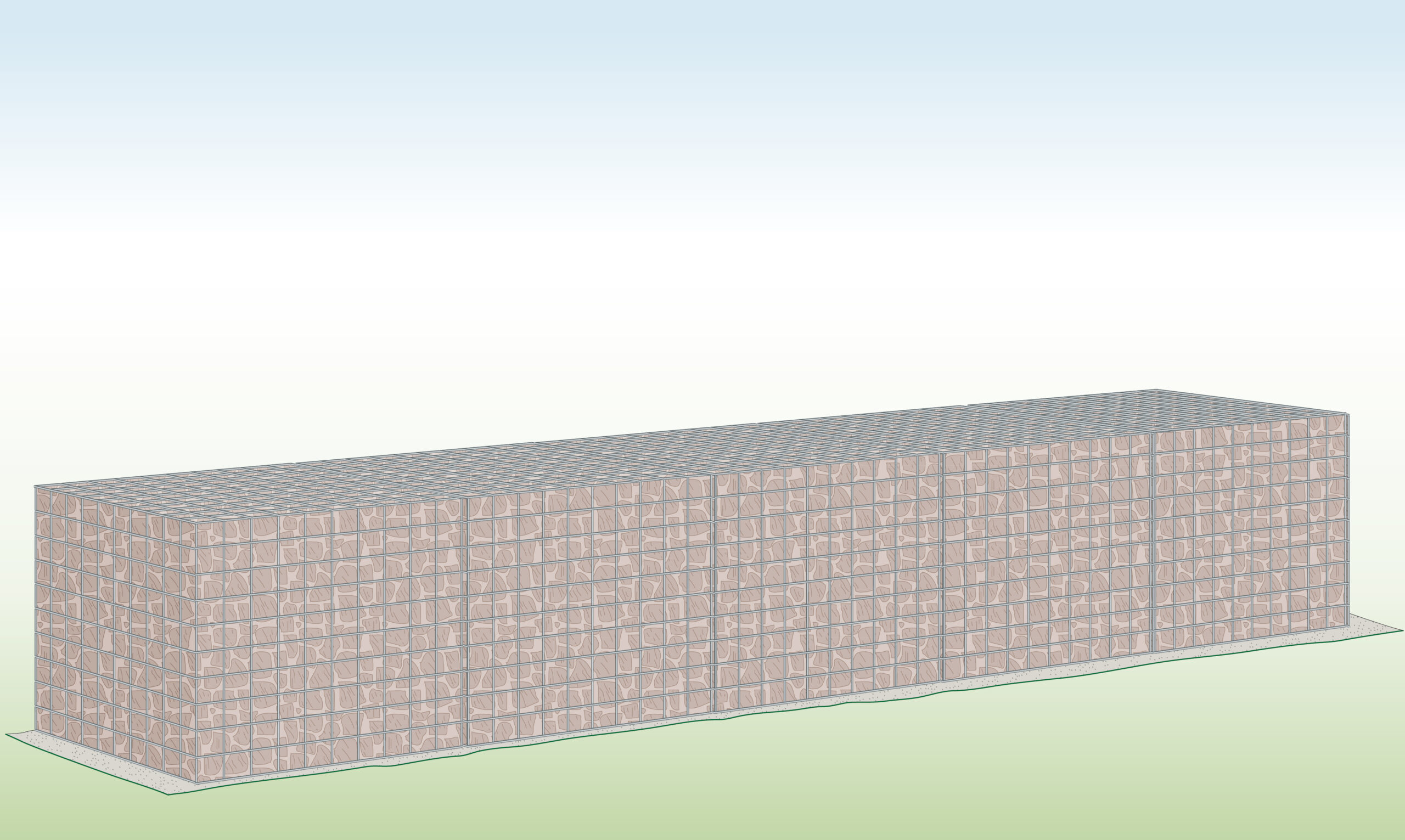

Step 10 – Finished Project


Your freestanding gabion wall is now ready!

Calculate Stone Quantity

  • Use the guide below to calculate the amount of stone that you need to fill your gabion wall
  • You can use partitions/stone separating panels to reduce the amount of decorative rocks required and save money


Gabion Wall Dimensions (cm) Bulk Bags of Stone Required Bulk Bags of Stone Required if using Partitions
97.5cm  22.5cm  45cm  1
195cm  22.5cm  45cm  1
292.5cm 22.5cm  45cm  1
390cm 22.5cm  45cm  1
487.5cm 22.5cm  45cm  1
97.5cm  45cm  45cm  1 1
195cm  45cm  45cm  1 1
292.5cm 45cm  45cm  2 1
390cm 45cm  45cm  2 1
487.5cm 45cm  45cm  3 2
97.5cm  97.5cm  45cm  1 1
195cm  97.5cm 45cm  2 1
292.5cm 97.5cm 45cm  3 2
390cm 97.5cm 45cm  4 2
487.5cm 97.5cm 45cm  5 3
97.5cm  22.5cm  97.5cm 1
195cm  22.5cm  97.5cm 1
292.5cm 22.5cm  97.5cm 2
390cm 22.5cm  97.5cm 2
487.5cm 22.5cm  97.5cm 3
97.5cm  45cm  97.5cm 1 1
195cm  45cm  97.5cm 2 1
292.5cm 45cm  97.5cm 3 2
390cm 45cm  97.5cm 4 2
487.5cm 45cm  97.5cm 5 3
97.5cm  97.5cm  97.5cm 2 1
195cm  97.5cm 97.5cm 4 2
292.5cm 97.5cm 97.5cm 6 3
390cm 97.5cm 97.5cm 8 4
487.5cm 97.5cm 97.5cm 10 5
