Sheep Field Fence
The most economic option to create a long-lasting sheep-proof perimeter around large areas such as farmland and fields.
Also see a full range of farm and agricultural fencing
- Manufactured in Europe, conforms to BS EN standards
Scroll for more details

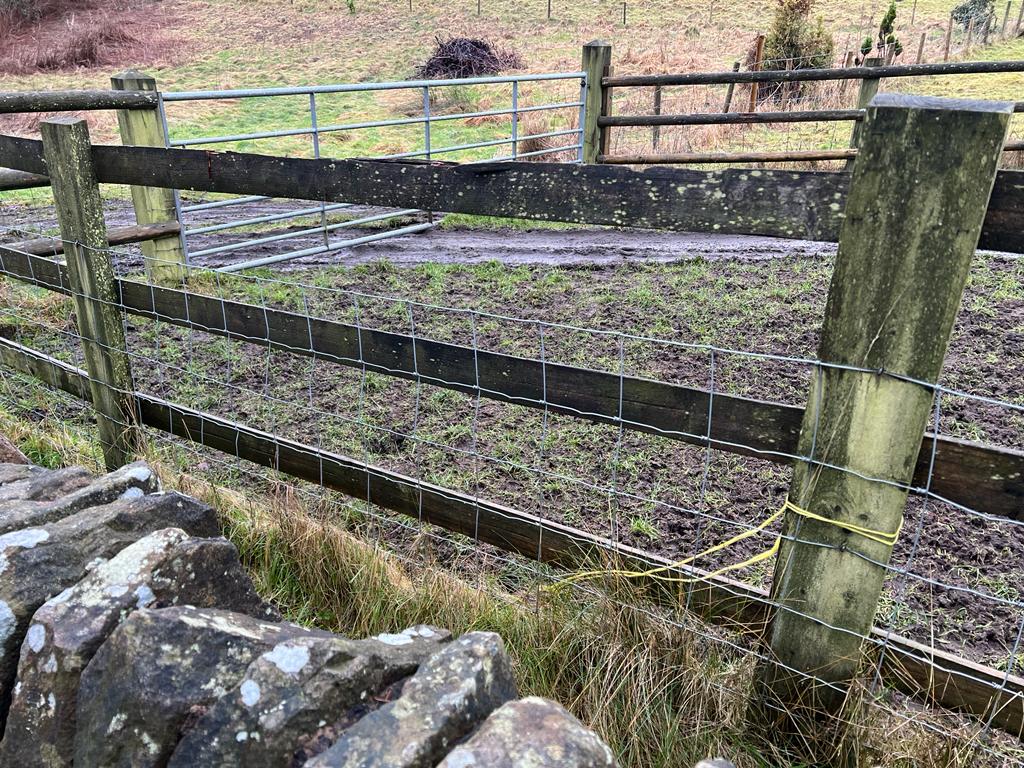

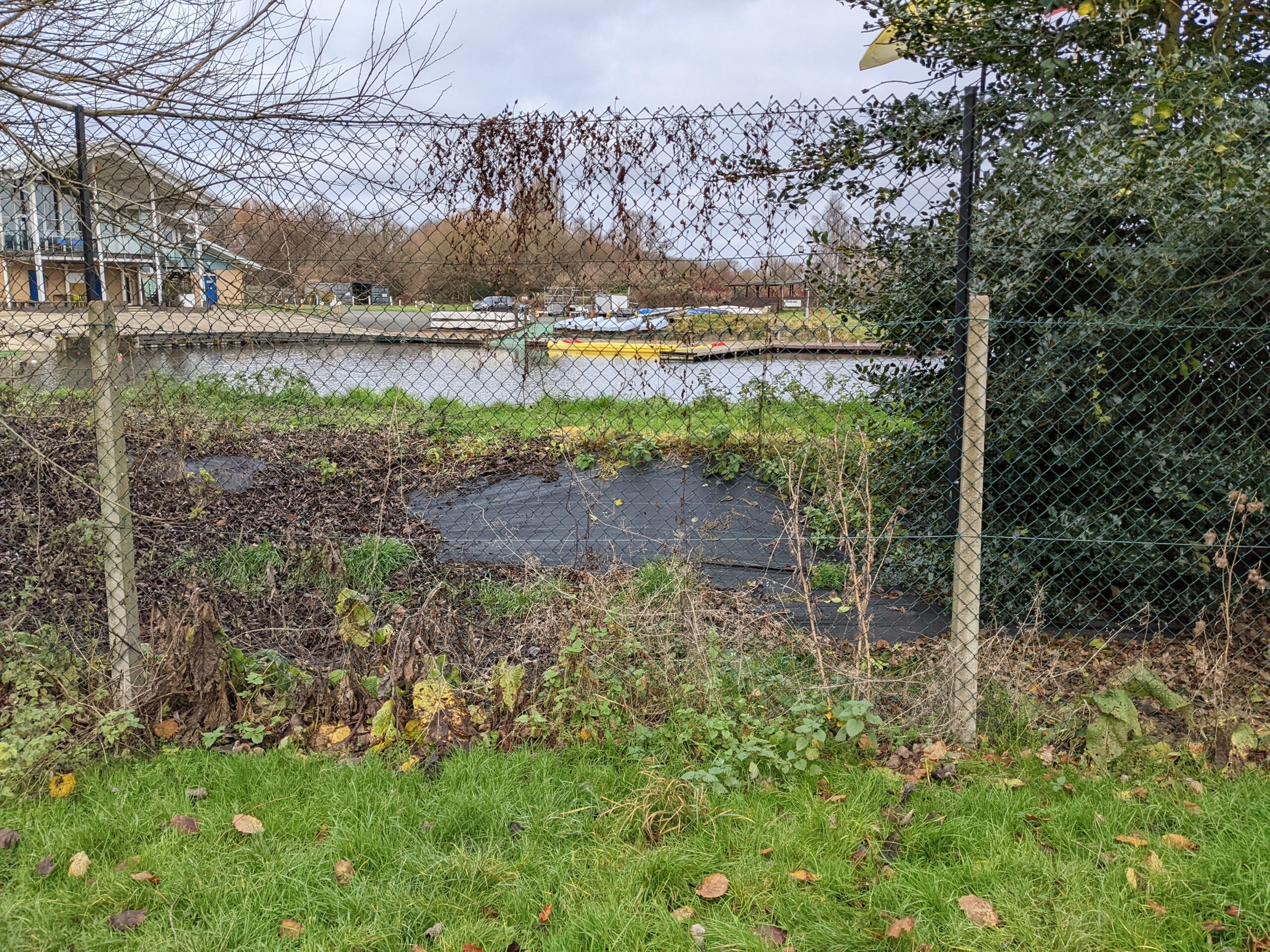

Customer Images
Product Information: Sheep Fencing
Understanding Mesh Configuration
Recommended Applications
|
Animal |
Min Height required |
Mild Steel (L Grade) |
Mild Steel (C Grade) |
High Tensile |
Add Electrical Wire |
|
1.2m |
|
|
|
Optional | |
|
90cm |
|
|
|
|
|
|
Bull |
1.8m |
|
|
|
|
|
75cm |
|
|
|
Optional | |
|
Goat |
1.2m |
|
|
|
Optional |
|
Llama |
1.2m |
|
|
|
Optional |
|
Alpaca |
1.2m |
|
|
|
Optional |
|
1.4m |
|
|
|
|
|
|
1.5m |
|
|
|
Optional | |
|
Large animals to lean against |
Any |
|
|
|
|
|
General field boundary |
Any |
|
|
|
|
|
Dog |
See dog fencing for more information |
||||
|
Chickens |
See poultry fencing for more information |
||||
|
Pheasant |
See game netting for more information |
||||
|
Fox |
|||||
|
Badger |
|||||
|
Rabbits |
|||||
Wire Specification Comparison
|
Mild Steel (L Grade) |
Mild Steel (C Grade) |
High Tensile |
High Tensile PVC Coated |
|
|
General |
||||
|
Cost |
£ |
££ |
£££ |
£££ |
|
Made in |
EU |
EU |
EU |
EU |
|
Conforms to British Manufacturing standards |
BS EN 10223-5:2012 BS EN 10244-2:2009 BS EN 10218-2:2012 BS EN 1179:2003 |
BS EN 10223-5:2012 BS EN 10244-2:2009 BS EN 10218-2:2012 BS EN 1179:2003 |
BS EN 10218-2:2012 BS EN 10223-5:2012 BS EN 10244-2:2009 |
BS EN 10218-2:2012 BS EN 10223-5:2012 BS EN 10244-2:2009 |
|
Strongest |
|
|
||
|
Flexibility |
Most flexible |
Good flexibility |
Low flexibility |
Low flexibility |
|
Delivered as |
As a roll. If the roll exceeds 33kg it will be delivered on a pallet |
|||
|
Construction |
||||
|
Material |
Lightweight mild steel |
Mild steel |
High tensile steel |
High tensile steel |
|
Coating |
Galvanised |
Heavily galvanised |
Heavily galvanised |
Heavily galvanised with green ecover |
|
Min height |
80cm (2.6ft) |
80cm (2.6ft) |
80cm (2.6ft) |
80cm (2.6ft) |
|
Max height |
2m (6.5ft) |
80cm (2.6ft) |
80cm (2.6ft) |
80cm (2.6ft) |
|
Increase height |
Add Barbed Wire or Tension Wire (view instructions) |
|||
|
Base & top wire diameter |
2.5mm |
3mm |
2.5mm |
2.5mm |
|
Inside wire diameter |
1.9mm |
2.5mm |
1.9mm |
1.9mm |
|
Type of knot |
Knotted hinge joint |
|||
|
Strength & Environment |
||||
|
Corrosion resistance |
Good |
Very good |
Very good |
Excellent |
|
Abrasion resistance |
Good |
Very good |
Very good |
Very good |
|
Tensile strength range |
695-850 N/mm2 |
695-850 N/mm2 |
1235-1390 N/mm2 |
1235-1390 N/mm2 |
|
Best if heavy livestock lean against fence |
|
|
||
|
Best if fence has multiple turns |
|
|
||
|
Suited to animals |
See application list above |
|||
|
Installation |
||||
|
Recommended post spacing |
2m |
2m-3m |
3m-5m |
3m-5m |
|
Can be installed with wooden posts |
Yes, the most common option. Attach with Staples and Tension Wire. (download instructions) |
|||
|
Can be installed with metal posts |
Yes, less common but a variety of metal posts are now available |
|||
|
Speed of installation |
Due to the product weight and tensioning required it takes longer than panels or wire mesh but it is also cheaper |
|||
|
Qty of people required to instal |
One experienced person or two people new to stock fence |
|||
|
Handle with protective gloves |
|
|
|
|
|
Maintenance |
||||
|
Will stretch after installation? |
|
|
|
|
|
Need retightening each year? |
|
|
|
|
Installation Instructions
Downloadable PDFs
Specifications
Installation
