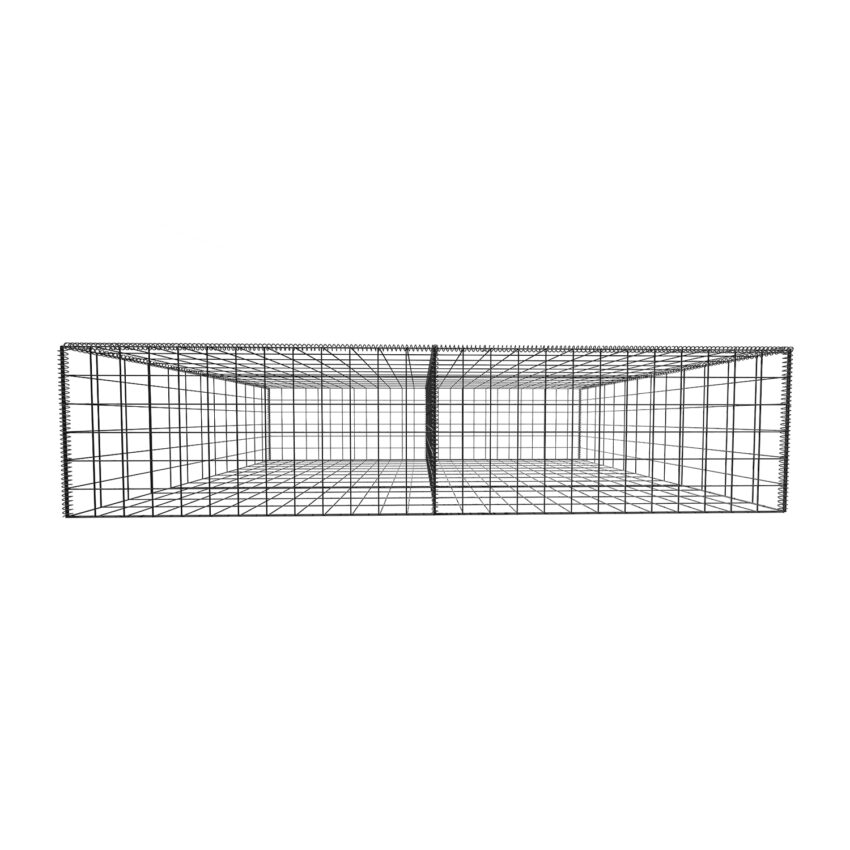

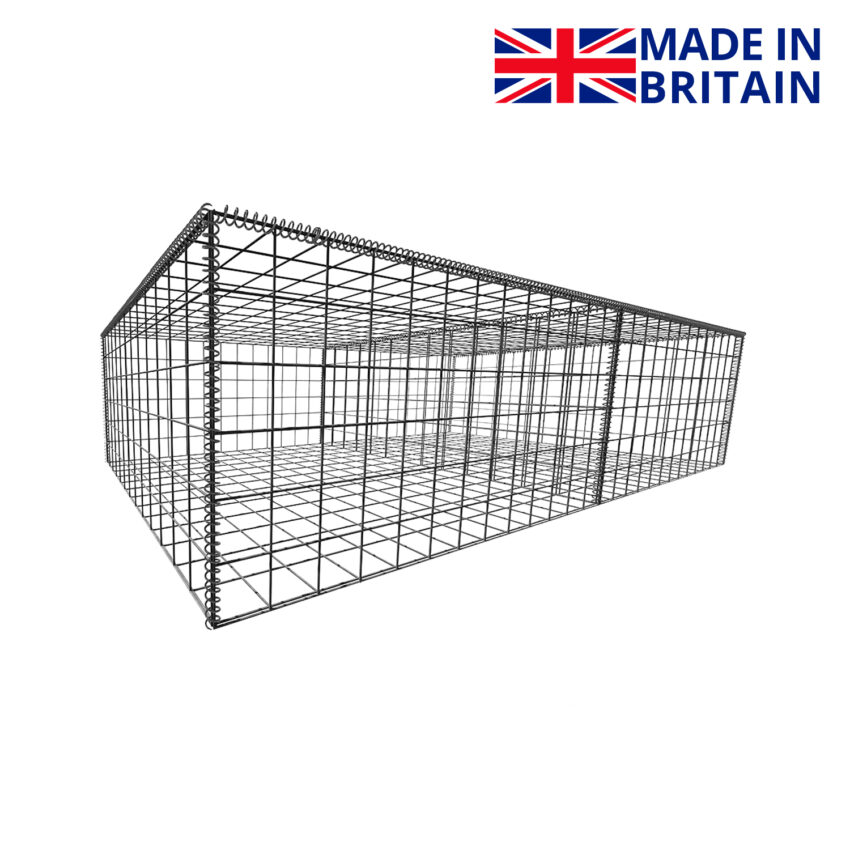

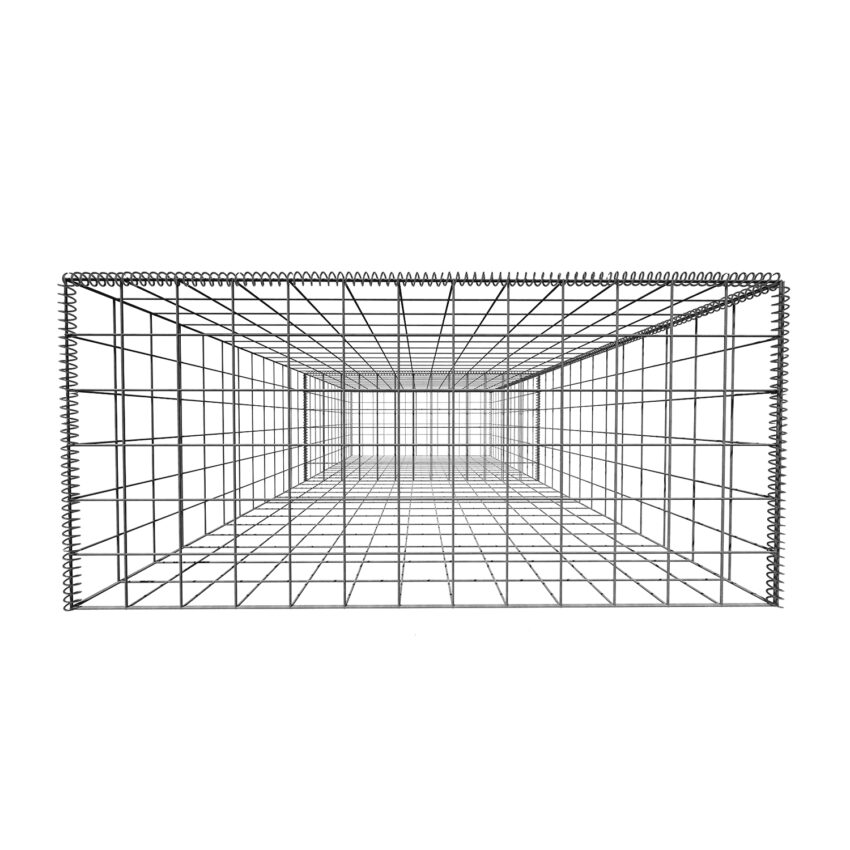

L195cm x D97.5cm x H45cm Gabion Wall Kit (5mm dia.)
£166.94 inc. VAT
In StockQuantity | Price |
---|---|
5 - 14 | £161.93 |
15 - 29 | £156.92 |
30 - 49 | £151.92 |
50 - 149 | £141.90 |
150 - 1000 | £136.89 |
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Galfan Coated |
Colour | Grey |

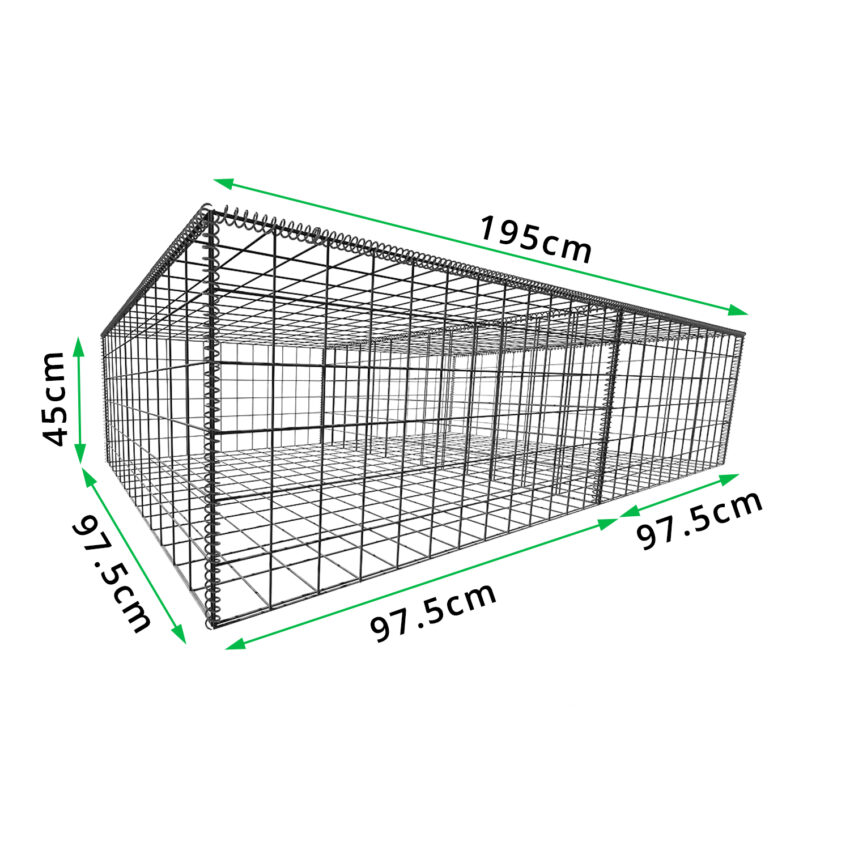

Overall Length | 195cm |
Overall Depth | 97.5cm |
Overall Height | 45cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 5mm |

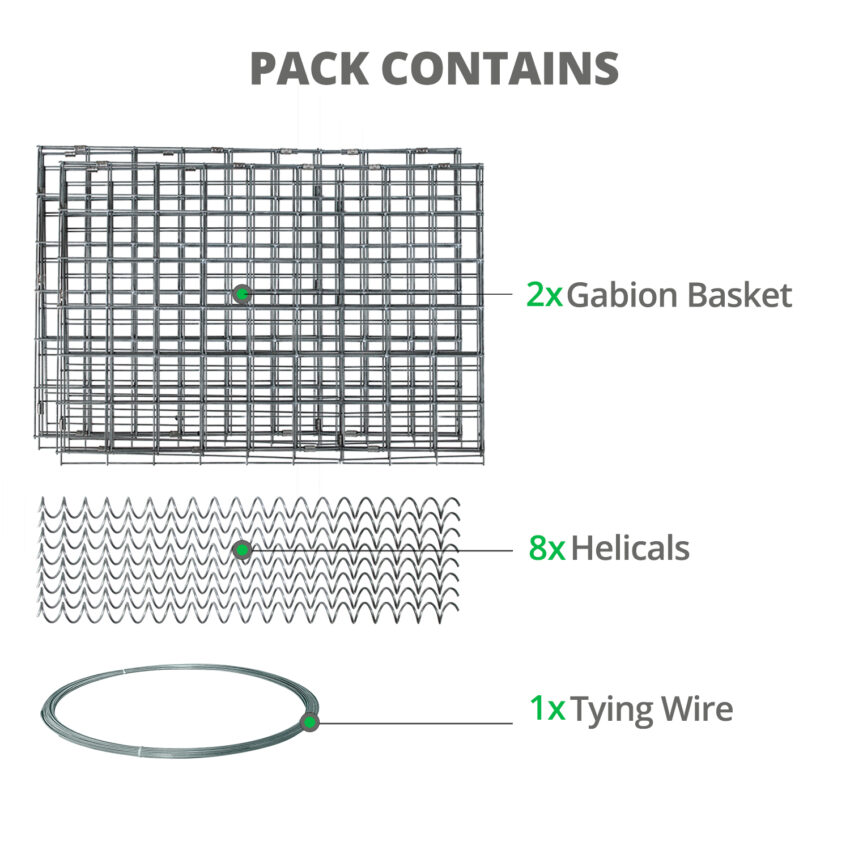

Gabion Quantity | 2 |
Gabion Dimensions | L97.5cm x D97.5cm x H45cm |
Helical Quantity | 8 |
Helical Dimensions | 1 meter each (need to be cut to size as required) |
Comes With | FREE Tying Wire |
Tensile Strength Range | 540-770 N/mm25 |
Weld Strength | 75% of min. wire tensile strength |
Site Categories | C2 to C4 |
Conforms to | BS EN 10223-8:2036 |
Life Expectancy | Min. 50 years for C2 |
Manufactured in | UK |
Stone Weight Required (kg) | 1550 |
Bags of Granite Required | 2 |
Bags of Limestone Required | 2 |
Shipping Dimensions | 60mm x 450mm x 975mm |
