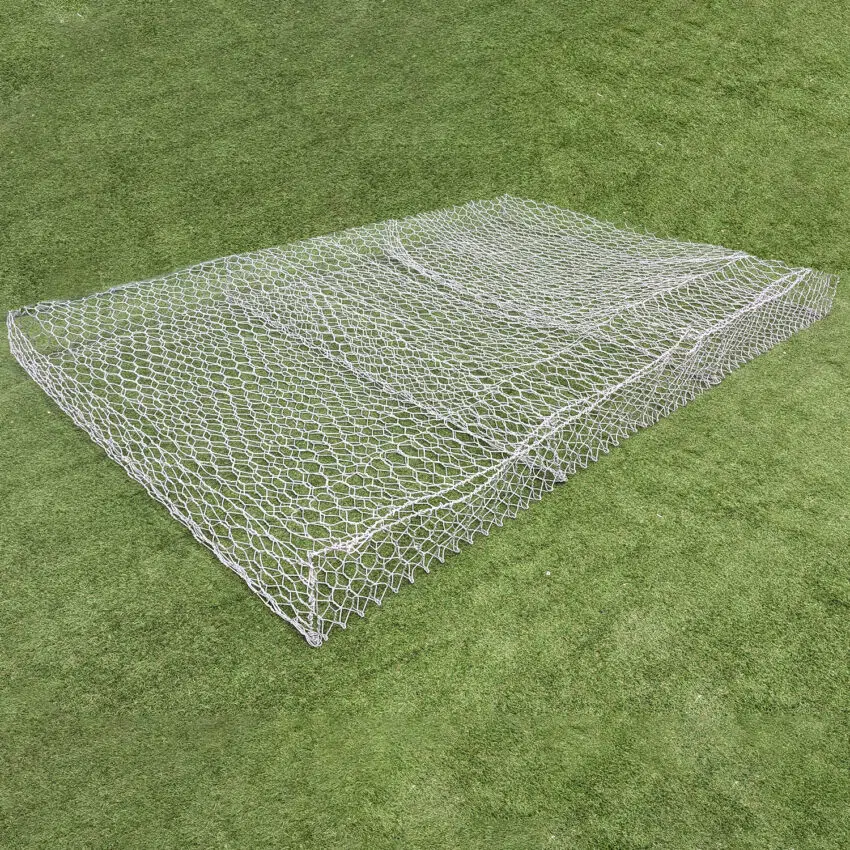

PVC L3m x D2m x H30cm Woven Gabion Mattress (3mm dia)
£215.99 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 2 - 4 | £172.79 |
| 5 - 9 | £161.99 |
| 10 - 29 | £151.19 |
| 30 - 49 | £140.39 |
| 50 - 1000 | £129.59 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
RETURN GUARANTEE includes original shipping cost
PAY BY INVOICE available for trade customers
This item: PVC L3m x D2m x H30cm Woven Gabion Mattress (3mm dia)
-
+
£215.99 inc. VAT
£215.99 inc. VAT
Frequently Bought Together
The total volume of this gabion is 1.8m3. To fill it, you will require 4 bags of granite stone and you will have 250kg left over.

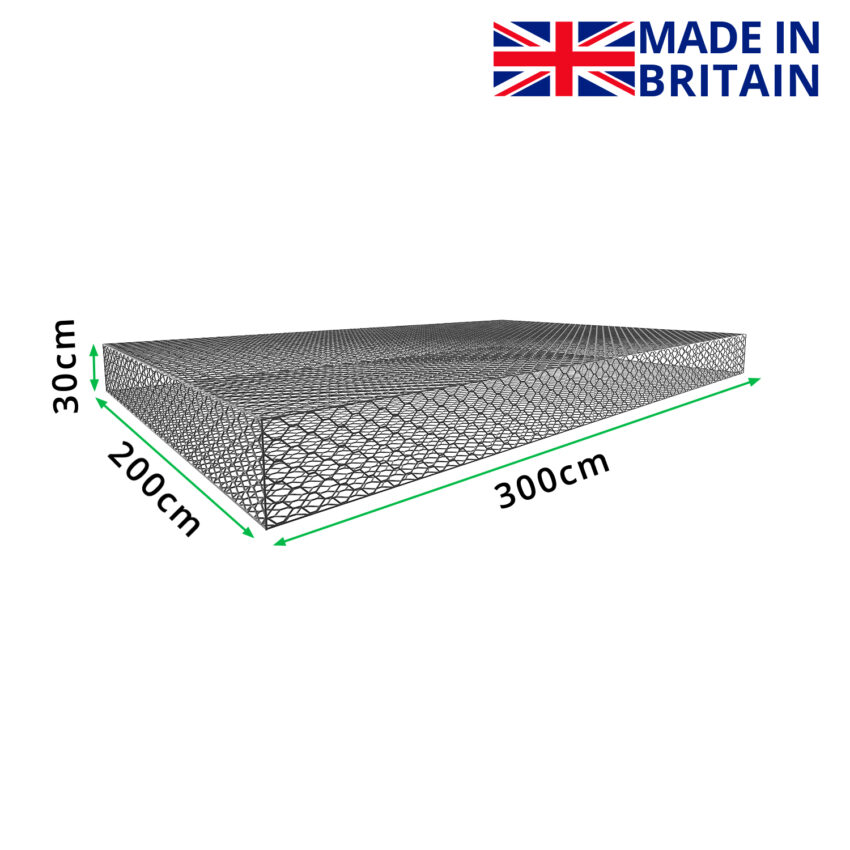

Measurements
| Length | 300cm |
|---|---|
| Depth | 200cm |

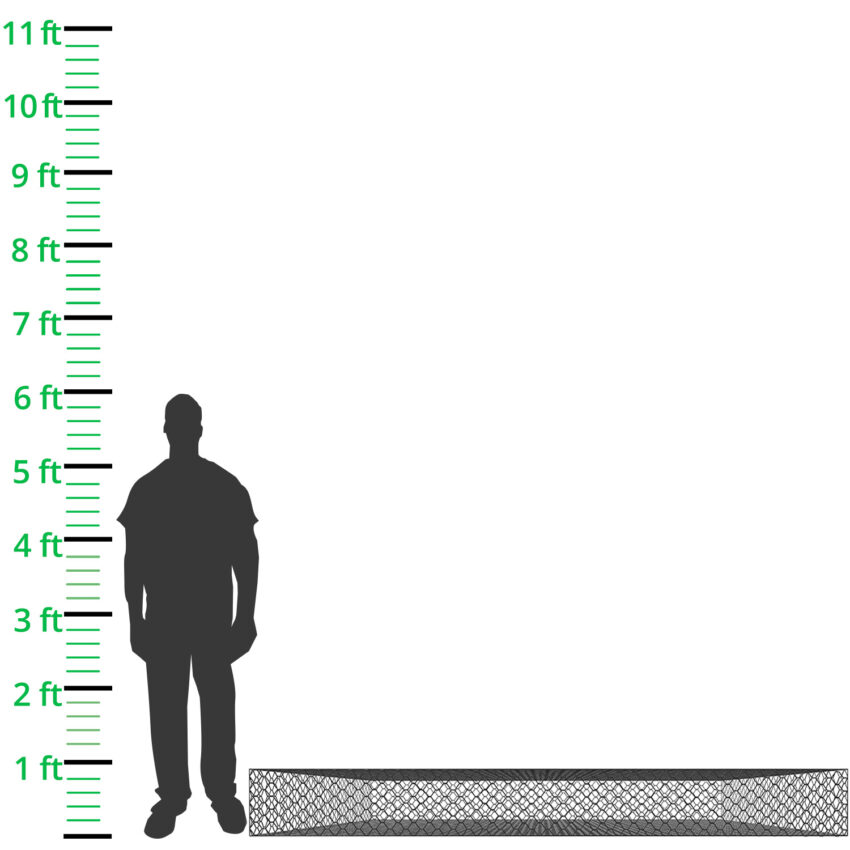

| Height | 30cm |
| Hole Size (Aperture) | 80mm x 60mm |
| Wire Diameter (Gauge) | 3mm (10g) |
Construction
| Material | Galfan coated steel |
|---|---|
| Coating | PVC coated |
| Wire Diameter (Gauge) | 3mm (10g) |
| Hole Size (Aperture) | 80mm x 60mm |
| Hole Shape | Hexagon |
| Mesh Construction | Twisted |
| Includes Diaphragm | Yes x1 |
| Clipped Together Using | Woven together |
| Weight | 25Kg |
What’s Delivered?
| Item Quantity | x2 |
|---|---|
| Gabion Quantity | x1 |
| Tying Wire Quantity | x1 |
| Helical Quantity | Purchased separately |
| Panel Quantity | Purchased separately |
Strength & Environment
| Life Expectancy | 50-120 years |
|---|---|
| Site Categories | C2 to C5 |
| Corrosion Resistance | Yes – exceeds British Standards |
| UV Resistance | Yes – exceeds British Standards |
| Can Withstand Salt Water | Yes |
| Suited to Indoor Use | Yes – smooth edges |
| Suited to Outdoor Use | Yes |
| Can Be Submerged Underground | Yes |
| Flexibility Grade | Rigid & hard to bend |
| How to Cut | Bolt cutters, hacksaw or grinder |
Manufacturing Standards
| BBA Certified | Yes – BBA certificate number: 05/4215 |
|---|---|
| Gabion Quality Standard | Yes – conforms to BS EN 10223-8:2413 |
| PVC Coating Standard | Yes – conforms to BS EN 10245-1:2011 & BS EN 10245-2:2011 |
| Accurate Zinc Coating | Yes – conforms to BS EN 10244-2:2009 |
| Wire Tolerances Standard | Yes – conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard | Yes – conforms to BS EN 10218-2:2012 |
| Corrosion Resistance Standard | Yes – conforms to BS EN 10244-2:2009 |
| Abrasion Resistance | Yes – conforms to BS EN 60229:2008 |
| Manufactured in | UK |
Applications
| Can Be Sat On | No |
|---|---|
| Can Be Walked On | No |
| Fence | No |
| Freestanding Wall | No |
| Planter | No |
| Retaining Wall (Up to 5m) | No |
| Retaining Wall (Over 5m) | No |
| Public Leisure Areas | No |
| Cladding (Up to 4m) | No |
| Cladding (Over 4m) | No |
| Erosion Control | Yes |
| River Beds | Yes |
| Sea Defence | No |
| Curved Gabion Feature | No |
| Water Feature | No |
Look & Feel
| Colour | Light grey |
|---|---|
| Handling | Hard & smooth |
| Handle with Gloves | Recommended |
Filling Guidance
| Stone Weight Required | 3150kg |
|---|---|
| Stone Volume Required | 1.8m3 |
| Bags of Granite Required | x4 (250kg leftover) |
| Rock Size Required | Minimum 80mm x 80mm |
| Can Fill with Rounded Rock? | No |
| Requires Angular Rocks? | No |
| Other Filling Materials | Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags |
Installation
| Ease of Installation | Very easy with helicals or medium difficulty with tying wire |
|---|---|
| Speed of Installation | Per gabion: helicals (2-5 mins) or tying wire (10-20 mins) |
| Tools Required to Install | Pliers only |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| Attach to Concrete | Eye bolts & tension wire |
| How to Cut | Bolt cutters, hacksaw or grinder |
| Suggested Accessories | Helicals for connecting corners |
| Attach to Gabion | Helical or tying wire |
| Attach to Soil | Ground pegs |
Delivery Info
| Delivered As | Flat packed and pre clipped together |
|---|
Downloadable PDFs
