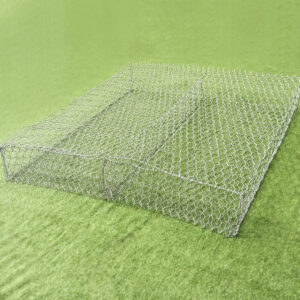

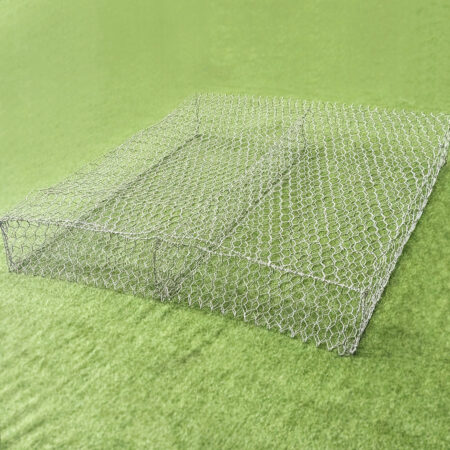

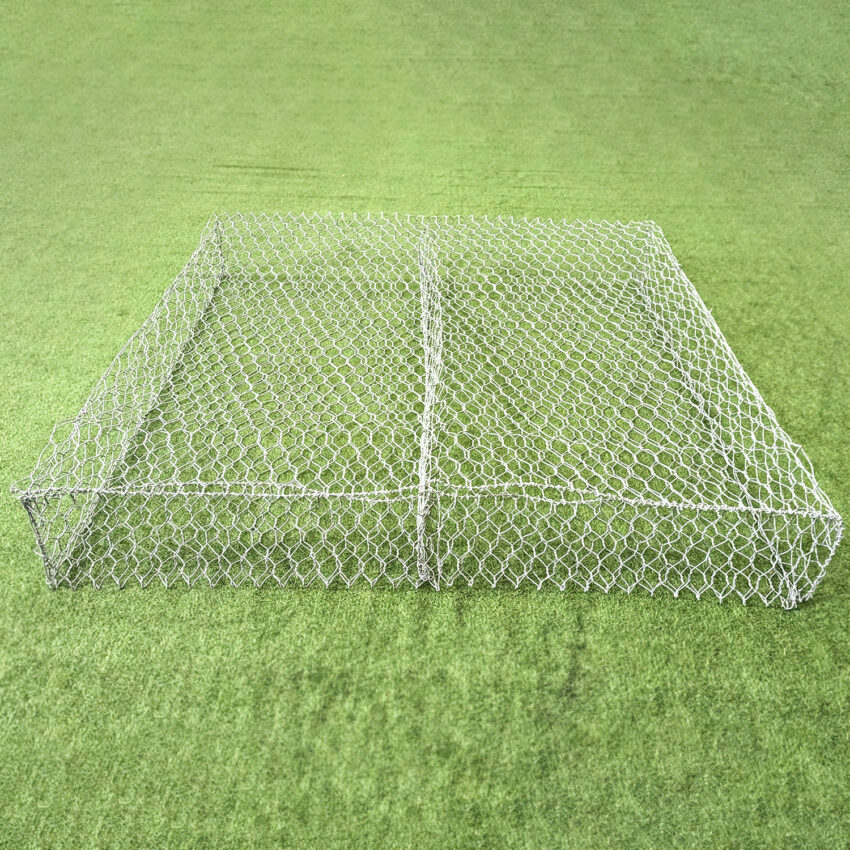

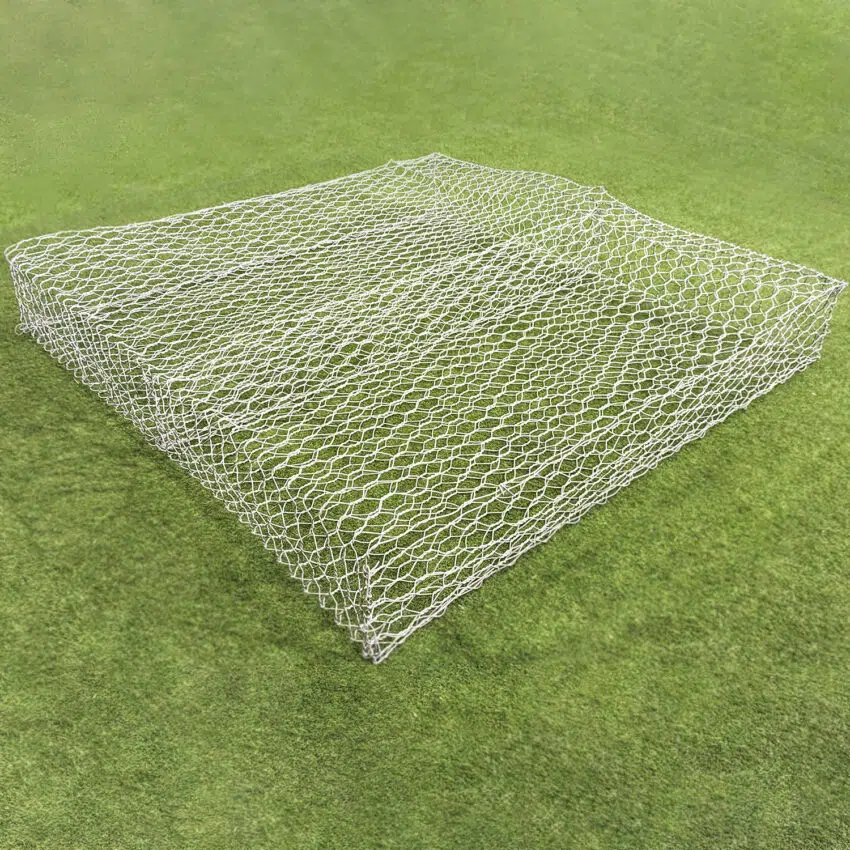

PVC L2m x D2m x H30cm Woven Gabion Mattress (3mm dia)
£121.62 inc. VAT
Email when stock available
This item: PVC L2m x D2m x H30cm Woven Gabion Mattress (3mm dia)
Out of stock
-
+
£121.62 inc. VAT
£121.62 inc. VAT
Frequently Bought Together
The total volume of this gabion is 1.2m3. To fill it, you will require 3 bags of granite stone and you will have 430kg left over.
Made to British Standards, including BS EN 10223-8 for welded mesh gabions, and independently tested by the BBA. See our certificates and standards

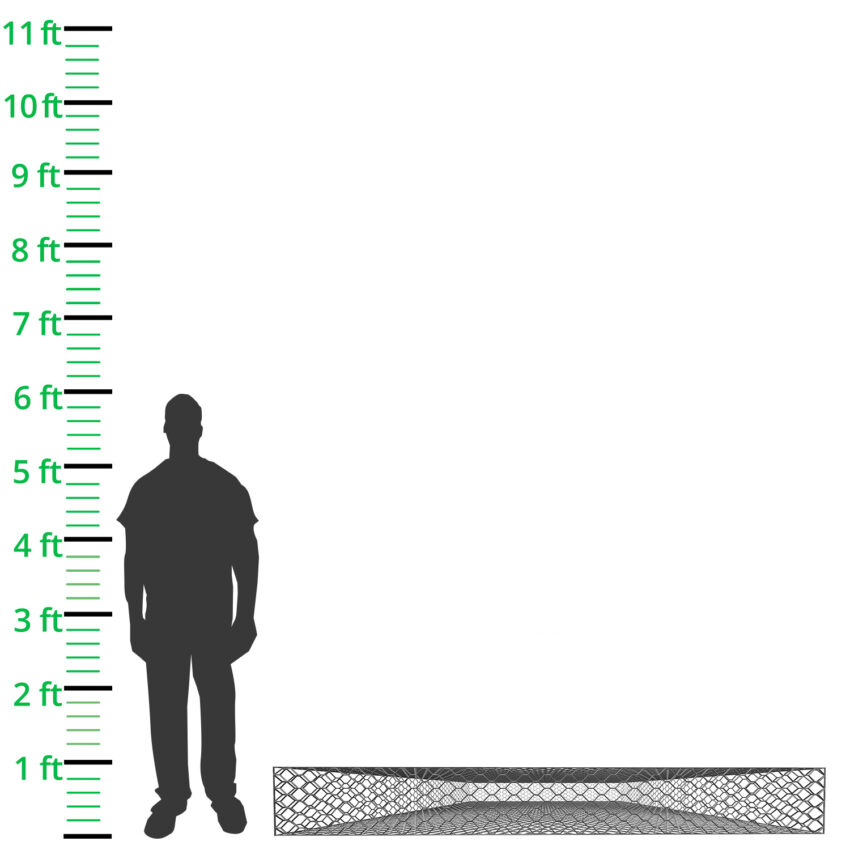

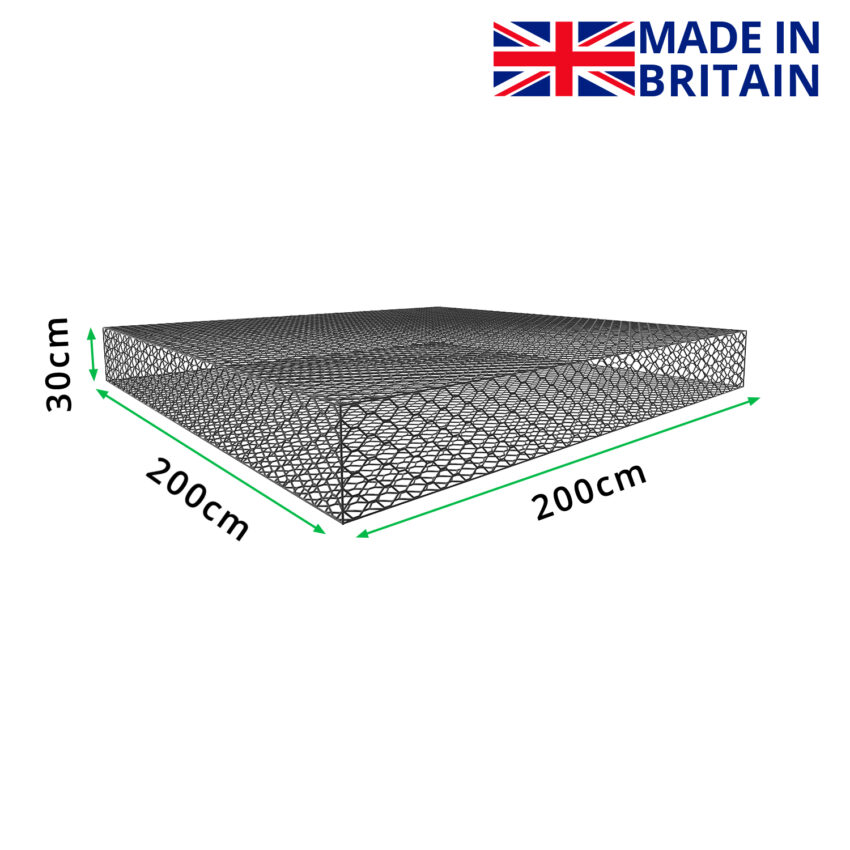

Measurements
| Length | 200cm |
|---|---|
| Depth | 200cm |
| Height | 30cm |
| Hole Size (Aperture) | 80mm x 60mm |
| Wire Diameter (Gauge) | 3mm (10g) |

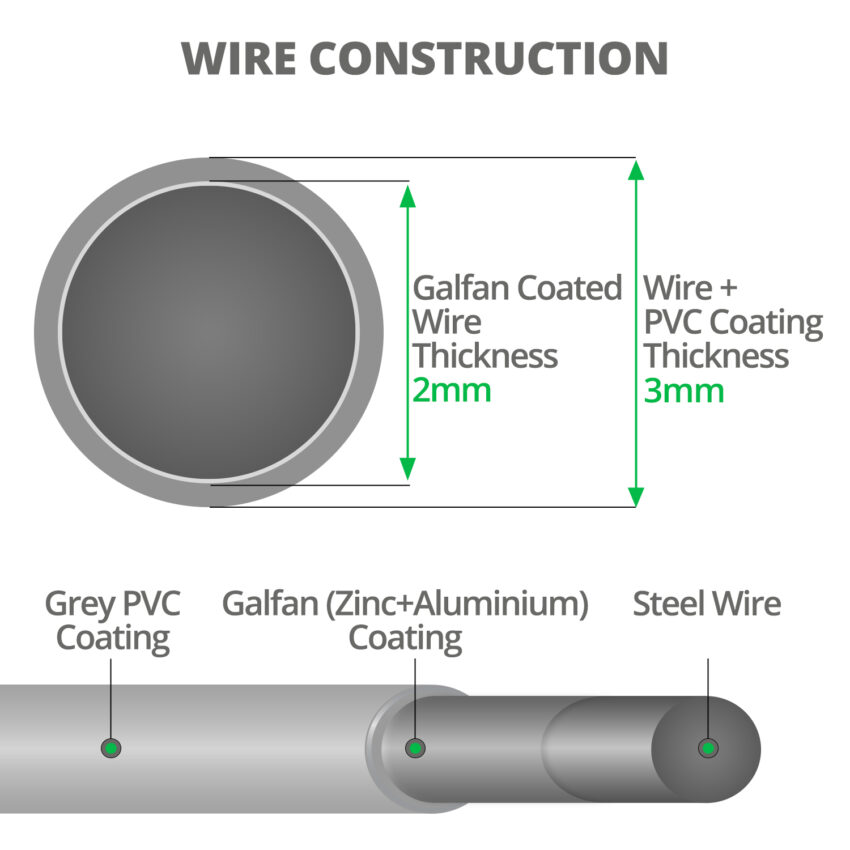

Construction
| Material | Galfan coated steel |
|---|---|
| Coating | PVC coated |
| Wire Diameter (Gauge) | 3mm (10g) |
| Hole Size (Aperture) | 80mm x 60mm |

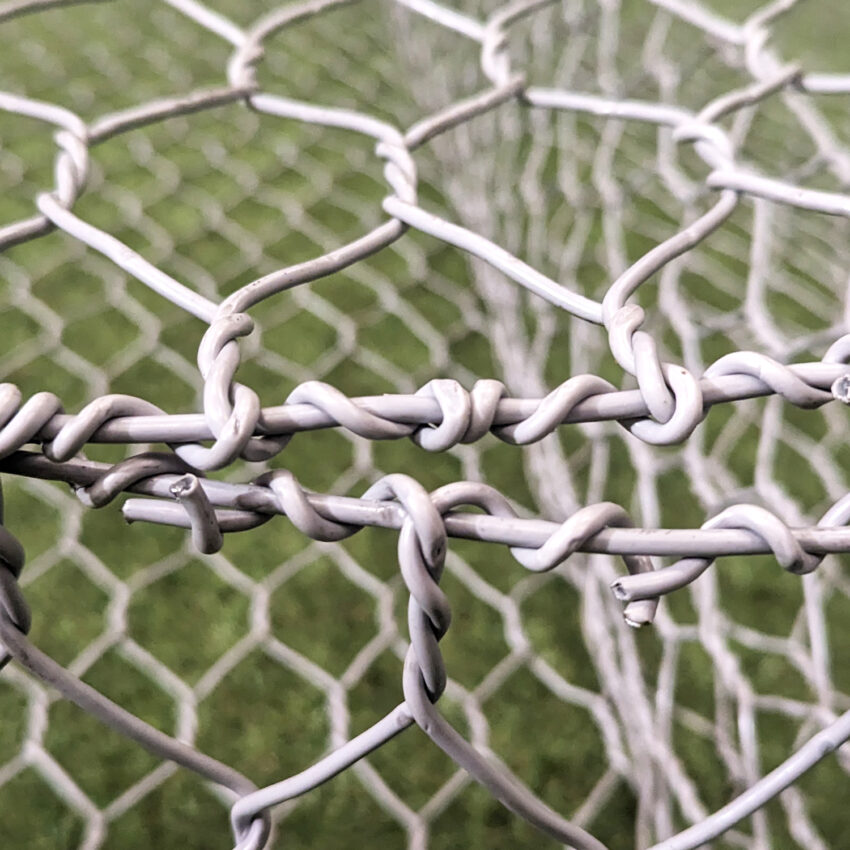

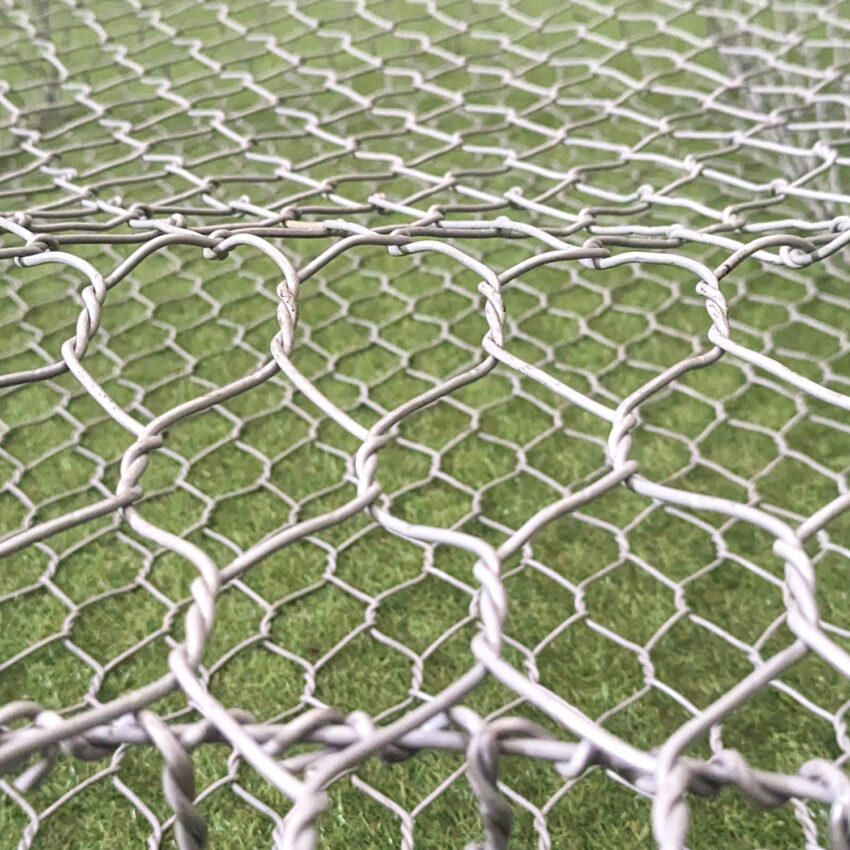

| Hole Shape | Hexagon |
| Mesh Construction | Twisted |
| Includes Diaphragm | Yes x1 |
| Clipped Together Using | Woven together |
| Weight | 18kg |

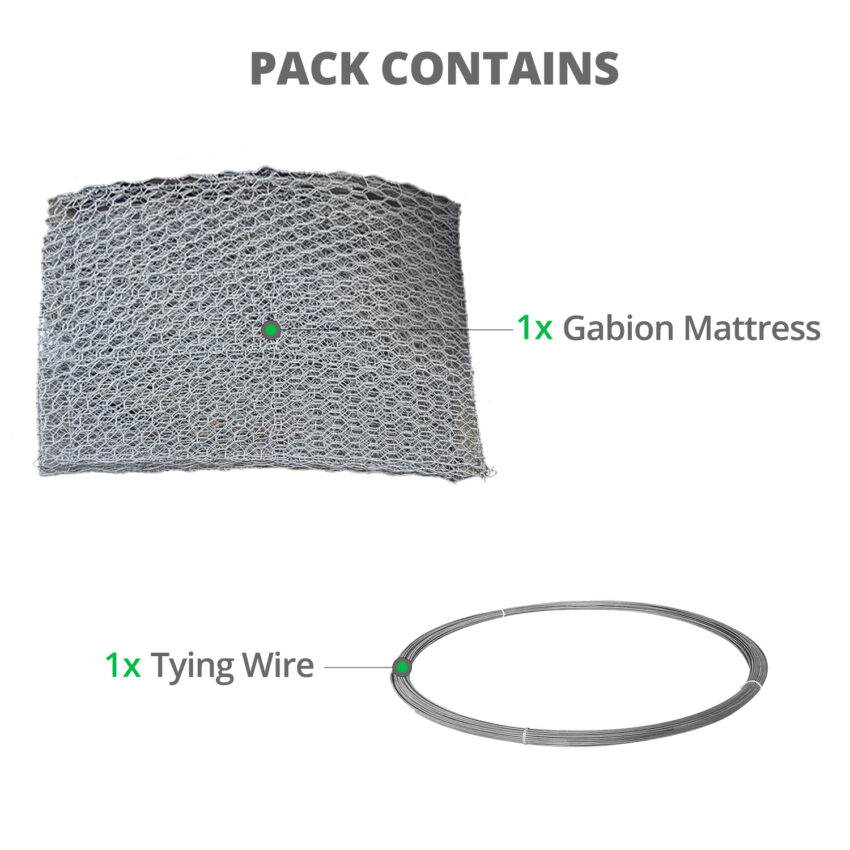

What’s Delivered?
| Gabion Quantity | x1 |
|---|---|

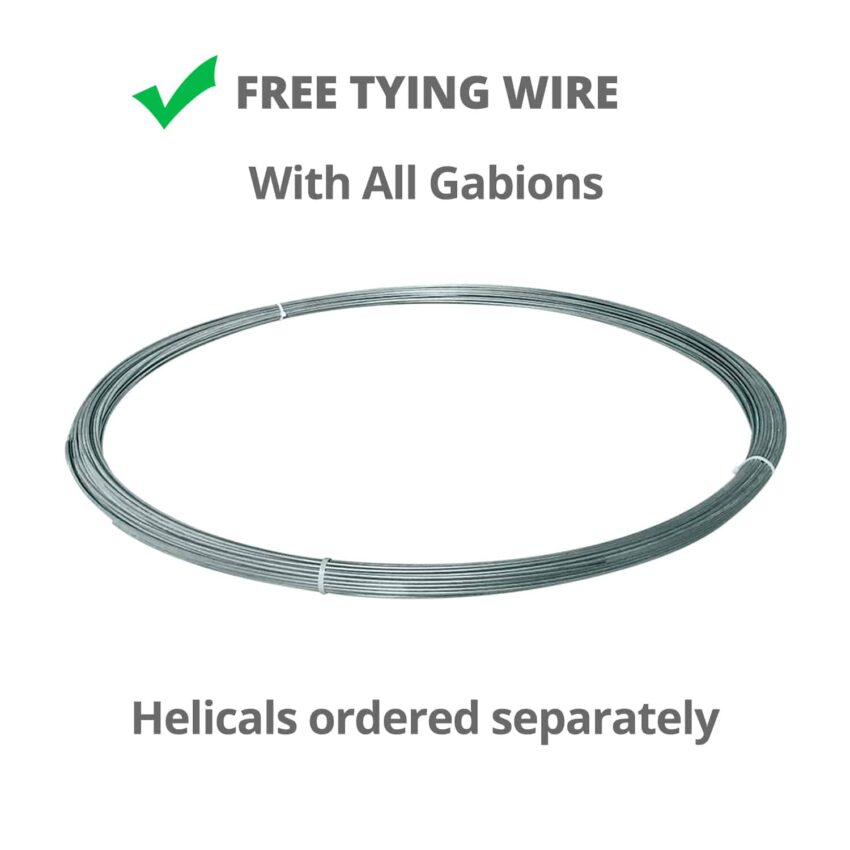

| Lacing Wire Quantity | x1 |
| Helicoil Quantity | Sold separately |
| Backfilling Panel Quantity | Sold separately |
Strength & Environment
| Life Expectancy | Up to 120 years |
|---|---|
| Site Categories | Inland and coastal sites |

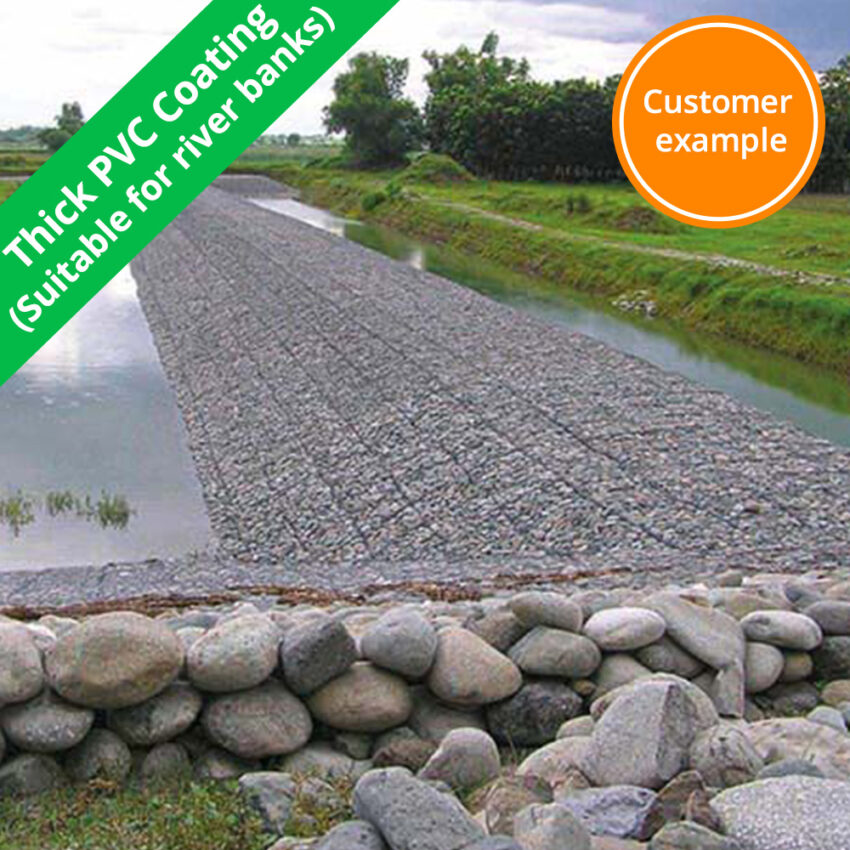

| Corrosion Resistance | Yes – Galfan coating with PVC outer layer |
| UV Resistance | Yes – UV-stabilised PVC to BS EN 10245 |
| Can Withstand Salt Water | Yes |
| Suited to Indoor Use | Yes – smooth edges |
| Suited to Outdoor Use | Yes |
| Can Be Submerged Underground | Yes |
| Flexibility Grade | Rigid & hard to bend |
| How to Cut | Bolt cutters / hacksaw / angle grinder |
Manufacturing Standards
| BBA Certified | Yes – BBA certificate number: 05/4215 |
|---|---|
| Gabion Quality Standard | Yes – conforms to BS EN 10223-8:2013 |
| PVC Coating Standard | Yes – meets BS EN 10245-1 and 10245-2 (PVC coated wire) |
| Accurate Zinc Coating | Yes – meets BS EN 10244-2 (zinc and zinc alloy coatings on steel wire) |
| Wire Tolerances Standard | Yes – meets BS EN 10218-2 (wire dimensions and tolerances) |
| Abrasion Resistance | Yes – PVC coating abrasion tested to EN 60229 |
Look & Feel
| Colour | Light grey |
|---|---|
| Handling | Hard & smooth |
| Handle with Gloves | Recommended |
Installation
| Ease of Installation | Very easy with helicoils or medium difficulty with lacing wire |
|---|---|
| Speed of Installation | Free lacing wire or helicoils for quick install |
| Tools Required to Install | Pliers only |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| Attach to Concrete | Eye bolts & tension wire |
| How to Cut | Bolt cutters / hacksaw / angle grinder |
| Suggested Accessories | Helicoils for connecting corners |
| Attach to Gabion | Helicoils or lacing wire |
| Attach to Soil | Ground pegs |
Delivery Info

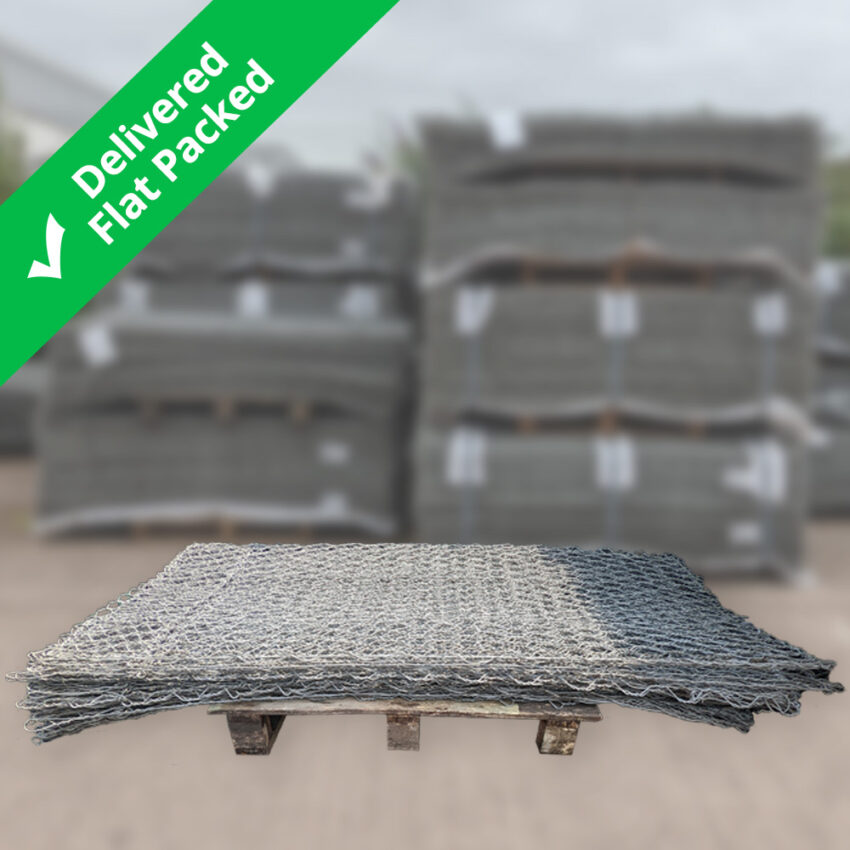

| Delivered As | Flat packed and pre clipped together |
|---|
