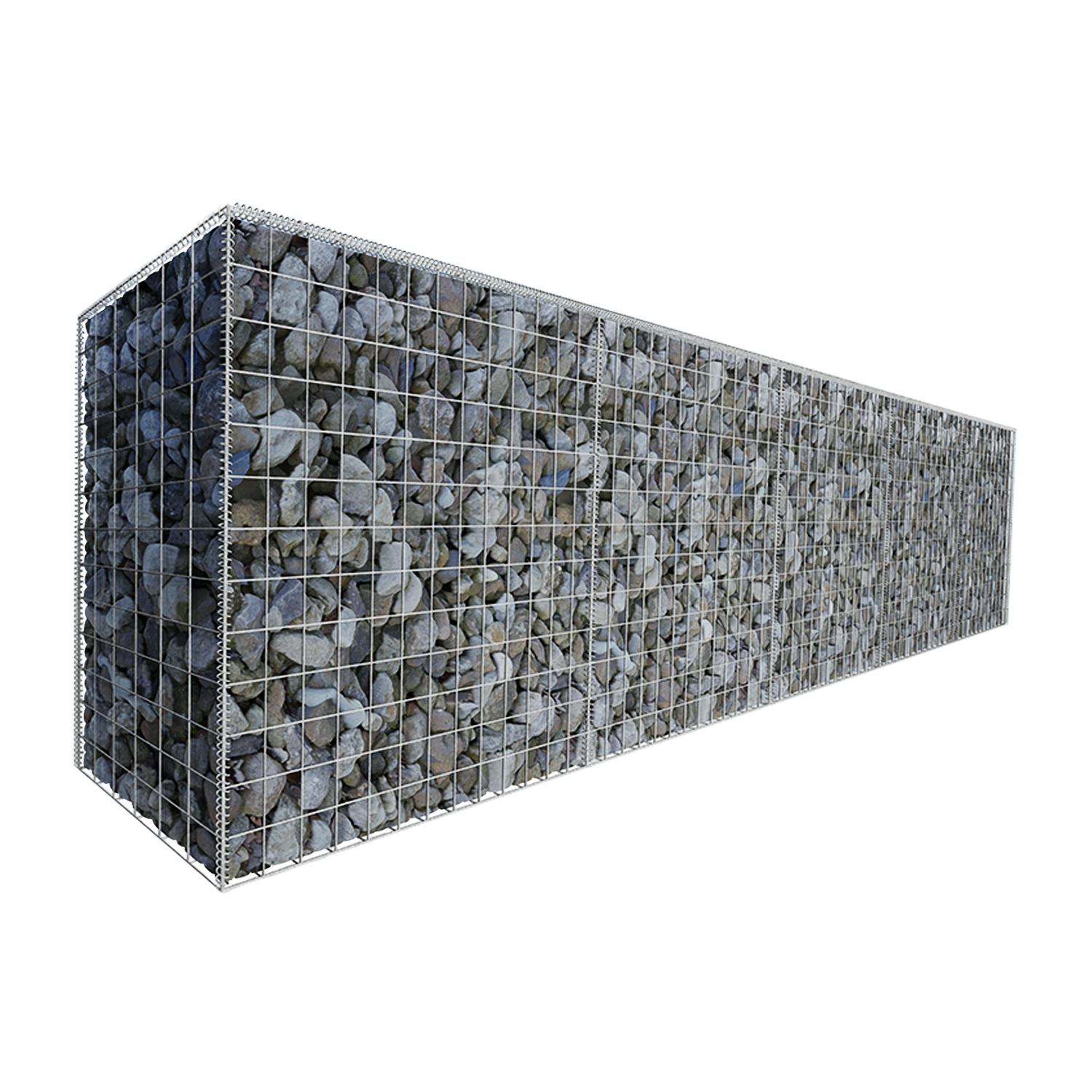

L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks

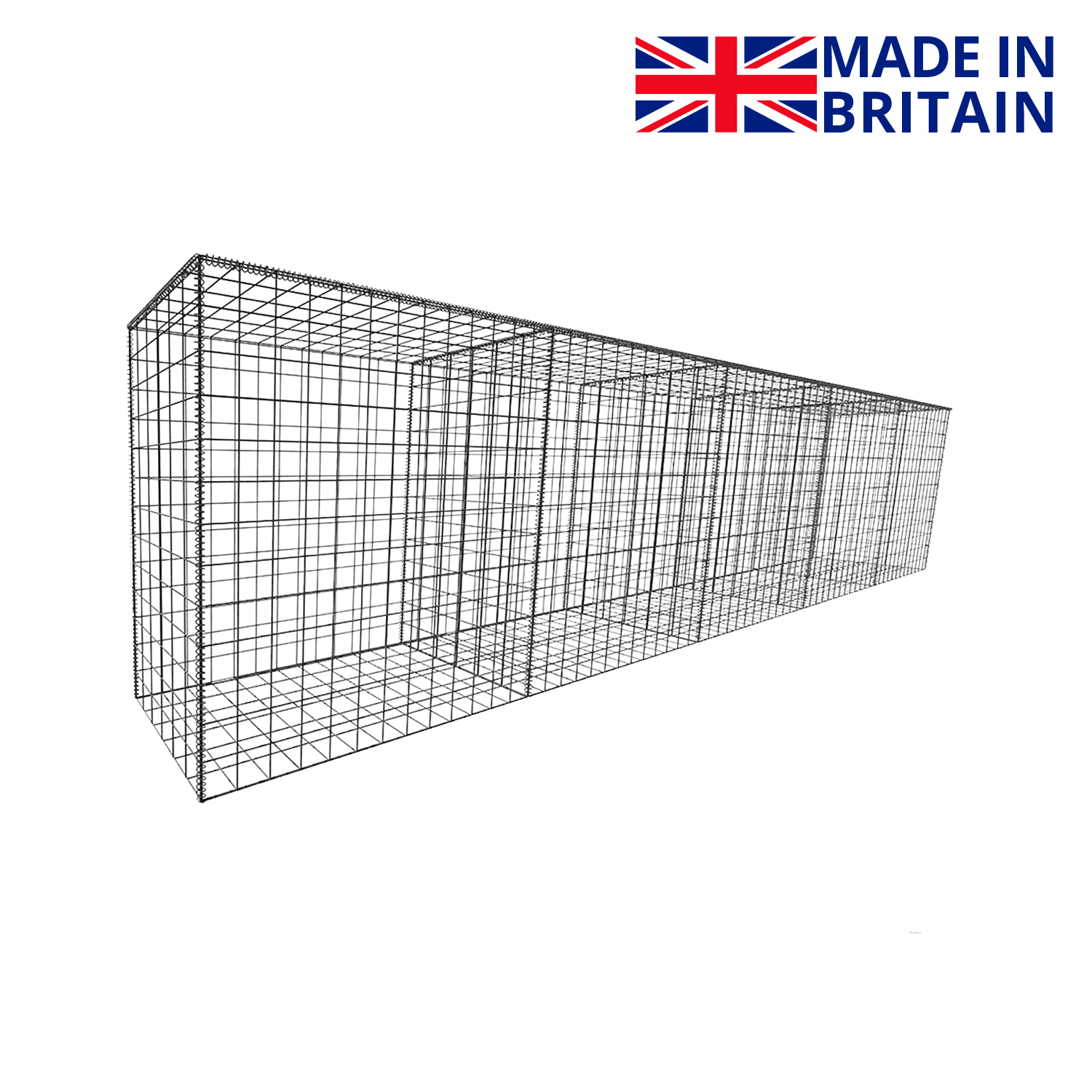

L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

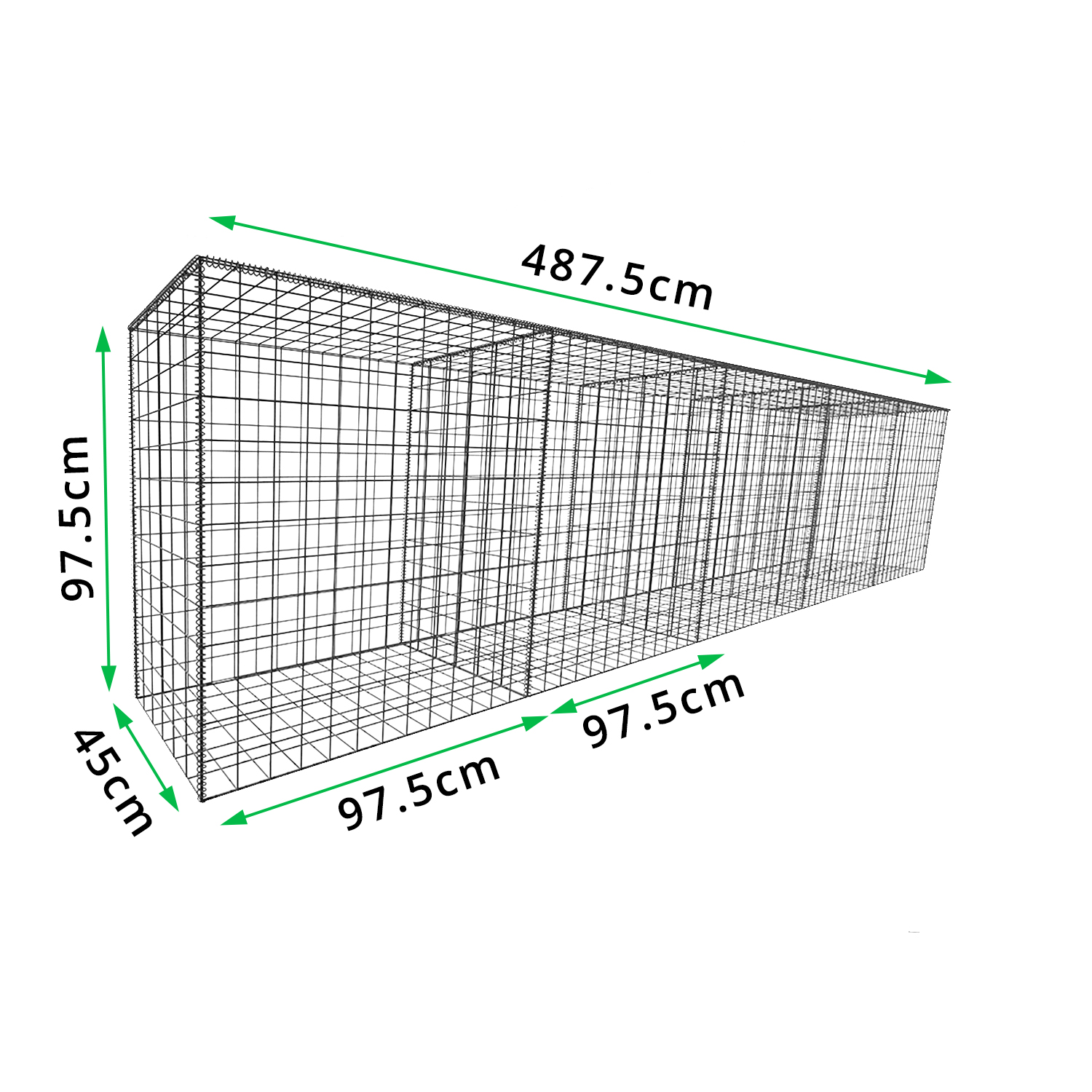

L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-measurements

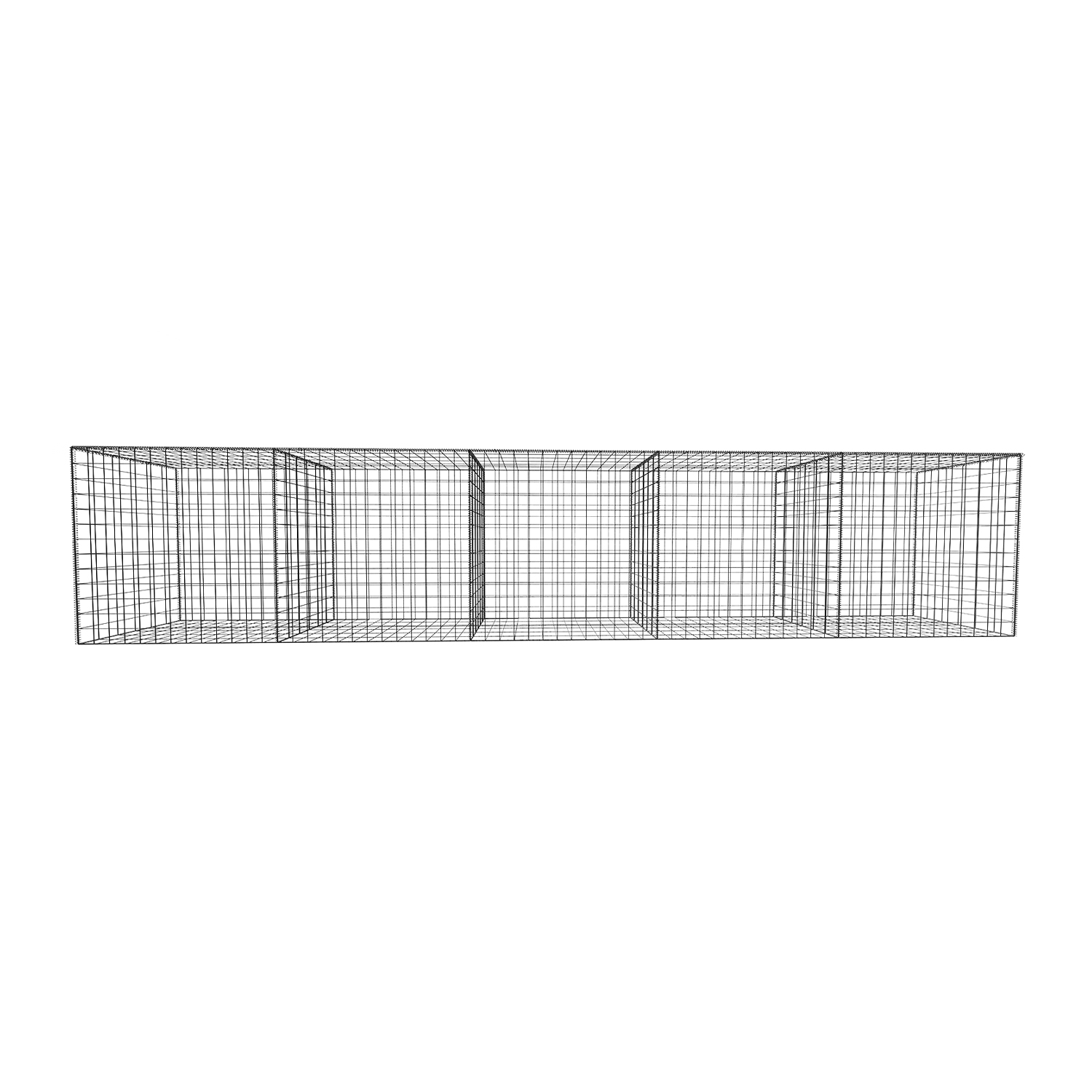

L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-front

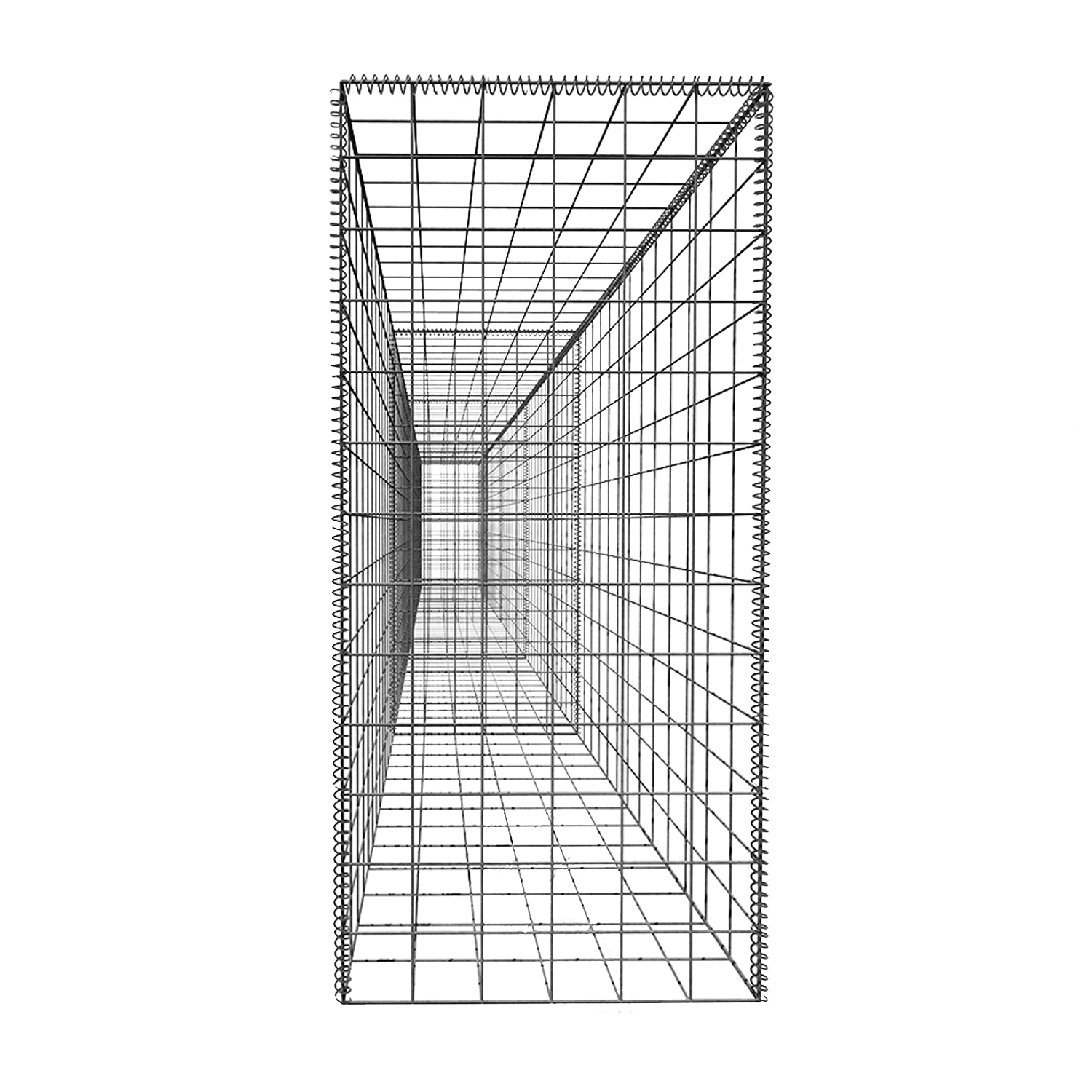

L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-side
Installation-instructions

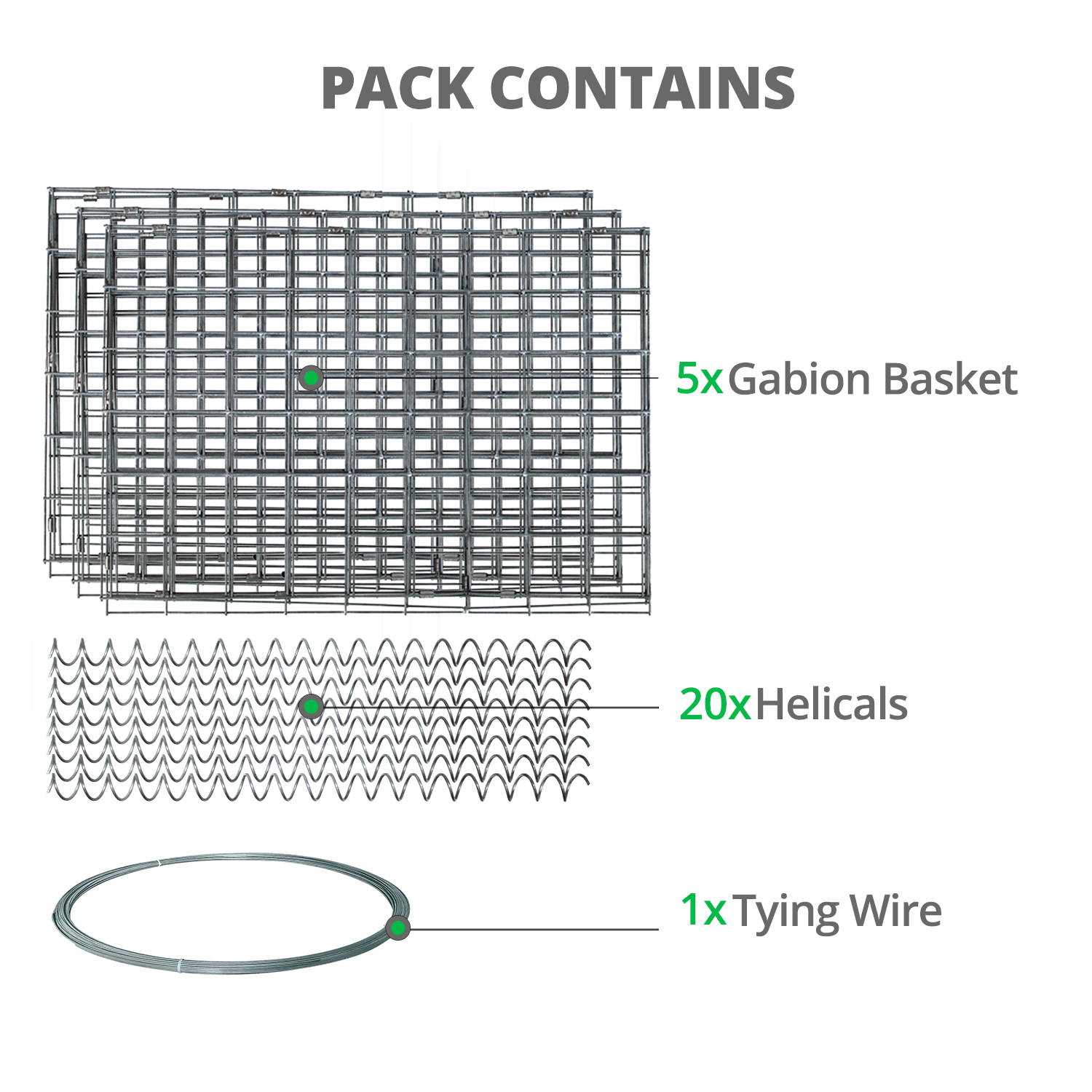

gabion-pack-5-baskets-20-helicals
4mm-straight-gabion
gabion-stone-required
as-seen-on-itv-love-your-garden-with-alan-titchmarsh
galfan-coated-gabions-retaining-walls
gabion-wall-long-lifespan
galfan-coated-gabions-decorative-wall
galfan-coated-gabions-freestanding-wall
galfan-coated-gabions-water-features
galfan-coated-gabion-large-stock

L487.5cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)

L390cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L390cm x D45cm x H97.5cm Gabion Wall Kit (4mm dia.) £235.50 inc. VAT
L195cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks
L195cm x D97.5cm x H97.5cm Gabion Wall Kit (4mm dia.) £151.80 inc. VAT

£417.35 inc. VAT

In Stock
Quantity Price
2 - 5 £404.83
6 - 11 £392.31
12 - 19 £379.79
20 - 59 £354.75
60 - 1000 £342.23
Product Info
delivery-icon 4 WORKING DAY DELIVERY available for this product
free-shipping-icon FLAT FEE DELIVERY cost starting at £24.99
guarantee-icon RETURN GUARANTEE includes original shipping cost
guarantee-icon PAY BY INVOICE available for trade customers
SKU: EM.WALL97.5H20 Categories: ,

Frequently bought together

L487.5cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.) ➕ Gabion Corner Ties (Pack of 4) ➕ 5m x 4.5m Polypropylene Geotextile
=
Total price
£440.01 inc. VAT



Measurements
Length

L487.5cm
Depth

45cm
Height

97.5cm
Hole Size (Aperture)

75mm x 75mm
Wire Diameter (Gauge)

5mm (6g)
Construction
Material

Galfan coated steel
Coating

Galfan coated
Wire Diameter (Gauge)

5mm (6g)
Hole Size (Aperture)

75mm x 75mm
Hole Shape

Square
Mesh Construction

Welded
Includes Diaphragm

No
Clipped Together Using

Galfan coated steel C clips
What’s Delivered?
Item Quantity

UNKNOWN
Tying Wire Quantity

x1
Helical Quantity

Purchased separately
Panel Quantity

Purchased separately
Strength & Environment
Life Expectancy

50-100 years
Site Categories

C2 to C5
Corrosion Resistance

Yes – conforms to British Standards
UV Resistance

Yes – conforms to British Standards
Can Withstand Salt Water

No
Weld Strength

75% of min. wire tensile strength
Tensile Strength Range

540-770 N/mm2
Flexibility Grade

Very rigid & cannot bend by hand
How to Cut

Bolt cutters, hacksaw or angle grinder
Manufacturing Standards
BBA Certified

Yes – BBA certificate number: 05/4215
Gabion Quality Standard

Yes – conforms to BS EN 10223-8:2413
Accurate Zinc Coating

Yes – conforms to BS EN 10244-2:2009
Wire Tolerances Standard

Yes – conforms to BS EN 10218-2:2012
Hole Size (Aperture) Standard

Yes – conforms to BS EN 10218-2:2012
Corrosion Resistance Standard

Yes – conforms to BS EN 10244-2:2009
Abrasion Resistance Standard

Yes – conforms to BS EN 60229:2008
Manufactured in

UK
Applications
Can Be Sat On

Yes
Can Be Walked On

Yes
Fence

Yes
Freestanding Wall

Yes
Planter

Yes
Retaining Wall (Up to 5m)

UNKNOWN
Retaining Wall (Over 5m)

UNKNOWN
Public Leisure Areas

Yes
Cladding (Up to 4m)

Yes
Cladding (Over 4m)

Yes
Erosion Control

Yes
River Beds

Yes
Sea Defence

No
Curved Gabion Feature

Yes
Water Feature

Yes
Look & Feel
Colour

Grey
Handle with Gloves

Recommended
Filling Guidance
Stone Volume Required

UNKNOWN
Rock Size Required

Minimum 80mm x 80mm
Can Fill with Rounded Rock?

No
Requires Angular Rocks?

Yes
Other Filling Materials

Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags
Installation
Ease of Installation

Very easy with helicals or medium difficulty with tying wire
Speed of Installation

Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
Tools Required to Install

Pliers only
Downloadable Instructions

Yes – downloadable PDF & video
Attach to Wood

U staples
How to Cut

Bolt cutters, hacksaw or angle grinder
Attach to Gabion

Helical or tying wire
Prevent Bulging with

Corner ties & middle panel
Delivery Info
Delivered As

Flat packed and pre clipped together

Downloadable PDFs

Specification

Certification

Installation

gabions
gabion-kitchen-table
gabion-boundary-wall
gabion-wall-supporting-shed
gabion-boundary
L97.5cm-x-D45cm-x-H97.5cm-Welded-Gabion
5 × L97.5cm x D45cm x H97.5cm Welded Gabion (5mm dia.)
£76.99 inc. VAT
WF-Helical-1m
20 × Helical Connector - 1m
£1.62 inc. VAT

Related products

  • L390cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L390cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L390cm x D97.5cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £442.74 inc. VAT
    Add to cart
    Length : L390cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L97.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L97.5cm x D97.5cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £114.33 inc. VAT
    Add to cart
    Length : 97.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Weight Required : 1670kg
    Bags of Granite Required : x2 (30kg leftover)
    Bags of Limestone Required : x2 (0kg leftover)
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Gabion Quantity : x1
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    L292.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L292.5cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L292.5cm x D97.5cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £333.27 inc. VAT
    Add to cart
    Length : L292.5cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    L390cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L390cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L390cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £335.50 inc. VAT
    Add to cart
    Length : L390cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips

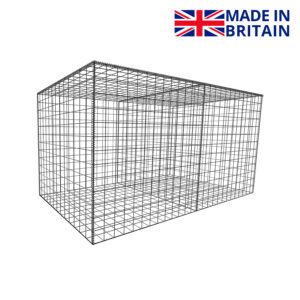

    L195cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L195cm-D97.5cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L195cm x D97.5cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £223.80 inc. VAT
    Add to cart
    Length : L195cm
    Depth : 97.5cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L487.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L487.5cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £417.35 inc. VAT
    Add to cart
    Length : L487.5cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
  • L195cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L195cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L195cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £170.18 inc. VAT
    Add to cart
    Length : L195cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips
    L292.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-with-rocks L292.5cm-D45cm-H97.5cm-Gabion-Wall-Kit-diagonal-made-in-britain

    L292.5cm x D45cm x H97.5cm Gabion Wall Kit (5mm dia.)
    £252.03 inc. VAT
    Add to cart
    Length : L292.5cm
    Depth : 45cm
    Height : 97.5cm
    Material : Galfan coated steel
    Coating : Galfan coated
    Wire Diameter (Gauge) : 5mm (6g)
    Hole Size (Aperture) : 75mm x 75mm
    Hole Shape : Square
    Mesh Construction : Welded
    Includes Diaphragm : No
    Colour : Grey
    Manufactured in : UK
    Handle with Gloves : Recommended
    Weld Strength : 75% of min. wire tensile strength
    Corrosion Resistance : Yes - conforms to British Standards
    Site Categories : C2 to C5
    UV Resistance : Yes - conforms to British Standards
    Life Expectancy : 50-100 years
    Can Withstand Salt Water : No
    How to Cut : Bolt cutters - hacksaw or angle grinder
    Tensile Strength Range : 540-770 N/mm2
    Flexibility Grade : Very rigid & cannot bend by hand
    Tools Required to Install : Pliers only
    Prevent Bulging with : Corner ties & middle panel
    Speed of Installation : Per gabion: helicals (2-5 mins) or tying wire (10-20 mins)
    Ease of Installation : Very easy with helicals or medium difficulty with tying wire
    Downloadable Instructions : Yes - downloadable PDF & video
    Attach to Wood : U staples
    Attach to Gabion : Helical or tying wire
    Stone Volume Required : UNKNOWN
    Rock Size Required : Minimum 80mm x 80mm
    Requires Angular Rocks? : Yes
    Can Fill with Rounded Rock? : No
    Other Filling Materials : Any material over 80mm x 80mm such as logs - bags of soil - bricks - plastic bottles. - rubble bags
    Gabion Quality Standard : Yes - conforms to BS EN 10223-8:2413
    BBA Certified : Yes - BBA certificate number: 05/4215
    Wire Tolerances Standard : Yes - conforms to BS EN 10218-2:2012
    Hole Size (Aperture) Standard : Yes - conforms to BS EN 10218-2:2012
    Accurate Zinc Coating : Yes - conforms to BS EN 10244-2:2009
    Abrasion Resistance Standard : Yes - conforms to BS EN 60229:2008
    Corrosion Resistance Standard : Yes - conforms to BS EN 10244-2:2009
    Item Quantity : UNKNOWN
    Tying Wire Quantity : x1
    Helical Quantity : Purchased separately
    Panel Quantity : Purchased separately
    Can Be Walked On : Yes
    Can Be Sat On : Yes
    Fence : Yes
    Freestanding Wall : Yes
    Planter : Yes
    Retaining Wall (Up to 5m) : UNKNOWN
    Retaining Wall (Over 5m) : UNKNOWN
    Public Leisure Areas : Yes
    Cladding (Up to 4m) : Yes
    Cladding (Over 4m) : Yes
    Erosion Control : Yes
    River Beds : Yes
    Sea Defence : No
    Curved Gabion Feature : Yes
    Water Feature : Yes
    Delivered As : Flat packed and pre clipped together
    Clipped Together Using : Galfan coated steel C clips

Related Categories

Live Chat
(Mon - Fri / 9:00 AM - 4:00 PM)
See In TV
Payments

Blog | Shop | About | Contact

Privacy Policy | Terms & Conditions

Wire Fence is part of the Super Magic Bean group - VAT Registered: 344 7643 83 - Company Registration No: 11290483
