PVC L150cm x H97.5cm Welded Gabion Panel (3.2mm dia)
£18.99 inc. VAT
in Stock



SKU: EM.PAN13
See more in: Standard Size Panels
Description
Additional information
Material | Galfan Coated Steel |
---|---|
Construction | Bi-axial electrically welded square mesh |
Coating | Grey PVC Coated |

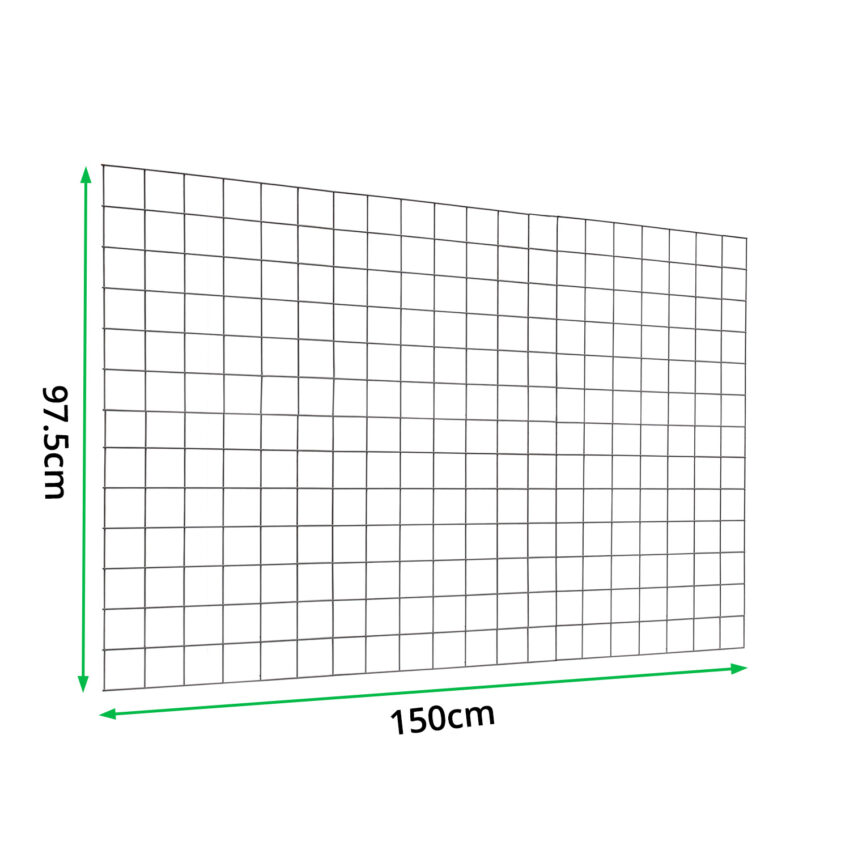

Length | 150cm |

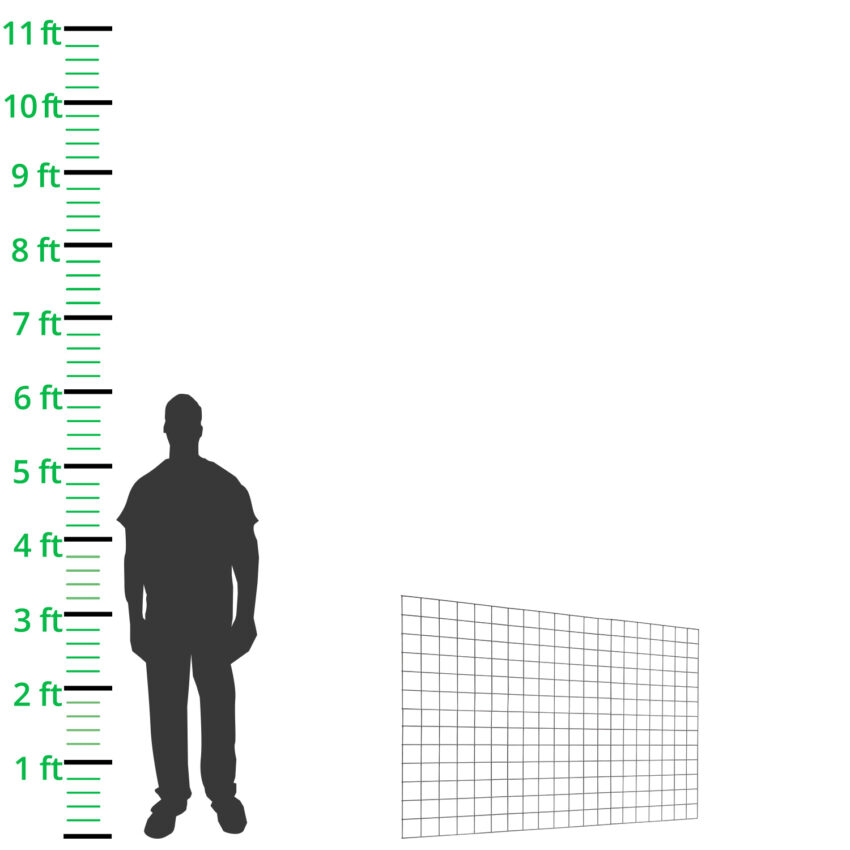

Height | 97.5cm |
Hole Size | 75mm x 75mm |
Wire Diameter | 3.2mm |
Weld Strength | 75% of min. wire tensile strength |
Colour | Grey |
Site Categories | C2 to C4 |
Conforms to | BS EN 10223-8:2013 |
Life Expectancy | Up to 50 yrs for C2 |
Manufactured in | UK |
Shipping Weight | 5 kg |
Shipping Dimensions | 9mm x 975mm x 1500mm |
