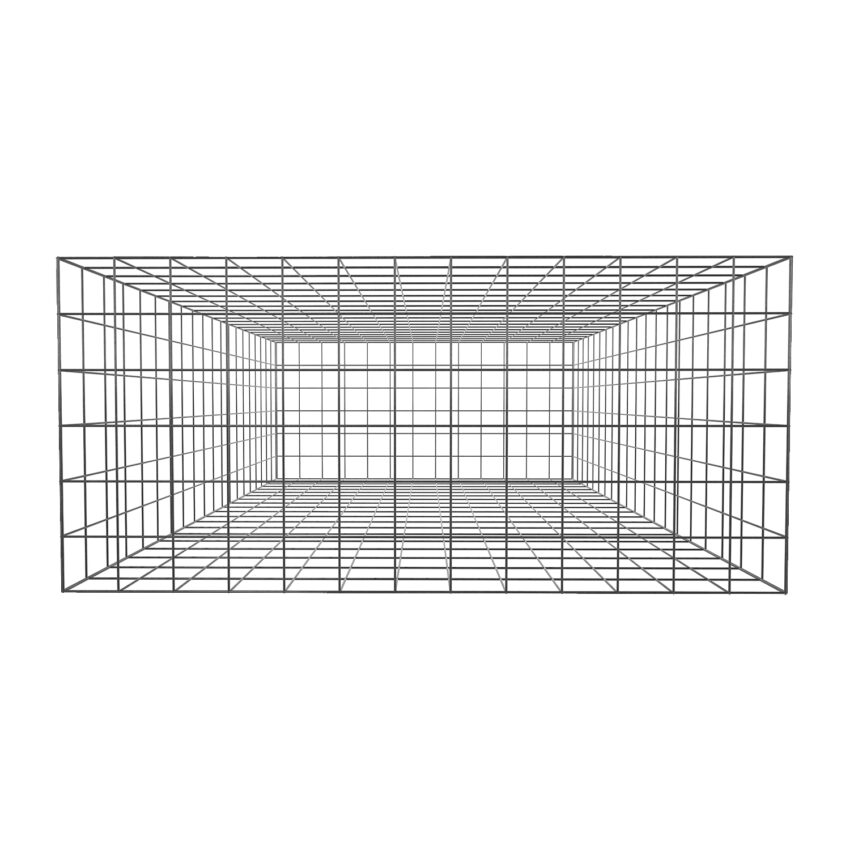

PVC L150cm x D97.5cm x H45cm Welded Gabion (3.2mm dia.) + Free Lacing Wire
£52.99 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 10 - 29 | £51.40 |
| 30 - 59 | £49.81 |
| 60 - 99 | £48.22 |
| 100 - 299 | £45.04 |
| 300 - 10000 | £43.45 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99

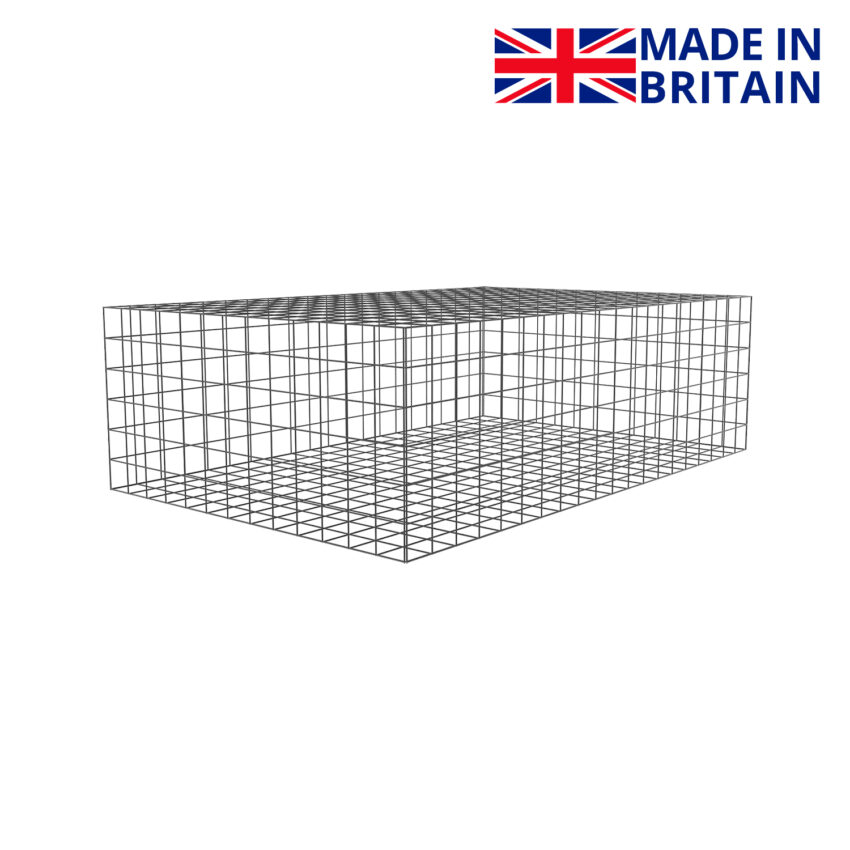

UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
This item: PVC L150cm x D97.5cm x H45cm Welded Gabion (3.2mm dia.) + Free Lacing Wire
-
+
£52.99 inc. VAT
£52.99 inc. VAT
Frequently Bought Together
The total volume of this gabion is 0.66m3. To fill it, you will require 2 bags of granite stone and you will have 510kg left over.

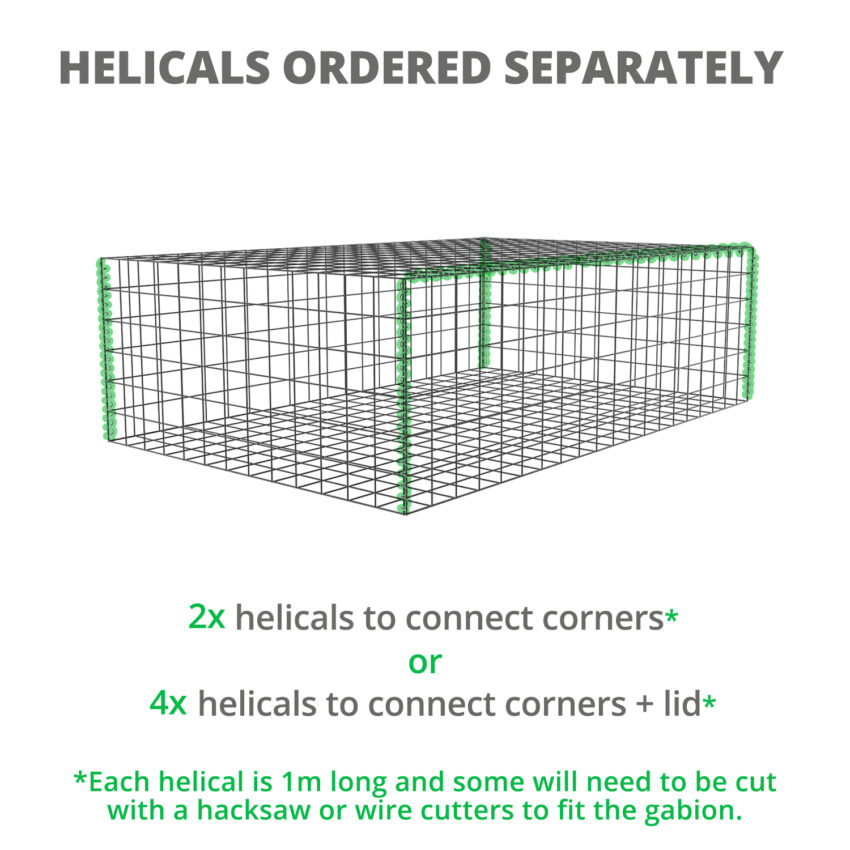

Helicals attach the corners of the gabion quicker than the tying wire that is delivered FREE with all our gabions. You will need 2 helicals to install this gabion.
Corner ties will help prevent the gabion from bulging after it has been filled with rocks. You will require 1 pack of corner ties for this gabion.
Stone separating panels are a cost-effective way to fill gabions. They split the gabion, creating a front compartment to fill with decorative stone and a back compartment to fill with cheaper aggregate. Divide the stone quantity by 2 if you use these.

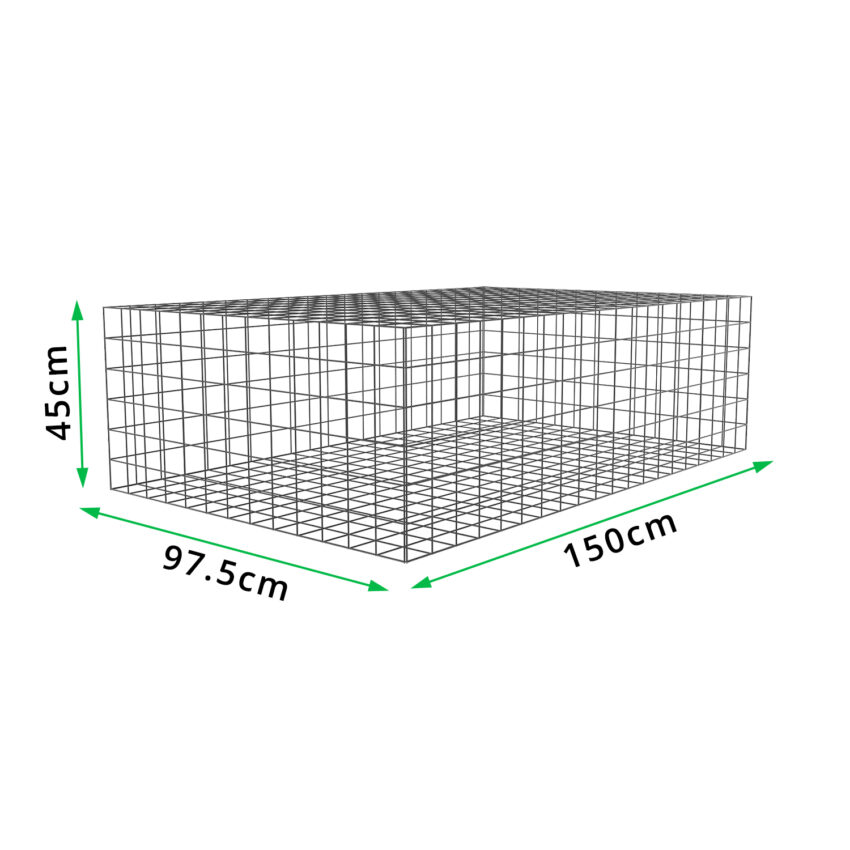

Measurements
| Length | 150cm |
|---|---|
| Depth | 97.5cm |
| Height | 45cm |
| Hole Size (Aperture) | 75mm x 75mm |
| Wire Diameter (Gauge) | 3.2mm (10g) |
Construction
| Material | Galfan coated steel |
|---|---|
| Coating | PVC coated |
| Wire Diameter (Gauge) | 3.2mm (10g) |
| Hole Size (Aperture) | 75mm x 75mm |
| Hole Shape | Square |
| Mesh Construction | Welded |
| Includes Diaphragm | No |
| Clipped Together Using | Stainless steel CL50 clips |
| Weight | 6.82kg |

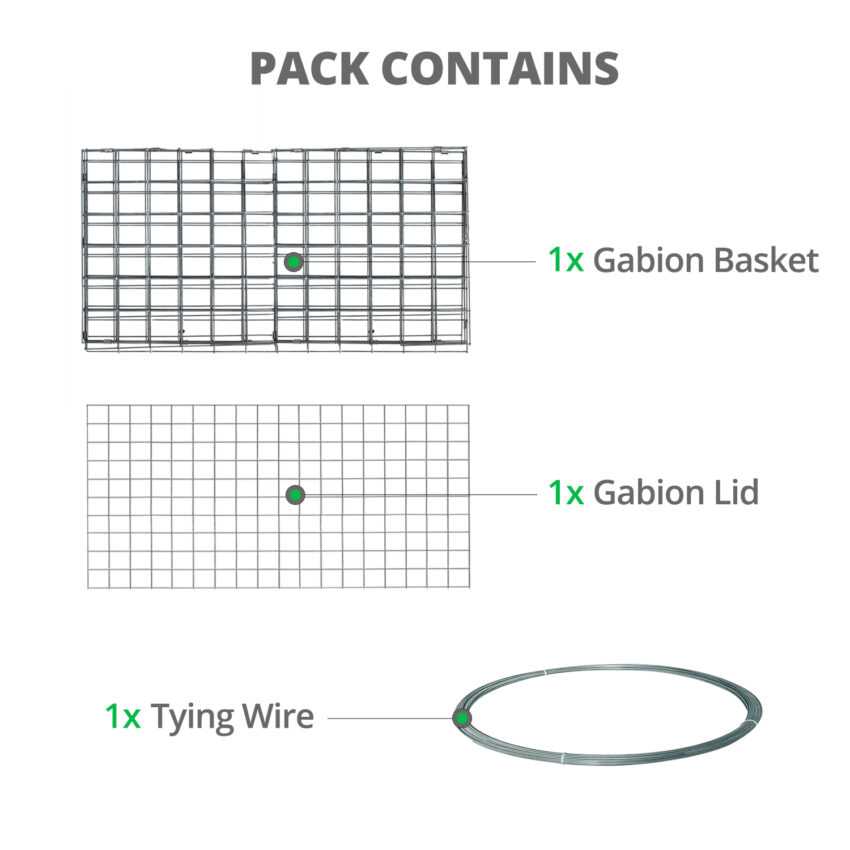

What’s Delivered?
| Gabion Quantity | x1 |
|---|---|
| Lacing Wire Quantity | x1 |
| Helicoil Quantity | Sold separately |
| Backfilling Panel Quantity | Sold separately |
Strength & Environment
| Life Expectancy | including coastal use, Up to 120 years |
|---|---|
| Site Categories | Inland and coastal sites |
| Corrosion Resistance | Yes – conforms to British Standards |
| UV Resistance | Yes – UV-stabilised PVC to BS EN 10245 |
| Can Withstand Salt Water | Yes |
| Weld Strength | 75% of min. wire tensile strength |
| Tensile Strength Range | 540-770 N/mm2 |
| Flexibility Grade | Rigid & hard to bend |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
Manufacturing Standards

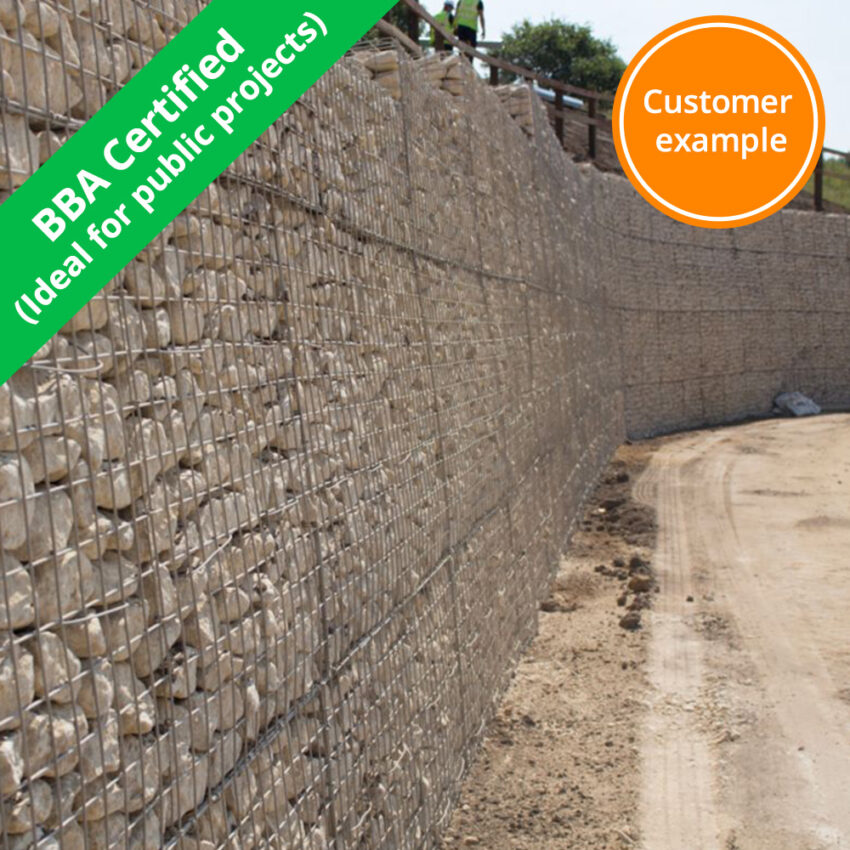

| BBA Certified | Yes – independently tested by the BBA |
|---|---|
| ISO 9001 Facility | Yes – made in an ISO 9001 certified factory |
| Gabion Quality Standard | Yes – meets BS EN 10223-8 (welded mesh gabion products) |
| PVC Coating Standard | Yes – meets BS EN 10245-1 and 10245-2 (PVC coated wire) |
| Accurate Zinc Coating | Yes – meets BS EN 10244-2 (zinc and zinc alloy coatings on steel wire) |
| Wire Tolerances Standard | Yes – meets BS EN 10218-2 (wire dimensions and tolerances) |
Applications
| Can Be Sat On | Not recommended |
|---|---|
| Can Be Walked On | Not recommended |
| Fence | Not recommended |
| Freestanding Wall | Not recommended |
| Planter | Yes |
| Retaining Wall (Up to 5m) | Yes |
| Retaining Wall (Over 5m) | No |
| Public Leisure Areas | No |
| Cladding (Up to 4m) | No |
| Cladding (Over 4m) | No |
| Erosion Control | Yes |
| River Beds | No |
| Sea Defence | Yes |
| Curved Gabion Feature | Yes |
| Water Feature | Yes |
Look & Feel
| Colour | Grey |
|---|---|
| Handle with Gloves | Recommended |
Filling Guidance
| Stone Weight Required | 1190kg |
|---|---|
| Stone Volume Required | 0.66m3 |
| Bags of Granite Required | x2 (510kg leftover) |
| Bags of Limestone Required | x2 (410kg leftover) |
| Rock Size Required | Minimum 80mm x 80mm |
| Can Fill with Rounded Rock? | No |
| Requires Angular Rocks? | Yes |
| Other Filling Materials | Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags |
Installation
| Ease of Installation | Very easy with helicoils or medium difficulty with lacing wire |
|---|---|
| Speed of Installation | Helicoils (2-5 mins) or lacing wire (10-20 mins) |
| Tools Required to Install | Pliers only |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
| Suggested Accessories | Helicoils for connecting corners and corner braces to help prevent bulging |
| Attach to Gabion | Helicoils or lacing wire |
| Prevent Bulging with | Corner braces & backfilling panel |
Delivery Info

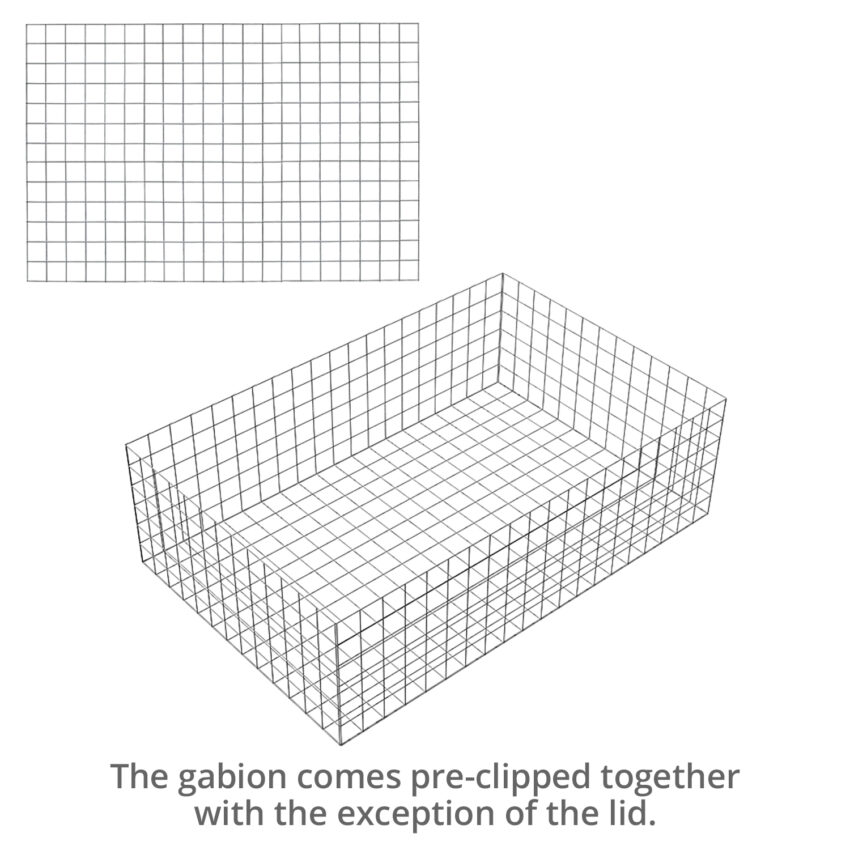

| Delivered As | Flat packed and pre clipped together |
|---|
