Helpful Reinforcement Strut Information

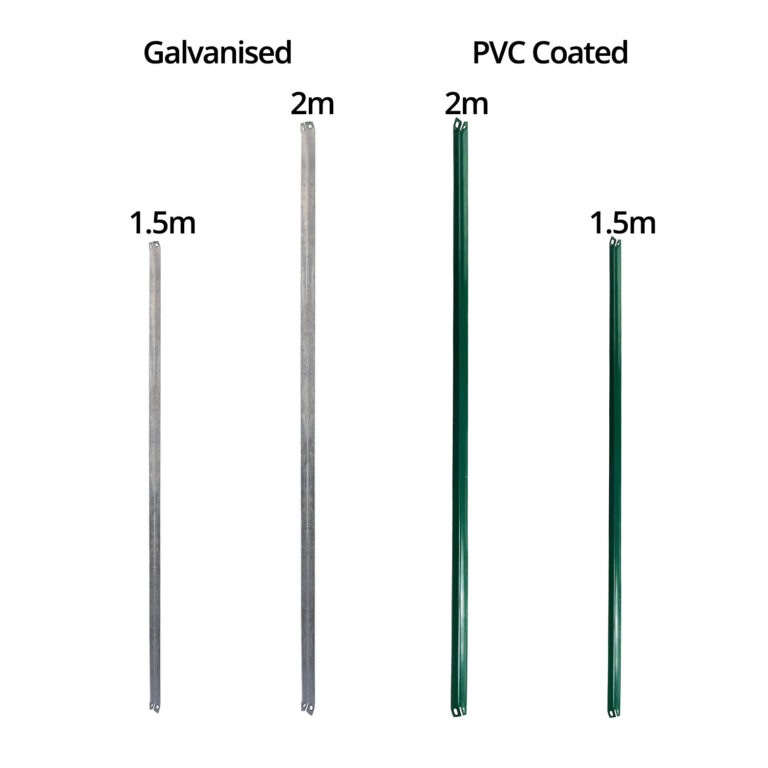

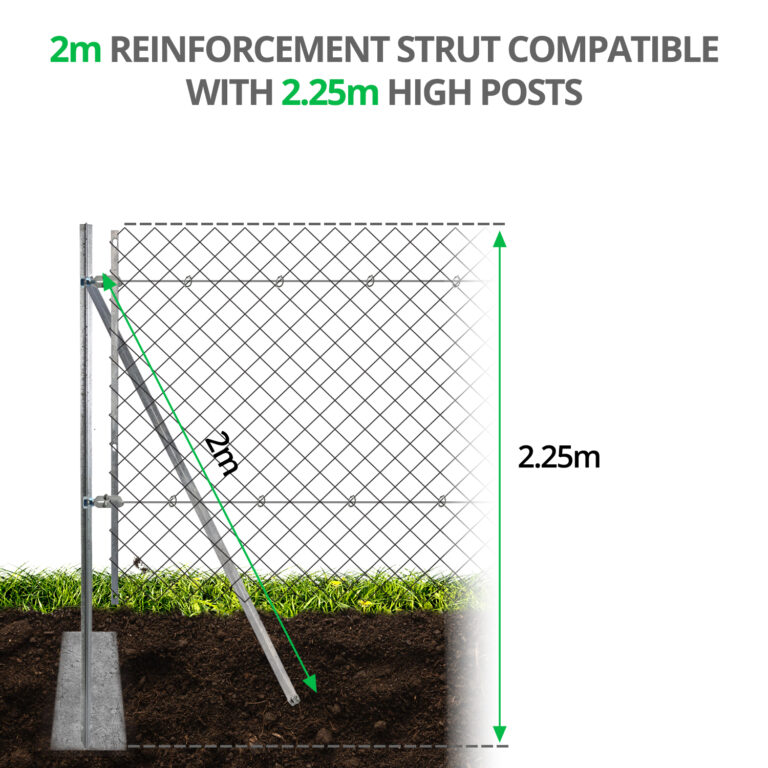

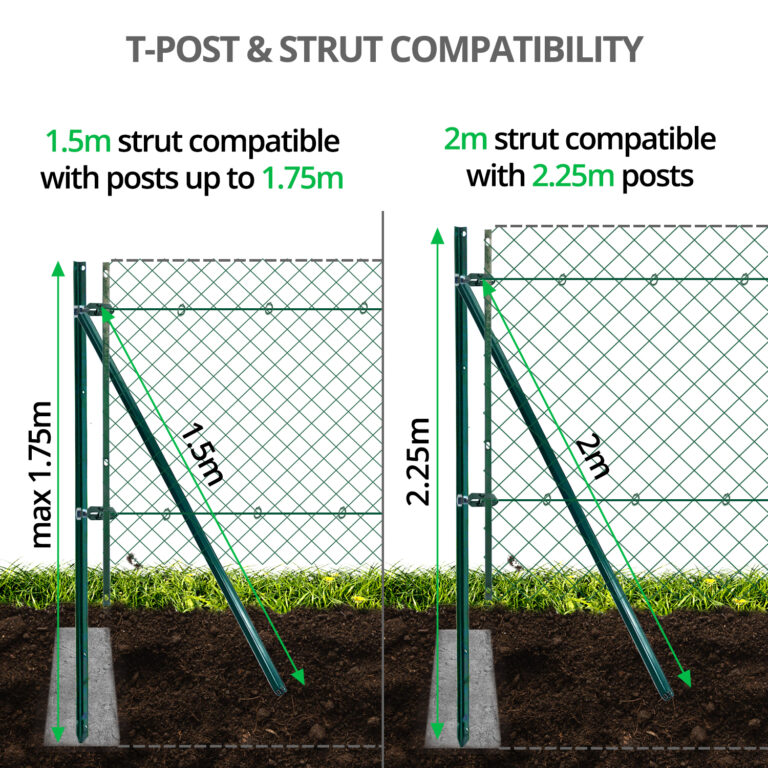

T Post Compatibility
| Fence Height | T Post Height | Strut Height Required |
| 1.8m | 2.25m | 2m |
| 1.5m | 1.75m | 1.5m or 2m |
| 1.2m | 1.5m | 1.5m |
| 90cm | 1.2m | 1.5m |
Is Strut Required?
Struts increase the strength of the fence. They are required for fences that require a lot of tensioning. They are also required if the fence is likely to be tested by animals or humans.
| Fence Type | Is Strut Required? |
| Highly Tensioned Fences |
– Required for end posts, corner posts & Intermediate posts every 25m
|
| Chain Link Fence |
– Required for end posts, corner posts & Intermediate posts every 25m
|
| Stock Fence |
– Required for end posts, corner posts & Intermediate posts every 25m
|
| Barbed Wire Fence |
– Required for end posts, corner posts & Intermediate posts every 25m
|
| Tension Wire Fence |
– Required for end posts, corner posts & Intermediate posts every 25m
|
| Chicken Wire | Not required |
| Welded Wire Mesh (Up to 2mm) | Not required |
| Wire Mesh Panels | Not required |
| Small & Medium Sized Animals | Not required |
| Cattle & Large Animals |
– large animals could push over the fence
|
Installation
| How To | Explanation |

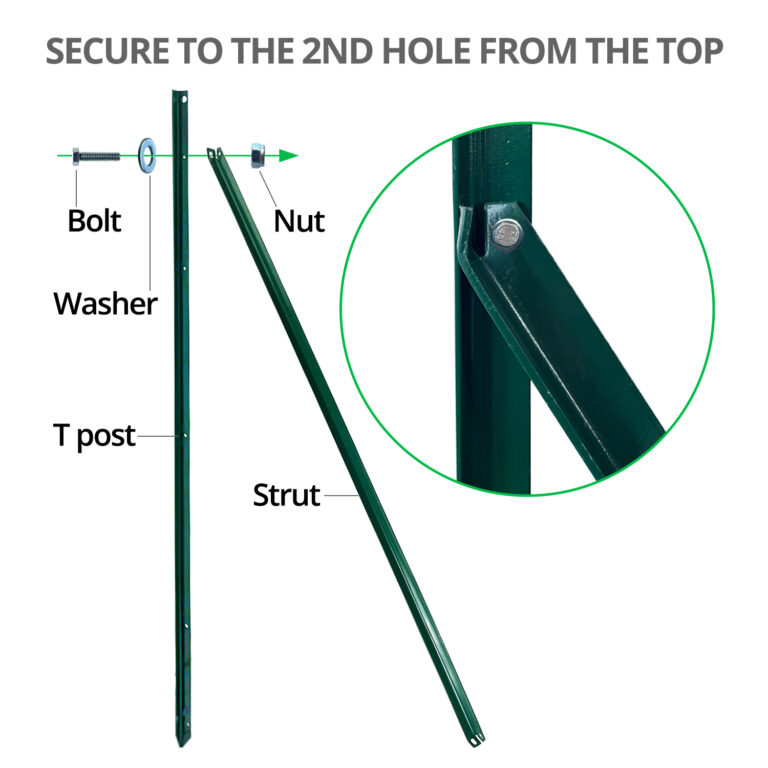

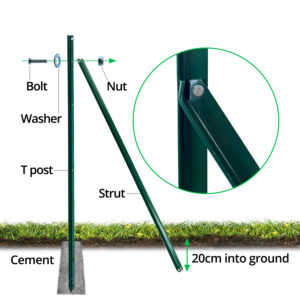

| T Posts
|
Attach the strut to the T Post using M6 bolts and washers. Use the second hole from the top of the T Post. |

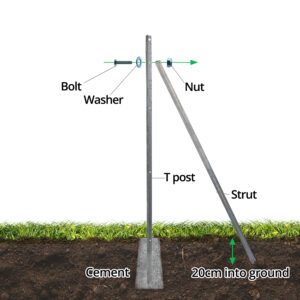

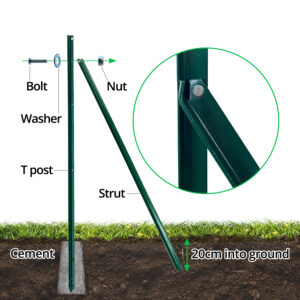

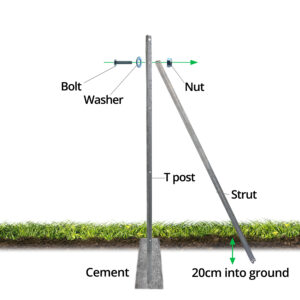

| End Post Installation
|
Attach the strut to the T Post using M6 bolts and washers. Push the strut at least 20cm into the ground
For highly tensioned fences, cement the T Post into the ground to increase its strength |

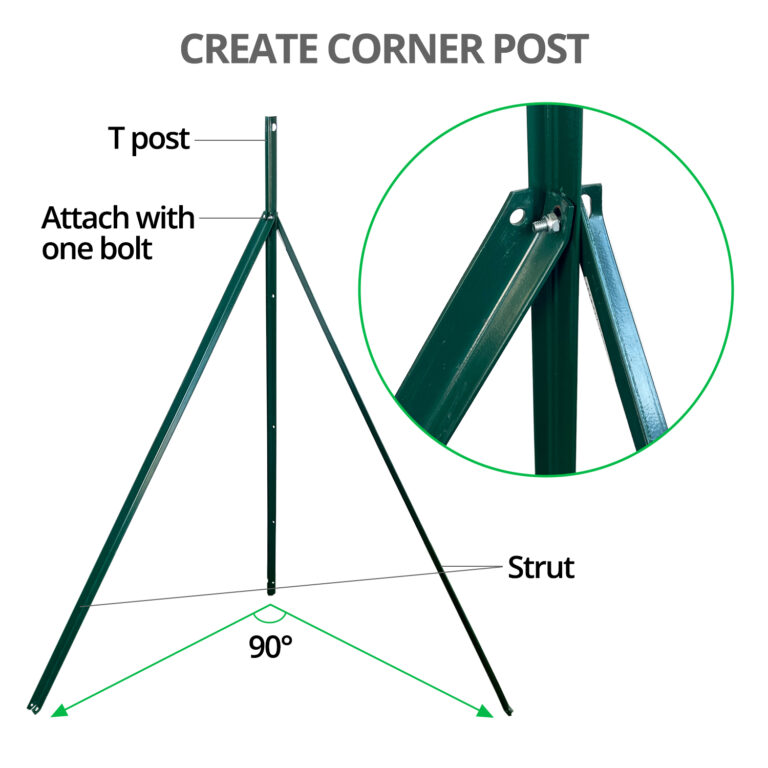

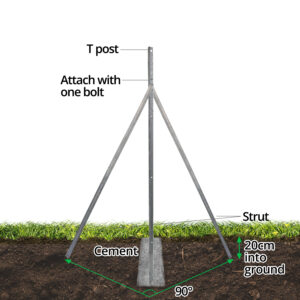

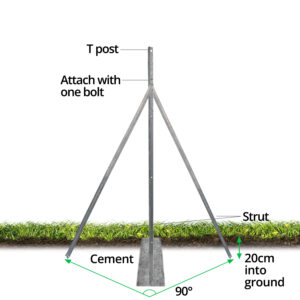

| Corner Post Installation
|
Attach x2 struts to the T Post at a 90-degree angle using M6 bolts and washers. Push the strut at least 20cm into the ground.
For highly tensioned fences, cement the T Post into the ground to increase its strength |

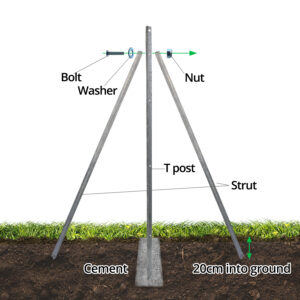

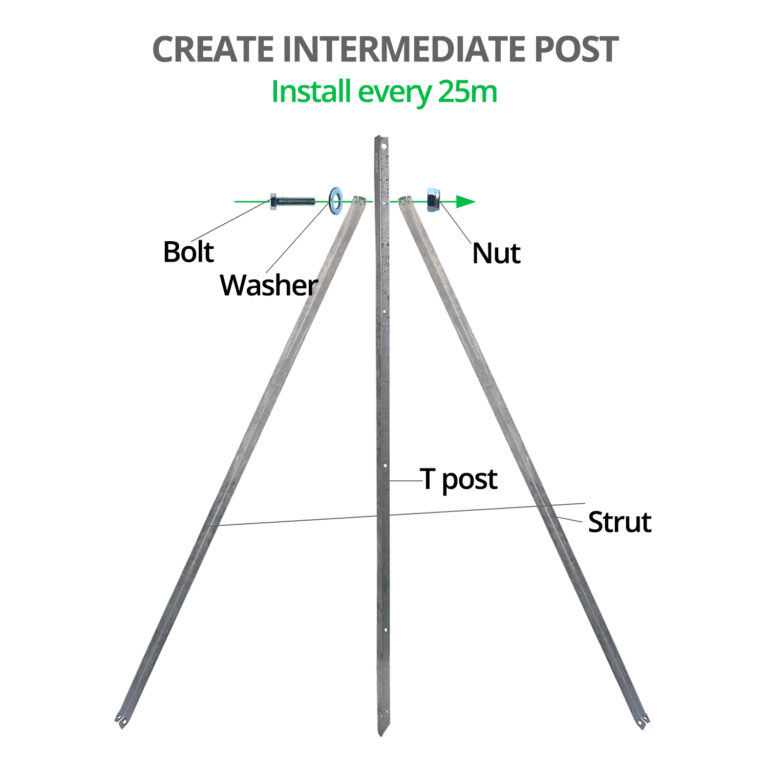

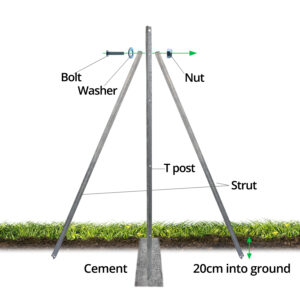

| Intermediate Post Installation
|
Attach x2 struts to the T Post using M6 bolts and washers. Push the strut at least 20cm into the ground
For highly tensioned fences, cement the T Post into the ground to increase its strength |
