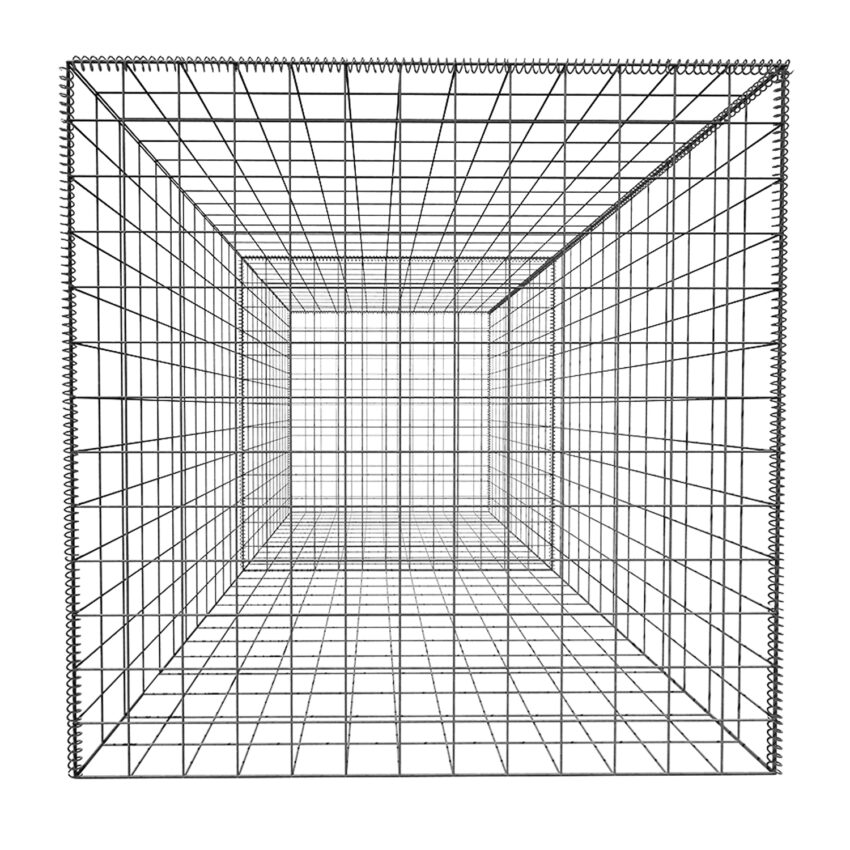

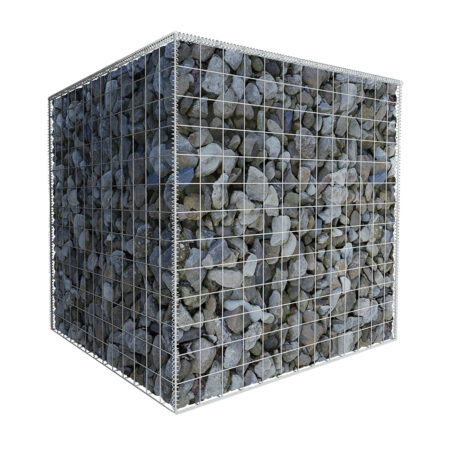

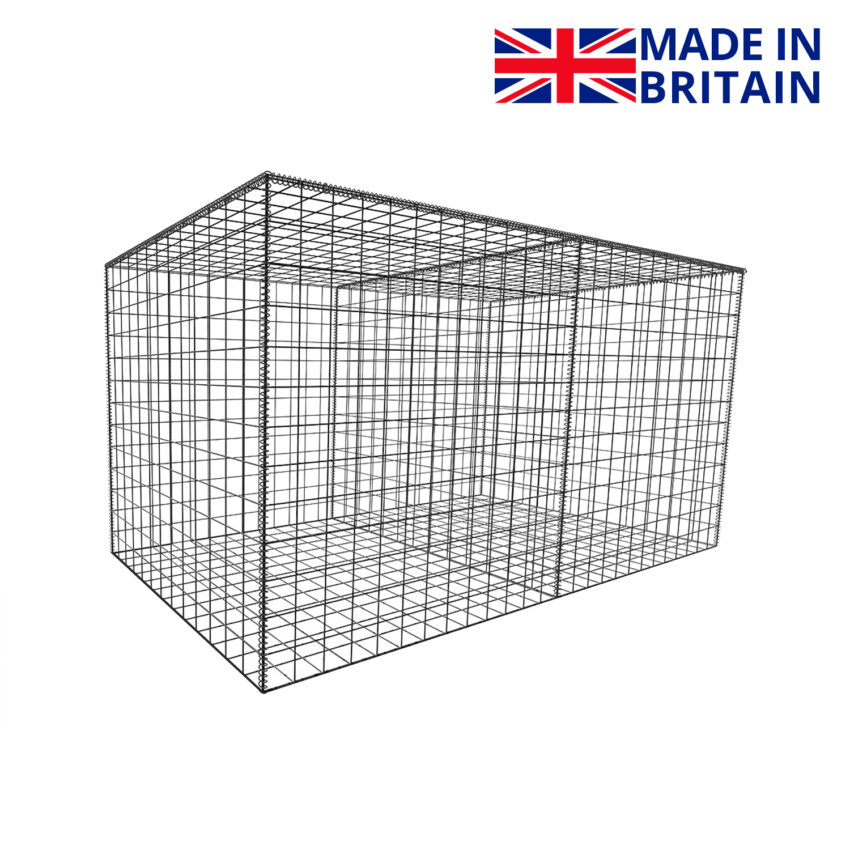

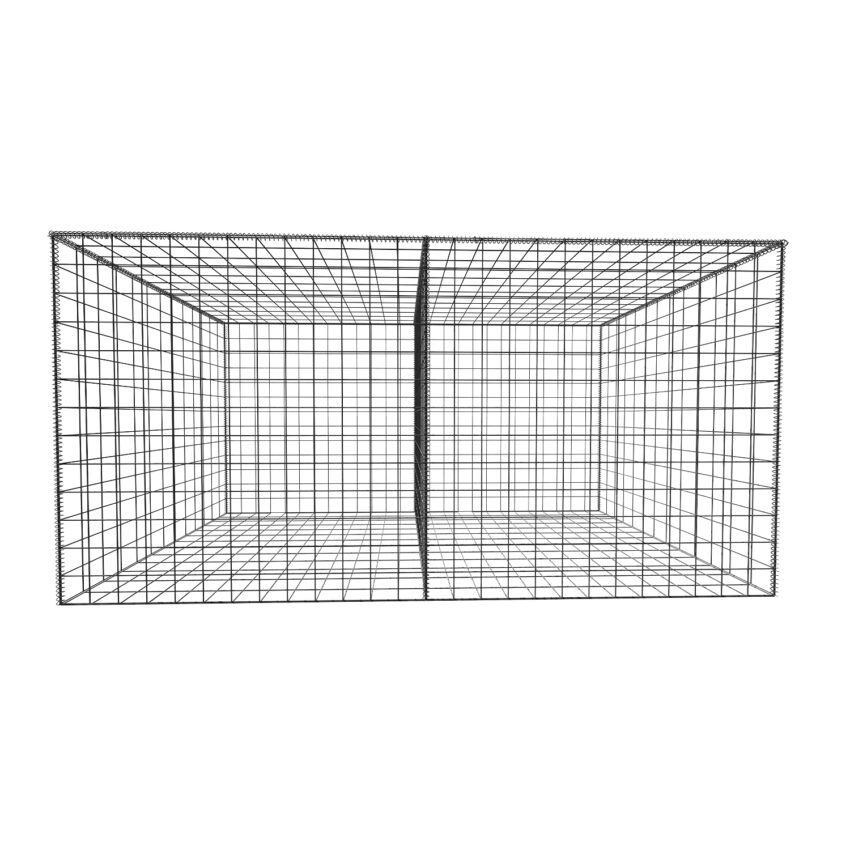

L195cm x D97.5cm x H97.5cm Gabion Wall Kit (4mm dia.)
£151.80 inc. VAT
In StockTitle | Quantity | Price |
---|---|---|
GABION KITS (x2) | 5 - 14 | 3% £147.25 |
GABION KITS (x2) | 15 - 29 | 6% £142.69 |
GABION KITS (x2) | 30 - 49 | 9% £138.14 |
GABION KITS (x2) | 50 - 149 | 15% £129.03 |
GABION KITS (x2) | 150 - 1000 | 18% £124.48 |




SKU: EM.WALL97.5H23
Categories: Gabion Wall Kits (1m Tall), Gabion Wall

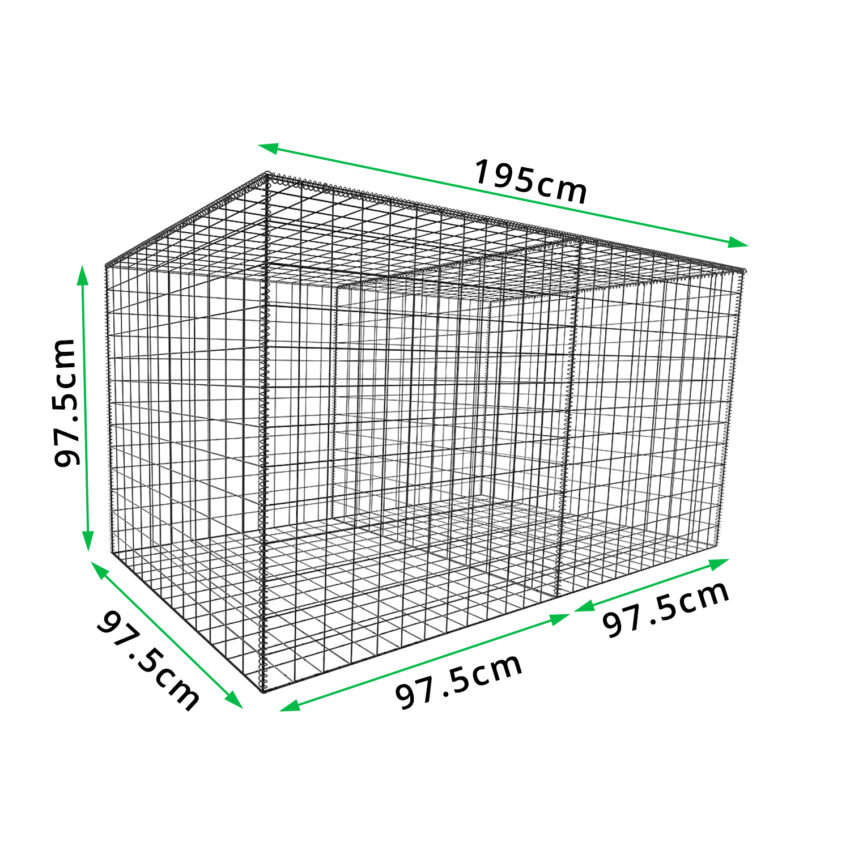

Measurements
Length | L195cm |
---|---|
Depth | 97.5cm |
Height | 97.5cm |
Hole Size (Aperture) | 75mm x 75mm |
Wire Diameter (Gauge) | 4mm (8g) |
Construction
Material | Galfan coated steel |
---|---|
Coating | Galfan coated |
Wire Diameter (Gauge) | 4mm (8g) |
Hole Size (Aperture) | 75mm x 75mm |
Hole Shape | Square |
Mesh Construction | Welded |
Includes Diaphragm | No |
Strength & Environment
Life Expectancy | 50-100 years |
---|---|
Site Categories | C2 to C5 |
Corrosion Resistance | Yes – conforms to British Standards |
UV Resistance | Yes – conforms to British Standards |
Can Withstand Salt Water | No |
Weld Strength | 75% of min. wire tensile strength |
Tensile Strength Range | 540-770 N/mm2 |
Flexibility Grade | Very rigid & cannot bend by hand |
How to Cut | Bolt cutters, hacksaw or angle grinder |
Manufacturing Standards
Manufactured in | UK |
---|
Look & Feel
Colour | Grey |
---|---|
Handle with Gloves | Recommended |
Installation
How to Cut | Bolt cutters, hacksaw or angle grinder |
---|
Downloadable PDFs
