Gabion Panels
Pre-cut stone separating panels to fit the gabions on this website.

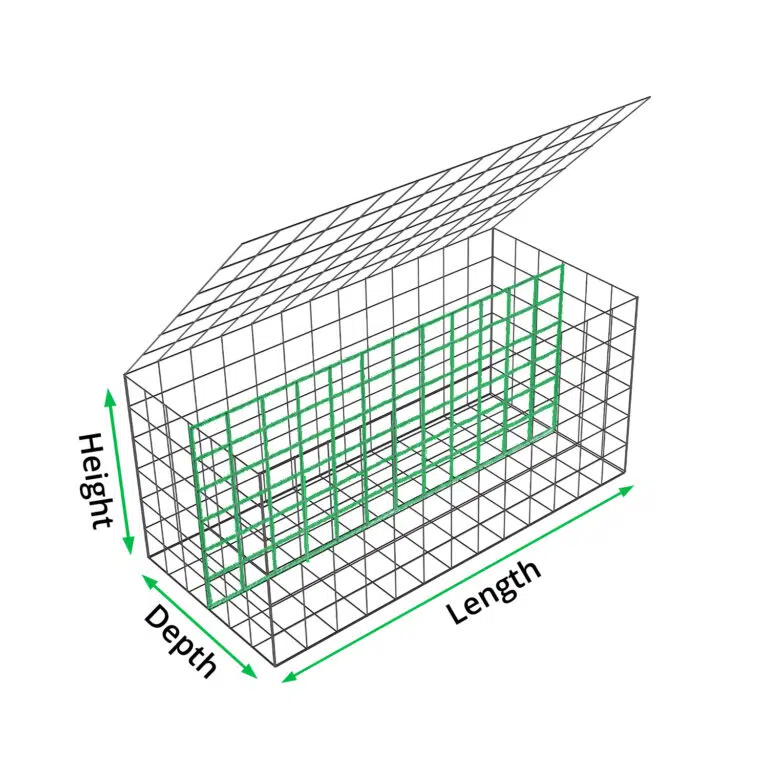

To select the correct size panel simply select the length and height of the gabion that you intend to purchase from the table below.
- Manufactured in the UK, to BS EN standards.
- Available in galfan and PVC coated
- Starting from £2.99
Scroll for more details
Helpful Gabion Panel Information
Videos
| What’s Included? | Play Video |
| This video explains the benefits of using stone separating panels | |
| This video shows you how to install a gabion panel | |
| This video shows you the strength difference between 3mm, 4mm and 5mm galfan panels | |
| This video shows the strength difference between 3.2mm and 4.3mm PVC coated panels | |
| This video shows you how to use cheap material to fill your gabion without gabion panels | |
| This video shows the tools that you can use to cut the panels |
How to Fill & Save Money
| Diagram | Explanation |
 |
Partitions are a way to backfill gabion baskets while saving money on the decorative stone.
These panels separate the cage in two so you can fill the back with cheaper material (make sure it can drain water and is 80mm+). PRO
|
Which Wire Thickness?
| Wire Diameter | Use For: |
| 3mm | If you are intending to use the gabion panels as an internal support panel (diaphragm) or stone separating panel 3mm is adequate for all jobs. |
| 4mm | If you are intending to make your own gabion |
| 5mm | If you are intending to make your own gabion |
Recommended applications & uses
| Panels | |||
| 3mm Wire Diameter | 4mm Wire Diameter | 5mm Wire Diameter | |
| Gabion diaphragm i | |||
| Stone separating partition | |||
| Make your own Gabion | |||
| Furniture: can be walked on | |||
| Furniture: can be sat on | |||
| Fences: tall / thin structures | |||
| Freestanding wall | |||
| Planters | |||
| Landscaping: no bulges when filled with rocks | |||
| Retaining walls (up to 5m) | |||
| Retaining walls (5m and over) | |||
| Public leisure areas | |||
| Cladding (up to 4m) | |||
| Cladding (over 4m) | |||
| Erosion control | |||
| General | |||
| Delivered as | Flat packed in small to large truck depending on order quantity | ||
| Can wires be cut | Yes – with a good wire cutter | ||
| Made in UK | Yes | ||
| Conforms to British manufacturing standard | BS EN 10223-8:2013 | ||
| Certificate of conformity | Yes – upon request | ||
| Construction | |||
| Mesh Hole Size | 75mm x 75mm | 75mm x 75mm | 75mm x 75mm |
| Mesh Material | Galfan coated steel | Galfan coated steel | Galfan coated steel |
| Mesh Construction | Welded | Welded | Welded |
| Strength and environment | |||
| Tensile strength range | 540-770 N/mm² | 540-770 N/mm² | 540-770 N/mm² |
| Corrosion resistance | Yes, conforms to British standard BS EN 10244-2:2009 | ||
| Abrasion resistance | Conforms to EN 60229:2008 | ||
| Life Expectancy | 50 – 100 years | 50 – 100 years | 50 – 100 years |
| Suited to Environments | C2 – C4 | C2 – C4 | C2 – C4 |
| How to Fill & Save Money | |||
|
Partitions are a cheap way to backfill cages.
The partition creates a separate compartment at the back of the cage. This compartment can be filled with cheaper material as long as it is 80mm+ and can drain water PRO
|
||
