Geotextile

ISO certified geotextile suited to lining the back of gabion walls. Prevents clogging up of earth whilst allowing water to pass through

Scroll for more details

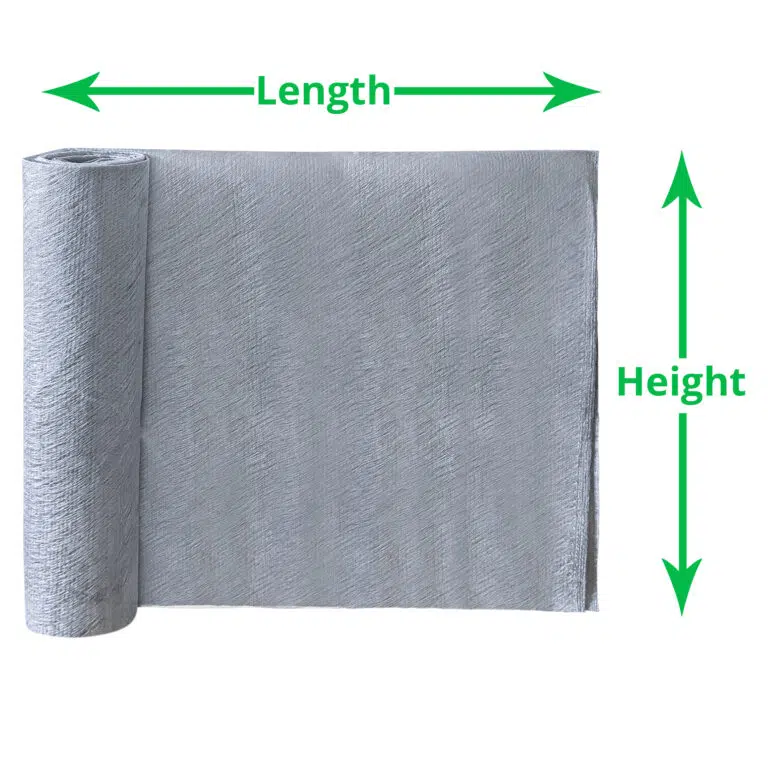

Name	Material	Height	Length	Price	Add to Cart

5m x 4.5m Polypropylene Geotextile	Polypropylene geotextile	4.5m (14.7 ft)	5m (16.4ft)	£18.99 inc. VAT	Add to cart
10m x 4.5m Polypropylene Geotextile	Polypropylene geotextile	4.5m (14.7 ft)	10m (32.8ft)	£36.99 inc. VAT	Add to cart
15m x 4.5m Polypropylene Geotextile	Polypropylene geotextile	4.5m (14.7 ft)	15m (49.2ft)	£56.99 inc. VAT	Add to cart
20m x 4.5m Polypropylene Geotextile	Polypropylene geotextile	4.5m (14.7 ft)	20m (65.6ft)	£83.99 inc. VAT	Add to cart

Manufacturing Standards

Properties	ISO Standard	Unit	Value
Tensile Strength (MD)	EN ISO 10319	kN/m	8.00
Tensile Strength (CMD)	EN ISO 10319	kN/m	8.00
Elongation at max. load (MD)	EN ISO 10319	%	90
Elongation at max. load (CMD)	EN ISO 10319	%	65
Puncture resistance (CBR)	EN ISO 102236	N	1500
Dynamic puncture resistance (cone drop hole – Ø)	EN ISO 13433	mm	26
Water permeability vertical (ViH50)	EN ISO 11058	I/m²s	130
Opening Size	EN ISO 11058	mm	0.12
Thickness	EN ISO 9863-1	mm	0.8
Mass	EN ISO 9864	g/m2	105

Diagram

Explanation

Simply lay the geotextile onto the back of the gabion then cover with earth.

Use rocks to hold the geotextile in place whilst backfilling.

Diagram

Explanation

Geotextile will prevent clogging and allow water to get through a gabion wall.

This will ensure pressure building up and maintain a safer wall installation.
