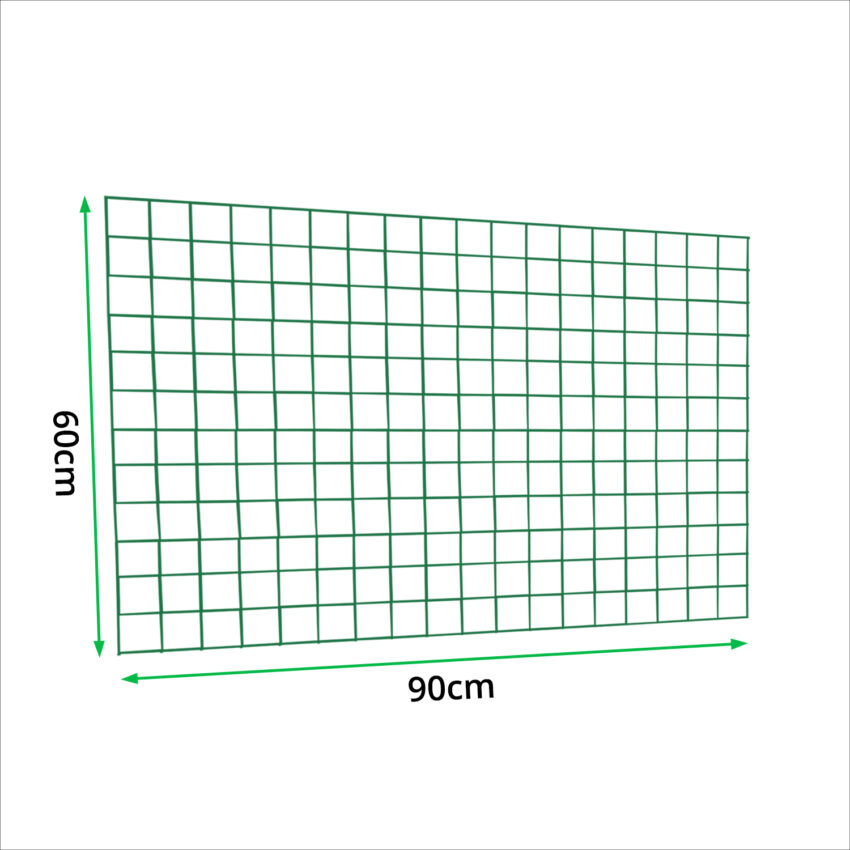

Measurements
Length

90cm (3ft)

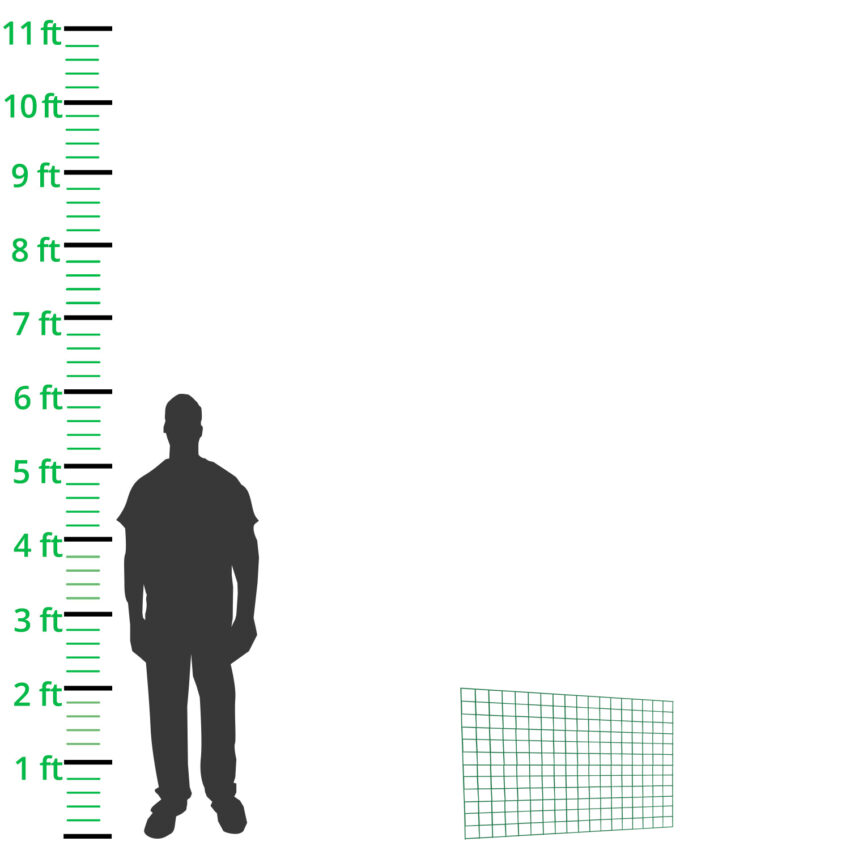

Height

60cm (2ft)

Hole Size (Aperture)

50mm x 50mm

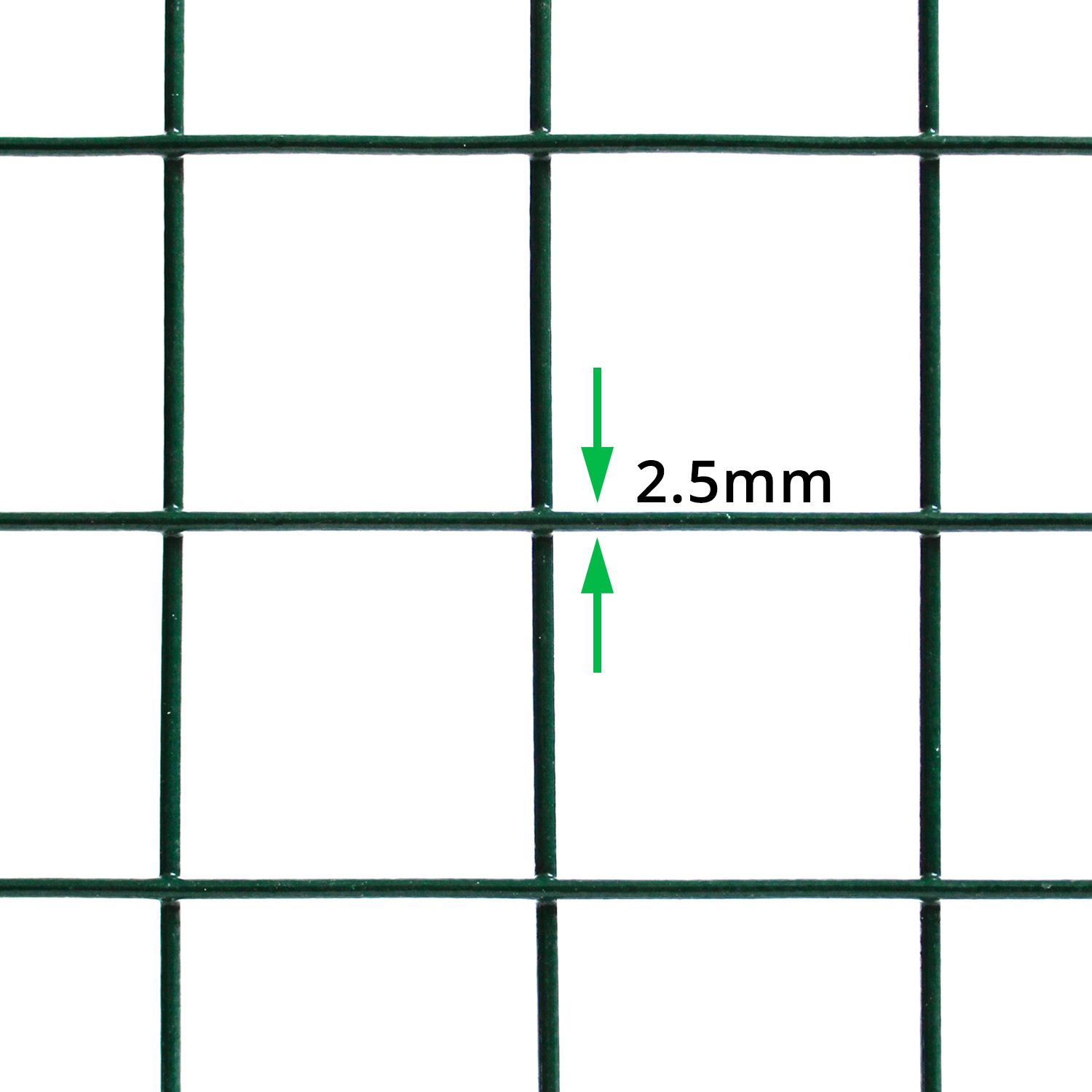

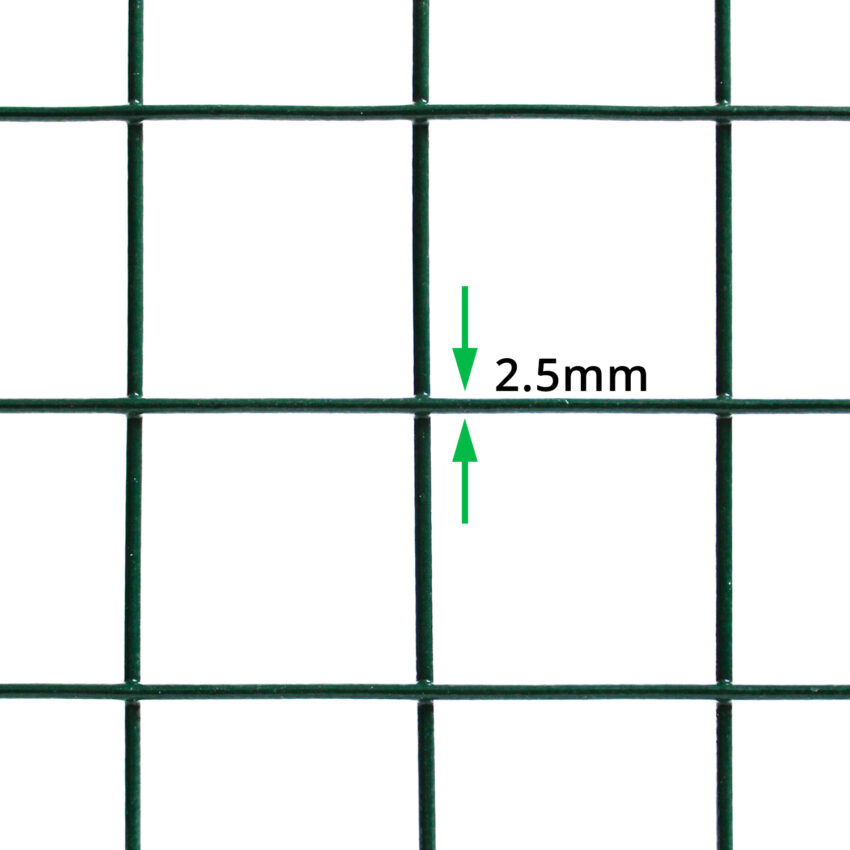

Wire Diameter (Gauge)

2mm (12g) – 2.5mm incl. PVC

Construction
Material

Galvanised steel

Coating

PVC coated

Wire Diameter (Gauge)

2mm (12g) – 2.5mm incl. PVC

Hole Size (Aperture)

50mm x 50mm

Hole Shape

Square

Mesh Construction

Welded

Product Form

Panel

Open Area %

92.46

Mesh Count

0.5

Weight

3kg (0.6kg each)

Strength & Environment
Corrosion Resistance

Yes

UV Resistance

Yes

Can Withstand Salt Water

No

Suited to Indoor

Yes

Tensile Strength Range

450-550 N/mm2

Flexibility Grade

Bends with force

How to Cut

Wire cutters

Manufacturing Standards
PVC Coating Standard

Yes – exceeds BS EN 10245-2:2011

Wire Tolerances Standard

Yes – conforms to BS EN 10218-2:2012

Hole Size (Aperture) Standard

Yes – conforms to BS EN 10218-2:2012

Accurate Zinc Coating

Yes – conforms to BS EN 10244-2:2009

Zinc Quality Standard

Yes – conforms to BS EN 1179:2003

Wire Diameters Standard

Yes – conforms to BS EN 10218-2:2012

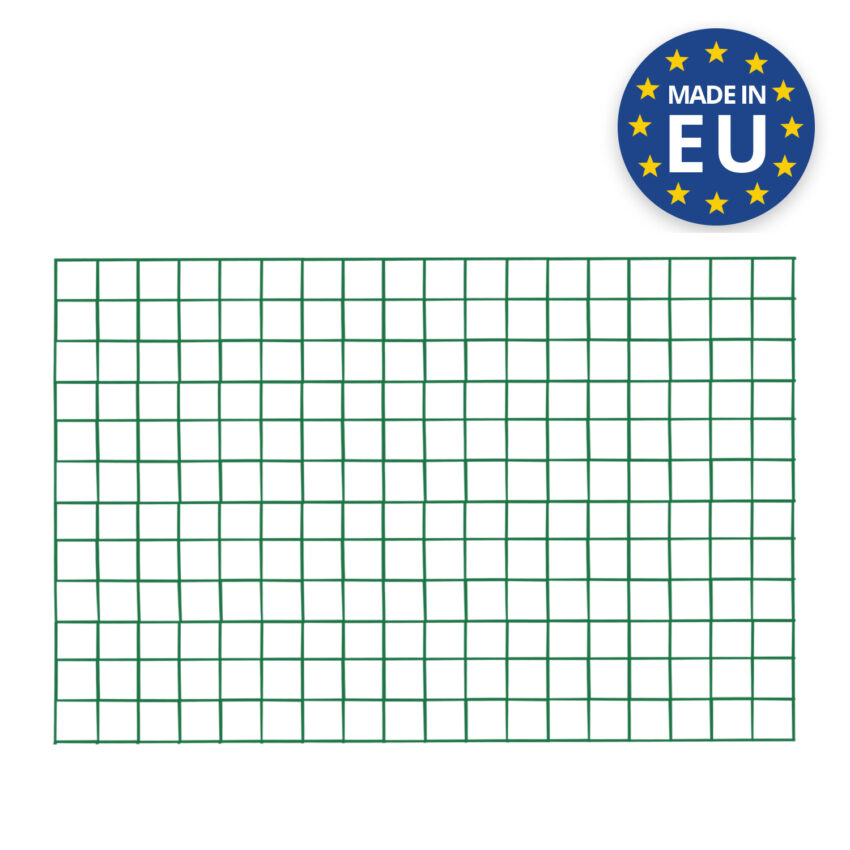

Manufactured in

Europe

Look & Feel
Colour

Green (RAL6005)

Handle with Gloves

Not required

Fence Installation
Ease of Fence Installation

Easy

Speed of Fence Installation

Quick

Tools Required to Install

No tools required

Accessories Required

cable ties or hog rings, Posts

Experience Required

Low

People Required to Install

x1

Downloadable Instructions

Yes – download PDF

Post Spacing

Same length as the panel

Install with T Posts

Yes

Install with Wood Posts

Yes

Install with Metal Posts

Yes

Install with Concrete Posts

Yes

Attach to Wood

U staples

Attach to Concrete

Eye bolts & tension wire

Attach to Mesh

Cable ties

Attach to Soil

Ground pegs

Requires Tension Line

No – won't sag

How to Cut

Wire cutters
