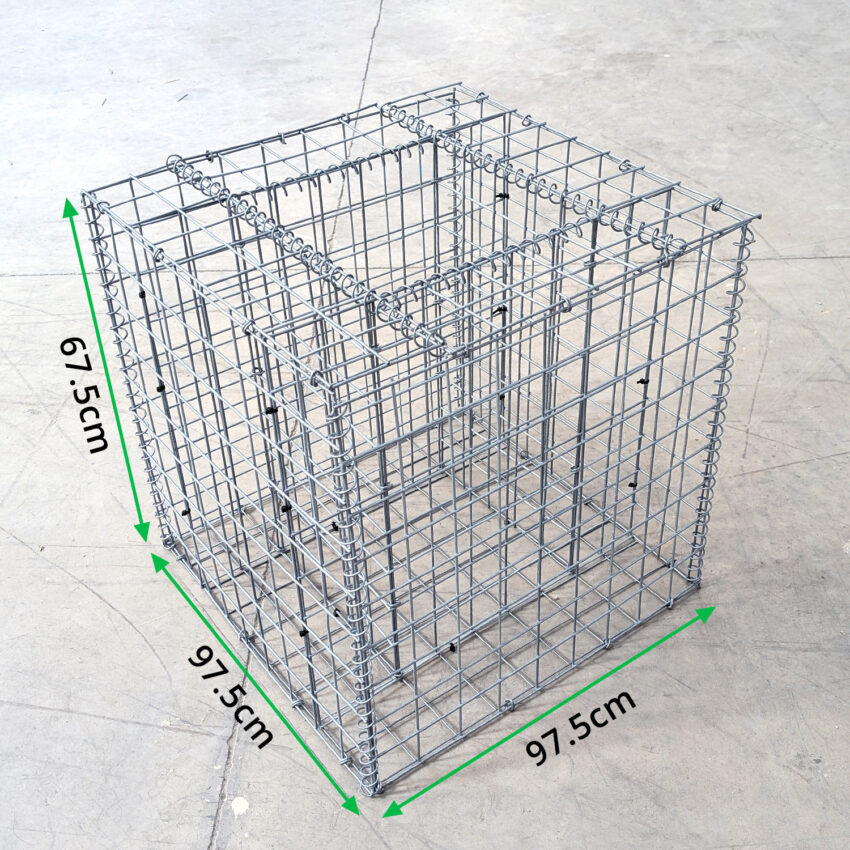

H67.5cm x D97.5cm x L97.5cm Gabion Planter Kit (4mm dia.)
£111.99 inc. VAT
In Stock| Quantity | Price |
|---|---|
| 10 - 29 | £108.63 |
| 30 - 59 | £105.27 |
| 60 - 99 | £101.91 |
| 100 - 299 | £95.19 |
| 300 - 10000 | £91.83 |
4 WORKING DAY DELIVERY available for this product
FLAT FEE DELIVERY cost starting at £24.99
UK MANUFACTURED conform to BS EN standards
PAY BY INVOICE available for trade customers
Measurements
| Length | 97.5cm |
|---|---|
| Depth | 97.5cm |
| Height | 67.5cm |
| Hole Size (Aperture) | 75mm x 75mm |
| Wire Diameter (Gauge) | 4mm (8g) |
Construction
| Material | Galfan coated steel |
|---|---|
| Coating | Galfan coated |
| Wire Diameter (Gauge) | 4mm (8g) |
| Hole Size (Aperture) | 75mm x 75mm |
| Hole Shape | Square |
| Mesh Construction | Welded |
| Clipped Together Using | Galfan coated steel C clips |
| Weight | 20kg |
What’s Delivered?
| Item Quantity | x10 |
|---|---|
| Planter Quantity | x1 inner and x1 outer compartment |
| Helical Quantity | x7 |
| Cable Tie Quantity | Pack of 20 |
Strength & Environment
| Life Expectancy | 50-100 years |
|---|---|
| Site Categories | C2 to C4 |
| Corrosion Resistance | Yes – conforms to British Standards |
| UV Resistance | Yes – conforms to British Standards |
| Can Withstand Salt Water | No |
| Weld Strength | 75% of min. wire tensile strength |
| Tensile Strength Range | 540-770 N/mm2 |
| Flexibility Grade | Very rigid & cannot bend by hand |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
Manufacturing Standards
| BBA Certified | Yes – BBA certificate number: 05/4215 |
|---|---|
| Gabion Quality Standard | Yes – conforms to BS EN 10223-8:2413 |
| Accurate Zinc Coating | Yes – conforms to BS EN 10244-2:2009 |
| Wire Tolerances Standard | Yes – conforms to BS EN 10218-2:2012 |
| Hole Size (Aperture) Standard | Yes – conforms to BS EN 10218-2:2012 |
| Corrosion Resistance Standard | Yes – conforms to BS EN 10244-2:2009 |
Applications
| Can Be Sat On | Yes |
|---|---|
| Can Be Walked On | Yes |
| Freestanding Wall | Yes |
| Planter | Yes |
| Public Leisure Areas | No |
Look & Feel
| Colour | Grey |
|---|---|
| Handle with Gloves | Recommended |
Filling Guidance
| Stone Weight Required | 600kg |
|---|---|
| Stone Volume Required | 0.3m3 |
| Bags of Granite Required | x1 (250kg leftover) |
| Bags of Limestone Required | x1 (200kg leftover) |
| Rock Size Required | Minimum 80mm x 80mm |
| Can Fill with Rounded Rock? | Yes |
| Requires Angular Rocks? | No |
| Other Filling Materials | Any material over 80mm x 80mm such as logs, bags of soil, bricks, plastic bottles., rubble bags |
Installation
| Ease of Installation | Very easy |
|---|---|
| Speed of Installation | 5-10min |
| Tools Required to Install | Pliers only |
| Downloadable Instructions | Yes – downloadable PDF & video |
| Attach to Wood | U staples |
| How to Cut | Bolt cutters, hacksaw or angle grinder |
| Attach to Gabion | Helical or tying wire |
Delivery Info
| Delivered As | Flat packed and pre clipped together |
|---|
