Case Study: Terraced Gabion Retaining Wall

• Project: Terraced Gabion Retaining Wall System
• Construction: 2022

Case Study Summary

This project showcases how terraced gabion retaining walls can be used to support changes in ground level within a residential development. The gabion walls retain the landscaped areas surrounding the apartment building while also supporting the earth beneath the adjacent parking area. Built as a series of mass gravity retaining walls, with sections constructed at a 6-degree incline to provide additional stability.

“This is a great example of how gabion retaining walls can solve challenging level changes without the need for traditional concrete walls. I particularly like how the built-in steps have been incorporated into the design.”

Erno, Sales Support Specialist at Wire Fence

Final Result

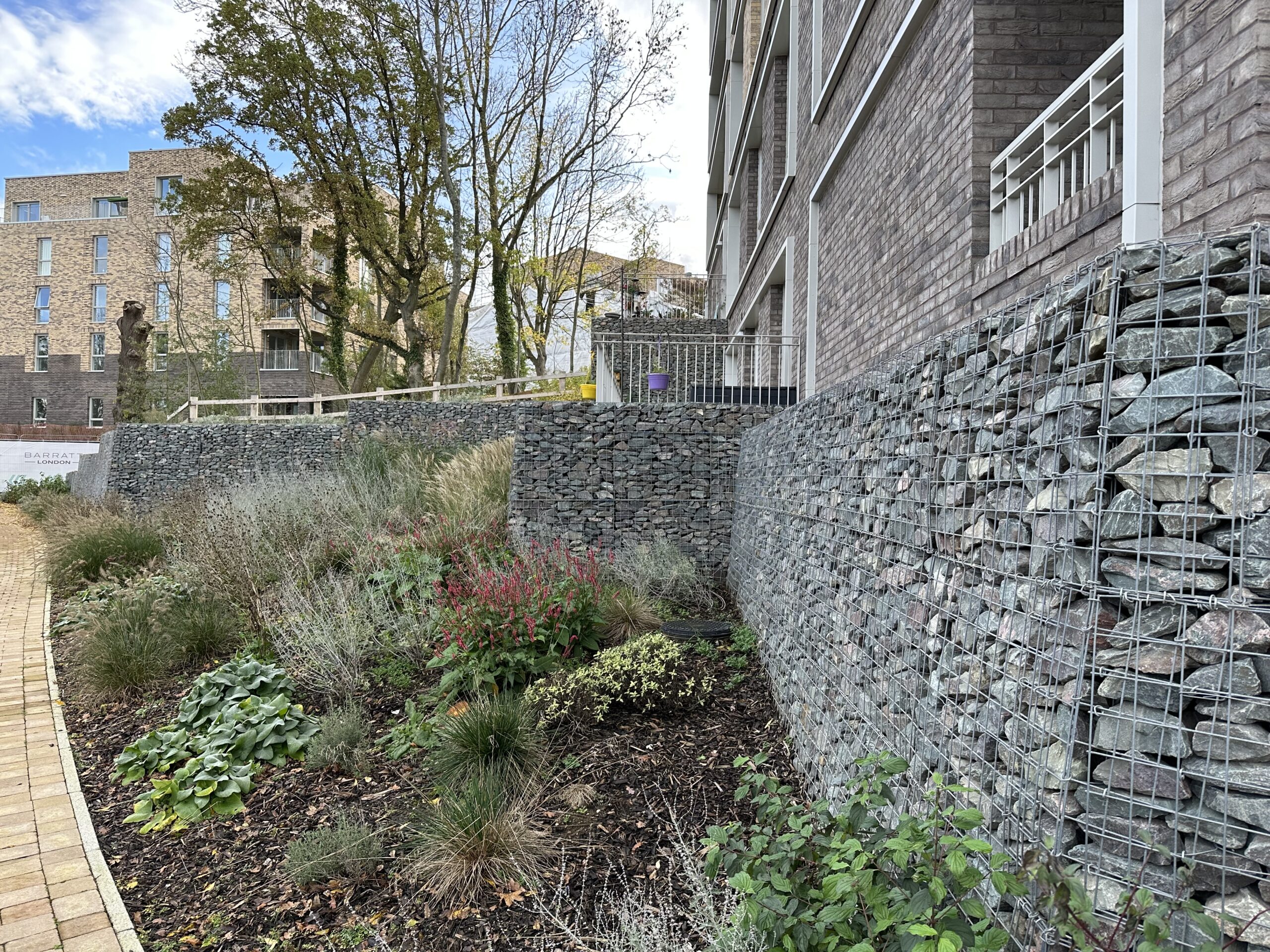

The completed retaining wall system provides long-term support for both the landscaped areas and the parking area while making the sloping site fully accessible.

Products Used

• Custom size gabions
  • L97.5cm x D97.5cm x H52.5cm (Dia: 4mm)
  • L67.5cm x D22.5cm x H67.5cm (Dia: 4mm)
  • L45cm x D97.5cm x H60cm (Dia: 4mm)
  • L45cm x D97.5cm x H45cm (Dia: 4mm)
• L97.5cm x D97.5cm x H97.5cm Gabion Basket (Dia: 4mm)
• Granite stones
